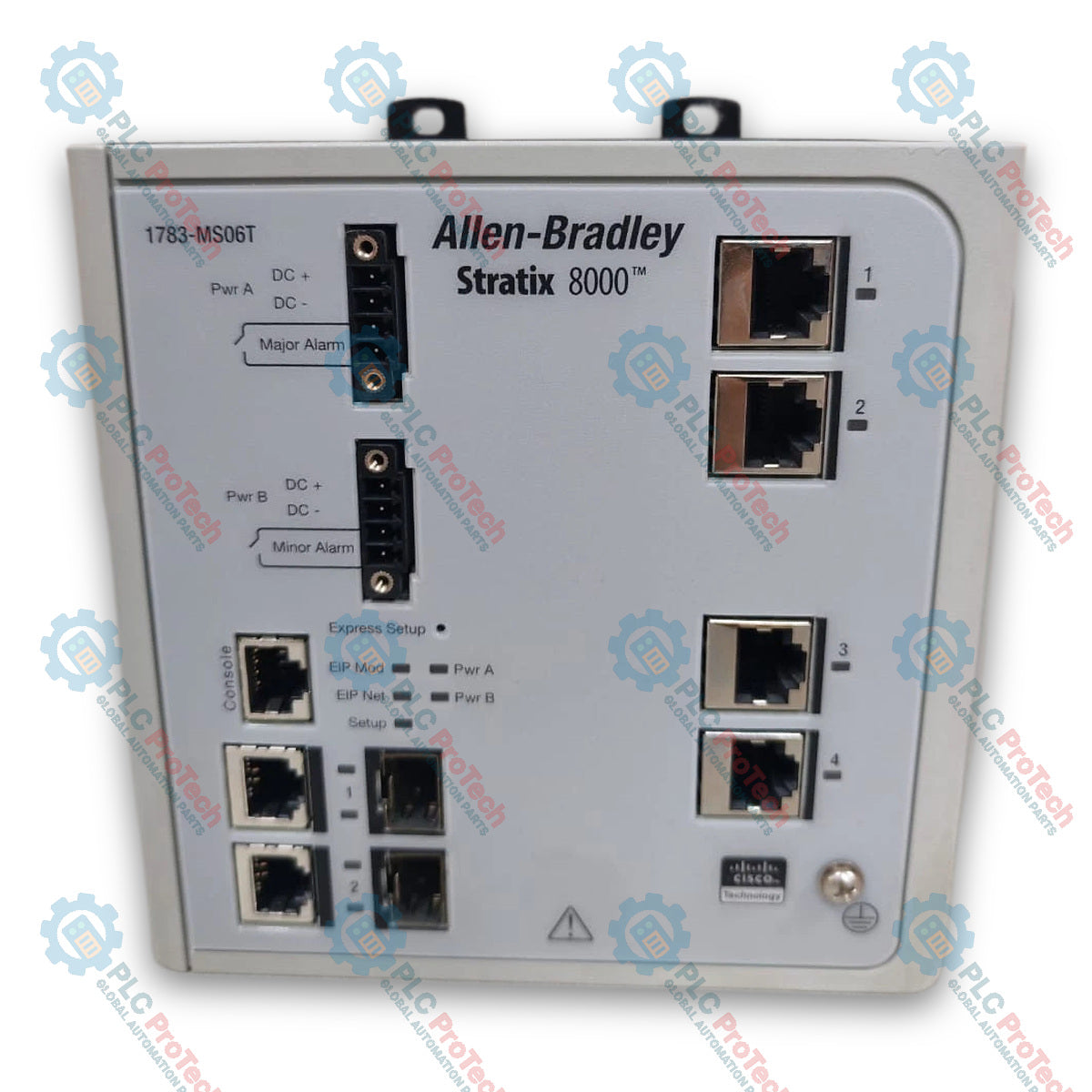

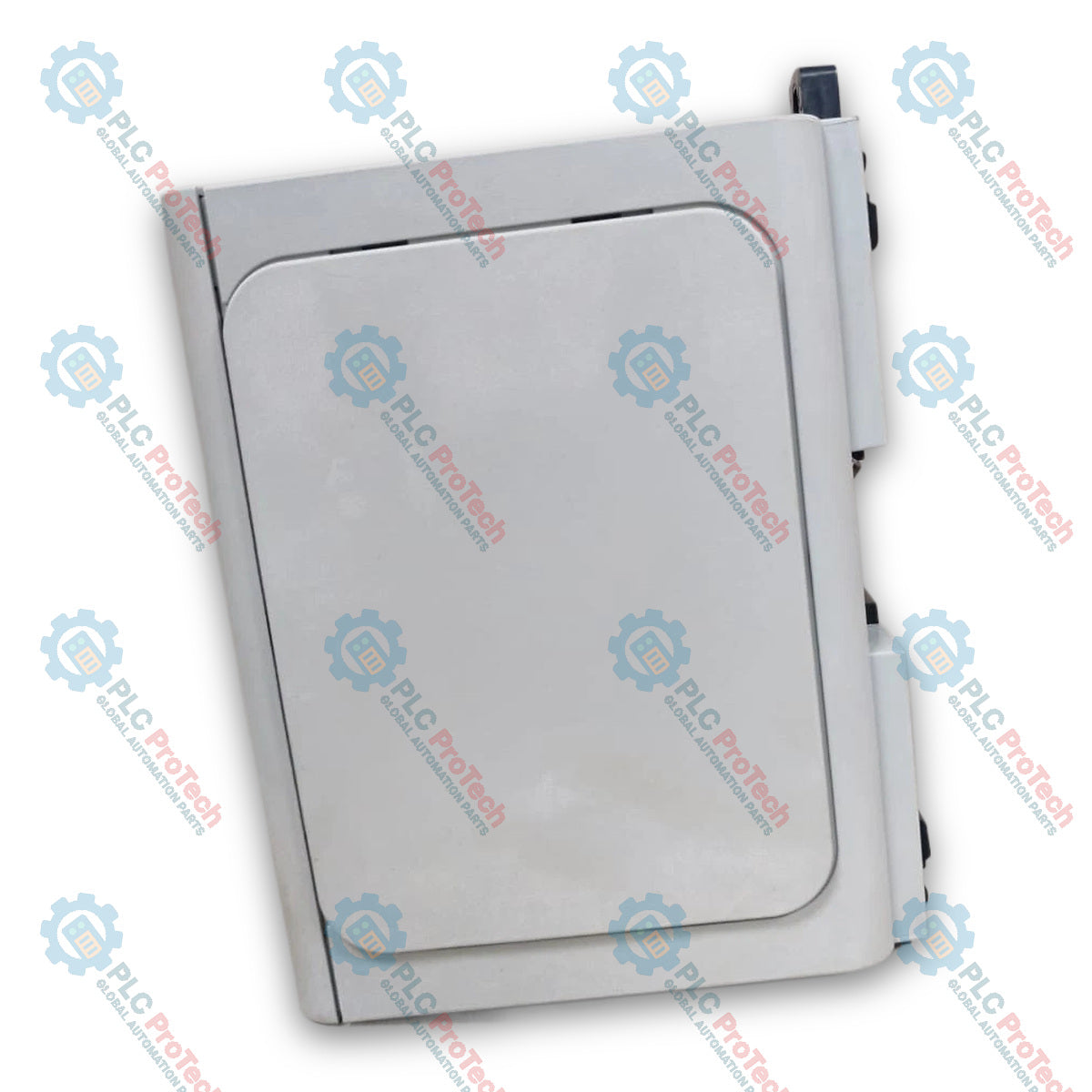

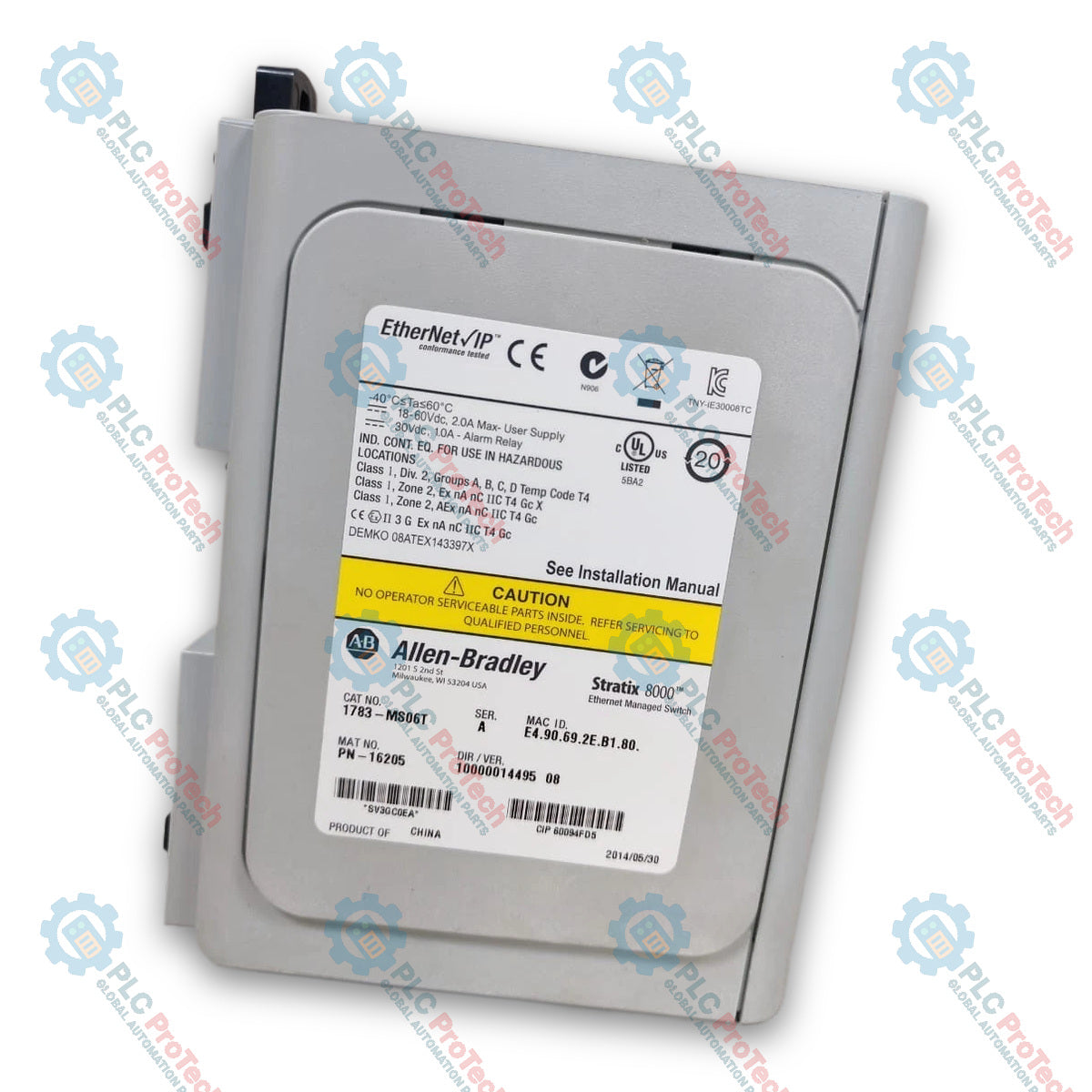

The Allen-Bradley 1783-MS06T is a Stratix 8000 Layer 2 6-port managed Ethernet switch engineered for industrial networking applications. The 1783-MS06T switch provides secure, high-performance connectivity within plant-floor environments and industrial control networks.
Designed with an open-style enclosure, the device supports DC power inputs ranging from 18 to 60V DC (Class 2/SELV) with a maximum input rating of 2 A and maximum power dissipation of 15.7 W. It features RJ45 Ethernet connectors compliant with IEC 60603-7, supporting Category 5e minimum or Category 5 cabling. The module also provides basic isolation rated at 75V continuous between power and ground, power to network channels, and power to alarm ports.
| Category | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1783-MS06T |
| Switch Type | Stratix 8000 Managed Switch, Layer 2 (6 ports) |
| Switch Input Rating | 2 A max @ 18...60V DC, Class 2/SELV |
| Inrush Current | 2.0 A max |
| Power Dissipation | 15.7 W |
| Alarm Relay Rating | 1 A max @ 30V DC, Class 2/SELV |
| Isolation Voltage | 75V (continuous), basic insulation type (power to ground, power to network channels, power to alarm); Type tested at 1000V AC for 60 s |
| Ethernet Connections | RJ45 connector per IEC 60603-7; 2- or 4-pair Cat 5e minimum (TIA 568-B.1) or Cat 5 (ISO/IEC 24702) |
| DC Power & Alarm Wiring | 0.5...0.8 mm² (20...18 AWG) solid or stranded copper wire rated at 90 degC or greater, 1.2 mm insulation max |
| Functional Ground Wiring | 3.3...5.3 mm² (12...10 AWG) solid or stranded copper wire rated at 75 degC or greater |
| Terminal Torque | 0.23 N-m (2.0 lb-in) on power and alarm connectors |
| Wiring Category | 2-on alarm ports, 2-on power ports, 2-on Ethernet ports |
| Enclosure Type Rating | None (open-style) |
| North American Temp Code | T4 |
| IEC Temp Code | T4 |
| Operating Temperature | -40...60 degC (-40...140 degF) |
| Max Surrounding Air Temp | 60 degC (140 degF) |
| Nonoperating Temperature | -40...85 degC (-40...185 degF) |
| Relative Humidity | 5...95% noncondensing |
| Vibration | 2 g @ 10...500 Hz (IEC 60068-2-6) |
| Operating Shock | 20 g (IEC 60068-2-27) |
| Nonoperating Shock | 30 g (IEC 60068-2-27) |
| Emissions | CISPR11 (IEC 61000-6-4) Class A |
| ESD Immunity | 8 kV contact discharges, 15 kV air discharges (IEC 61000-4-2) |
| Radiated RF Immunity | 20V/m (80...1000 MHz), 10V/m (900 MHz, 1890 MHz, 1000...2700 MHz) (IEC 61000-4-3) |
| EFT/B Immunity | ±4 kV @ 2.5 kHz and ±2 kV @ 5 kHz on power, alarm, and Ethernet ports (IEC 61000-4-4) |
| Surge Transient Immunity | ±1 kV DM / ±2 kV CM on power & alarm ports; ±2 kV CM on Ethernet ports (IEC 61000-4-5) |
| Conducted RF Immunity | 10V rms with 1 kHz sine-wave 80% AM from 150 kHz...80 MHz (IEC 61000-4-6) |
| Magnetic Field Immunity | 30 A/m long duration, 300 A/m short duration at 50/60 Hz (IEC 61000-4-8) |
| Oscillatory Surge Withstand | 2.5 kV (IEEE C37.90.1) |
| Voltage Variation | 10 ms interruption on DC supply ports (IEC 61000-4-29) |
| Dimensions | 14.8 cm x 15.3 cm x 11.75 cm (H x W x D) |
Global Express Shipping
Returns & Warranty
Manufacturer: Allen-Bradley
Product No.: 1783-MS06T
Country of origin:United States
Product Type: Managed Ethernet Switches
Payment: T/T, Western Union
Weight: 1200g
Dimensions: 117.5 mm x 148 mm x 153 mm (D x H x W)
Shipping port: Xiamen
Warranty: 12 months
