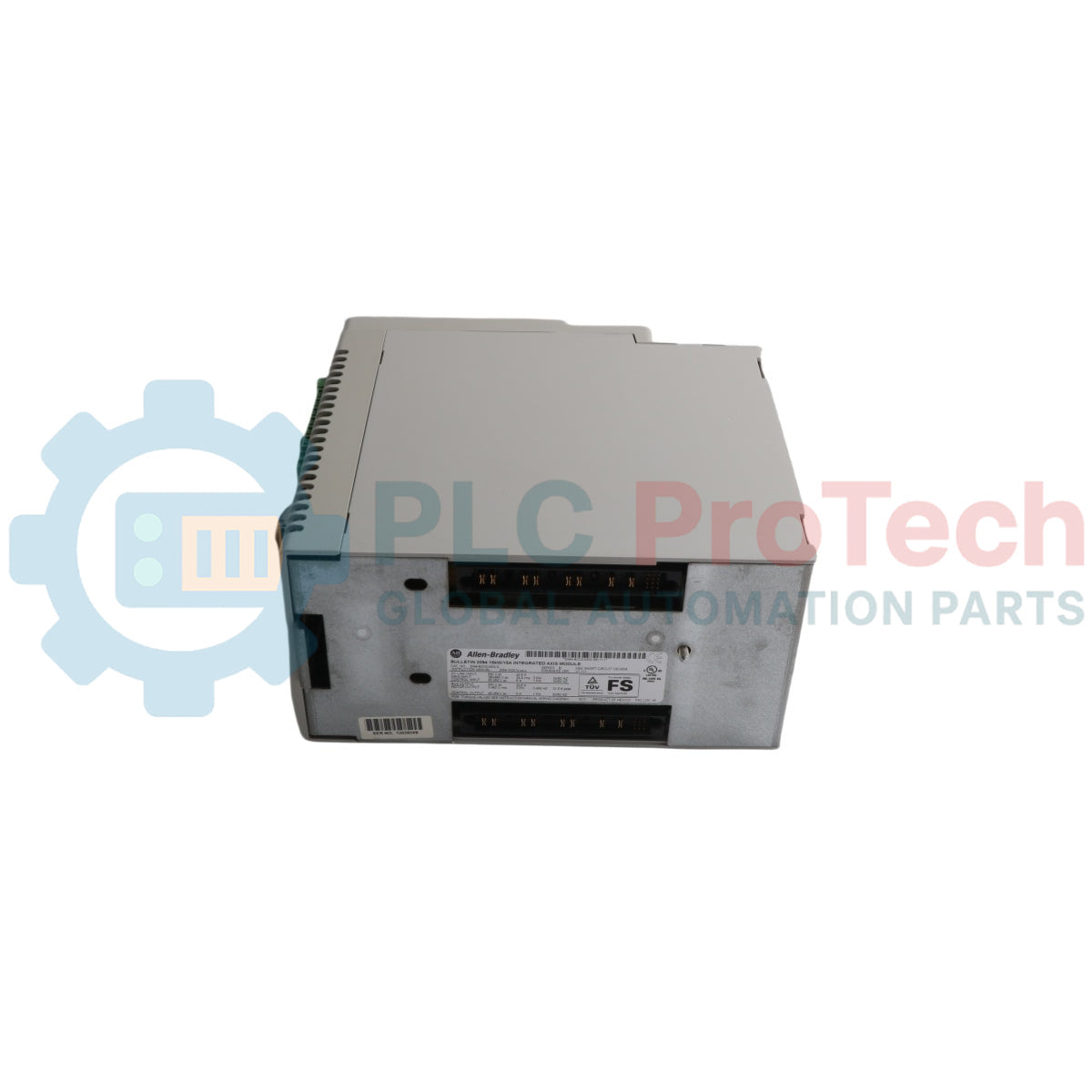

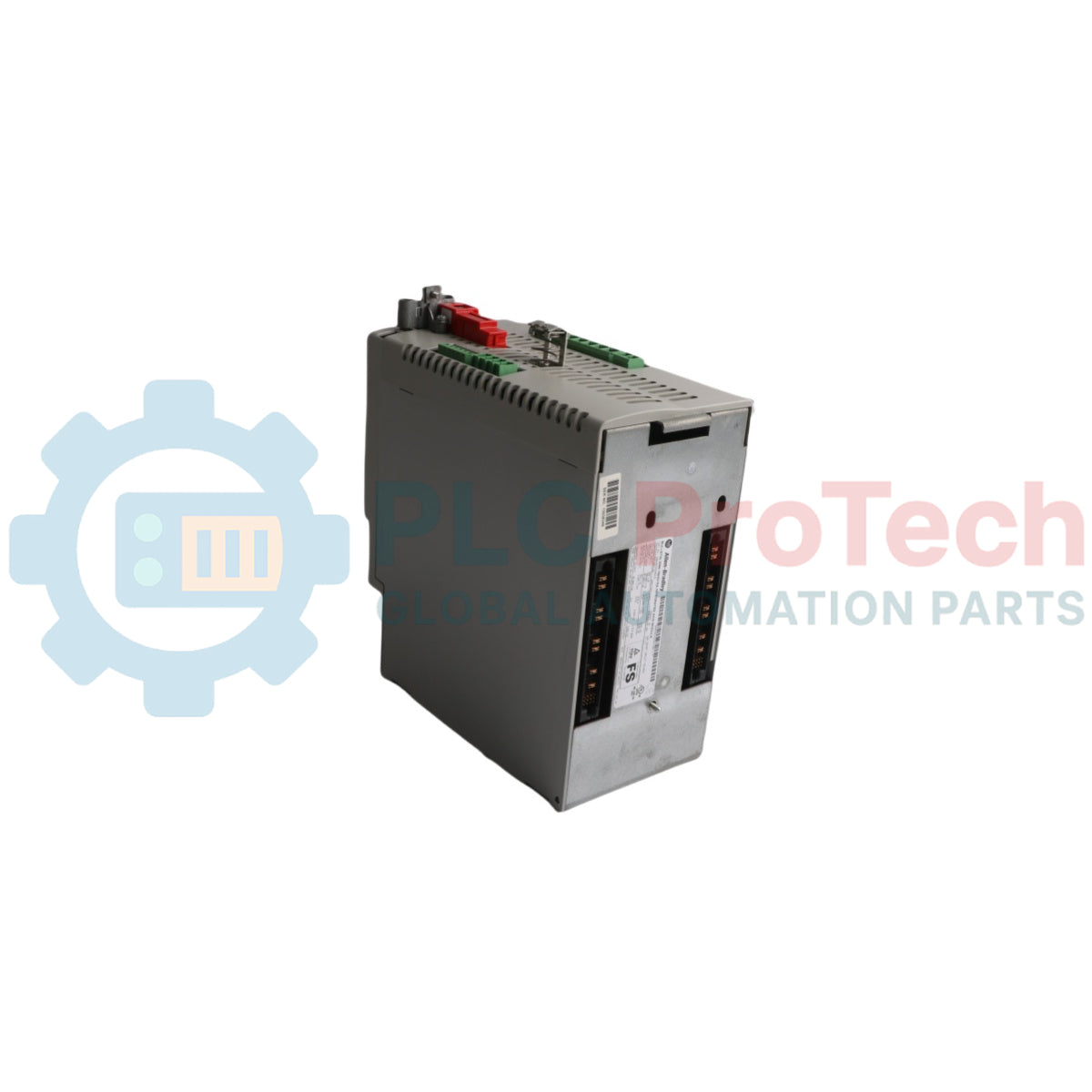

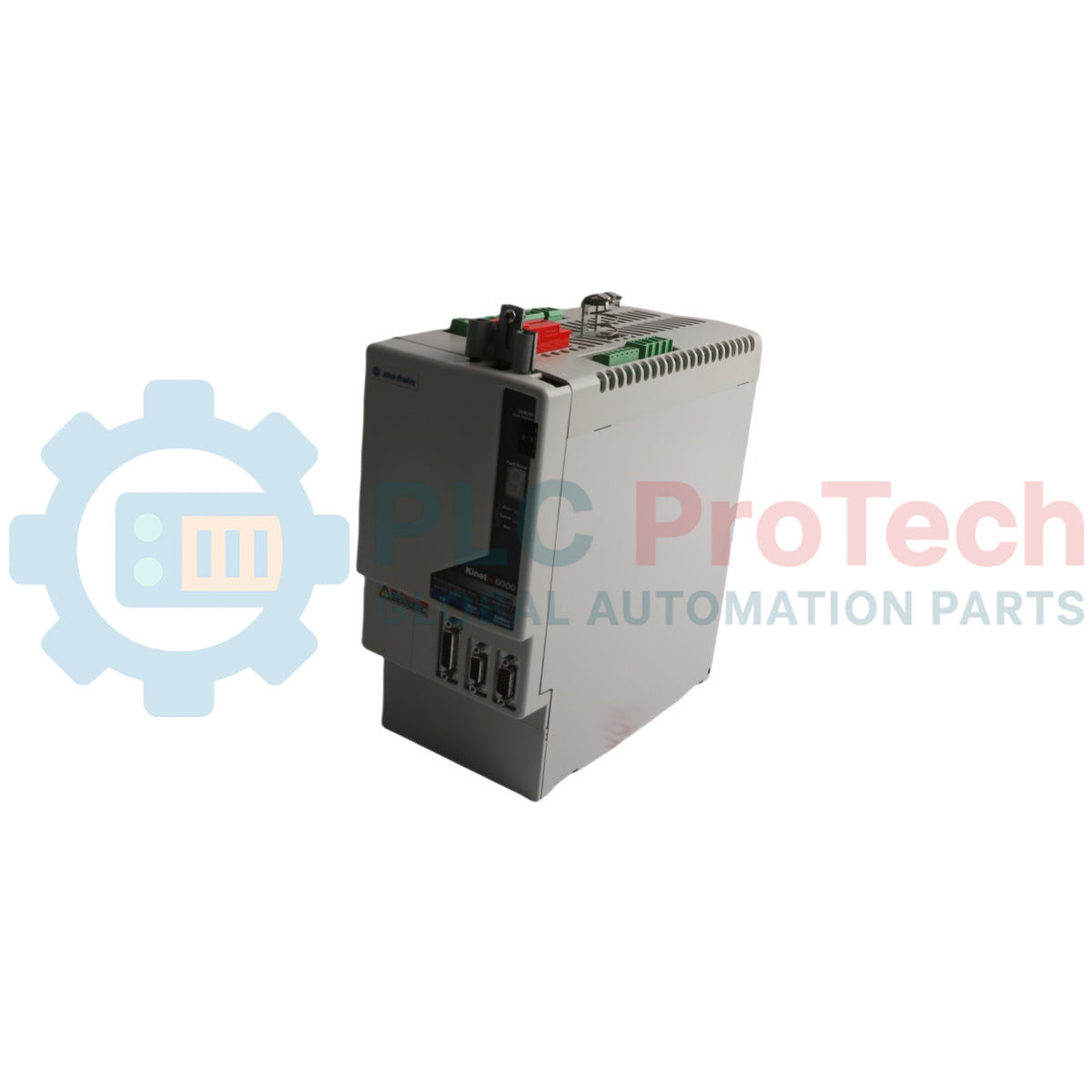

Allen-Bradley 2094-BC02-M02-M Kinetix 6200 Integrated Axis Power Module

SKU 2094-BC02-M02-M

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 2094-BC02-M02-M
Origin United States
Product Type: Integrated Axis Power Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 5.9 kg
Dimensions: 300 mm x 135 mm x 302 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The 2094-BC02-M02-M is a Kinetix 6200 Integrated Axis Power Module combining converter and inverter circuitry within one drive assembly. It operates on 400V AC class input power and is designed to function with one control module.

The module provides integrated motion control for servo motor and drive applications. Its integrated safety architecture supports Safe Torque-Off and Safe Speed Monitoring functions without requiring a separate external safety monitor.

The Integrated Axis Module can operate with Kinetix 6200 axis modules and the Kinetix 600M integrated drive-motor system. The supplied technical information also identifies compatibility with Kinetix 6000 servo-drive migration applications.

The module supports SERCOS-based motion architecture and EtherNet/IP network integration. Diagnostic functions display fault messages to assist troubleshooting and system maintenance.

Features

Integrated converter and inverter circuitry
Designed for one control module
Integrated Safe Speed Monitor
Safe Torque-Off operating mode
Safe Maximum Speed monitoring
Safe Maximum Acceleration monitoring
Safe Direction monitoring
Zero Speed monitoring
Enabling Switch Control
Door monitoring and control
Solid-state motor short-circuit protection
Fault-message diagnostic display
Modular drive-system construction
Compatible with Kinetix 600M integrated drive-motor systems

Applications

Multi-axis servo motion systems
Automated production machinery
Packaging and material-handling equipment
Machine-tool motion control
Printing and converting machinery
Assembly-line positioning systems
Safety-monitored maintenance operations
Kinetix 6000 drive-system migration projects

Technical Specifications

General

Parameter	Specification
Manufacturer	Allen-Bradley
Part Number	2094-BC02-M02-M
Product Line	Kinetix 6200
Product Type	Integrated Axis Power Module
UPC	884951092518
Weight	13.00 lb (5.90 kg)
Control Module Requirement	One control module

Electrical

Parameter	Specification
Voltage Rating	400/460V AC
Nominal Drive Input	360-480V AC, 3-phase
Output Current	15 A
Rated Output Power	6.6 kW
Converter Section Output	15 kW
Maximum Bus Capacitance	8955 microfarads
Power Dissipation	36-75 W
Converter Section Heat Dissipation	44 W at 20% loading
Inverter Section Heat Dissipation	72 W at 40% loading

Environmental and Installation

Parameter	Specification
Operating Temperature	0-50 degC (32-122 F)
Installation Clearance	80 mm (3.10 in.)
Minimum Enclosure Depth	302 mm (11.9 in.)

Circuit Protection

Parameter	Specification
Maximum Available Fault Current with Fuse Protection	200,000 A
Maximum Available Fault Current with Circuit-Breaker Protection	65,000 A
Control Input Fuse	FNQ-R-10, 10 A
Alternative Control Input Fuse	FNQ-R-7.5, 7.5 A
Recommended Two-Pole Circuit Breaker	1492-SPM2D060
Recommended Single-Pole Circuit Breaker	1492-SPM1D150
Recommended DC Bus Fuse	FWJ-40A
Alternative DC Bus Fuse	A70QS40-4

AC Line Filter

Parameter	Specification
Recommended AC Line Filter	2090-XXLF-X330B
Filter Input Voltage	500V AC
Filter Frequency	50/60 Hz
Filter Current	30 A at 50 degC
Filter Weight	2.7 kg (5.9 lb)

Installation Guidelines

Install the module with the specified branch-circuit protection.
Maintain at least 80 mm (3.10 in.) of installation clearance.
Use an enclosure with a minimum depth of 302 mm (11.9 in.).
Select the control-input fuse according to the specified circuit arrangement.
Apply the recommended DC bus fuse where DC bus protection is required.
Use the specified AC line filter when line filtering is required.
Verify that the supply voltage remains within the stated 360-480V AC, 3-phase range.
Provide suitable panel ventilation for operation between 0 and 50 degC.
Confirm that the available fault current does not exceed the stated fuse or circuit-breaker rating.
Follow the applicable Kinetix installation procedures for grounding, power wiring, and control-module attachment.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What input voltage does the module support?

The module supports a nominal 360-480V AC, 3-phase drive input.

What is the converter output rating?

The converter section has a rated output of 15 kW.

Which safety functions are integrated?

The module supports Safe Torque-Off, Safe Speed Monitoring, Safe Direction Monitoring, and Zero Speed Monitoring.

What installation clearance is required?

A minimum installation clearance of 80 mm is specified.

What is the operating temperature range?

The specified operating temperature range is 0-50 degC.
