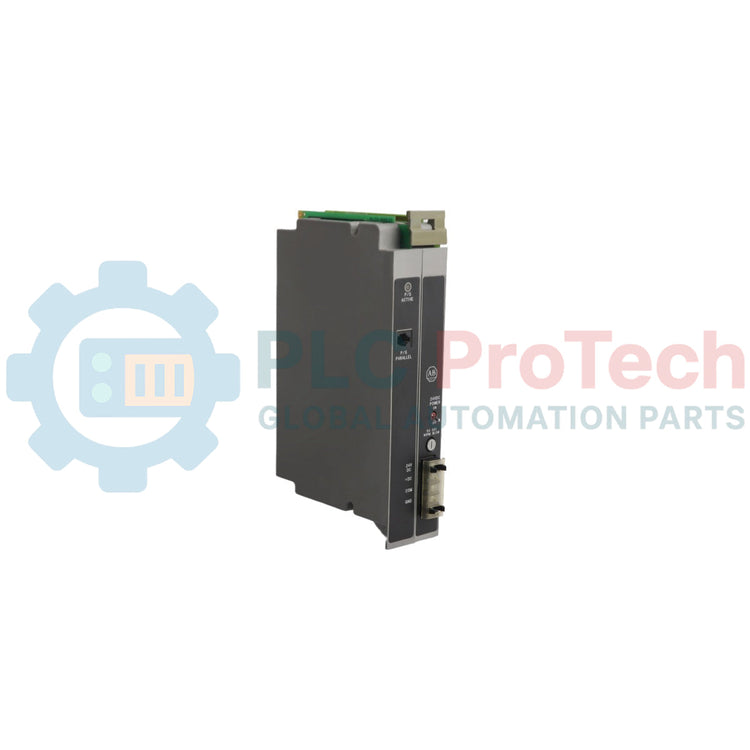

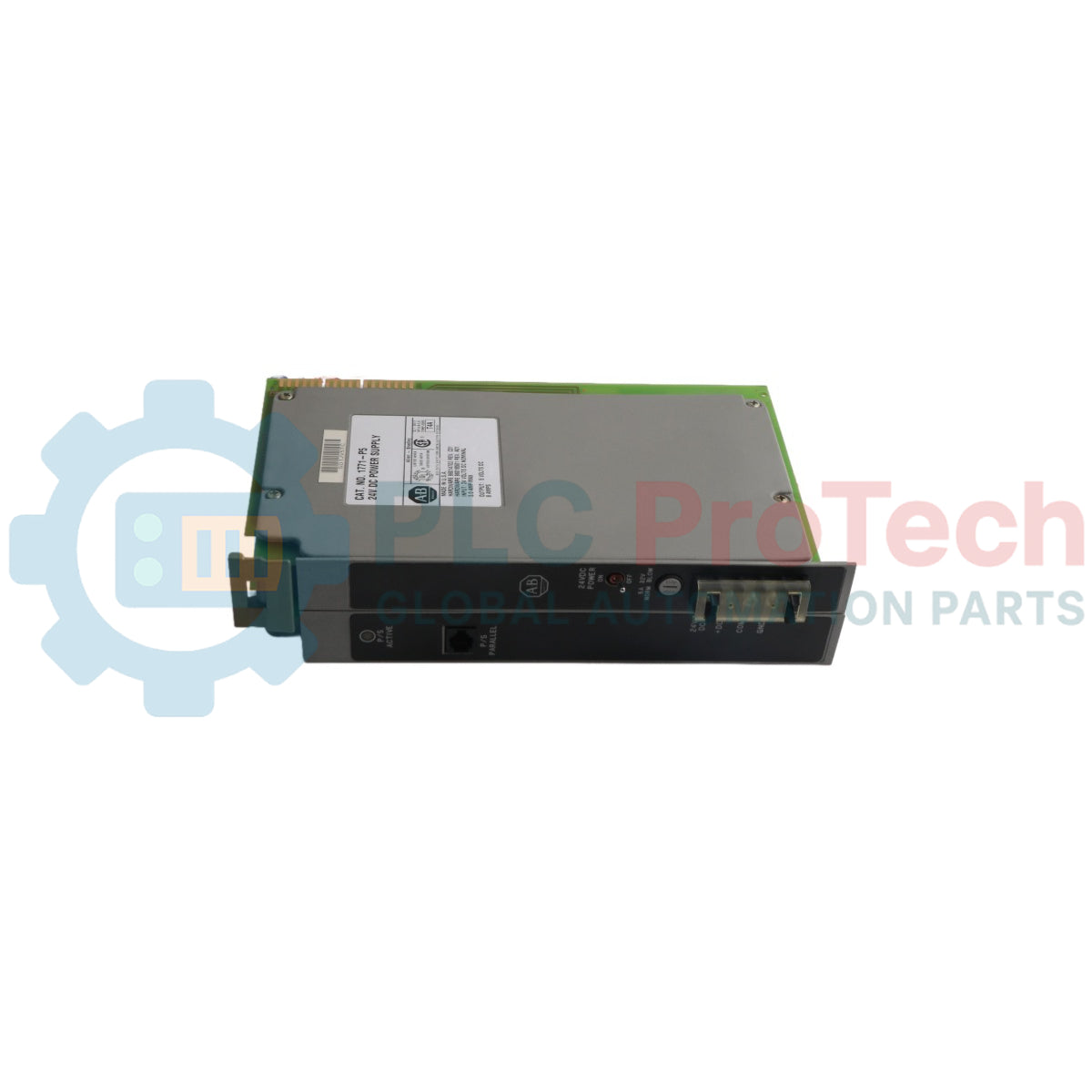

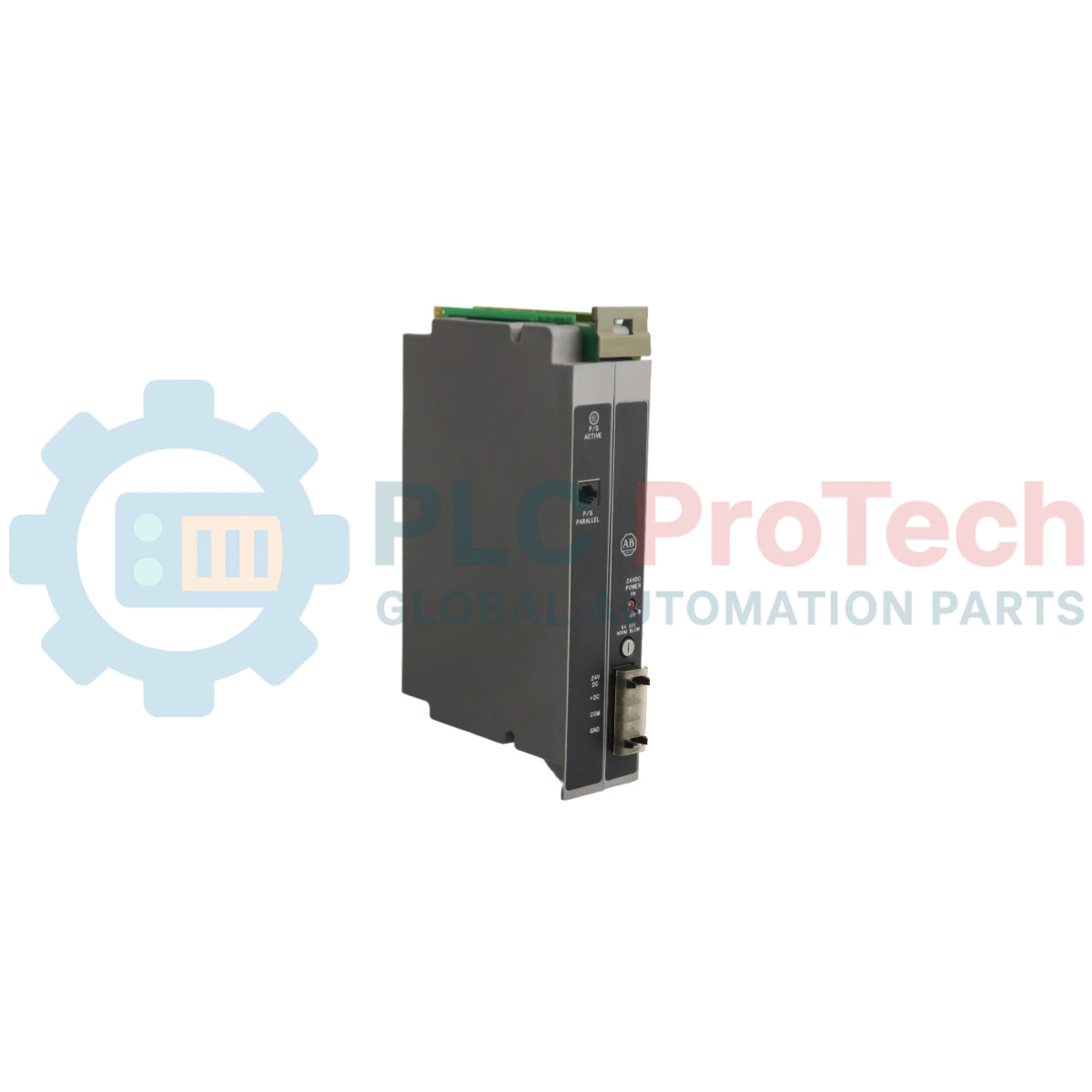

The 1771-P5 is a chassis-mounted power supply module engineered within the 1771 product line to deliver regulated DC operating power directly to the backplane of standard industrial control chassis. This hardware component functions by accepting a nominal 24V DC input source and converting it to the clean, stabilized current levels required by processor units and adjacent input/output instrumentation. The 1771-P5 configuration features built-in electrical protection mechanisms alongside clear structural diagnostics to ensure consistent power distribution in highly integrated automation environments.
Slotted chassis design that mounts directly into standard 1771 universal I/O backplanes
Configured with a dedicated front-accessible green LED indicator verifying stable output status
Built-in dynamic overvoltage protection circuit preventing damage from incoming electrical transients
Integrated fuse architecture positioned internally to safeguard system backplane paths
Power infrastructure for local and distributed 1771 chassis networks
Regulated power sourcing for multi-slot logic processing arrays
Industrial automation enclosures utilizing direct 24V DC input feeds
| Parameter | Specification |
| Manufacturer | Allen-Bradley |
| Part Number / Model | 1771-P5 |
| Product Line | 1771 Universal I/O chassis |
| Module Type | Power Supply Module |
| Input Voltage Range | 20.5 to 30.0V DC |
| Nominal Input Voltage | 24V DC |
| Output Current Load | 8.0 Amps at 5.06V DC |
| Backplane Current Capacity | 8.0 Amps |
| Overvoltage Protection | Shuts down at 6.3V DC (nominal) |
| Status Indicators | Green LED (Output Normal) |
| Internal Protection | Fused Input Circuitry |
Chassis Alignment: Secure the power supply module into the leftmost assigned slot position of the 1771 I/O chassis framework to guarantee correct backplane terminal configuration.
Electrical Termination: Ensure all 24V DC wiring lines are isolated from active power sources before executing connections onto the front terminal strip assembly to eliminate current arcing.
Overcurrent Maintenance: Always verify the replacement fuse specs completely align with factory specifications before restoring active power paths following an electrical overload trip.
Ventilation Matrix: Ensure top and bottom chassis air paths remain unobstructed to handle baseline heat dispersal during full-load power output distribution.
Global Express Shipping
Returns & Warranty
Manufacturer: Allen-Bradley
Product No.: 1771-P5
Country of origin:United States
Product Type: Power Supply Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 1180g
Dimensions: 203x 310x 180 mm
Shipping port: Xiamen
Warranty: 12 months
