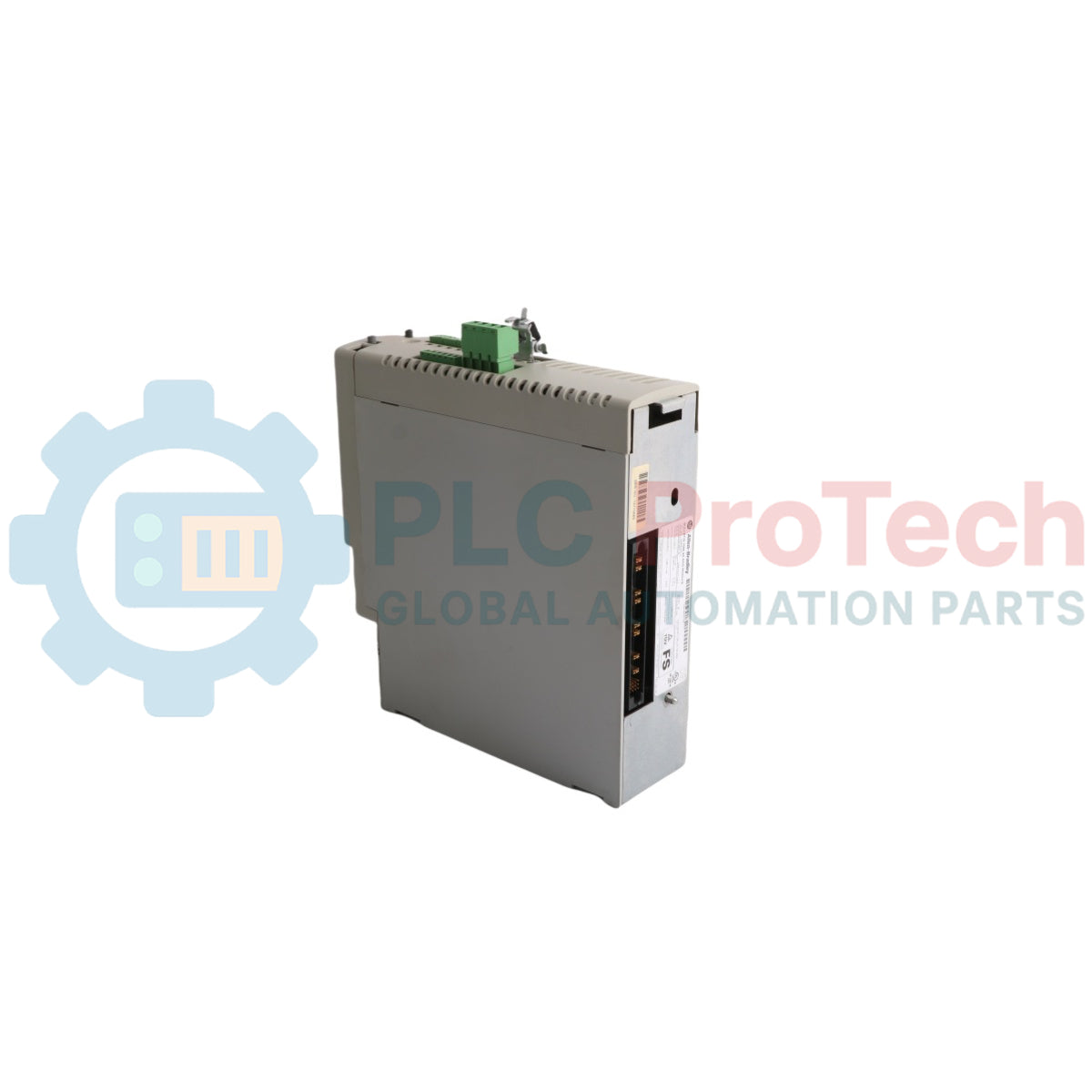

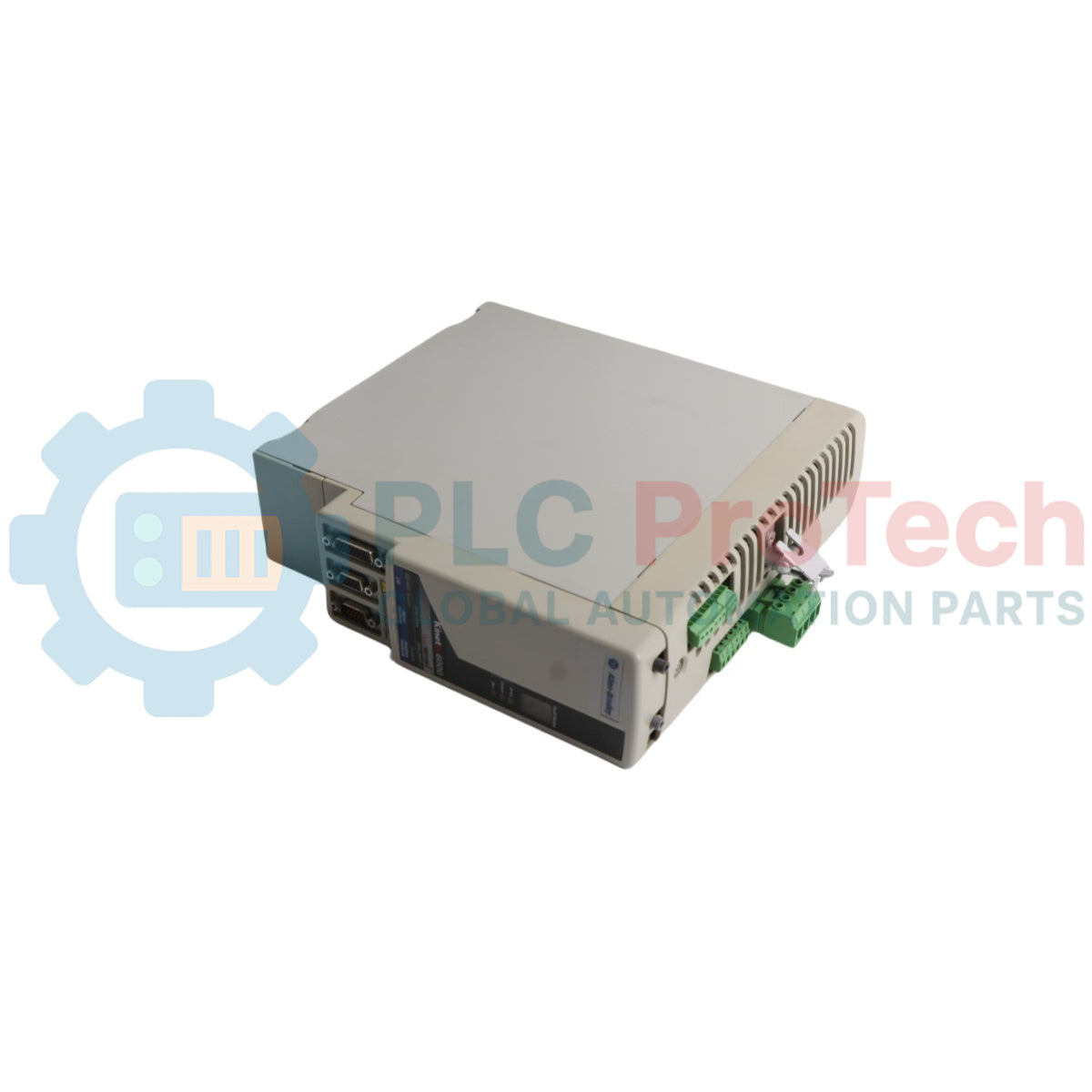

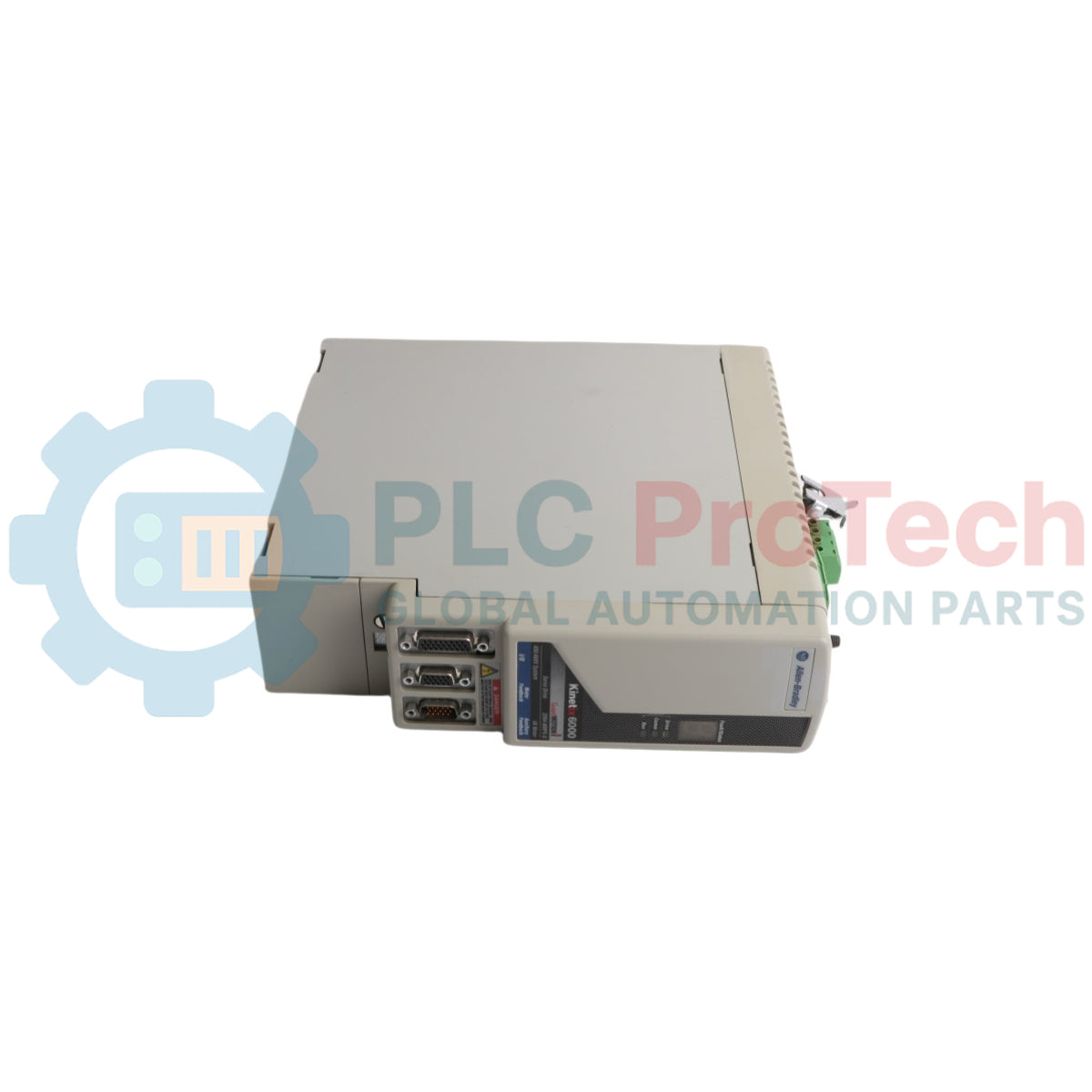

Allen-Bradley 2094-BMP5-M Kinetix 6200 and Kinetix 6500 Axis Module

SKU 2094-BMP5-M

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 2094-BMP5-M
Origin United States
Product Type: Axis Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 2.9 kg
Dimensions: 70 x 281 x 272 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The 2094-BMP5-M is a Bulletin 2094 axis module for Kinetix 6200 and Kinetix 6500 modular multi-axis servo drives. It contains the inverter power section required to operate an individual servo axis.

The module uses a nominal 650V DC input and provides 1.8 kW nominal continuous output power. Its current and velocity control loops regulate the inverter output according to the configured motion application.

An internal shunt circuit manages regenerative energy returned to the DC bus. The same inverter section is incorporated within the 2094-BC01-MP5-M integrated axis module.

Features

Bulletin 2094 axis-module inverter section
Compatible with Kinetix 6200 modular multi-axis servo drives
Compatible with Kinetix 6500 modular multi-axis servo drives
Separate velocity-loop and current-loop control
Integrated internal shunt circuit
Corresponding inverter section used in the 2094-BC01-MP5-M IAM
Selected according to application inverter power requirements

Applications

Modular multi-axis servo drive systems
Individual servo-axis power control
Coordinated machine motion
Automated positioning equipment
Packaging machinery
Material handling systems
Assembly machinery
Converting equipment

Ordering Information

Catalog Number	Description
2094-BMP5-M	Bulletin 2094 460V Axis Module
2094-BC01-MP5-M	IAM power module containing the corresponding inverter section

Technical Specifications

Drive and Control

Parameter	Specification
Brand	Allen-Bradley
Catalog Number	2094-BMP5-M
Product Type	Axis Module
Module Function	Inverter power section
Compatible Drive Families	Kinetix 6200 and Kinetix 6500
Bulletin	2094
Voltage Class	460V
Velocity Loop Bandwidth	500 Hz
Current Loop Bandwidth	1300 Hz
PWM Frequency	8 kHz

Electrical Ratings

Parameter	Specification
Nominal Input Voltage	650V DC
Continuous Current, rms	2.8 A
Continuous Current, sine 0-pk	4.0 A
Peak Current, rms	7.0 A
Peak Current, 0-pk	9.9 A
Nominal Continuous Output Power	1.8 kW
Efficiency	98%
Short-Circuit Current Rating	200,000 A rms symmetrical

Internal Shunt

Parameter	Specification
Continuous Shunt Power	50 W
Peak Shunt Power	5.6 kW
Internal Shunt Resistance	115 ohm
Shunt Turn-On Voltage	805V DC
Shunt Turn-Off Voltage	765V DC

DC Bus Energy Storage

Parameter	Specification
Capacitance	75 uF
Capacitive Energy Absorption	10 J

Installation Guidelines

Confirm the catalog number before installing the axis module.
Select the module according to the application inverter power requirements.
Install the module only within a compatible Bulletin 2094 drive system.
Verify Kinetix 6200 or Kinetix 6500 system compatibility.
Confirm the power rail and adjacent module arrangement before installation.
Maintain sufficient connector clearance for the required cable bend radius.
Verify motor power and feedback connections before applying power.
Follow the applicable drive user manual during installation and commissioning.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Which drive families use the module?

The module is designed for Kinetix 6200 and Kinetix 6500 modular multi-axis servo drive systems.

What is the nominal input voltage?

The nominal input voltage is 650V DC.

What continuous output power does the module provide?

The module provides 1.8 kW of nominal continuous output power.

Does the module include an internal shunt?

Yes. The internal shunt provides 50 W continuous power and 5.6 kW peak power.

What are the inverter current ratings?

The continuous current rating is 2.8 A rms. The peak current rating is 7.0 A rms.
