Product Overview

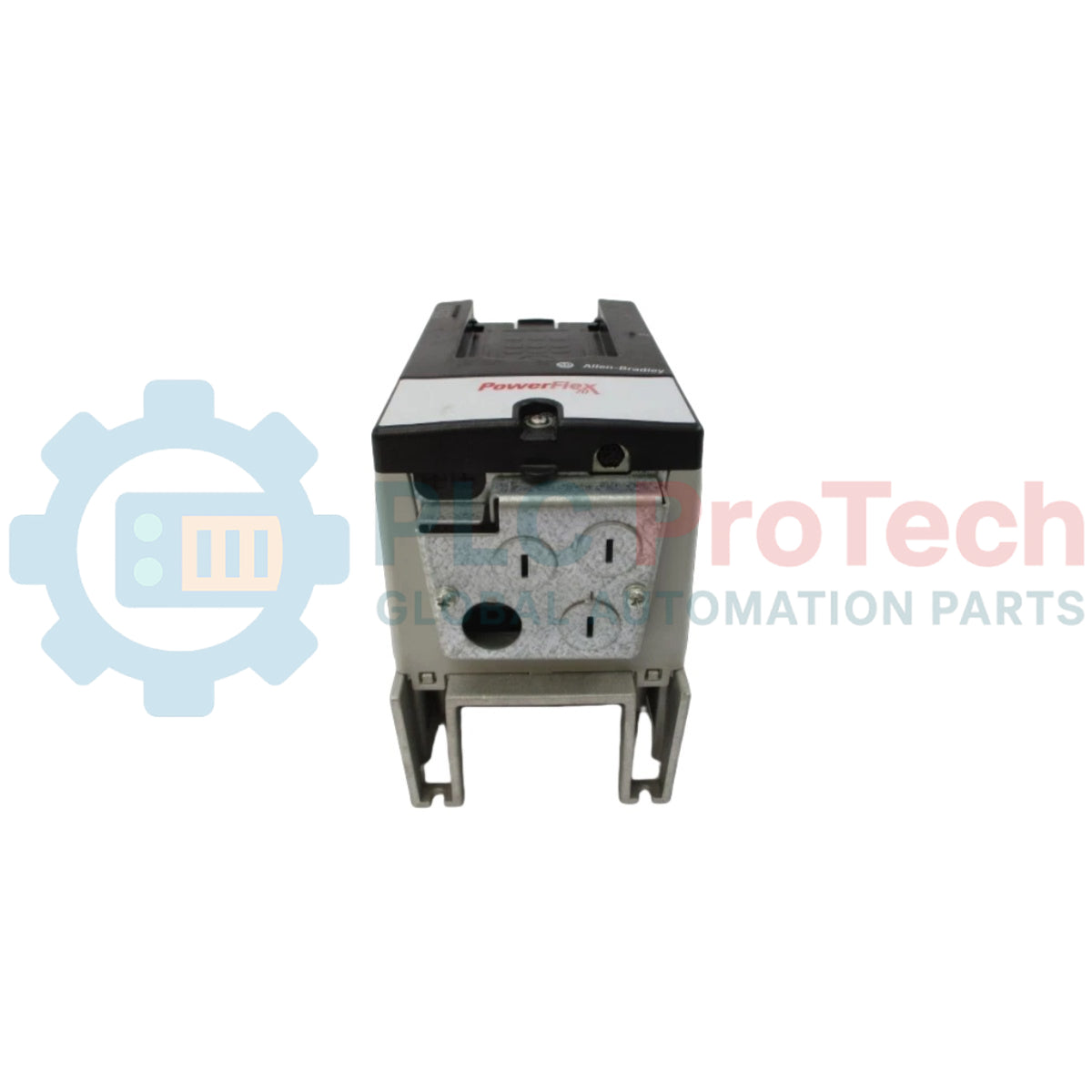

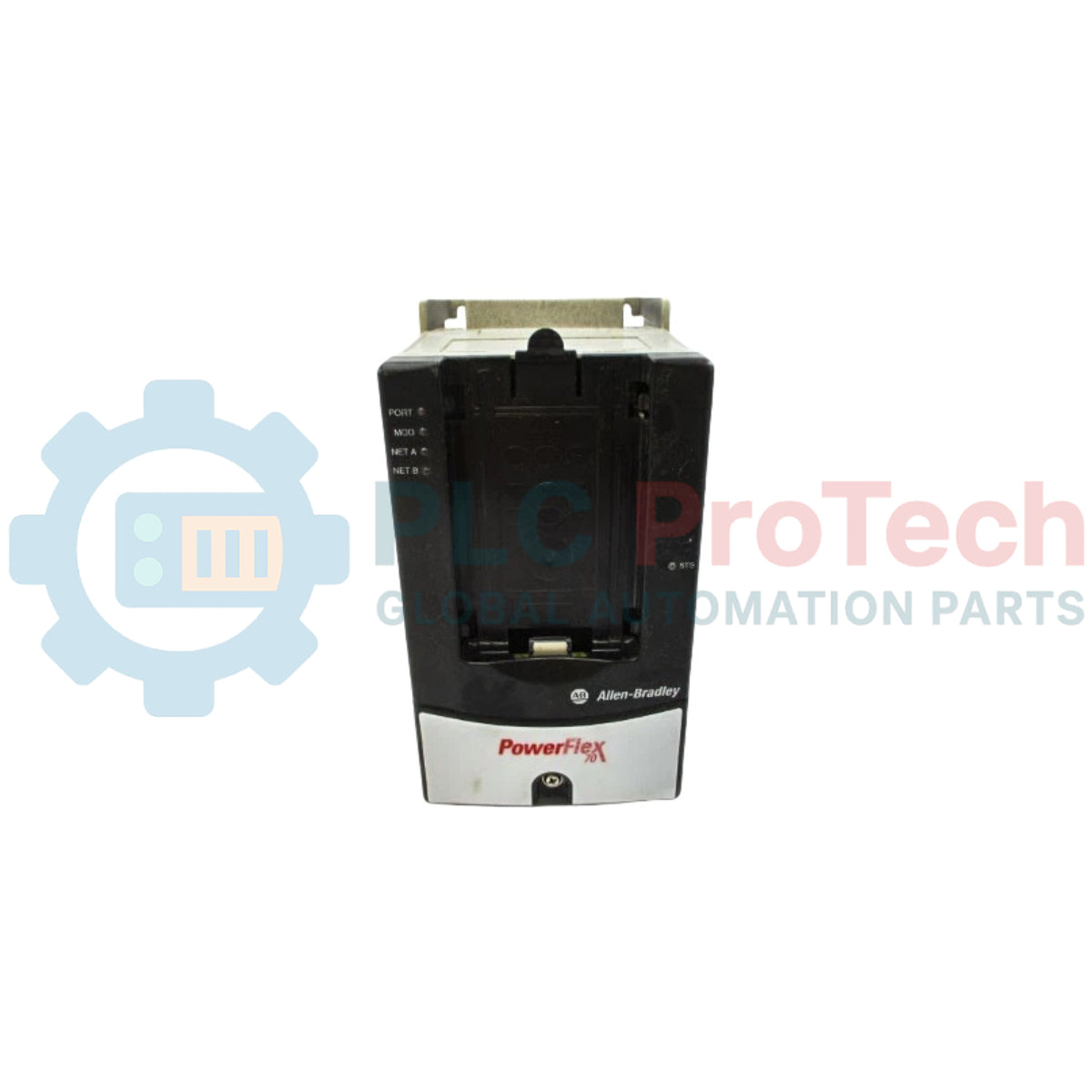

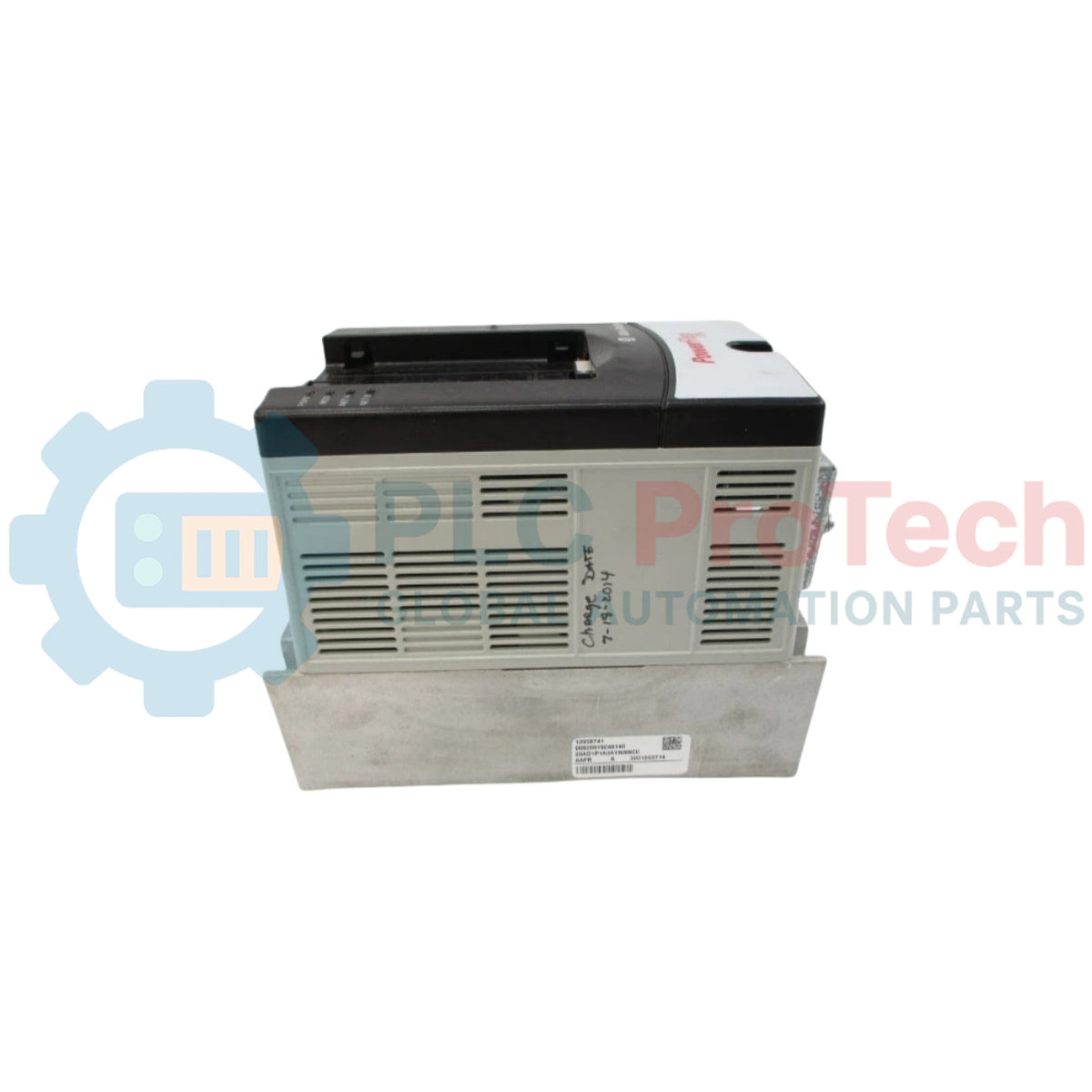

The Allen-Bradley 20AD1P1A3AYNNNC0 (20AD1P1A3AYNNNC0) is a high-performance PowerFlex 70 AC Drive, engineered to deliver robust motor control and seamless integration within complex industrial architectures. Designed for heavy-duty sectors such as oil and gas, mining, and metal processing, this drive provides exceptional torque and speed regulation for applications ranging from centrifugal pumps to sophisticated conveyor systems. By utilizing advanced power management and diagnostic features, the 20AD1P1A3AYNNNC0 ensures maximum system availability while significantly reducing energy consumption and mechanical wear on downstream equipment.

Technical Configuration

The 20AD1P1A3AYNNNC0 follows a rigorous nomenclature that defines its specialized hardware profile. The "20A" prefix identifies it as a PowerFlex 70 unit, while the "D" voltage code confirms its 480 VAC, 3-phase power compatibility. With a "1P1" current rating, it delivers a precise 1.1 Amp output, making it ideal for small-load precision control.

This specific configuration includes an "A" Frame size with a Panel Mount IP20 (NEMA Type 1) enclosure, optimizing it for controlled cabinet environments. The "3" in the interface position indicates it is equipped with a full numeric LCD Human Interface Module (HIM) for local programming and monitoring. The "A" in the manual slot ensures a complete set of multi-language documentation is supported. Notably, the "Y" denotes the inclusion of an internal braking IGBT, allowing for rapid deceleration of inertial loads when paired with an external resistor. The "NNNC0" suffix confirms the absence of internal communication modules and pre-installed feedback options, offering a clean slate for custom system integration.

Technical Specifications

Technical FAQs

Q1: What does the "Y" in the 10th position of the model number indicate?

A1: The "Y" indicates that the drive includes an internal braking IGBT. This allows the drive to handle regenerative energy from the motor during deceleration, provided an external braking resistor is connected.

Q2: Is this drive compatible with single-phase power input?

A2: No. The 20AD1P1A3AYNNNC0 is strictly designed for 480 VAC 3-phase input. Operating on single-phase will lead to phase loss faults and potential hardware failure.

Q3: Can I add Ethernet communication to this unit later?

A3: Yes. While this unit is "NNN" (No Communication), you can install a 20-COMM-E (EtherNet/IP) or 20-COMM-C (ControlNet) adapter in the internal communication slot to enable networking capabilities.

Engineering & Installation Guide

• Heat Dissipation: Ensure a minimum clearance of 102 mm (4 inches) above and below the drive frame. Since this is an A-frame unit, blocking the top vents will lead to premature capacitor aging or "Over-temp" tripping under full load.

• Grounding Protocol: Use a dedicated ground wire directly from the drive's ground terminal to the system's common PE (Protective Earth) bus. Avoid "daisy-chaining" grounds between multiple drives to prevent ground loops that interfere with the LCD HIM signals.

• Braking Resistor Selection: When utilizing the internal IGBT, ensure the external resistor's Ohmic value is not lower than the minimum specified for the A-frame 480V unit to prevent damaging the internal switching transistor.

Engineering Advantages

The 20AD1P1A3AYNNNC0 is distinguished by its high power density and the inclusion of a comprehensive LCD interface, which simplifies on-site troubleshooting without the need for a laptop. Its Sensorless Vector Control provides high starting torque and excellent speed regulation without the cost of an encoder. Furthermore, its modular internal design allows for field upgrades of communication protocols, ensuring the drive remains relevant as plant-wide networks evolve toward Industry 4.0 standards.
