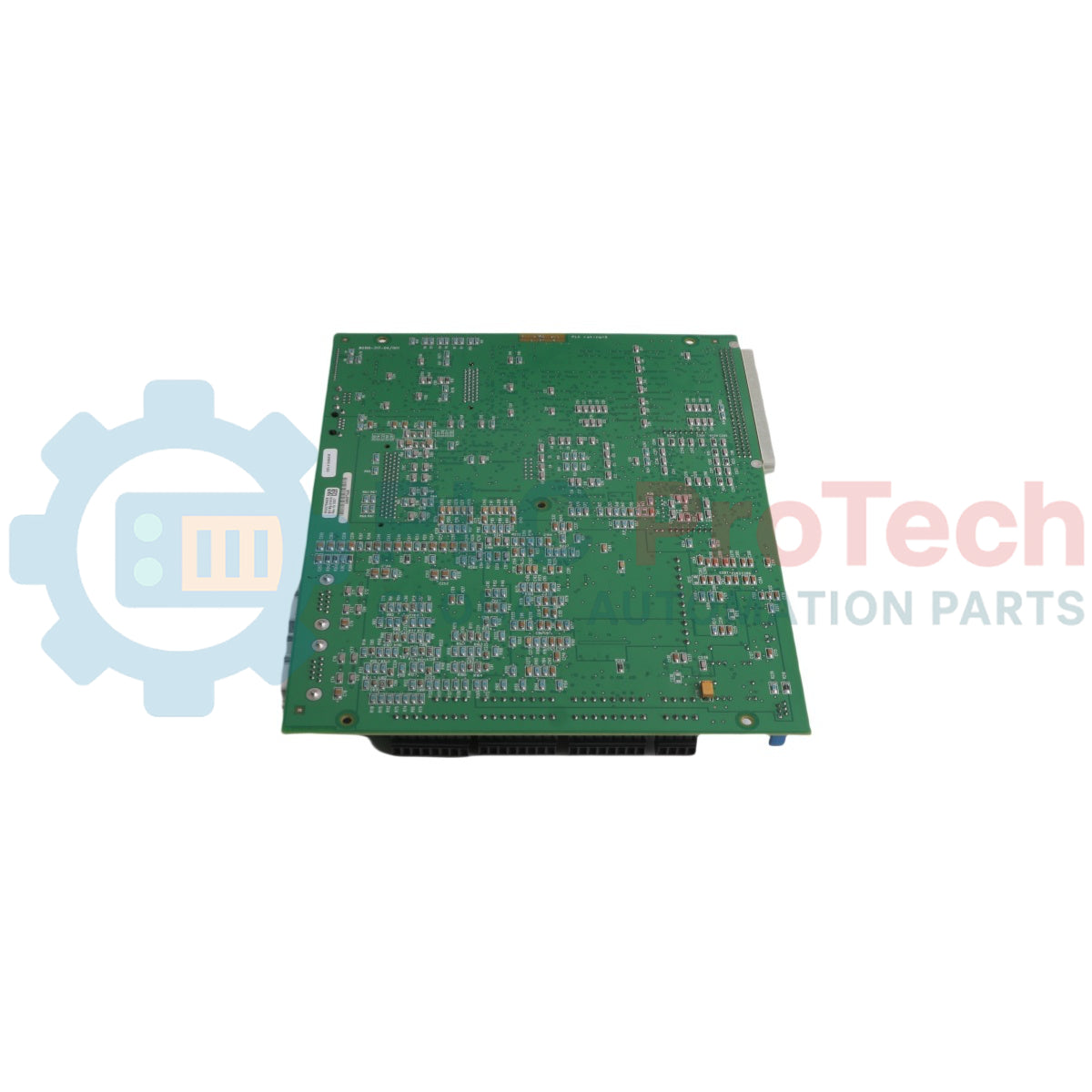

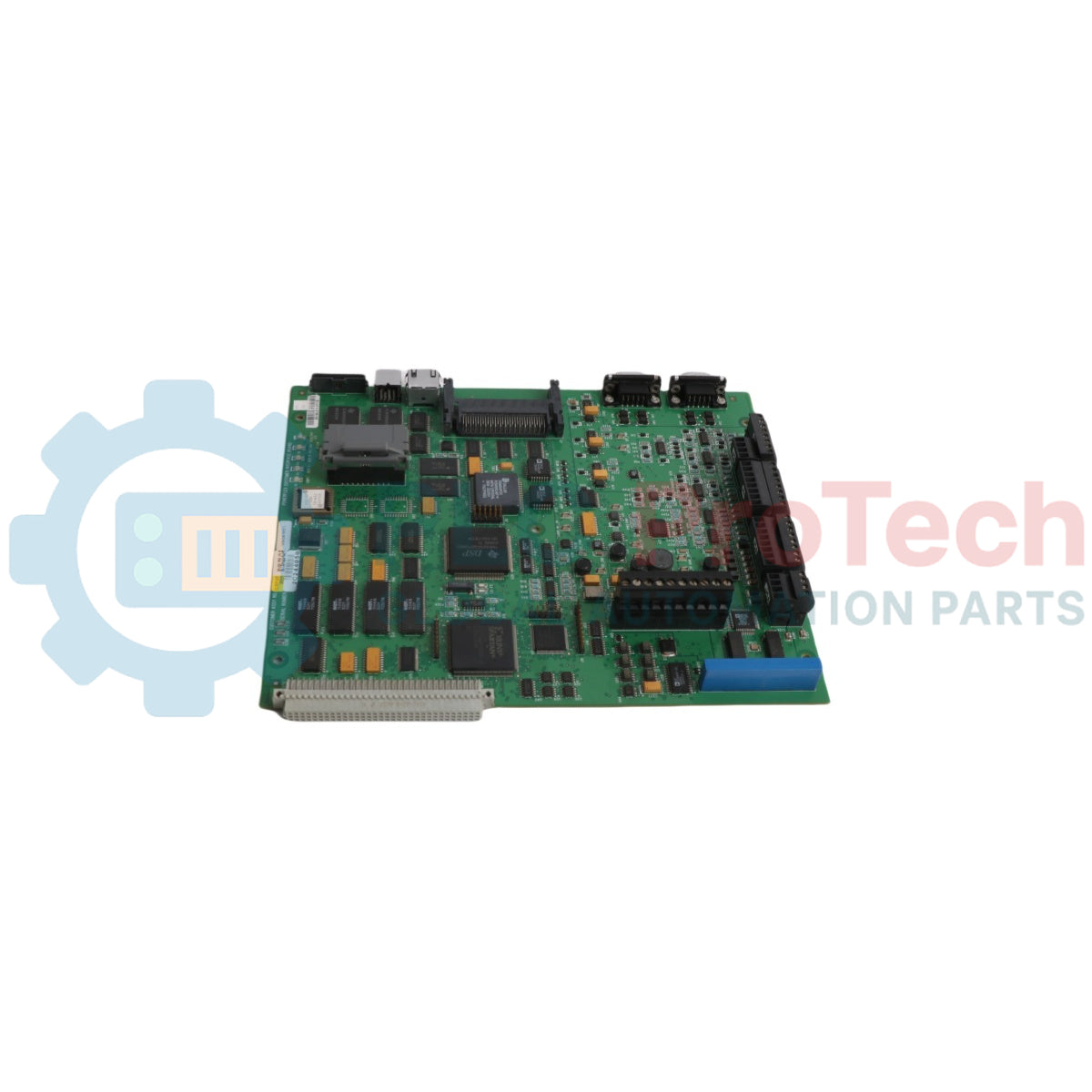

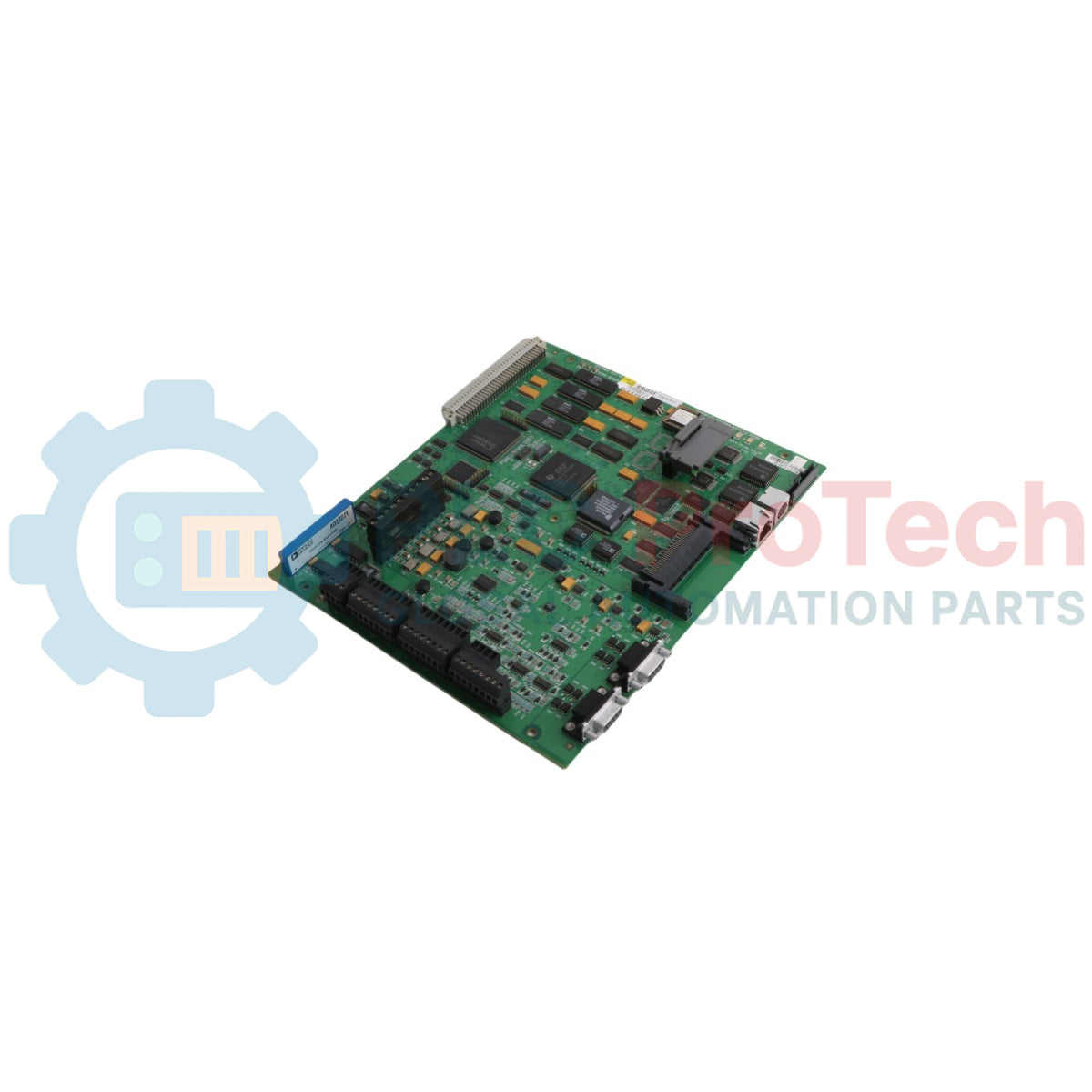

The Allen-Bradley 80190-320-03-R is a Packaged Customer Customer Interface Board (CIB) Assembly configured for medium voltage drive control topologies. This hardware unit serves as a dedicated Customer Interface Board that routes external customer control signals, digital commands, and peripheral IO wiring channels into the core processing architecture of the drive system. By providing centralized terminal links, the 80190-320-03-R bridges user-side hardware interfaces with localized drive logic boards to ensure safe distribution of control signaling and real-time operations feedback monitoring.

Features

• Centralized terminal blocks for clean customer-side hardware integration
• Optimized signal isolation paths for external IO distribution layers
• Direct communication path linking with primary drive processor networks
• Rugged PCB design certified for medium voltage drive enclosures

Applications

• PowerFlex 7000 Medium Voltage AC Drive control cabinets
• Centralized hardware interface distribution frameworks
• Industrial motor control infrastructure input and output routing

Technical Specifications

Installation Guidelines

• Electrostatic Discharge Precautions: The circuit assembly integrates static-sensitive components. Maintain strict adherence to grounding safety by wearing a static-dissipative wrist strap and working on an ESD-safe mat during unboxing and terminal mounting.
• Lockout-Tagout Protocol: Confirm that all incoming high-voltage and low-voltage auxiliary power networks are disconnected and properly tagged out. Ensure all drive capacitors have completely discharged prior to accessing internal chassis boards.
• Wiring Configurations: Verify that all connection terminations match the verified system schematic layout to prevent cross-channel signal distortion or control communication hardware errors.
