Description

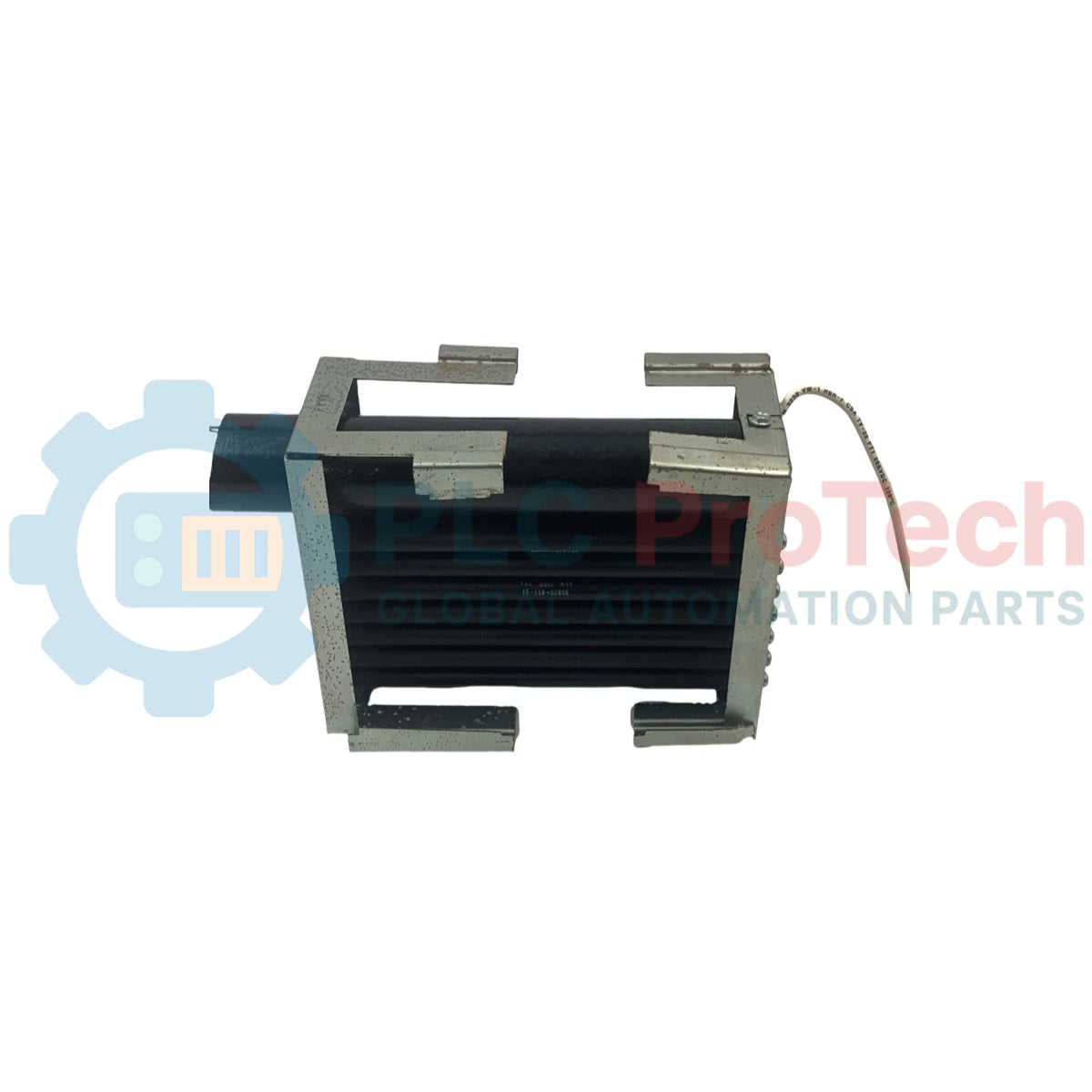

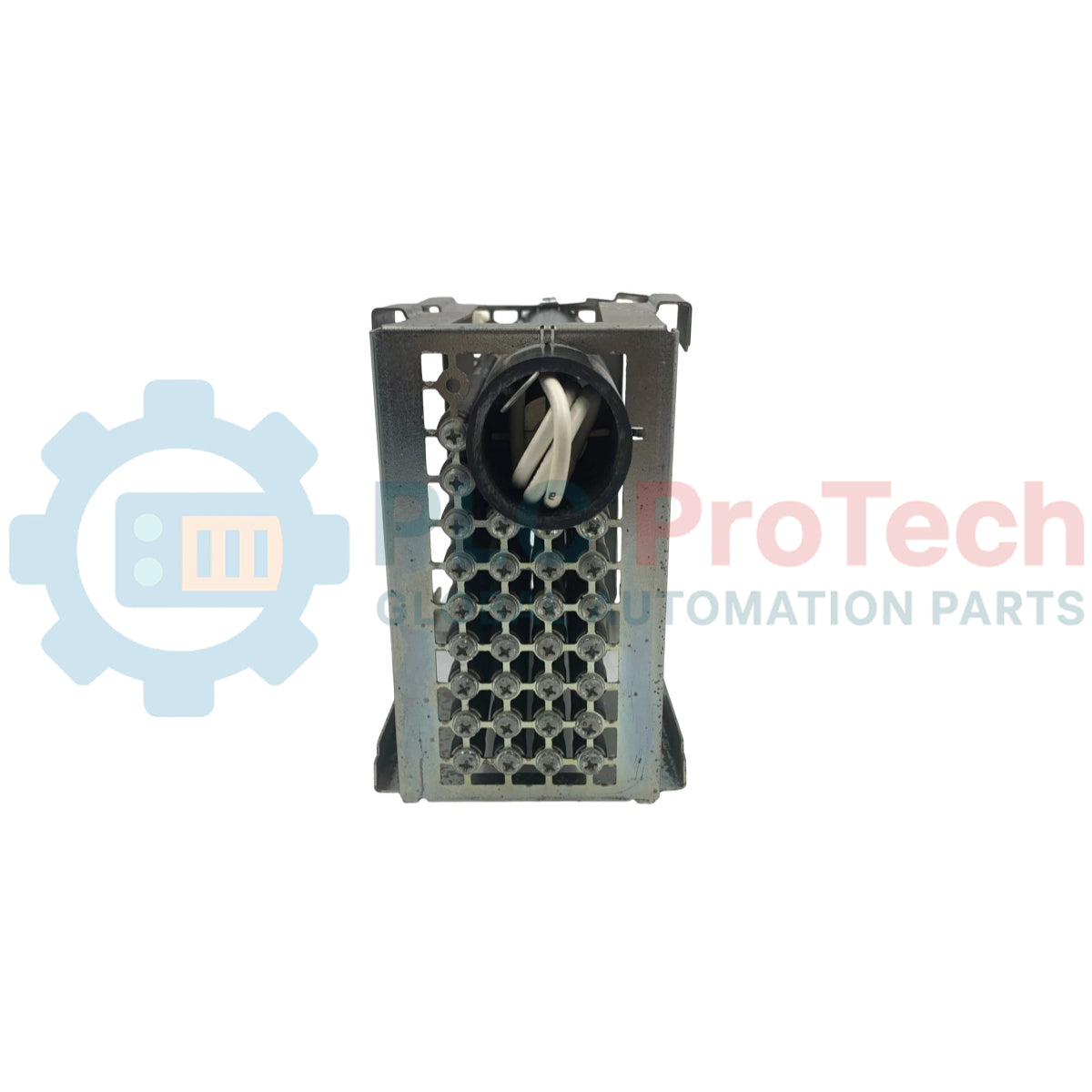

The Allen-Bradley 81001-956-53-R is a high-power Snubber Resistor Assembly (PKG SNUBR RES ASSY,800W,45-OHM) designed for industrial drive systems and power electronics applications. It operates as a protective hardware component that suppresses transient voltage spikes ($dv/dt$) and absorbs excess electrical energy during rapid switching cycles. This protection mechanism helps safeguard sensitive semiconductor devices, including Insulated-Gate Bipolar Transistors (IGBTs) and Silicon Controlled Rectifiers (SCRs), against potential voltage overshoot. Deployed in industrial variable frequency drives (VFDs) or large servo controllers, the assembly converts high-energy pulses into thermal energy, mitigating electrical stress across the system circuitry.

Features

• Transient Suppressing Design: Limits rapid voltage changes ($dv/dt$) and voltage overshoot to prevent damage to downstream semiconductor power modules.
• High Thermal Management Capability: Engineered to absorb repeated high-energy pulses and safely dissipate the accumulated load as heat.
• Industrial Assembly Integration: Delivered as a complete resistor assembly package optimized for integration with industrial power electronics systems.

Applications

• Dynamic braking and snubber circuitry within industrial variable frequency drives (VFDs).
• Regenerative energy absorption during heavy motor deceleration phases.
• Protection loops for IGBT, SCR, and other high-power semiconductor module switching paths.

Technical Specifications

Installation Guidelines

• Thermal Positioning: Mount the resistor assembly in an area with sufficient ventilation and clearance from heat-sensitive components, as the unit dissipates up to 800W of heat during high-load operations.
• Electrical Isolation: Ensure all upstream power feeds are disconnected, and verify that all system capacitors are completely discharged before handling or installing the hardware.
• Connection Security: Terminal connections must be tightened securely according to factory torque standards to minimize contact resistance under high-current pulses.
