Product Overview and Strategic Value

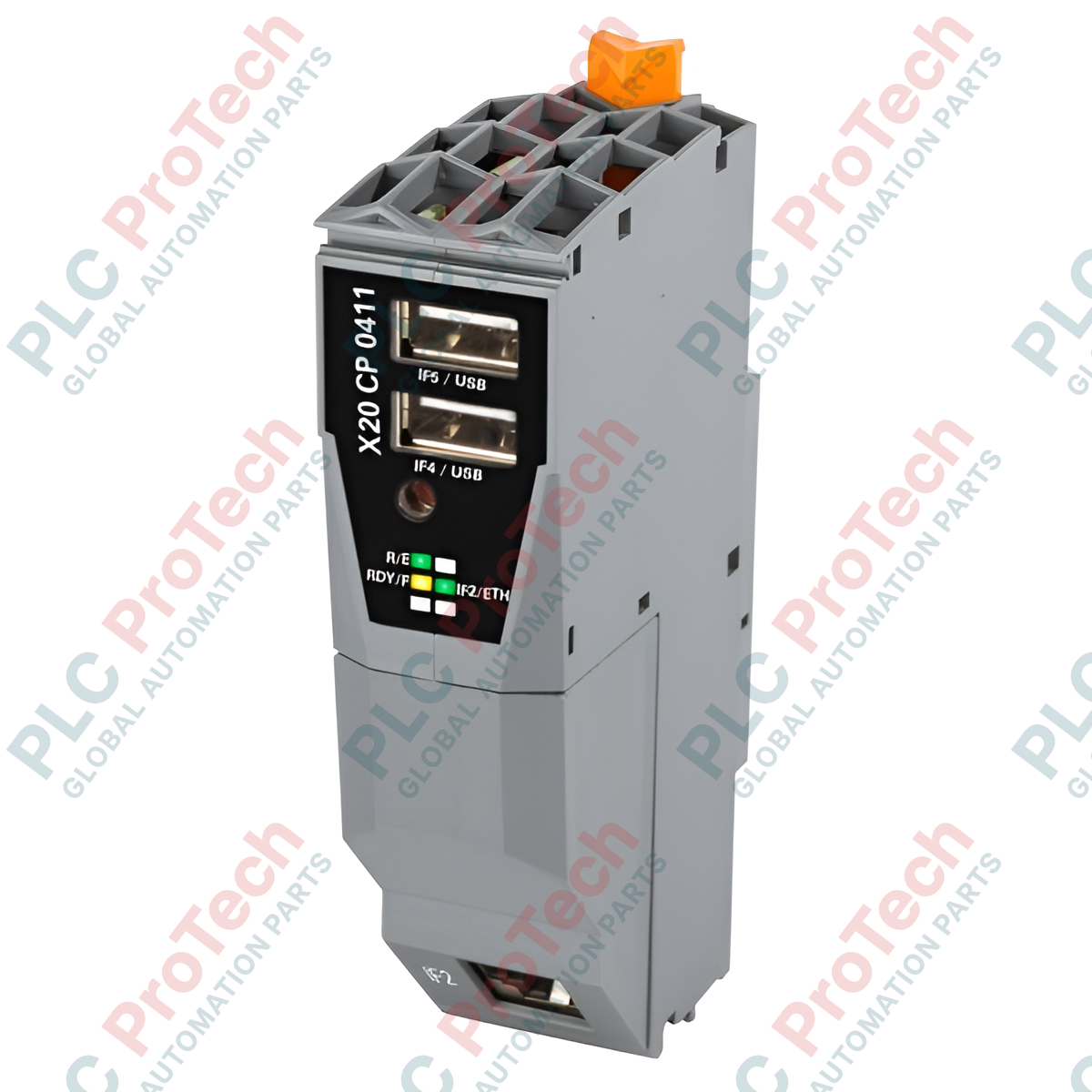

The X20CP0410 (X20 CP 0410) is a high-efficiency entry point into the B&R Compact-S controller class, bridging the gap between cost-effectiveness and industrial-grade performance. Engineered with an ARM Cortex-A9 processor architecture, this PLC is designed for decentralized control tasks and space-critical applications in sectors such as high-end packaging, renewable energy monitoring, and precision machine building. By integrating an independent I/O processor that handles data points in the background, the X20CP0410 ensures that the main CPU cycle remains dedicated to complex logic execution, significantly reducing jitter and enhancing system stability. Its fanless design and wide operating temperature range make it a cornerstone for reducing maintenance overhead in mission-critical environments.

Hardware Architecture and Memory Management

The X20CP0410 is built for long-term reliability and rapid data processing. It features 128 MB DDR3 SDRAM for demanding application code and 8 kB of FRAM for remanent variables. Unlike traditional battery-backed solutions, the FRAM technology ensures data retention for over 10 years without power, protecting vital machine states during unexpected outages.

• Integrated Interfaces: The controller comes standard with 1x Ethernet, 2x USB, and 1x X2X Link for seamless expansion.

• Timing Precision: With a typical instruction cycle time of 0.0446 microseconds, it handles logic operations with exceptional speed for its class.

• Isolation Logic: The Ethernet interface (IF2) is electrically isolated from the PLC internal logic and other interfaces, preventing ground loops and protecting the CPU core from external electrical surges.

Technical Specifications

Industrial Logic & Maintenance FAQs

How do the status indicators assist in onsite troubleshooting?

The X20CP0410 features dedicated LED indicators for CPU function and Ethernet status. A solid green CPU LED indicates normal operation, while specific blink patterns signal system exceptions, allowing technicians to diagnose state errors without a programming laptop.

What are the thermal considerations for vertical vs. horizontal mounting?

Due to the fanless convection design, the module is rated up to 60 Celsius in horizontal orientation. When mounted vertically, the ambient temperature limit is reduced to 50 Celsius to ensure proper heat dissipation across the internal components.

Can the Real-Time Clock (RTC) survive a long weekend power down?

Yes. The RTC offers a minimum retention of 300 hours (approximately 12 days) and a typical retention of 1000 hours at 25 Celsius. This ensures that timestamps for logs and alarms remain accurate through standard plant shutdowns.

Engineering & Installation Protocols

• X2X Link Optimization: When connecting expansion modules via the X2X Link, ensure the total current consumption of the I/O modules does not exceed the supply limit of the controller. For large-scale I/O trees, use an additional bus controller or power supply module.

• USB Port Usage: The 2x USB 2.0 ports are designed for firmware updates and data logging. To prevent mechanical strain on the ports in high-vibration environments, use industrial-grade, low-profile USB drives or secured cabling.

• Software Diagnostics: System temperature can be monitored via the software register. It is recommended to map this register to your HMI to trigger a preventive cooling alert before the CPU reaches its thermal cutoff.

Performance Advantages

The X20CP0410 excels in compact environments where heat buildup is a concern. Its 2.2 W power draw is among the lowest in the ARM-based PLC category, minimizing the thermal footprint within the enclosure. Furthermore, its B&R ID code 0xE94F ensures instant recognition within Automation Studio, streamlining the hardware configuration process and reducing time-to-market for machine OEMs.
