Product Overview

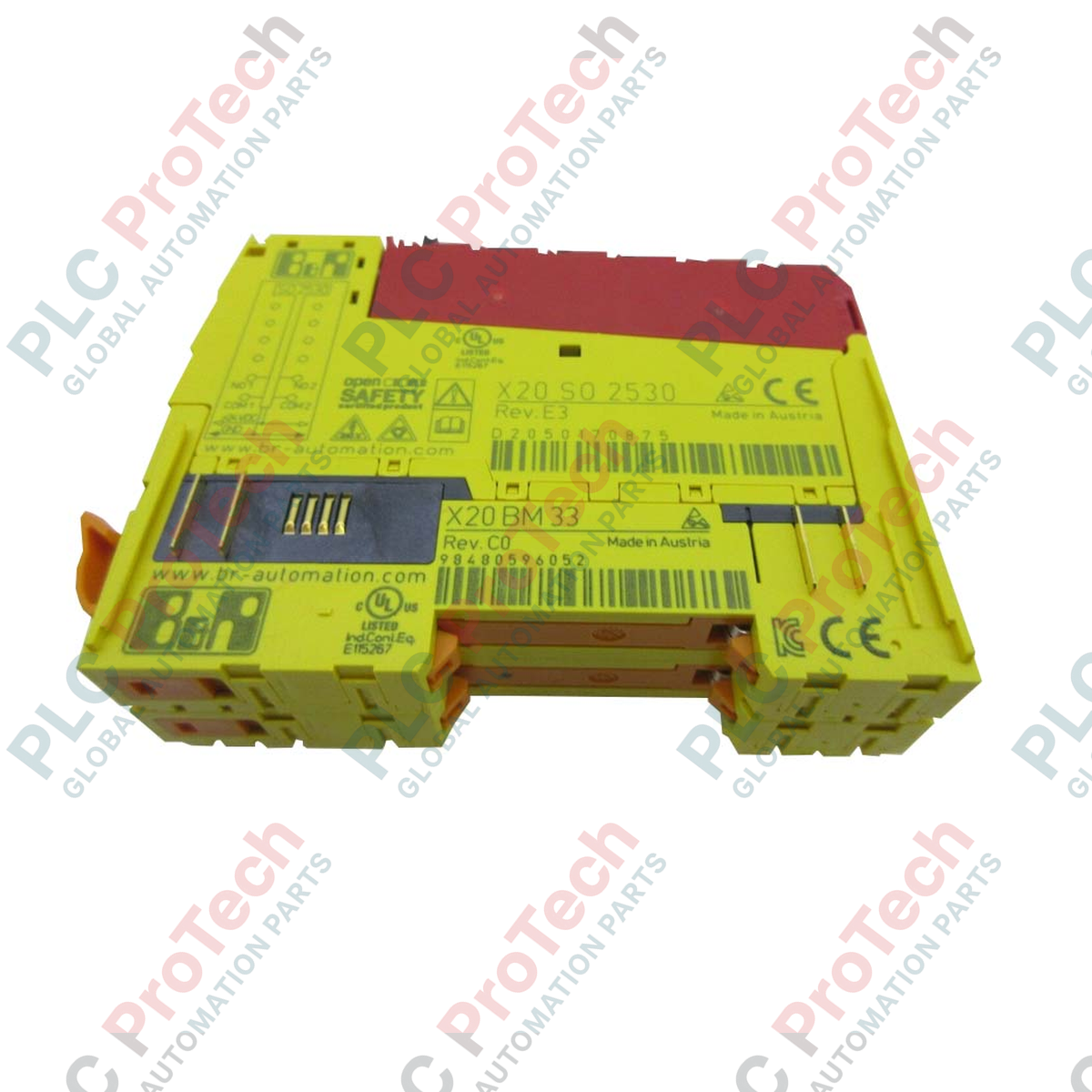

The X20SO2530 (X20SO2530) is a high-capacity digital output module designed for switching heavy electrical loads within an industrial automation system. It features two independent relay outputs, each equipped with a Normally Open (NO) contact. This module is versatile enough to handle both 230 VAC and 24 VDC power circuits with a high switching current of up to 6 A per channel. In large-scale automation frameworks, the X20SO2530 acts as a reliable power interface, allowing low-voltage control logic to safely manage high-power devices such as contactors, motors, and solenoid valves while ensuring galvanic isolation between the controller and the field environment.

Technical Configuration

The hardware architecture of the X20SO2530 is focused on electrical safety and diagnostic clarity. Each relay channel is supported by dedicated status indicators for the I/O function, operating state, and overall module health. The module accommodates a wide switching voltage range from 5 V up to 230 V, making it suitable for both signal-level switching and mains-level power distribution. For protection, the module requires external fusing to safeguard the relay contacts against short circuits and overloads. Its compact design allows for high-current switching capabilities without occupying excessive space on the backplane bus, providing an efficient solution for decentralized I/O stations.

Technical Specifications

Technical FAQs

Can the X20SO2530 be used to switch low-current signals?

Yes, the module supports a minimum switching current of 5 mA. This makes it suitable for interfacing with high-impedance inputs of other electronic devices, though its primary strength is in high-power 6 A applications.

What type of external protection is required for this module?

To protect the internal relay contacts from welding during a short-circuit event, an external 6 A gL/gG fuse or a circuit breaker with a C characteristic (1.6 A) must be installed for each output channel.

Does this module support Pulse Width Modulation (PWM)?

No. As a mechanical relay module, the X20SO2530 has a finite switching life and mechanical response time. For high-frequency switching or PWM applications, a transistor-based digital output module should be used instead.

Engineering & Installation Guide

• Inductive Load Suppression: When switching inductive loads such as solenoid valves or motor starters, high-voltage spikes (back-EMF) occur during contact opening. It is mandatory to install an external RC snubber for AC loads or a flyback diode for DC loads to prevent arcing and extend the mechanical life of the relay contacts.

• Thermal Management: Switching two channels at the full 6 A rated current generates localized heat. Ensure the cabinet has adequate ventilation and that the module is installed in the correct vertical orientation on the bus to facilitate natural convection.

• Wiring and Contact Safety: Use copper wiring with appropriate cross-sections to handle the 6 A load. Ensure that the 230 VAC wiring is physically separated from low-voltage DC signal lines within the wire duct to prevent capacitive coupling and ensure compliance with safety standards for mixed-voltage cabinets.
