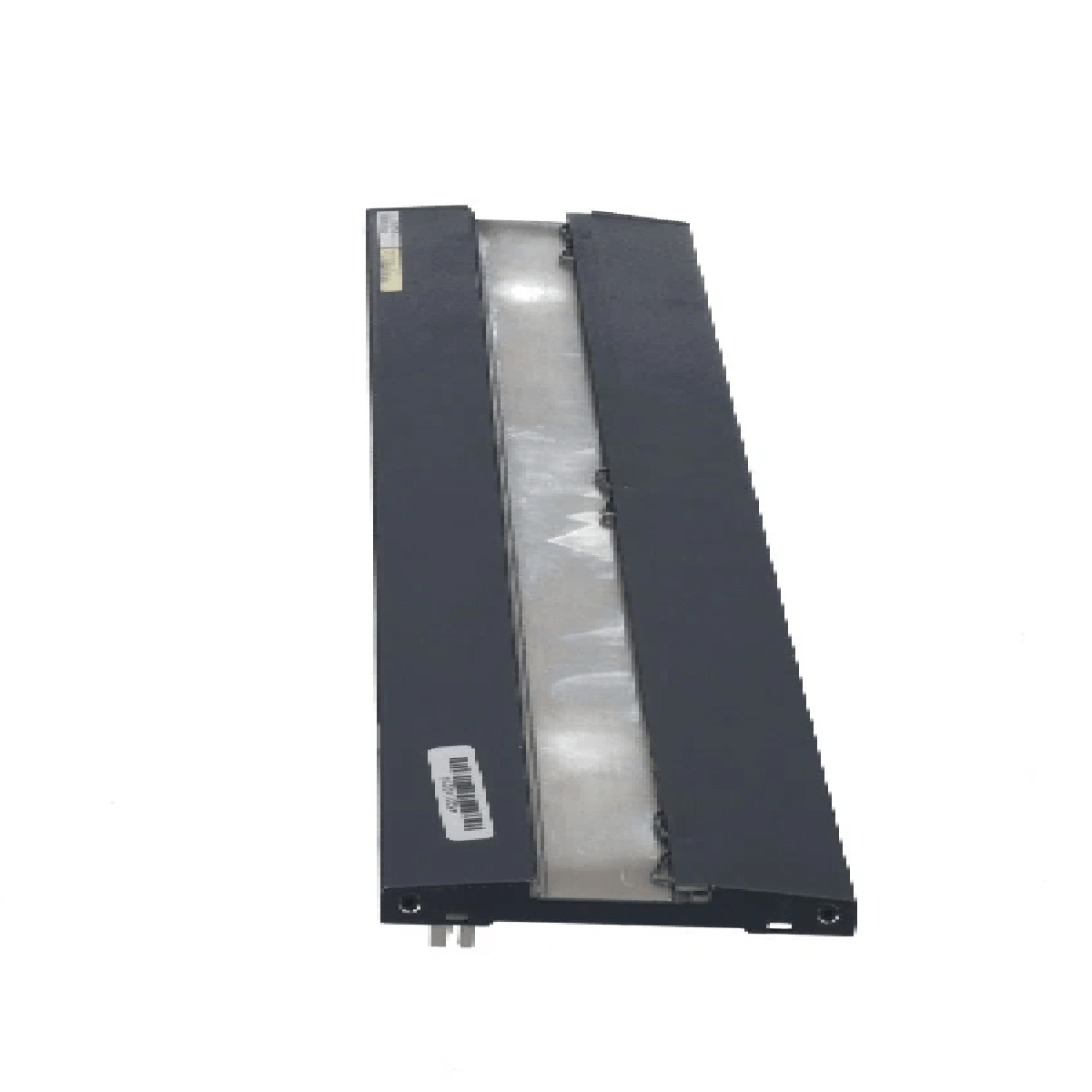

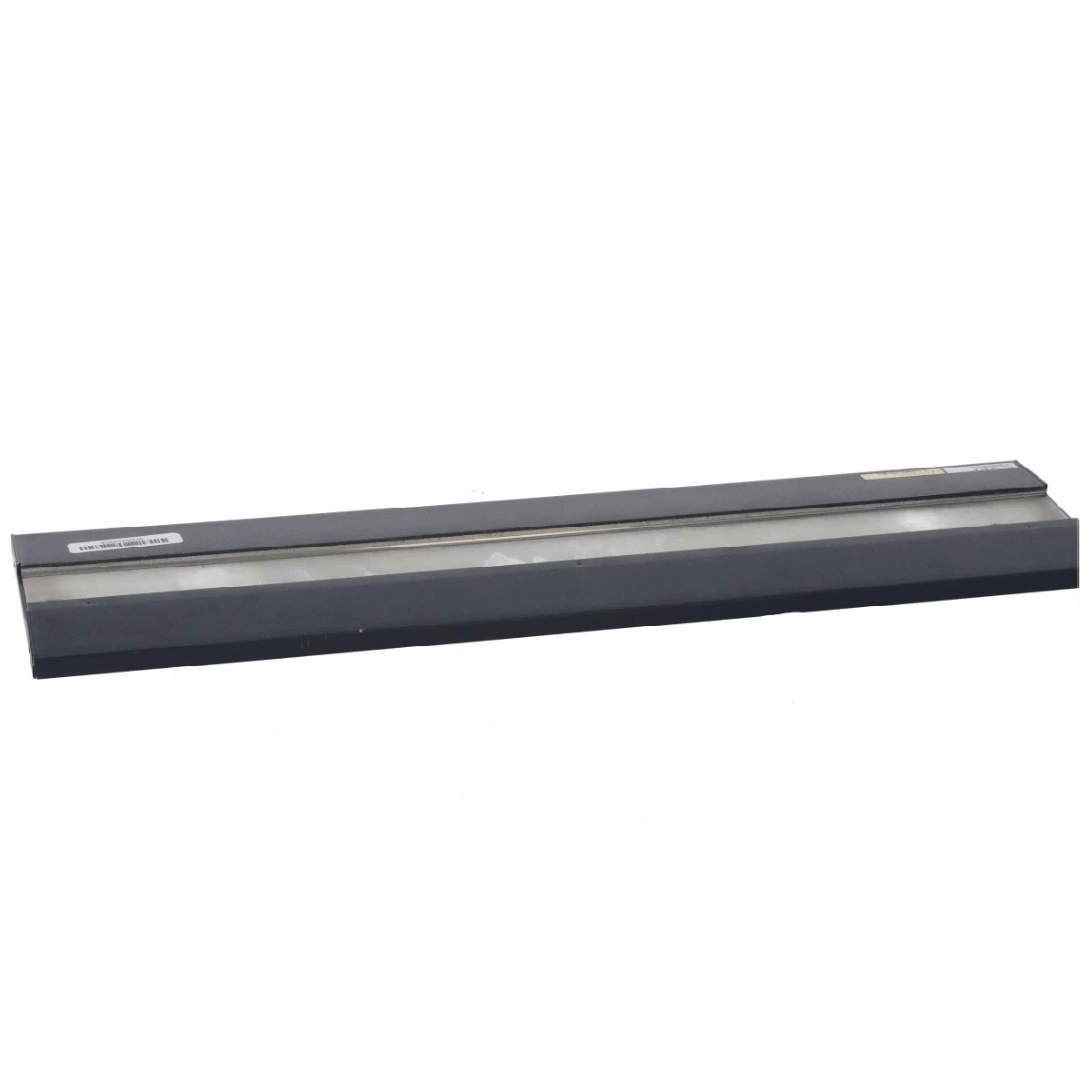

Bachmann Electronic BS209 M200 Control System Backplane

SKU BS209

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Bachmann
  • Product No.: BS209
  • Origin Austria
  • Product Type: Backplane - 9-Slot
  • Barcode: 8537101190
  • Payment: T/T, Western Union
  • Weight: 0.8 kg
  • Dimensions: 495 mm x 23 mm x 119 mm
  • Shipping port: Xiamen
  • Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

Bachmann Electronic BS209 M200 Control System Backplane

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The Bachmann Electronic BS209 is a 9-slot backplane component designed to serve as the structural and communication backbone for the M200 control system. This unit mechanically and electrically connects multiple hardware system modules, such as power supply units, processor modules, and various I/O modules. Developed with a robust mechanical footprint, it facilitates high-speed, multi-slot interconnection arrays within advanced industrial environments.

Features

  • Seamless connectable and extendable architecture
  • Stable mechanics combined with a compact hardware design
  • Vibration proof fixing to ensure steady placement of hardware modules
  • Designed to be snapped securely onto standard EN 60715 DIN rails

Applications

  • Programmable Logic Controllers (PLCs)
  • Distributed Control Systems (DCS)
  • Factory automation and control cabinets
  • Industrial computing and modular infrastructure

Ordering Information

Part Type Designation Part Number Description
BS209 00009634-00 Backplane with 9 module slots

Technical Specifications

Mechanical Specifications

Parameter Value
Manufacturer Bachmann electronic GmbH
Product Model BS209
Spare Model BS200 00009634-00, 9634/00
Product Parameters Backplane - 9-Slot
Number of Module Slots 9 module slots (Series scalability from 1 to 16 slots)
Width 495 mm (55 mm x 9 slots)
Depth 23 mm including connector
Height 119 mm
Country of Origin Austria
Tariff Code 8537101190
Weight 0.8 kg
Estimated Shipping Size 49.5 cm x 12.7 cm x 2.5 cm

Environmental Limits

Parameter Value
Operating Temperature -30 degC to +60 degC (vertical mounting: -30 degC to +55 degC)
Relative Humidity (Operation) 5% to 95%, non-condensing
Storage Temperature -40 degC to +85 degC
Relative Humidity (Storage) 5% to 95% with condensation

Installation Guidelines

  • DIN Rail Installation: The module is engineered to snap directly onto standard EN 60715 DIN rails for fast cabinet mounting.
  • Vibration Protection: When populating the backplane, align the hardware system modules with the designated slots and secure them fully to engage the integrated vibration proof fixing.
  • Thermal Management: For vertical installation orientations, ensure surrounding air temperature does not exceed +55 degC.

Compliance and Certifications

  • General Approvals: CE, UKCA, cULus
  • Marine Certifications: ABS, BV, DNV, KR, LR, NK, RINA
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Which system modules can be installed onto this backplane?
The backplane mechanically and electrically connects hardware modules of the M200 control system, including the power supply unit, processor module, and various input/output modules.
What is the physical size of this 9-slot module?
The backplane has a standard height of 119 mm, a depth of 23 mm including the connector, and a slot-dependent width calculated at 55 mm per module slot, resulting in an overall width of 495 mm for this version.
Can this backplane be utilized under high vibration or marine environments?
Yes, the device features vibration proof fixing of modules and carries multiple marine certifications, including ABS, BV, DNV, KR, LR, NK, and RINA.
Reviews

More from this brand
