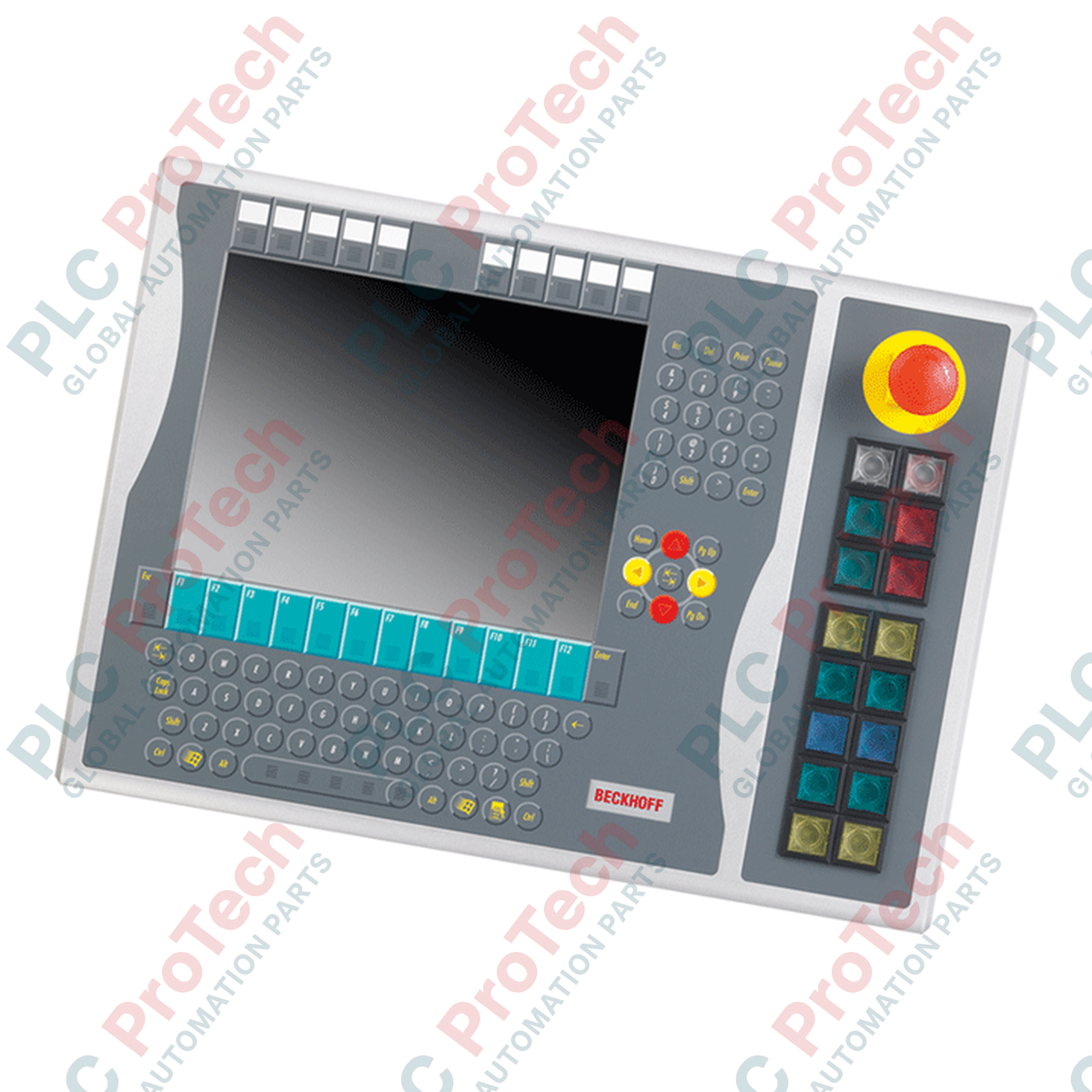

Beckhoff C9900-E515 CP6xxx and CP7xxx Series Push-Button Extension

SKU C9900-E515

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: BECKHOFF
  • Product No.: C9900-E515
  • Origin Germany
  • Product Type: HMI Push-button Extensions
  • Payment: T/T, Western Union
  • Weight: 0.5 kg
  • Dimensions: drawings with dimensions of the push-button e x tensions as AutoCAD DXF file
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Quantità

Product Description

Description

Designed to expand physical operator control layout directly on the machine-mount level, the Beckhoff C9900-E515 provides integrated mechanical switches and signaling for CP6xxx and CP7xxx Control Panels and Panel PCs. This hardware extension mounts on the right side of 15-inch displays that do not feature built-in keyboards. It bridges the gap between software-based touch operations and safety-critical physical command interfaces, ensuring immediate tactile response for machine operators in high-reliability environments.

Features

  • Ergonomic Layout: Designed for seamless mechanical alignment on the right-hand side of 15-inch display housings.
  • Tactile Control Array: Equipped with 16 push-button keys featuring integrated signal lamps for clear status feedback.
  • Standardized Actuators: Uses square Siemens Signum type (30 x 30 mm) push-button components.
  • Dedicated Safety Control: Features one Siemens Signum emergency stop key designed for direct physical wiring to safety circuits.
  • Dual-Channel Transmission: Supports transmission via CP-Link or USB with one normally-open contact, alongside a direct-wire terminal row for a second normally-open contact.
  • Custom Labeling: Features field-replaceable push-button caps allowing individual insert labels for custom symbols or text.

Applications

  • Custom HMI console integration on CNC machinery and production lines.
  • Main control panel expansion for CP6x31-00xx and CP7x31-00xx environments.
  • Automotive assembly cell control requiring physical emergency stop and feedback indicators.
  • Process control environments demanding mechanical override push-buttons alongside touchscreen interfaces.

Technical Specifications Table

Parameter Specification Value
Manufacturer Beckhoff Automation
Model / Article Number C9900-E515
Device Type Push-button extension for Control Panels
Compatible Panel Sizes 15-inch display without keyboard
Compatible Series CP6x31-00xx and CP7x31-00xx Series
Physical Mounting Position Right side of the host panel
Key Configuration 16 square push-buttons with integrated lamps (30 x 30 mm)
Actuator Type Siemens Signum square series
Emergency Stop Key 1x Siemens Signum emergency stop, directly wireable
Control Communication Channels CP-Link or USB (for 1st NO contact + feedback lamps)
Hardwired Interface Direct terminal block row (for 2nd NO contact on push-buttons)
Lifecycle Phase Service Phase (Legacy support and spare part availability)
Shipping Weight (Calculated) 5.0 kg (11.0 lbs)

Connections and Interfaces

Interface Connection Signal / Target Assignment
CP-Link / USB Bus Connection Primary digital status feedback for 16 keys & active state of 16 signal lamps.
Internal Direct Terminal Block Provides hardwired access to the second normally-open (NO) contacts for physical interlock circuits.
Emergency Stop Contact Blocks Isolated, direct-wired safety-rated terminals for integration into dual-channel safety monitoring loops.

Empirical Engineering Insights

Alternative Models & Compatibility

This expansion panel is designed specifically for 15-inch displays without a built-in keyboard unit. Attempting to fit this hardware extension onto smaller (12-inch) or larger (19-inch) panels is not mechanically viable due to mounting hole spacing mismatch and physical height variations. If dealing with legacy installations, note that the internal logic boards are hard-configured for either CP-Link or USB connection protocols depending on the host panel’s input card variant.

Application Pitfalls & Engineering Notes

While status signal transmission for standard push-buttons can safely run via CP-Link or USB communication, critical safety functions must never depend solely on these bus channels. The integrated Emergency Stop button and the second normally-open (NO) contacts are intentionally isolated. To ensure proper functional safety compliance (Performance Level d/e), always route the Emergency Stop contact blocks to dedicated external safety relay units or TwinSAFE input modules.

Commissioning & Wiring Tips

When routing auxiliary wiring from the internal terminal row, utilize shielded cables to prevent electromagnetic coupling within environments featuring large variable frequency drives (VFDs). The 30 x 30 mm Siemens Signum switch caps can be easily removed using a standardized extraction tool; when installing custom printed labels, ensure the material used can withstand operating temperatures inside closed enclosures, which can regularly reach up to 55 degC.

Installation Guidelines

CRITICAL WARNING: Prior to initiating physical assembly or electrical integration, completely isolate and de-energize the host Control Panel or Panel PC. Ensure all control-voltage supply lines are locked out and tagged out. Verify the absence of residual static charges before accessing internal wire connection terminals to protect sensitive bus interface electronics.
1

Align the extension frame with the right side of the CP6xxx or CP7xxx host panel enclosure, ensuring the integrated seal is positioned correctly to maintain overall ingress protection ratings.

2

Tighten the mounting screws evenly to the recommended torque specifications, preventing over-tightening which could distort the gasket profile.

3

Connect the internal ribbon or USB interface cable to the dedicated internal port on the main host board.

4

Route safety wiring from the Emergency Stop element and external interlocks out through the designated cable glands directly to the central control cabinet.

Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Can this push-button extension be mounted on the left side of the panel?
No, this specific layout is mechanically keyed and shaped for right-side installation on 15-inch host Control Panels or Panel PCs.
Are the signal lamps powered directly via the external terminal block?
No, all 16 integrated signal lamps are controlled and powered exclusively via the CP-Link or USB communication interface connection.
How do I wire the Emergency Stop button for safety-compliant operation?
The Emergency Stop button features dedicated contact blocks. You must wire these contacts directly to an external safety evaluation module or TwinSAFE input terminal, bypassing the standard USB or CP-Link bus channels.
What size push-buttons are used on this extension module?
It uses square Siemens Signum type push-buttons measuring 30 x 30 mm, which allow for customizable, field-replaceable key caps.
