Description

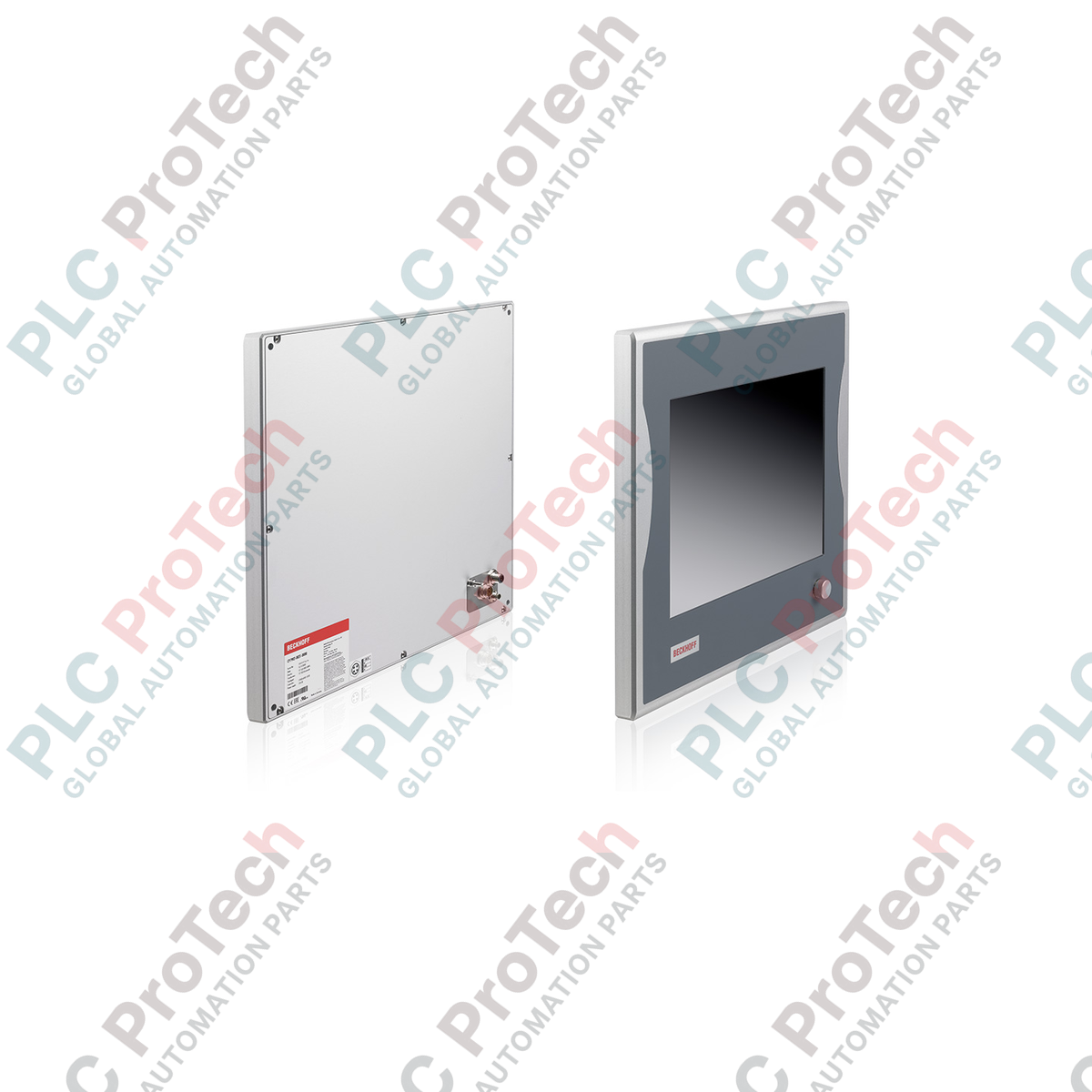

Optimized for compact operator interface configurations, the Beckhoff CP7929-0000-0000 delivers robust visualization directly to the machine field level as an IP65-rated Economy Control Panel. This unit integrates a 6.5-inch TFT display with a resolution of 640 x 480 pixels, housed within a highly durable, fully enclosed aluminum housing. Engineered for distributed control architectures, it leverages DVI-E and USB-E 2.0 connection technology, allowing the control panel to operate at distances of up to 50 meters from the industrial PC without signal degradation. The mechanical design is tailored for mounting arm installation, offering comprehensive protection against dust, water, and mechanical stress in harsh manufacturing environments.

Features

• Distributed Architecture: Integrated DVI-E and USB-E 2.0 receivers facilitate remote operation up to 50 meters from the host industrial PC.
• All-Round Protection: Sealed aluminum housing meets IP65 ingress protection standards on all sides, guarding against oil, water jets, and particulate matter.
• Industrial Display Technology: High-contrast 6.5-inch display with 640 x 480 VGA resolution ensures clear visibility of process parameters.
• Robust Connectivity: Standard DVI-E interface is fully compatible with standard PC DVI outputs, while USB-E 2.0 transmits data at rates up to 480 Mbit/s.
• Flexible Mounting: Equipped with a rear-side adapter featuring 4 threaded holes (M6 x 18 mm) for seamless installation on swing-arm systems.

Applications

• Automotive Assembly Lines: Distributed operator stations requiring robust visual feedback and local USB control interfaces.
• Packaging and Food Processing: Wet-area machinery deployment demanding full IP65 washdown resistance and chemical-resistant front membranes.
• CNC Machine Tooling: Direct mounting to articulated swing arms on large-format milling and boring machines.
• Material Handling Systems: Overhead crane or sorting station visual terminals positioned far from the central control cabinet.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The CP7929 series utilizes first-generation DVI-E/USB-E technology, which differs fundamentally from Beckhoff's newer CP-Link 4 single-cable technology. When replacing older CP7929 units, ensure that the existing transmitter card installed in the host industrial PC (e.g., CU8801 or identical PCIe transmitter card) is fully operational, as modern CP-Link 4 transmitters are incompatible with this display's legacy receiver board. If upgrading the host PC, maintain dedicated DVI-E and USB-E physical connection layers to preserve communication integrity.

Application Pitfalls & Engineering Notes

While the CP7929-0000-0000 features a fully sealed aluminum enclosure, heat dissipation occurs passively through the rear surface. Avoid mounting the panel flush against flat surfaces or inside tightly enclosed non-ventilated secondary housings. A minimum clearance of 100 mm is required behind the rear mounting arm adapter to allow continuous convective airflow, especially in high-ambient environments approaching the 55 degC limit. Exceeding this thermal threshold will cause premature degradation of the CCFL/LED backlight assembly.

Commissioning & Wiring Tips

For transmissions extending beyond 20 meters, use only high-grade, shielded Cat6A or Cat7 cables for the DVI-E and USB-E links. Standard copper patch cables can experience severe high-frequency attenuation, causing display flickering or USB dropouts. To guarantee complete IP65 sealing, all cable glands and connection hoods must be torqued precisely to the manufacturer's specification. Ensure the mounting arm is directly bonded to the machine frame's functional earth (PE) with a low-impedance ground strap to shield the internal high-speed receiver circuitry from electromagnetic interference generated by adjacent variable frequency drives (VFDs).
