Description

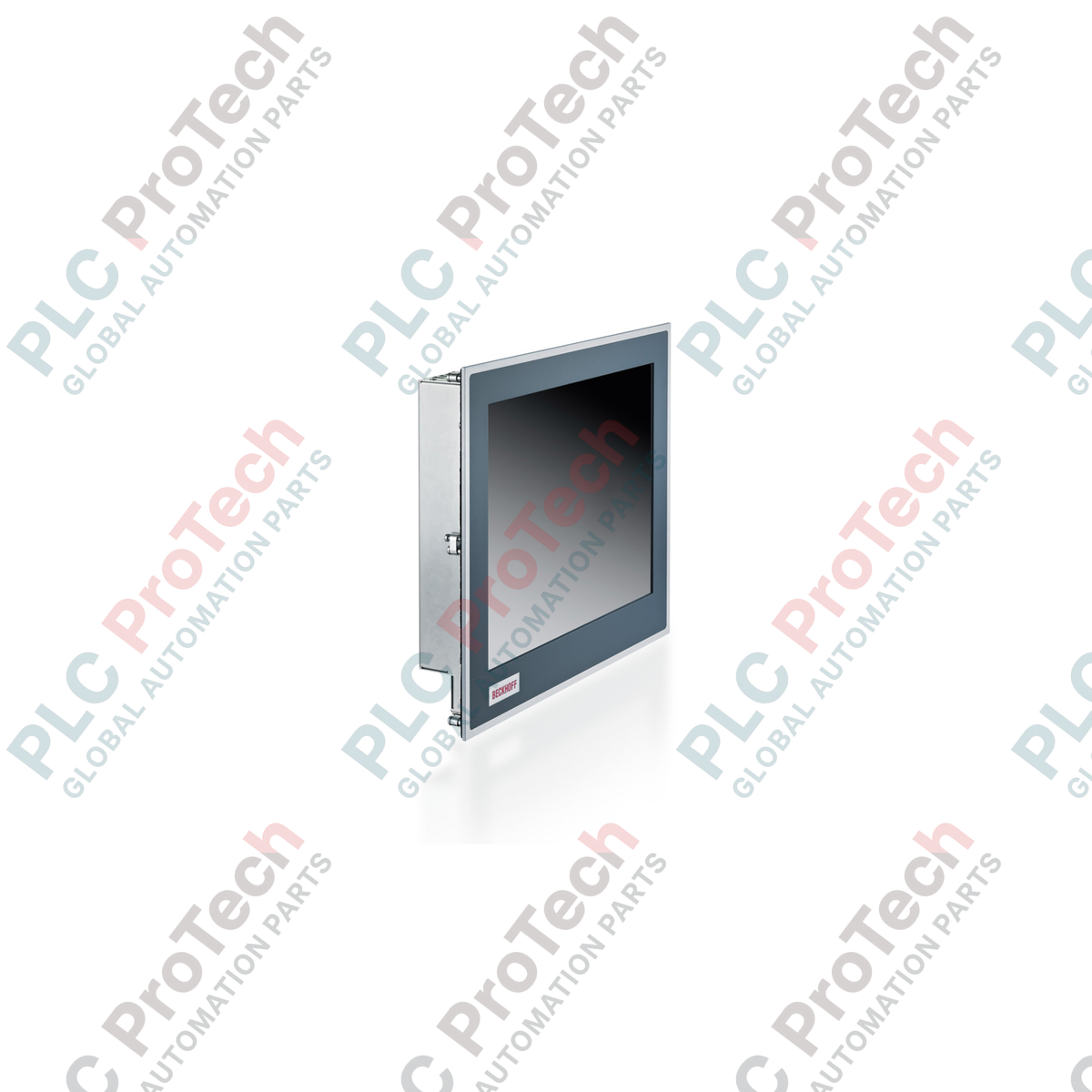

Designed for seamless integration into control cabinet cutouts, the CP6742-0001-0050 built-in Panel PC provides a robust hardware platform for machine visualization, human-machine interface (HMI), and standard control tasks. This industrial-grade system combines a high-luminance 15-inch TFT display (1024 x 768 resolution) with a fanless Intel Atom processor architecture, delivering efficient performance within a compact envelope. The front assembly consists of an aluminum faceplate with a single-finger touch screen, offering excellent mechanical stability and high-performance ingress protection suitable for harsh manufacturing environments.

For communication and peripheral integration, this Panel PC is equipped with dual on-board Gigabit Ethernet interfaces and multiple high-speed USB ports. The space-saving mechanical housing features a sheet-steel rear cover and is secured in place using pull-out clamping levers, simplifying installation and eliminating loose parts. Storage capacity and operating system deployment are managed via a dedicated CFast slot, ensuring reliable solid-state operation even in high-vibration applications.

Features

• 15-Inch Display: High-quality TFT liquid crystal screen with a native resolution of 1024 x 768 pixels for clear graphic rendering.
• Fanless Processing Power: Driven by an energy-efficient Intel Atom processor designed for continuous industrial operations.
• Robust Protection: Front panel rated at IP65 to resist dust and moisture, with a rear housing protection rating of IP20.
• Industrial Storage: Equipped with a reliable CFast card slot for non-volatile system storage and operating system execution.
• Versatile Connectivity: Dual independent 100/1000BASE-T Ethernet ports on-board alongside four USB 2.0 interfaces and a DVI port.
• Simplified Cabinet Installation: Tool-free or fast installation via integrated pull-out clamping levers.

Applications

• Machine tool human-machine interfacing (HMI)
• Factory automation and production line visualization
• Control cabinet integrated computing
• Process monitoring in water treatment and chemical environments
• Food processing and packaging machinery control

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Cabinet Cutout Preparation: Ensure the control cabinet door or wall cutout precisely matches the mechanical dimensions of the 15-inch housing flange to maintain the front-side IP65 seal.
• Secure Mounting: Use the integrated pull-out clamping levers to apply uniform pressure against the inner surface of the mounting panel.
• Electrical Grounding: Connect the functional earth terminal on the power supply connection block directly to the central grounding rail of the control cabinet.
• Thermal Management: Maintain adequate clearance around the rear sheet-steel cover to ensure proper passive convection cooling. Do not block the ambient airflow pathways.

Compliance and Certifications

• CE
