Description

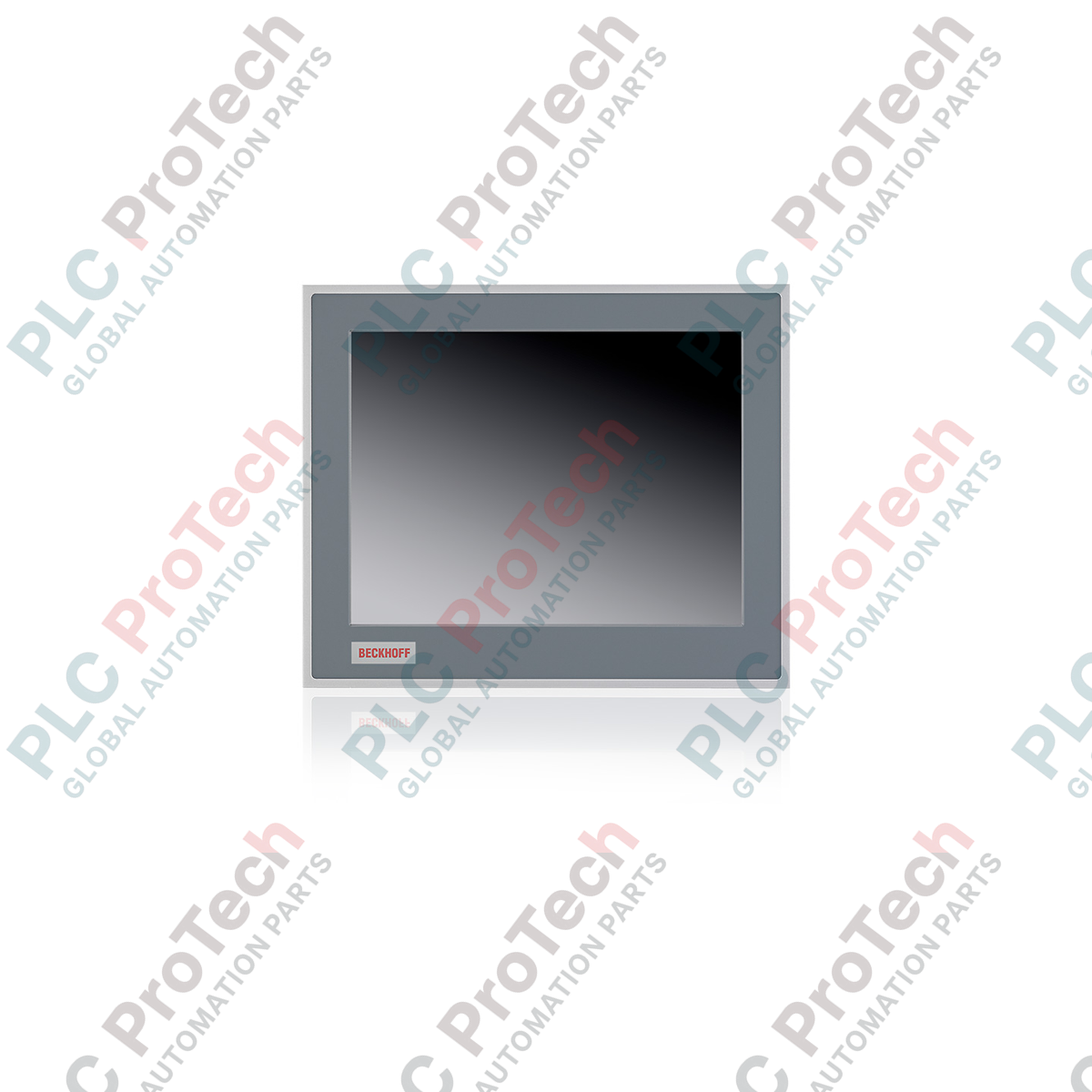

Integrating seamlessly into industrial machinery consoles, the Beckhoff CP6901-0020-0000 operates as a high-reliability human-machine interface featuring a 12-inch display and an analog resistive touch screen. This built-in Control Panel is engineered to function as a remote operator station, leveraging integrated DVI-E and USB-E 2.0 transmission technology to allow secure, high-speed connection up to 50 meters away from the industrial PC cabinet. Wrapped in a rugged aluminum front frame with a protective sheet-steel rear cover, this unit balances precise control panel ergonomics with industrial-grade mechanical strength.
Key Features
-
High-Resolution Display: Equipped with a crisp 12-inch TFT display providing 800 x 600 pixel resolution.
-
Extended Signal Range: Employs DVI-E and USB-E 2.0 interfaces to transmit display and input data up to 50 m without signal degradation.
-
Robust Operator Input: Features a high-accuracy, single-finger resistive touch screen interface for precise industrial operations.
-
Rugged Environmental Seal: Offers IP65 ingress protection on the front face to withstand dust, oil, and direct water splashes.
-
Compact Built-In Design: Utilizes pull-out clamping levers for rapid, secure flush mounting into control desks or cabinet doors.
Applications
-
Automotive Assembly Lines: Serves as local visualization nodes for robotic assembly cells and material handling setups.
-
Packaging Machinery: Acts as the main human-machine interface for high-speed primary and secondary packing systems.
-
Process Plant Control: Provides localized monitoring and setpoint adjustment inside process control environments.
-
Metalworking and CNC Cells: Mounts on control pendants to provide reliable input under conditions involving lubricants and flying debris.
Technical Specifications
| Parameter |
Value / Specification |
| Manufacturer |
Beckhoff |
| Model Number |
CP6901-0020-0000 |
| Display Size |
12-inch TFT |
| Resolution |
800 x 600 pixels |
| Touch Technology |
Single-finger analog resistive touch screen |
| Interface Type |
DVI-E and USB-E 2.0 (extended up to 50 m) |
| Local Interfaces |
1 x RJ45 (USB-E 2.0 input), 1 x DVI input, 2 x USB 2.0 outputs (rear) |
| Supply Voltage |
24 V DC (nominal) |
| Protection Rating |
IP65 Front, IP20 Rear |
| Operating Temperature |
0 to 55 degC (ambient) |
| Housing Material |
Aluminum front panel, galvanized sheet-steel rear cover |
| Country of Origin |
Germany |
| Shipping Weight (Calculated) |
8.00 kg |
| Package Dimensions (Calculated) |
380 x 310 x 120 mm |
Connections and Interfaces
| Connector / Terminal |
Function / Circuit Assignment |
| DVI-D Port |
Standard DVI input for direct graphic signals up to 5 m |
| RJ45 USB-E 2.0 |
Extended USB input via Cat 6A / Cat 7 cabling up to 50 m |
| Dual USB Type-A |
Integrated USB 2.0 hubs for local peripherals (mouse, keyboard, flash drive) |
| 3-Pin Power Connector |
+24 V DC, 0 V DC, and PE (Protective Earth) ground terminal |
Alternative Models & Compatibility
The CP6901-0020-0000 uses standard DVI-E and USB-E 2.0. This makes it directly compatible with Beckhoff Industrial PCs equipped with CU8801 transmitter boxes or integrated DVI/USB Extended PCIe cards. When replacing older CP6901 variations, confirm whether the host controller supports direct USB-E transmission speeds or requires intermediate transceiver blocks.
Application Pitfalls & Engineering Notes
To prevent graphic instability or connection dropout over long distances, high-quality, fully shielded Cat 6A or Cat 7 ethernet lines must be used to link the USB-E 2.0 RJ45 port. Standard patch cords lack the noise-immunity required to handle industrial high-frequency emissions. Maintain safe physical separation from variable frequency drive (VFD) power cables within intermediate wire trays.
Commissioning & Wiring Tips
Ensure that the Protective Earth (PE) terminal on the 3-pin power connector is wired to a common, low-impedance ground rail. Proper grounding prevents electrostatic charge buildup across the resistive touch membrane, mitigating erratic input registration or localized sensor lockup during dry ambient conditions.
Installation Guidelines
CRITICAL WARNING:
Before commencing installation, ensure all supply voltages to the mounting cabinet are completely isolated. Failure to de-energize primary and control-level circuits during installation presents a shock hazard and can cause permanent component damage to the HMI backlight driver.
1
Prepare Cabinet Cutout:
Ensure the panel cutout meets the physical mounting tolerances of the 12-inch casing. Deburr all edges to avoid slicing the front-seal gasket.
2
Set the Front Seal:
Fit the panel into the prepared cutout, checking that the front elastomer seal lies completely flat against the cabinet face to guarantee an IP65 seal.
3
Secure Clamping Levers:
Swivel out the integrated pull-out clamping levers from the rear casing. Tighten them evenly until the faceplate sits flush and securely tensioned.
4
Establish System Cabling:
Insert the shielded DVI-E and USB-E RJ45 connectors. Fasten the 3-pin power plug, then energize the system and confirm touch calibration through the operating system settings.
