Designed for decentralized industrial automation in high-hygiene and washdown areas, the BECKHOFF EQ1809-0022 offers direct acquisition of digital control signals from sensors in demanding process environments. This stainless steel EtherCAT Box features 16 digital inputs and is optimized for direct installation on machinery without requiring a protective control cabinet.
With its robust construction, the module stands up to aggressive cleaning agents and high-pressure washdown procedures. The device couples directly to EtherCAT networks via shielded M8 connections, transmitting digital signals with high speed and deterministic timing to the master PLC. The dual-channel design of the M12 input sockets allows for high-density sensor wiring in a compact physical footprint.

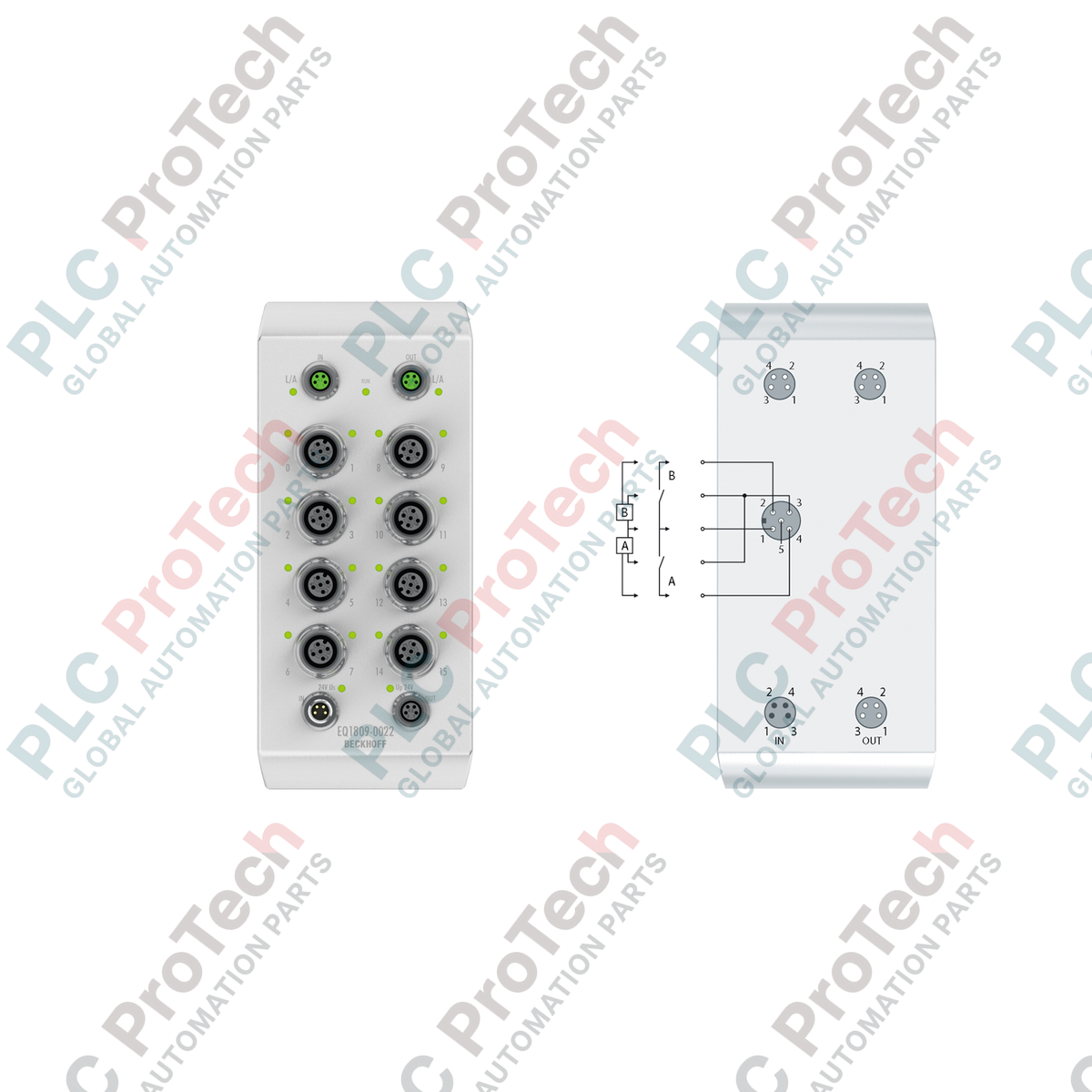

| Manufacturer | Beckhoff |
| Model / Part Number | EQ1809-0022 |
| Protocol | EtherCAT |
| Number of Inputs | 16 |
| Input Connection Type | 8 x M12 x 1, 5-pin, A-coded |
| Bus Interface Connection | 2 x M8 socket, shielded, screw type |
| Nominal Input Voltage | 24 V DC (-15% / +20%) |
| Signal Voltage "0" | -3 V to +5 V |
| Signal Voltage "1" | 11 V to 30 V (6 mA input current) |
| Input Filter Time | 3.0 ms |
| Current Consumption (from US) | Typically 130 mA |
| Electrical Isolation | 500 V |
| Sensor Supply | Max. 0.5 A total from load supply, short-circuit proof |
| Power Feed / Downstream | Feed: 1 x M8 male 4-pin; Downstream: 1 x M8 female 4-pin |
| Housing Material | Stainless steel (Hygienic Design) |
| Dimensions (W x H x D) | 72 mm x 160 mm x 43 mm |
| Operating Temperature | -25 to +60 degC |
| Storage Temperature | -40 to +85 degC |
| Protection Rating | IP69K (conforms to EN 60529) |
| Weight | 2.0 kg |
| Interface Type | Connection Details | Function |
|---|---|---|
| EtherCAT Ports | 2 x M8, shielded, screw type | Inbound and outbound EtherCAT bus communication |
| Digital Inputs | 8 x M12, 5-pin, A-coded | Connects up to 16 sensors (2 inputs per socket) |
| Power Input | 1 x M8 male, 4-pin | 24 V DC control voltage feed (US) and peripheral power (UP) |
| Power Output | 1 x M8 female, 4-pin | Downstream feed-through to adjacent EtherCAT Box modules |
Global Express Shipping
Returns & Warranty
Manufacturer: BECKHOFF
Product No.: EQ1809-0022
Country of origin:Germany
Product Type: EtherCAT Boxes
Payment: T/T, Western Union
Weight: 2000g
Dimensions: 72 mm x 160 mm x 43 mm
Shipping port: Xiamen
Warranty: 12 months
