Product Overview

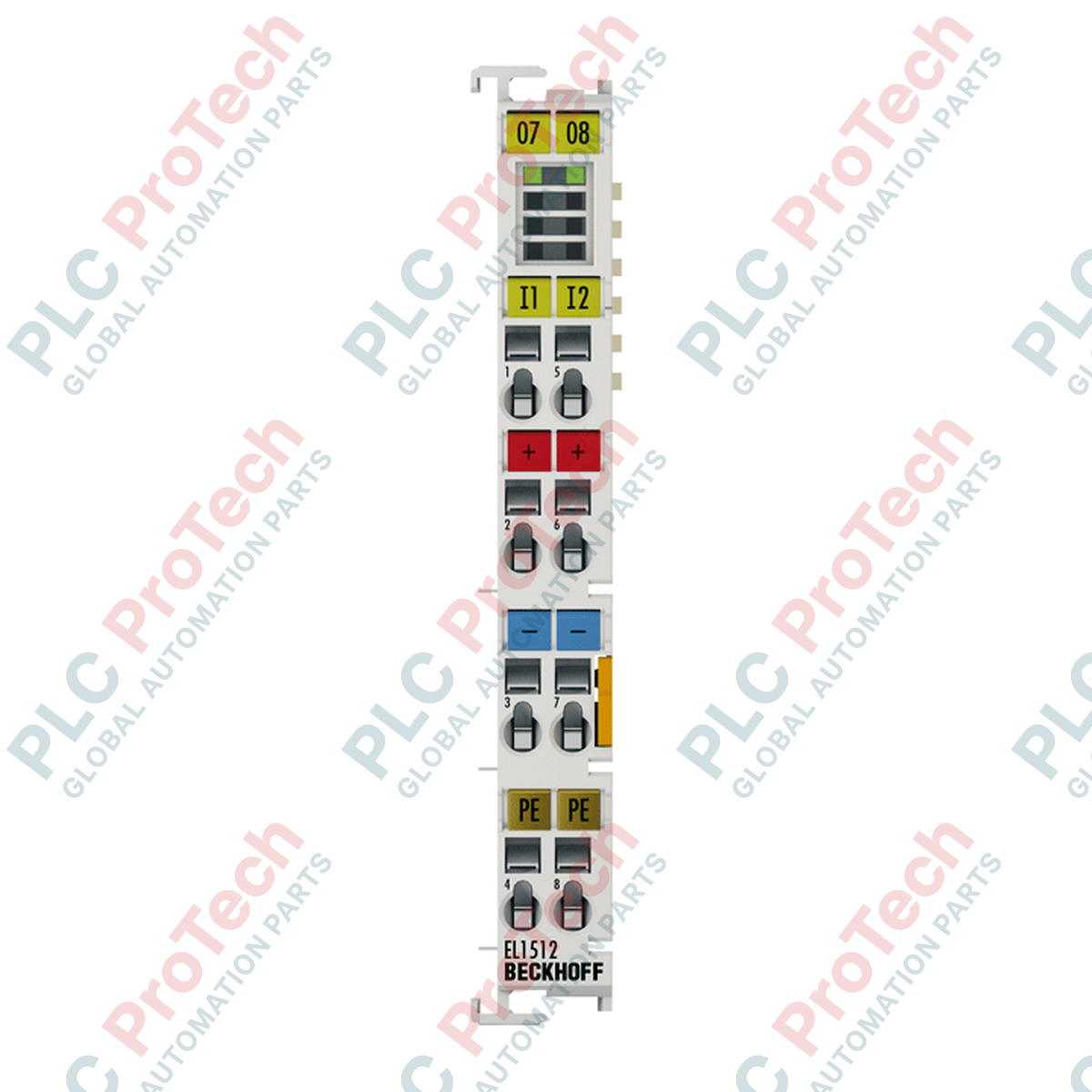

The EL1512 (EL1512) is a high-speed, 2-channel digital input counter terminal from the Beckhoff EL series, designed for precise pulse acquisition and event counting in industrial automation. Capable of processing signals up to 1 kHz, this EtherCAT terminal offers flexible configuration, supporting either one up/down counter or two independent up/down counters. Its 32-bit counter depth ensures extended counting ranges for long-term monitoring, making it an essential component for flow measurement, position sensing, and high-speed production tracking. By utilizing EtherCAT communication, the EL1512 provides real-time, deterministic data transmission, allowing for seamless integration into advanced control loops and logic sequences.

Technical Configuration

The EL1512 architecture is optimized for versatility and ease of deployment. It adheres to EN 61131-2 Type 1 input specifications, ensuring compatibility with standard industrial sensors. The terminal provides 500 V electrical isolation between the field potential and the E-bus, maintaining communication reliability in high-noise environments. Notably, the EL1512 features a "set counter" function, allowing the EtherCAT master to dynamically reset or preset counter values during operation. Configuration is handled entirely via the EtherCAT master, eliminating the need for physical address switches and enabling rapid replacement or system reconfiguration.

Technical Specifications

FAQs

How is the counter mode configured on the EL1512?

The terminal configuration (e.g., choosing between one up/down counter or two individual counters) is managed directly through the EtherCAT master software, such as TwinCAT, rather than via physical switches on the hardware.

Does this terminal require a high-speed encoder input?

The EL1512 is optimized for standard pulse counting up to 1 kHz. If your application requires high-speed quadrature encoder interfaces (e.g., for motor positioning), you should consider the dedicated Beckhoff Encoder Terminals (such as the EL5xxx series).

Can this terminal be used in hazardous environments?

Yes, the EL1512 carries ATEX approval (II 3 G Ex nA IIC T4 Gc), allowing its use in Zone 2 hazardous locations when installed within a suitable protective enclosure.

Installation and Operational Recommendations

• Input Signal Conditioning: For signals approaching the 1 kHz frequency limit, ensure that the cabling is shielded to prevent pulse drops caused by induced electromagnetic noise. Always use the specified wire cross-sections to ensure secure connections in the spring-actuated terminals.
• Counter Logic: When utilizing the set counter feature, account for the EtherCAT cycle time. The set command is processed within the standard communication frame, ensuring that counter resetting or presetting remains synchronous with your overall application logic.
• Thermal Management: While the EL1512 is designed for compact mounting, always maintain the recommended clearances in your DIN rail assembly to promote optimal airflow. This is particularly important when the terminal is used alongside high-current power contact modules or other heat-generating terminals.
