Product Overview

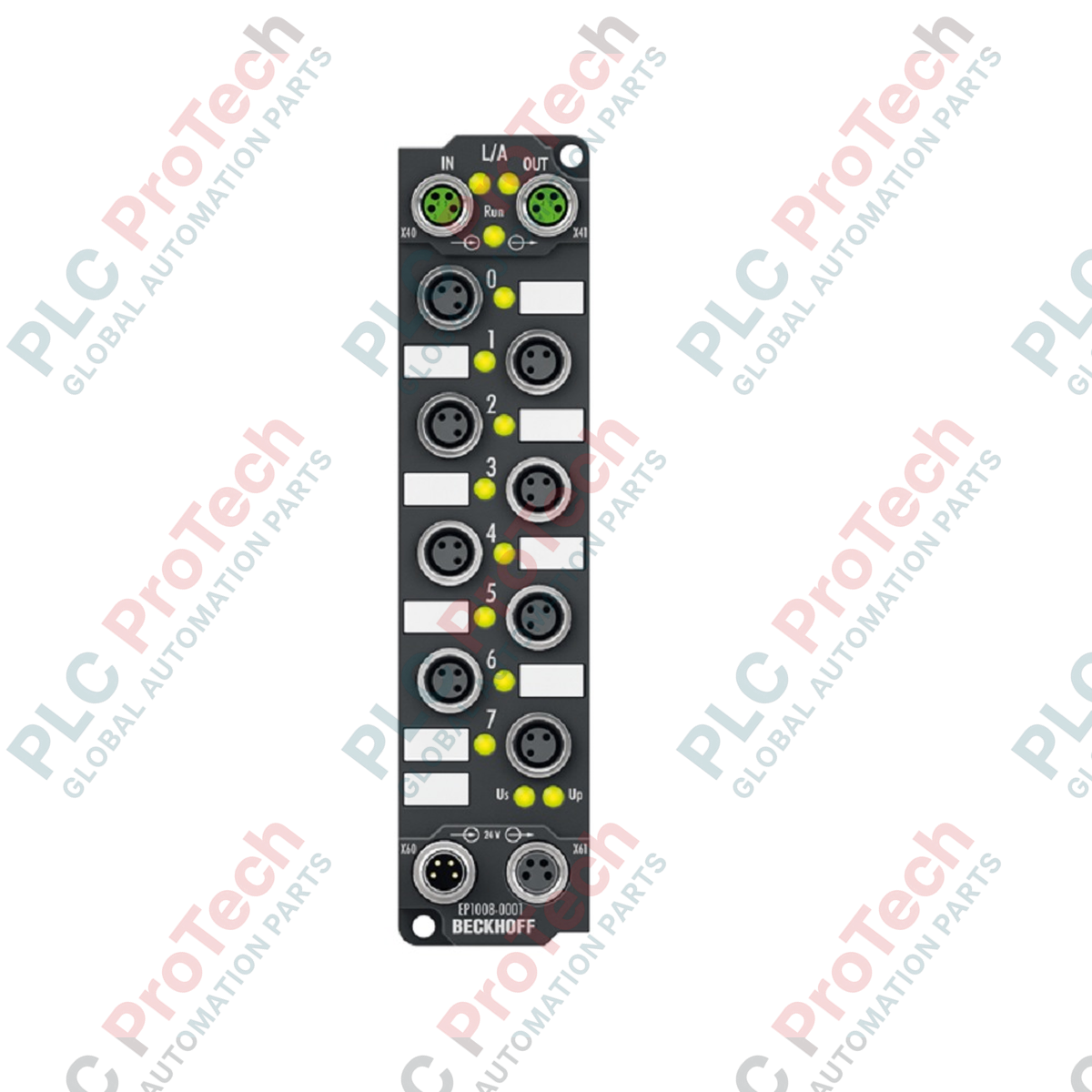

The EP1008-0001 (EP10080001) is a compact, high-density digital input module within the Beckhoff EP series, designed for direct field deployment. Serving as a robust EtherCAT slave device, this EtherCAT Box provides 8 digital inputs via M8 connectivity, specifically tailored for automated systems where space is at a premium and environmental protection is required. By eliminating the need for traditional control cabinets in localized sensing zones, the EP1008-0001 significantly reduces field wiring labor and material costs, providing a streamlined, modular approach to industrial data acquisition in harsh operating conditions.

Technical Configuration

The hardware architecture of the EP1008-0001 supports high-speed EtherCAT communication via dual M8 shielded sockets, allowing for efficient daisy-chaining in decentralized topologies. It adheres to EN 61131-2 Type 3 input specifications, ensuring compatibility with a broad spectrum of industrial sensors and proximity switches. The module manages its own sensor supply from the control voltage, providing a maximum of 0.5 A with integrated short-circuit protection for the total load. Input filtering is factory-set to 3.0 ms to ensure noise immunity and reliable signal detection in environments subjected to electrical interference.

Technical Specifications

FAQs

Is the EP1008-0001 compatible with standard M8 sensors?

Yes, the module is equipped with 3-pin, A-coded M8 sockets, which are compatible with the vast majority of standard industrial 24 V DC sensors.

Does this module require a separate power supply for the inputs?

The inputs are powered from the control voltage supply fed through the M8 power interface. The module provides a total of 0.5 A for sensor supply, which is short-circuit protected.

Can I use this module in hazardous areas?

Yes, the EP1008-0001 is ATEX-approved with the marking II 3 G Ex nA IIC T4 Gc, allowing for deployment in Zone 2 hazardous locations.

Installation and Field Deployment Guidance

• Mounting Requirements: The module features two 3.5 mm diameter fixing holes intended for M3 screws. For vibration-heavy applications, ensure that both mounting points are utilized and that the chassis is securely bonded to the machine frame to prevent mechanical fatigue.
• Environmental Sealing: The IP65 rating relies on the integrity of the M8 connection seals. Always ensure that all unused ports are fitted with protective caps. If the environment involves frequent wash-downs, verify that the M8 connectors are fully seated and that the cable jacket material is compatible with the chemical agents used in the vicinity.
• Wiring Verification: Ensure that the input signal voltage (11 to 30 V for "1" signal) is within the specified range to prevent indeterminate states. Given the 3.0 ms input filter, this device is best suited for standard digital sensors rather than ultra-high-speed pulse capture or encoder signal processing.
