Description

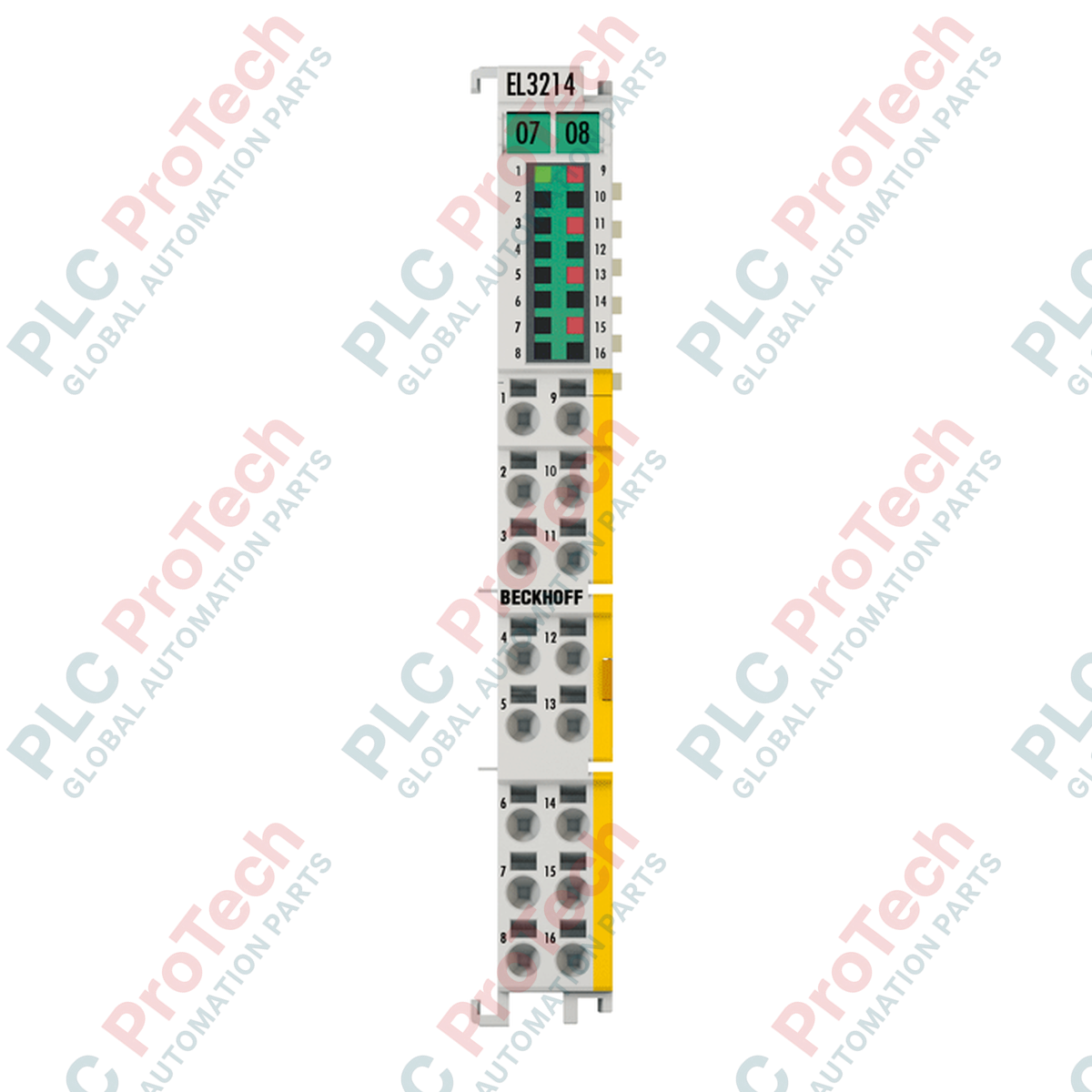

Designed to perform high-density temperature acquisition, the Beckhoff EL3214-0090 analog input terminal enables direct connection of up to four resistance sensors in space-constrained control cabinets. Operating as part of the EtherCAT I/O system, this module processes signals from RTDs such as Pt100, Ni100, and various resistance transmitters using a highly efficient 3-wire connection design. The integration of TwinSAFE SC (Single Channel) technology allows the transmission of analog measurement data from this standard terminal directly to a TwinSAFE Logic unit, enabling safety-related evaluation and multi-level process monitoring within complex automation networks.
Features
-
Four-Channel Density: Interfaces four separate RTD sensors within a compact 12 mm HD housing.
-
TwinSAFE SC Technology: Enables safety-oriented signal processing over standard EtherCAT networks when integrated with TwinSAFE logic.
-
3-Wire Connection Geometry: Provides lead resistance compensation without requiring a fourth wire, ensuring accuracy and saving terminal space.
-
Multi-Sensor Linearization: Native support for Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, and potentiometric ohm-level resistance measurements.
-
Integrated Status Diagnostics: Individual channel LEDs indicate error states, open circuits, and run operations instantly.
Applications
-
Process Control Engineering: Precise thermal control in chemical processing, plastic extrusion, and food processing lines.
-
Power Generation and Distribution: Monitoring winding temperatures in motors, generators, and large power transformers.
-
Environmental Chambers: Regulating precise climatic feedback loops across variable test spaces.
-
Heavy Machinery Automation: Standard bearing temperature monitoring and oil sump thermal feedback.
Technical Specifications
| Parameter |
Specification Values |
| Manufacturer |
Beckhoff Automation |
| Model Designation |
EL3214-0090 |
| Product Type |
EtherCAT Terminal (HD Housing) |
| Inputs |
4 channels (analog) |
| Power Supply |
Via E-bus (Internal) |
| Technology Type |
Temperature measurement (RTD) |
| Signal Type |
Differential |
| Resolution |
16 bit (0.1 degC per digit) |
| Conversion Time |
Approx. 170 ms (default configuration) |
| Measuring Current |
Less than 0.5 mA (load-dependent) |
| Temperature Ranges |
-200 to +850 degC (Pt sensors); -60 to +250 degC (Ni sensors) |
| Measurement Error |
Less than +/-0.5 degC for Pt sensors (4 x 3-wire) |
| Electrical Isolation |
500 V (E-bus / signal voltage) |
| Current Consumption E-bus |
Typical 140 mA |
| Housing Type |
HD (High Density) housing, Polycarbonate |
| Physical Dimensions |
12 mm x 100 mm x 68 mm |
| Operating Temperature |
-25 to +60 degC |
| Vibration Resistance |
Conforms to EN 60068-2-6 / EN 60068-2-27 |
| Approvals |
CE, UL |
| Country of Origin |
Germany |
| Weight |
Approx. 60 g |
Connections and Interfaces
| Terminal Pin Number |
Signal Assignment |
Functional Description |
| 1 |
+R1 |
Channel 1 positive sensor input |
| 5 |
+RL1 |
Channel 1 sense connection (lead compensation) |
| 9 |
-R1 |
Channel 1 negative return path |
| 2 |
+R2 |
Channel 2 positive sensor input |
| 6 |
+RL2 |
Channel 2 sense connection (lead compensation) |
| 10 |
-R2 |
Channel 2 negative return path |
| 3 |
+R3 |
Channel 3 positive sensor input |
| 7 |
+RL3 |
Channel 3 sense connection (lead compensation) |
| 11 |
-R3 |
Channel 3 negative return path |
| 4 |
+R4 |
Channel 4 positive sensor input |
| 8 |
+RL4 |
Channel 4 sense connection (lead compensation) |
| 12 |
-R4 |
Channel 4 negative return path |
Empirical Engineering Insights
Alternative Models & Compatibility
The EL3214-0090 features safety-related single-channel (SC) properties, setting it apart from standard non-safety EL3214 units. While standard EL3214 terminals can be replaced by EL3214-0090 modules, updating the TwinCAT EtherCAT configuration is mandatory to leverage the safety features. Standard non-SC models cannot act as direct functional replacements in applications requiring TwinSAFE SC safety loops.
Application Pitfalls & Engineering Notes
To prevent measurement errors arising from self-heating, ensure the diagnostic sensor parameters align with the default sensor current limit of less than 0.5 mA. High environmental temperatures within high-density terminal setups can accelerate heat buildup. Provide adequate convective airflow or implement standard spacing blocks when positioning the EL3214-0090 adjacent to high-dissipation terminals like bus couplers or motor drive units.
Commissioning & Wiring Tips
To fully utilize the 3-wire line compensation, all three signal wires leading to a single sensor must possess matching cross-sectional areas and material specifications. Using a mismatch in line characteristics will introduce offset measurement errors that cannot be calculated out dynamically. Route all analog sensor cables through shielded, twisted-pair lines, connecting the shielding to the nearest DIN-rail grounding terminal rather than routing it through the standard power contact tracks.
Installation Guidelines
CRITICAL SAFETY WARNING
Isolate the power supply to the entire I/O segment before inserting or withdrawing the terminal from the DIN rail block. Failure to de-energize can damage sensitive E-bus internal transceivers, resulting in communication interruptions across the whole physical segment. Observe proper electrostatic discharge precautions when handling the exposed side-contacts.
1
Mount the EtherCAT terminal onto the standard 35 mm DIN rail conforming to EN 60715, pushing downwards until the spring-lock latches firmly on both slots.
2
Slide the adjacent modules together using the integrated double-slot key connections to complete the structural physical bus profile.
3
Strip sensor wire insulation back to 8–9 mm. Depress the spring-clamp locking mechanism using a standard screwdriver, insert the solid or ferruled wire, and release to lock.
