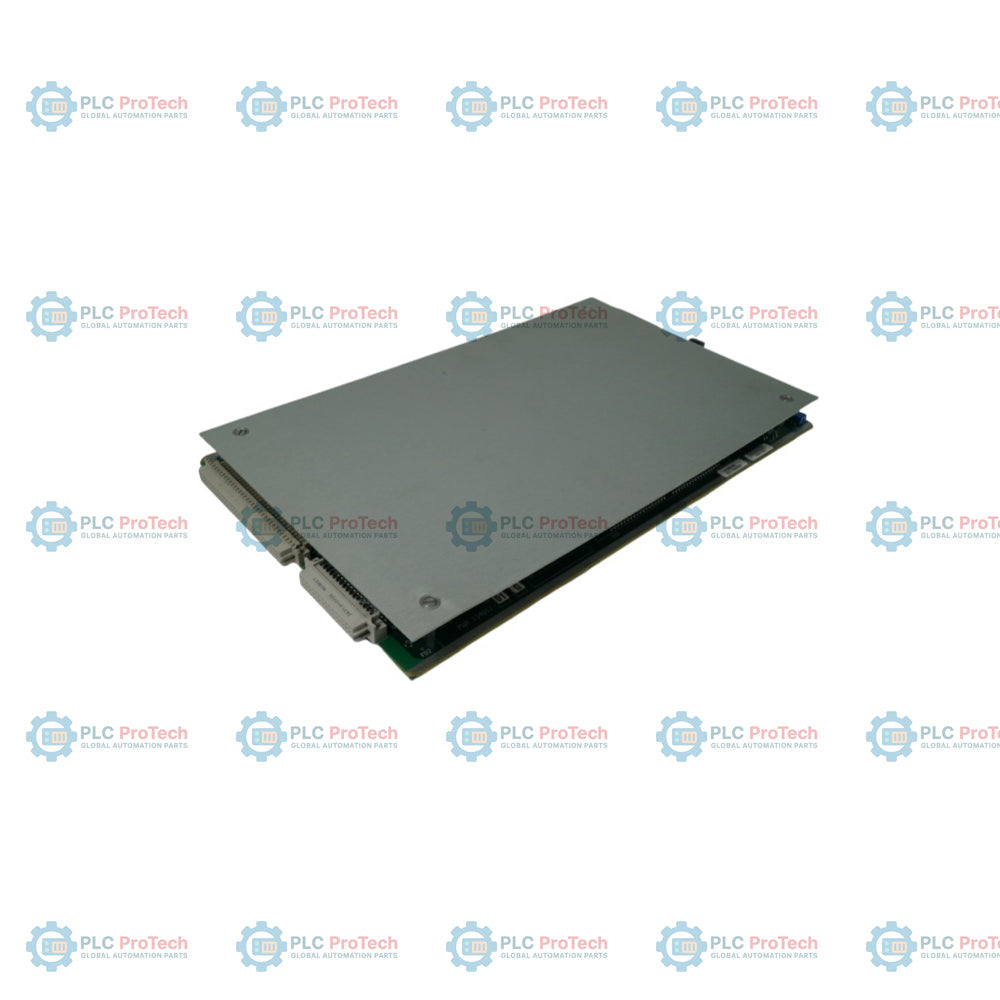

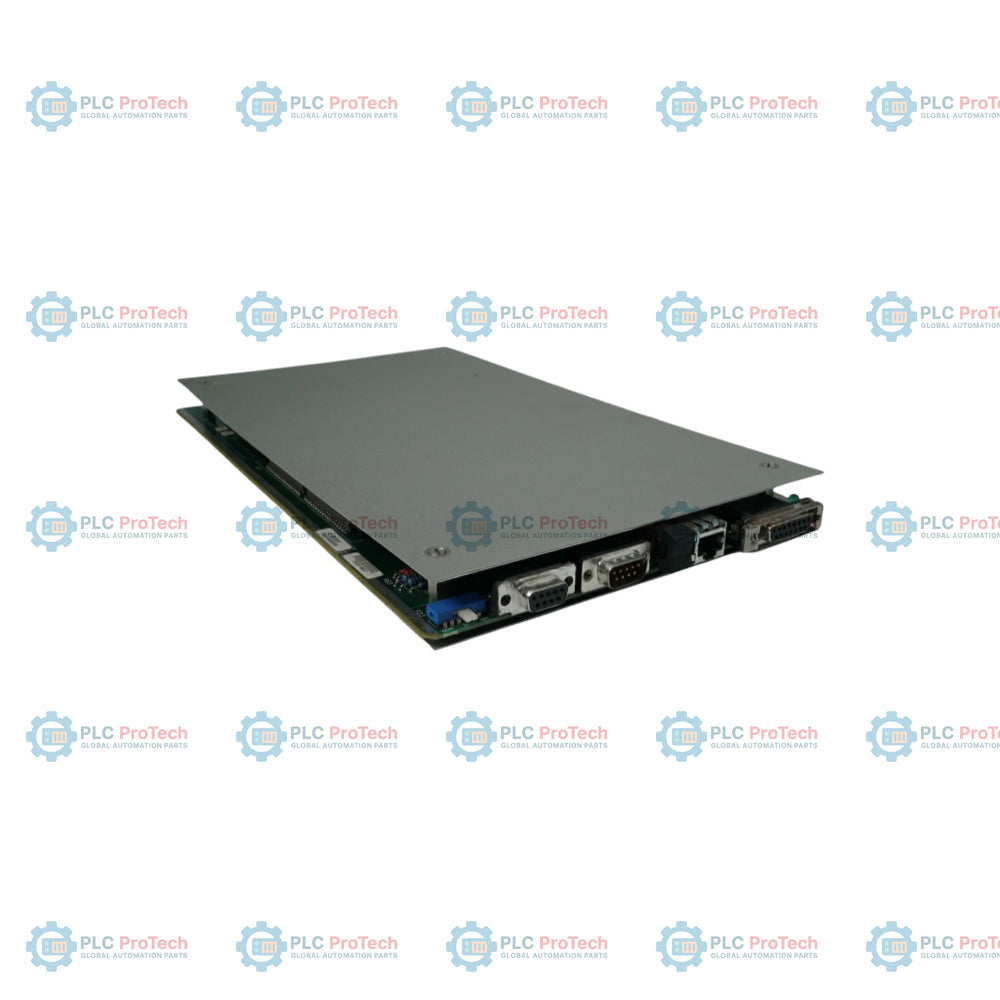

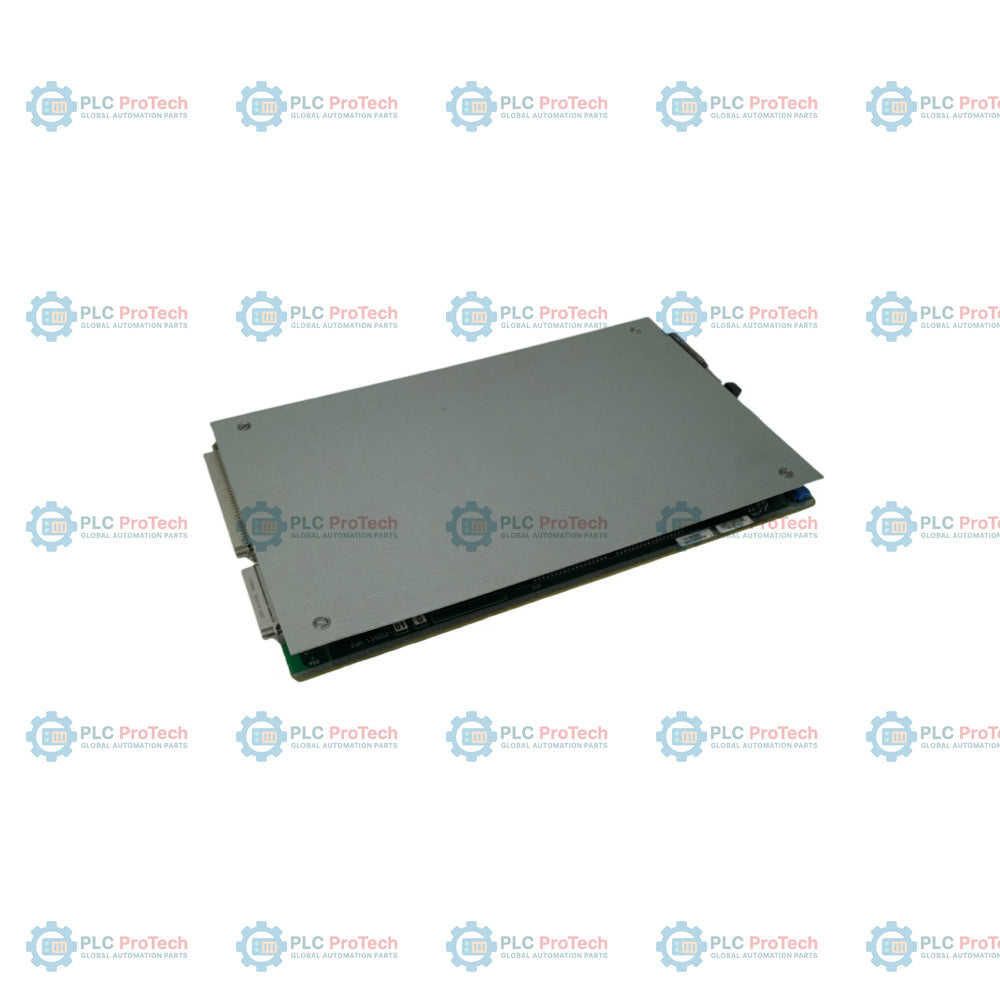

The Bently Nevada 134652-01 is a CPU Processor Board designed to provide the processing interface between compatible machinery protection systems and Bently Nevada on-line machinery management software. The 134652-01 continuously collects steady-state and startup/shutdown transient data in parallel from connected monitoring channels. Operating within the TDXnet communications processor, the board manages data collection, processes 4 Keyphasor input channels, and routes processed static, orbit, and spectrum data to host systems over Ethernet (IEEE 802.3 TCP/IP) or RS485 serial multidrop SDI links.
| Parameter | Specification |
|---|---|
| Manufacturer | Bently Nevada |
| Model | 134652-01 |
| Component Type | TDXnet CPU Processor Board |
| Keyphasor Inputs | 4 per unit, 60 to 60,000 rpm range |
| Ethernet Interface | 10 Mbps, conforming to IEEE 802.3 (RJ-45 and 15-pin AUI connections) |
| Ethernet Protocol | TCP/IP encapsulating Bently Nevada proprietary protocol |
| Serial SDI Communications | RS485 multidrop link supporting Allen-Bradley and Modbus protocols |
| Waveform Sampling Voltage | DC coupled, ±25 Volts input with up to 25 Volts peak-to-peak AC signal |
| Synchronous Waveform Sampling | User configurable: 128 samples/rev (8 revs), 64 samples/rev (16 revs), 32 samples/rev (32 revs) |
| Asynchronous Waveform Sampling | Supports 400-line Spectrum at 20 kHz frequency span (anti-alias filtered) |
| Transient Buffers | 2 independent Startup/Shutdown buffers, 1 independent Delta-Time buffer |
| Buffer Capacity | 320 vector records and 32 waveform records per delta time/RPM buffer |
| Power Requirements | +90 to +240 Vac, 50 to 60 Hz; 89 Watts maximum power consumption |
| Operating Temperature | 0 degC to +65 degC (+32 degF to +149 degF) |
| Storage Temperature | -40 degC to +85 degC (-40 degF to +185 degF) |
| Operating Humidity | 0% to 95% non-condensing |
| Connector Pin | Function |
|---|---|
| RJ-45 / 15-pin AUI | Ethernet 10Base-T / 10Base-2 network interface to host computer |
| RS485 SDI Port | Serial Distributed Interface link for DCS/Modbus/Allen-Bradley communication |
| Dynamic / Static Connectors | Connection interfaces to monitoring system racks (3500, 3300, 2201) |
| Keyphasor Inputs | Terminal/connector interface for 4 Keyphasor transducer signals |
| Standard / Directive | Detail |
|---|---|
| EMC Directives | Certificate 158809: EN50081-2 (EN55011 Class A Radiated/Conducted Emissions), EN50082-2 (ENV50140, ENV50204, ENV50141, EN61000-4-2, EN61000-4-4, EN61000-4-8, EN61000-4-11) |
| Low Voltage Directives | Certificate 158809: EN61010-1 Safety Requirements, EN61000-3-2:1995 Harmonic Content |
| CSA/NRTL/C Approval | Option (01): Class 1, Division 2, Groups A, B, C, D; T4 @ Ta = 65 degC (Certification CSA 150368 / LR 26744) |
Global Express Shipping
Returns & Warranty
Manufacturer: Bently Nevada
Product No.: 134652-01
Country of origin:United States
Product Type: CPU Processor Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 700g
Dimensions: 266.7 mm x 219.2 mm x 30.0 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months
