Description

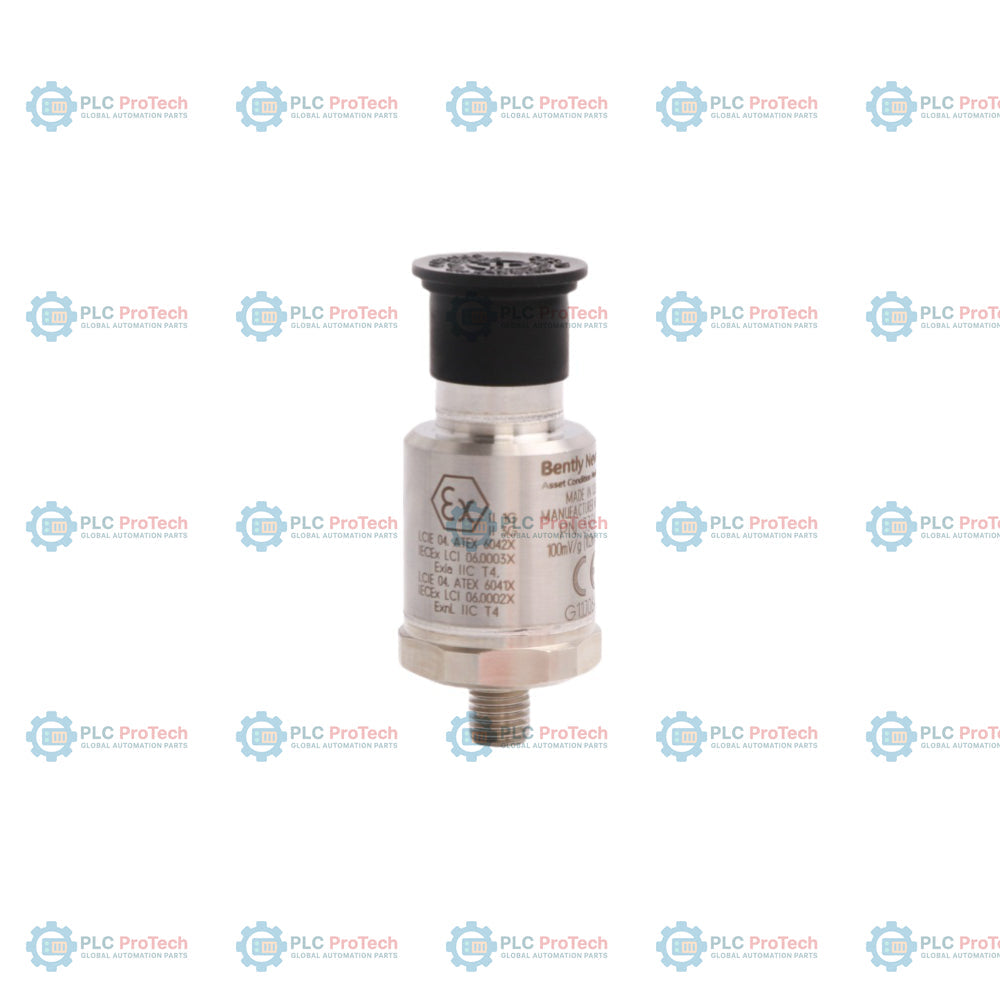

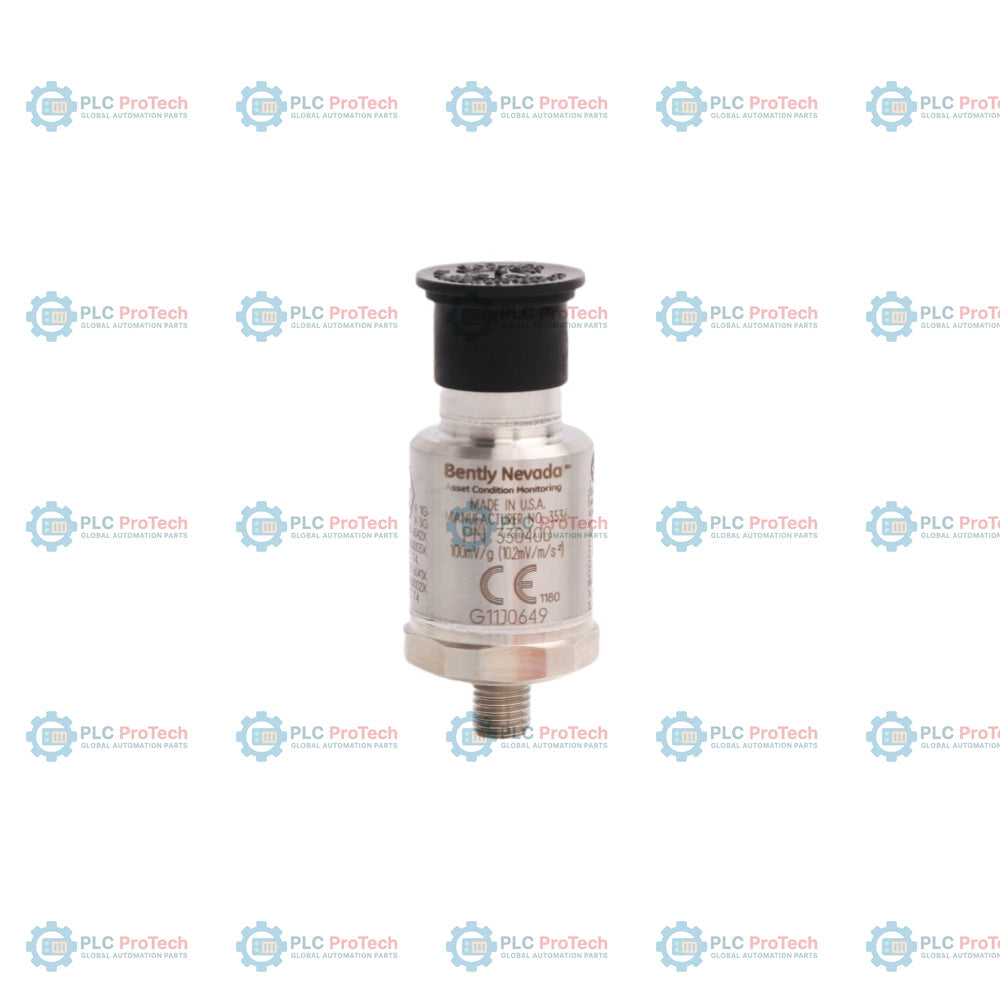

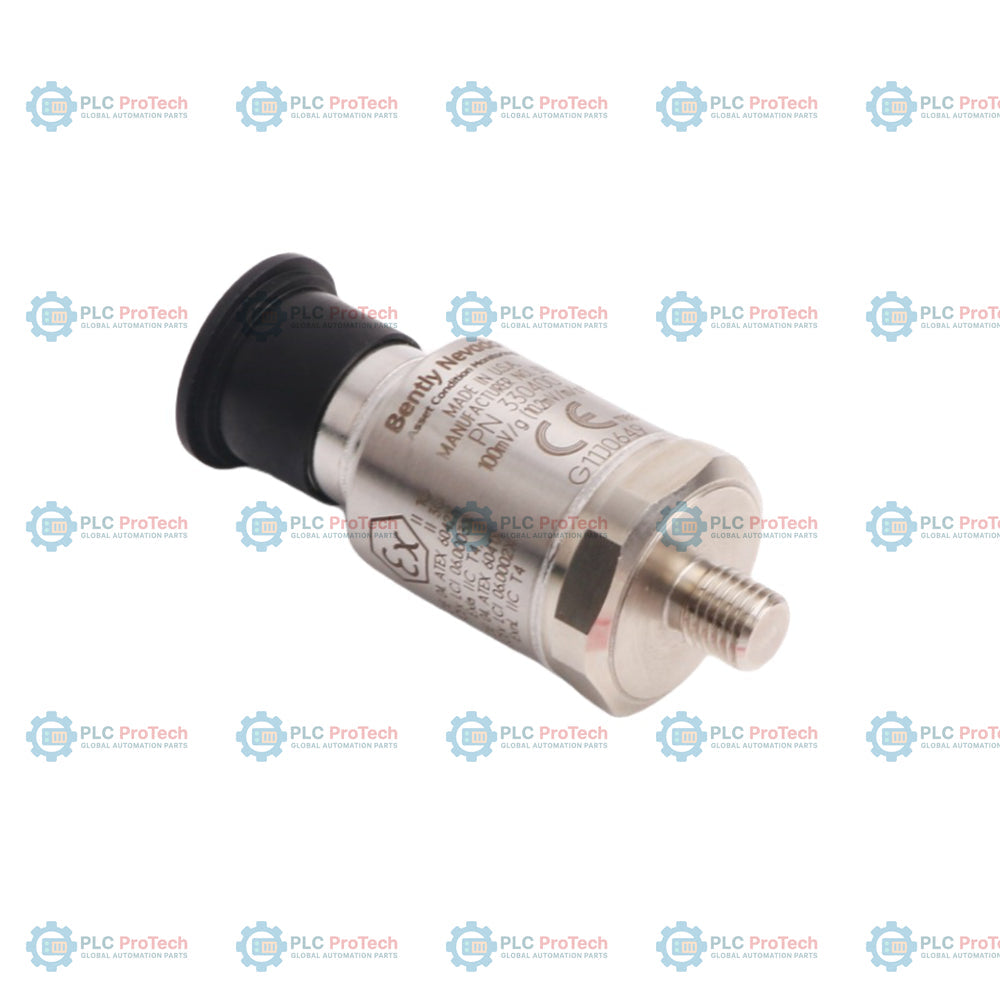

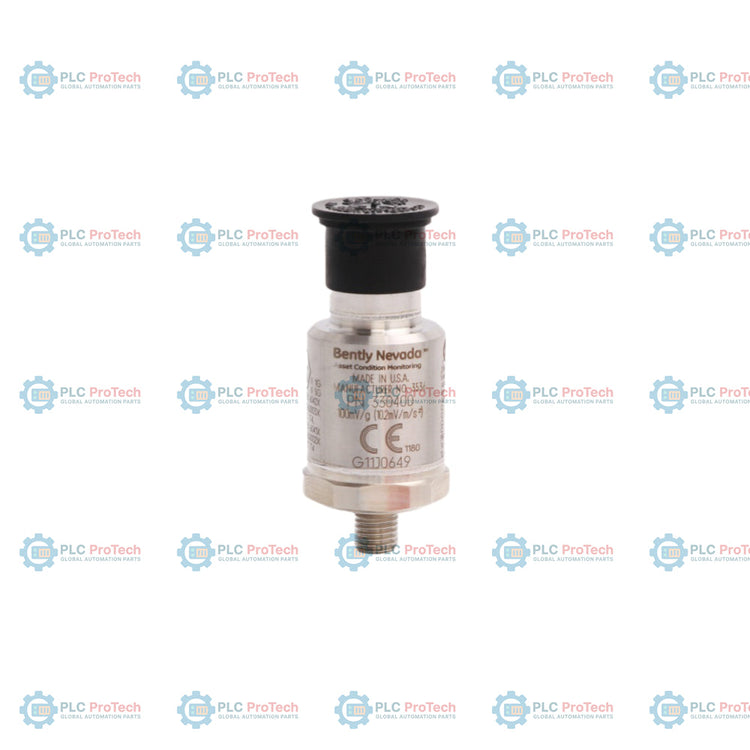

The 330400-02-00 is an industrial acceleration transducer designed for critical machinery monitoring applications, providing a reliable 100 mV/g sensitivity and a 50 g peak amplitude range. This specific configuration features an M8 x 1 integral mounting stud (Option 02) and is supplied without hazardous area agency approvals (Option 00). It serves as a core component in vibration monitoring systems, essential for detecting gear mesh issues, unbalance, and misalignment in rotating machinery. Engineered to meet American Petroleum Institute (API) Standard 670 requirements for accelerometers, this unit delivers high-performance casing acceleration measurements. The transducer operates effectively in a wide temperature range of -55 Celsius to +121 Celsius and features a robust, hermetically sealed 316L stainless steel housing equivalent to IP68 rating, ensuring protection in harsh industrial environments.

Features

• M8 x 1 integral mounting stud (Option 02) for secure attachment to machine casing or bearing housings.
• Sensitivity of 100 mV/g for precise vibration signal capture.
• Acceleration range of 50 g peak for standard machinery monitoring requirements.
• Broad frequency response from 10 Hz to 15 kHz.
• Rugged 316L stainless steel construction, hermetically sealed.
• 3-pin MIL-C-5015 receptacle connector for standard industry interface.
• Wide operating temperature range of -55 Celsius to +121 Celsius.
• Requires standard -24 Vdc input power for operation.

Applications

• Critical rotating machinery protection
• Gear mesh monitoring
• Bearing housing vibration analysis
• General casing acceleration measurements
• Power generation, petrochemical, and industrial manufacturing plants

Ordering Information

Option	Code	Description
Orderable Part Number	330400-02-00	Accelerometer, 100 mV/g, M8 x 1 mounting, No approvals
A - Mounting Thread	02	M8 x 1 integral stud
B - Agency Approval	00	None

Technical Specifications

Manufacturer	Bently Nevada (Baker Hughes)
Part Number	330400-02-00
Sensitivity	100 mV/g (10.2 mV/m/s2) +/- 5%
Acceleration Range	50 g (490 m/s2) peak
Frequency Response	10 Hz to 15 kHz (+/- 3 dB)
Connector	3-pin MIL-C-5015
Operating Temperature	-55 Celsius to +121 Celsius
Case Material	316L Stainless Steel
Diameter	23 mm
Height	59 mm
Mounting Torque	4.1 N-m
Input Voltage	-24 +/- 0.5 Vdc
Weight	100 g typical

Installation Guidelines

Ensure the accelerometer is installed on a flat, clean bearing housing or machine casing surface. Proper mounting is critical to avoid false signals; a surface finish of 32 micro-inch rms or better is recommended. Torque the unit to 4.1 N-m during installation. The unit is case-isolated and should be connected via shielded cabling to prevent electromagnetic interference. Standard practice includes installing the sensor in a protected enclosure with wiring routed through conduit.

Compliance and Certifications

• CE compliant
• RoHS Directive 2011/65/EU
• FCC Part 15 compliant
• IP68 equivalent rating (sensor only)
