Product Overview

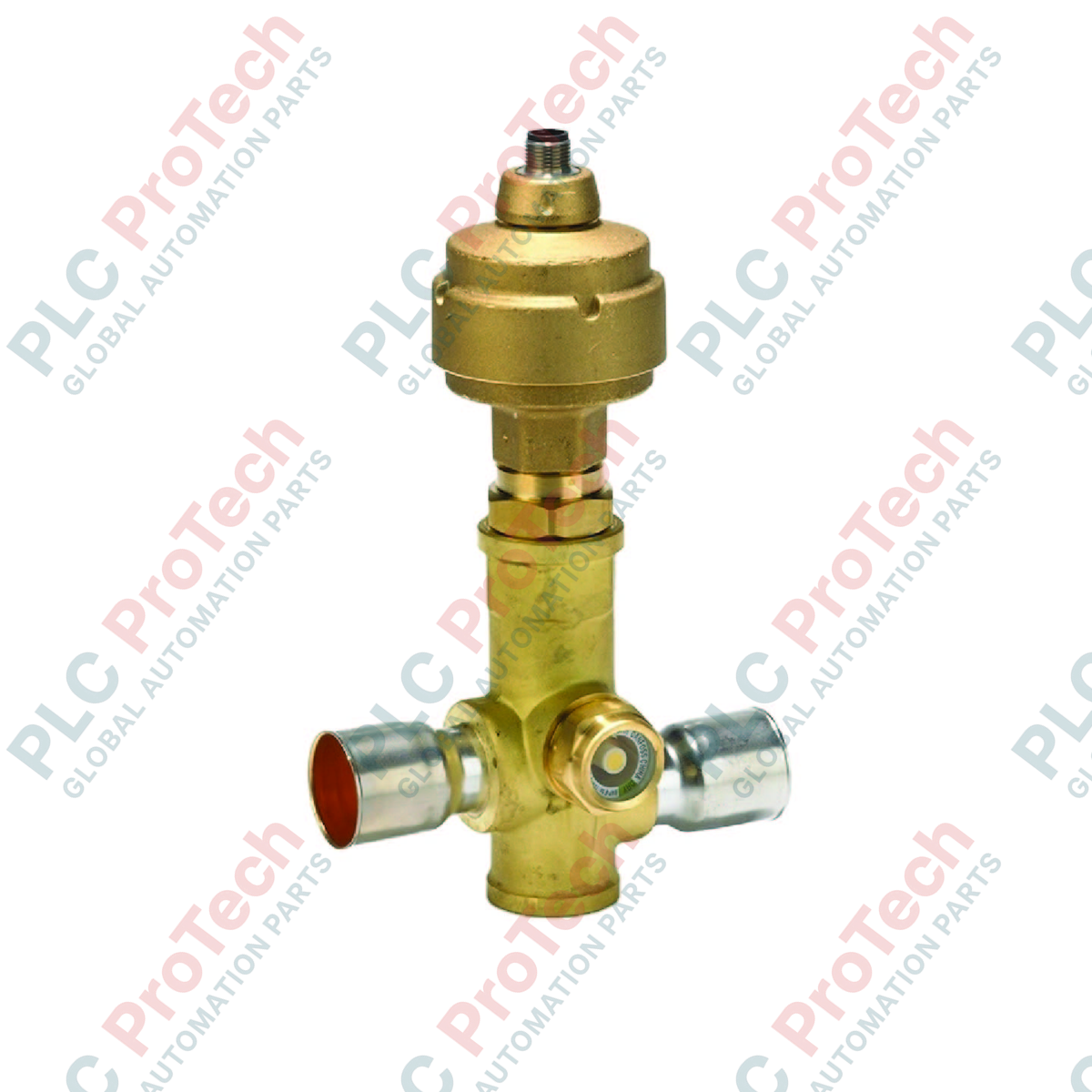

The 034G0508 (034G0508) by Danfoss is a high-precision electric expansion valve designed for precise liquid injection in air conditioning and refrigeration systems. Engineered for industrial-scale thermal management, this bi-flow component is critical in large-scale data center cooling, commercial HVAC, and food processing plants. By leveraging an advanced stepper motor drive, the 034G0508 ensures optimal evaporator utilization and stable superheat control even under fluctuating load conditions. This precision directly translates to enhanced energy efficiency and a significant reduction in compressor downtime, making it a cornerstone for mission-critical cooling infrastructure where thermal stability is non-negotiable.

Technical Configuration

The 034G0508 belongs to the ETS Colibri or similar high-performance stepper motor valve series. It features a sophisticated drive mechanism that converts electrical pulses into precise linear motion, allowing for fine-tuned refrigerant flow control. The integrated IP67 enclosure rating ensures the internal motor and electronics are fully protected against dust and temporary immersion, which is vital for environments with heavy condensation. Its Bi-flow capability allows the valve to manage refrigerant flow in both directions, making it ideal for heat pump applications or systems requiring reversible cycles without additional check valves. The 2-meter factory-fitted cable provides a reliable electrical interface with minimal signal attenuation.

Technical Specifications

Technical FAQs

How do I verify if the 034G0508 is compatible with my existing PLC or controller?

The valve requires a bipolar stepper motor driver. Ensure your controller can output the correct current (typically 100 mA RMS) and step rate (approx. 150 steps per second) required by Danfoss ETS series specifications.

What is the primary benefit of the Bi-flow design in this specific model?

The Bi-flow design allows the valve to maintain identical flow characteristics and high-precision control in both heating and cooling modes, eliminating the need for complex piping and external solenoid valves in reversible systems.

What are the signs of a failing 034G0508 expansion valve?

Common indicators include erratic superheat readings, "hunting" (rapid fluctuations in pressure), or the valve failing to close completely (migration of refrigerant during standstill). Ensure the driver is calibrated before replacing the hardware.

Engineering & Installation Guide

• Brazing Protocol: During installation, the valve body must be protected against excessive heat. Use a wet cloth or heat-sink paste to wrap the valve body, ensuring the internal temperature does not exceed 100 deg C. Direct flame contact with the motor housing will cause permanent internal seal failure.

• Mounting Orientation: For optimal oil return and to prevent liquid slugging within the valve mechanism, install the valve with the actuator pointing upwards (within 90 degrees of vertical). Avoid installing the valve upside down as this promotes the accumulation of debris in the motor compartment.

• Wiring & Noise Suppression: Use shielded cables for the stepper motor connection if the distance to the controller exceeds 3 meters. Ensure the shield is grounded only at the controller end to prevent ground loops, which can cause "missed steps" in the motor and lead to inaccurate flow control.
