Product Overview

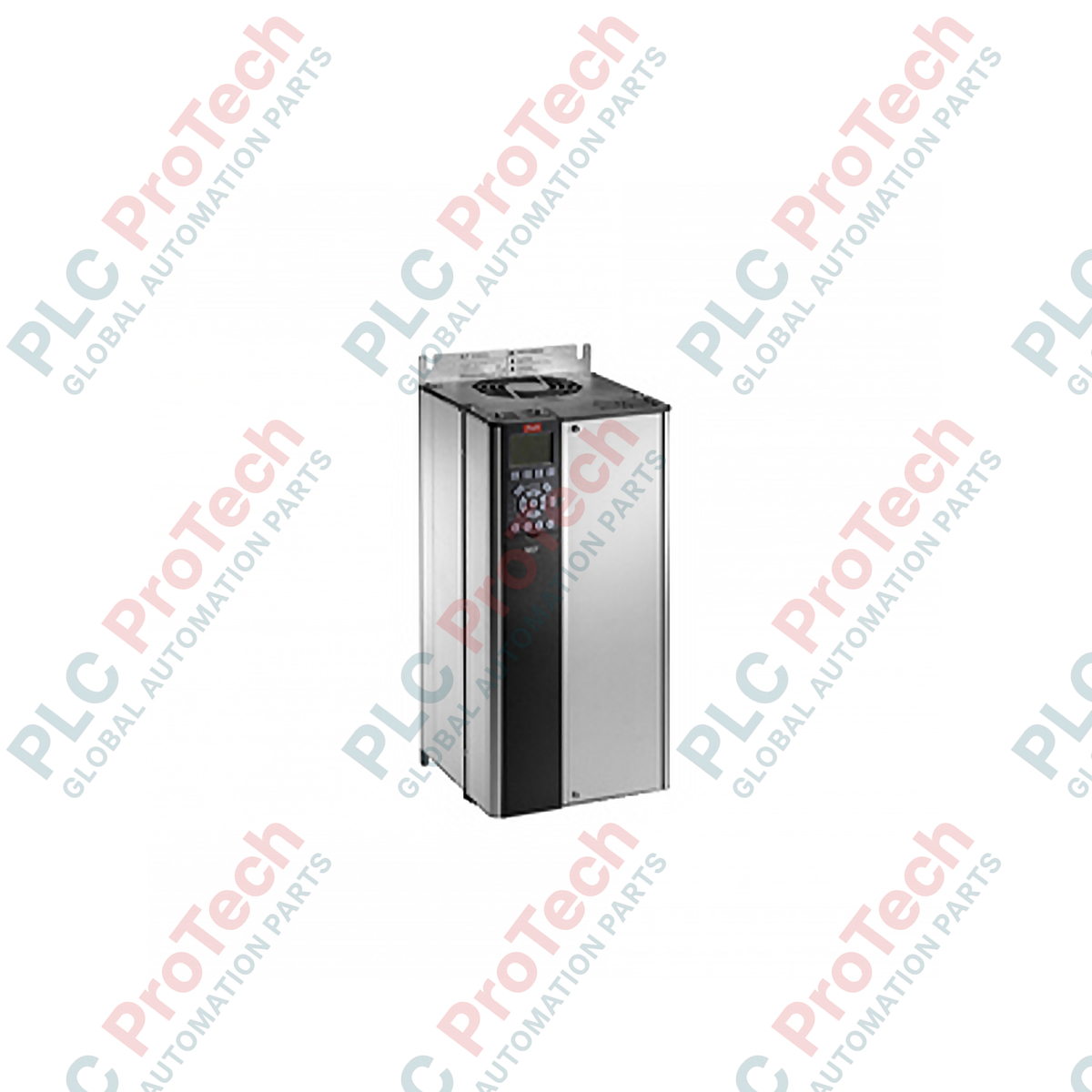

The Danfoss 131F5451 (FC-102P37KT4E20) is a dedicated VLT HVAC Drive engineered to maximize energy efficiency and operational reliability in commercial and industrial climate control systems. With a power rating of 37 kW (50 HP), this drive is specifically optimized for centrifugal fans, pumps, and compressors. By precisely controlling the speed of these loads based on real-time building demand, the 131F5451 significantly reduces energy consumption and mechanical strain, ensuring long-term performance and lower maintenance costs in mission-critical HVAC infrastructure.

Technical Configuration

The FC 102 series is built for the rigors of building automation, featuring intelligence that simplifies commissioning and ensures quiet operation.

• Hardware Architecture: Designed for three-phase 380 - 480 VAC supply, the unit is housed in an IP20-rated chassis. Its compact footprint is ideal for cabinet mounting in standard building management systems (BMS).
• Operational Control: The drive includes specialized HVAC functions such as automatic energy optimization (AEO), fire mode (to maintain exhaust/pressurization during emergencies), and a bypass capability that allows for system redundancy.
• Environmental Hardening: The drive is built to handle the challenging environments found in mechanical rooms, ensuring stable operation even when ambient temperatures fluctuate.

Technical Specifications

FAQs

What are the primary benefits of the "Fire Mode" feature in the FC 102?

Fire Mode allows the drive to ignore standard protective trips (such as thermal overloads or minor faults) to prioritize the operation of exhaust fans or stairwell pressurization systems in the event of a fire, helping to clear smoke and provide safe egress.

Is this drive suitable for outdoor installations?

No. The FC-102P37KT4E20 is an IP20-rated unit, meaning it is not sealed against water or dust. It must be installed inside a clean, dry, and ventilated electrical cabinet to ensure the long-term integrity of the internal electronics.

How does AEO (Automatic Energy Optimization) save money?

AEO dynamically adjusts the motor voltage to match the actual load requirement. Because HVAC applications often run at partial load, this feature reduces the iron losses in the motor, leading to measurable energy savings over standard V/f control methods.

Engineering Guidelines and Best Practices

• Thermal Management: Given the 37 kW power output, heat dissipation is critical. The cabinet must feature forced-air cooling. Ensure there is at least 150 - 200 mm of clearance above and below the drive to allow for adequate airflow through the internal heatsink.
• EMI/RFI Considerations: In building environments, electromagnetic noise can interfere with sensitive BMS control signals. Always use shielded motor cables, terminating the shield 360 degrees to the chassis using a metal clamp at both the drive and the motor side.
• Startup Verification: Always perform a motor nameplate parameter entry and a full motor identification (auto-tune) during initial commissioning. This allows the drive to create an accurate electrical model of the motor, which is essential for achieving the quoted energy savings and smooth, quiet motor operation.
