Product Overview

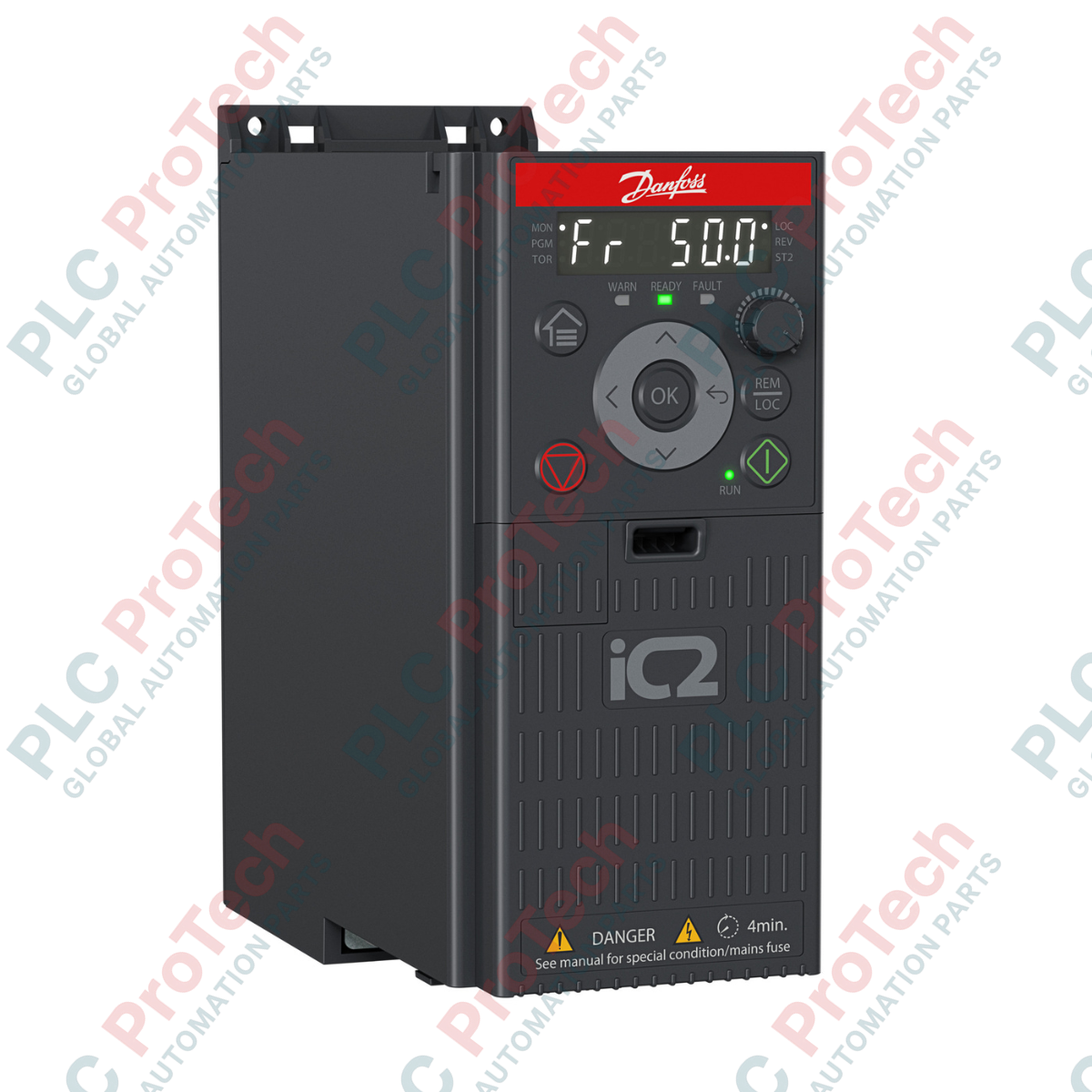

The Danfoss 132L6109 (IC2-30FA1N02-09A6E20F4+ACXX) is a compact, high-efficiency iC2-30 series frequency converter optimized for single-phase motor control applications. This air-cooled drive provides precise speed regulation for smaller industrial equipment, such as centrifugal fans, pumps, and light-duty material handling machinery. Engineered for versatility, the 132L6109 assists in balancing operational throughput with energy savings, effectively reducing mechanical wear on motor systems. Its slim profile is specifically designed for integration into space-constrained electrical enclosures in OEM machinery and climate control systems.

Technical Configuration

The 132L6109 represents the modern iteration of Danfoss's compact drive platform, focusing on ease of use and streamlined integration.

• Hardware Architecture: This unit is configured for 200 - 240 VAC single-phase input with a nominal current rating of 9.6 A. The IP20-rated chassis allows for efficient side-by-side mounting, maximizing cabinet space utilization.
• Thermal Management: As an air-cooled drive (FA), it utilizes an integrated heatsink design. This design requires proper airflow to dissipate heat efficiently, maintaining internal component longevity during extended runtimes.
• EMC Compliance: The unit meets the C4 EMC category requirements (F4), making it suitable for industrial networks where specific emission standards are mandated.
• Operational Control: The model does not include an integrated brake chopper (+ACXX), making it ideal for standard constant-load applications where regenerative energy dissipation is not a requirement.

Technical Specifications

FAQs

What are the primary mounting requirements for the iC2-30 series?

For optimal performance, the drive must be mounted in a vertical orientation. Maintain a minimum clearance of 100 mm above and below the unit to allow for unimpeded airflow through the internal heatsink.

Can this drive be used in residential or public commercial environments?

The C4 EMC category is primarily intended for industrial networks. If you plan to install this drive in an environment that requires lower electromagnetic emissions (e.g., residential or light commercial), please ensure your system design incorporates appropriate external filtering or shielding to meet local electromagnetic compatibility standards.

Is the 132L6109 capable of braking control?

This specific part number does not feature an integrated brake chopper. If your process requires frequent or rapid deceleration of high-inertia loads, consider an alternative configuration that includes a brake chopper or implement mechanical braking solutions.

Engineering Guidelines and Best Practices

• Thermal Management: While the iC2-30 is designed for high efficiency, internal heat buildup is the primary cause of drive degradation. Ensure the electrical cabinet has adequate ventilation or forced-air cooling. Check that the heatsink fins are free of dust or debris during periodic maintenance.
• Cable Routing: Separate power and control cables to prevent crosstalk. Utilize shielded motor cables, ensuring the shield is securely grounded at the drive terminal block using a 360-degree clamp to mitigate high-frequency interference.
• Startup Procedure: Before applying full load, perform a basic motor identification procedure. Input the motor's rated current, voltage, and frequency from its nameplate into the drive's parameter set to enable accurate torque control and thermal protection.
