Product Overview

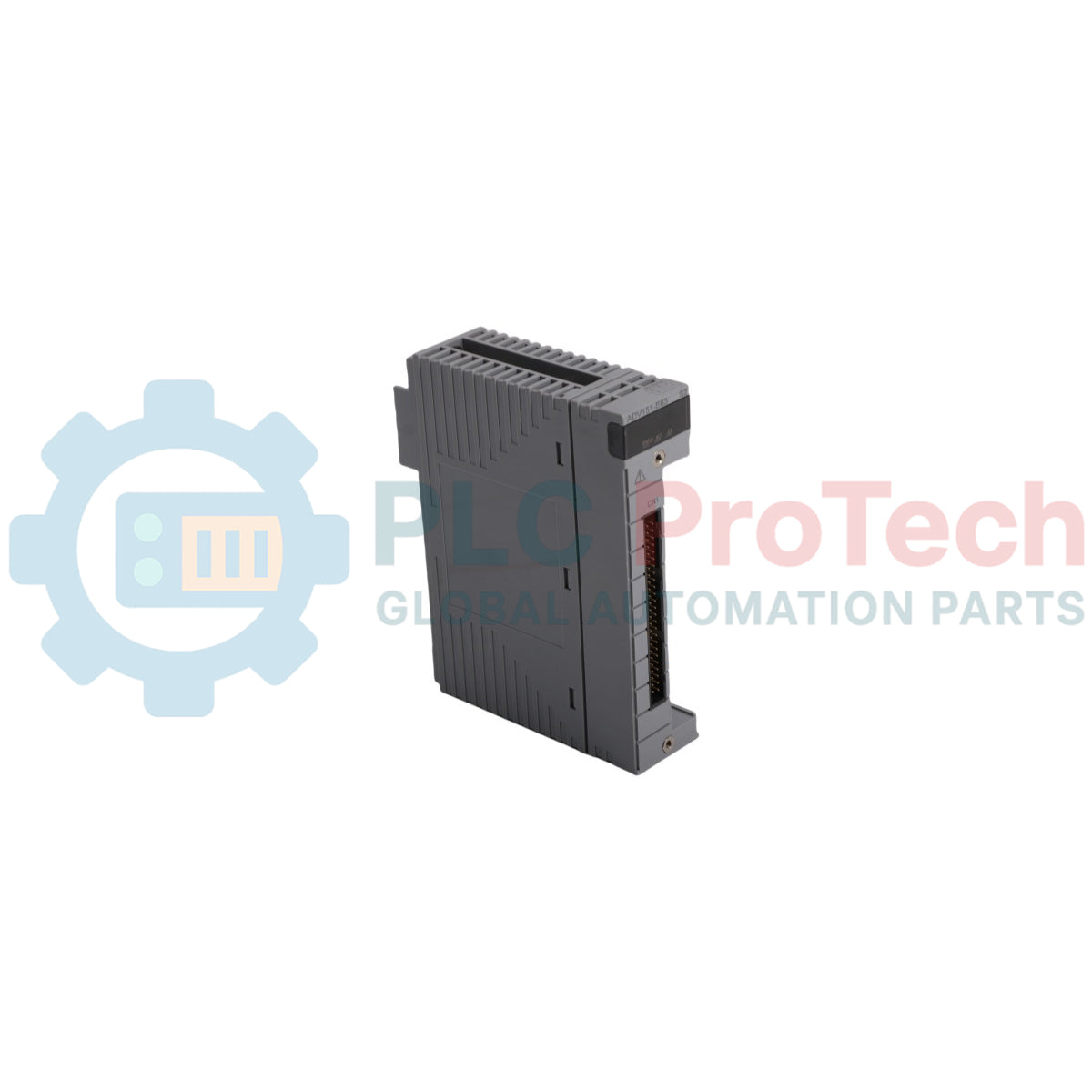

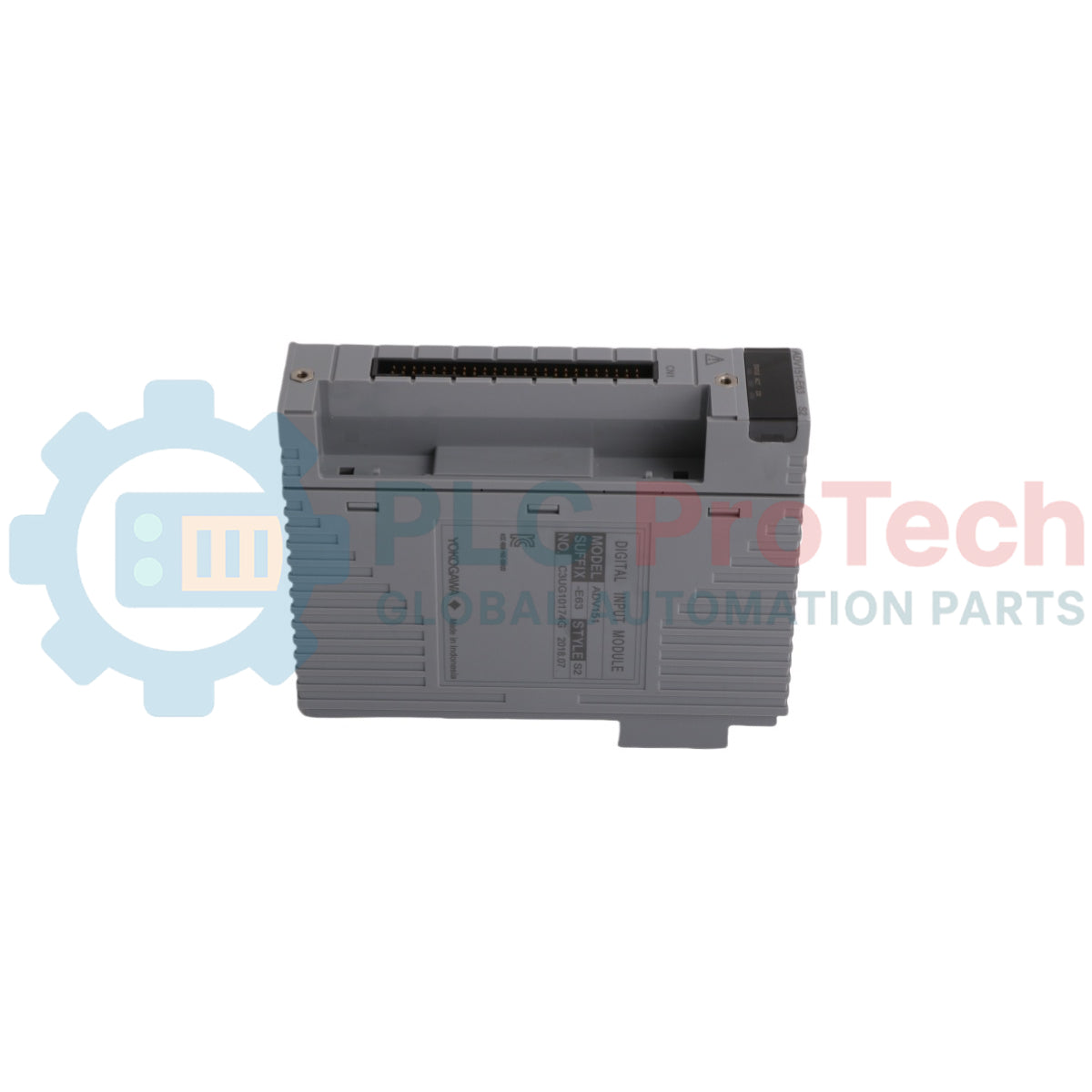

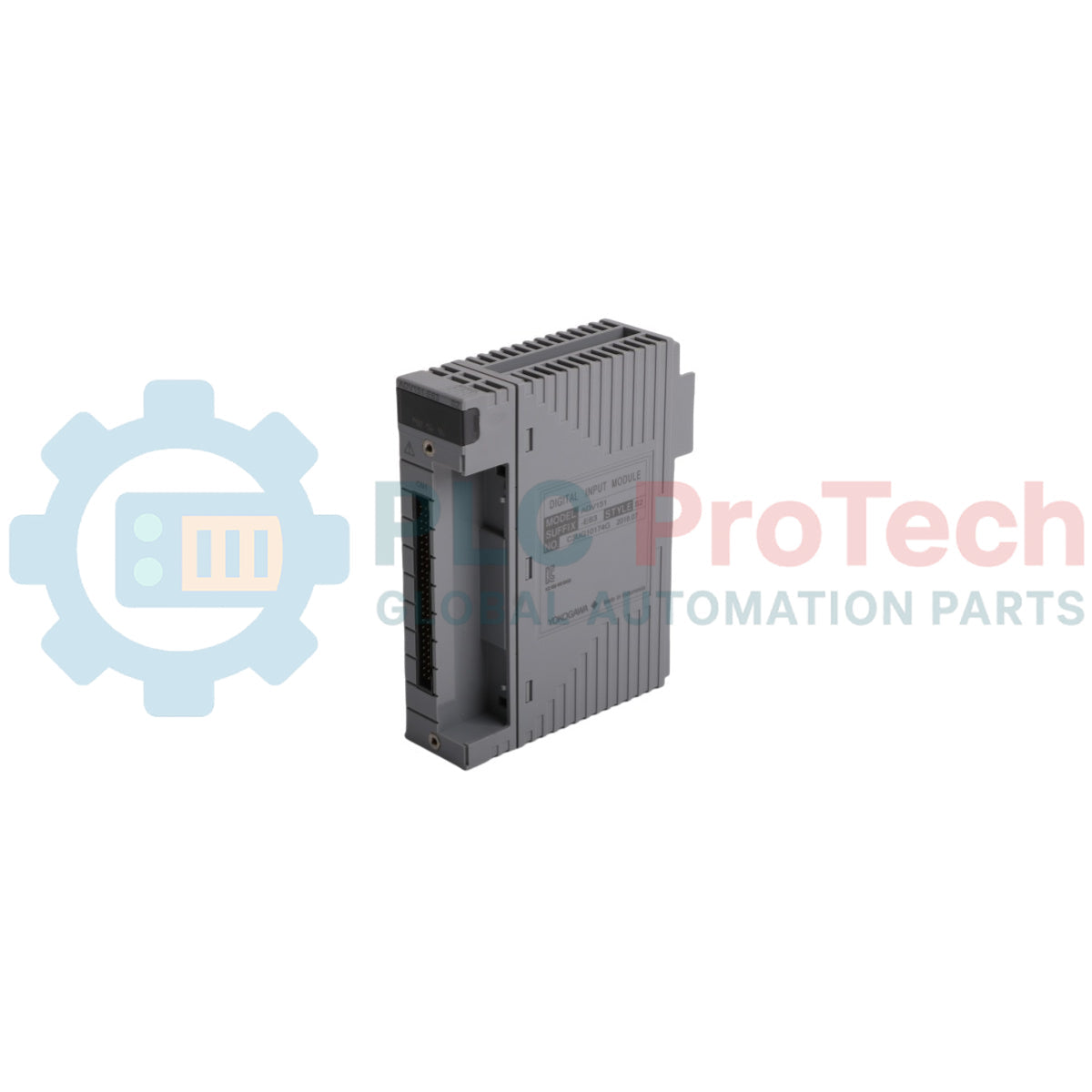

The Yokogawa ADV151-E63 (ADV151E63) is a high-density 32-channel digital input module purpose-built for the CENTUM VP Integrated Production Control System. As a core component of the FIO (Field Interface I/O) family, it is designed to monitor discrete states from field equipment such as motor starters, limit switches, and valve position feedback in high-stakes environments like power plants, oil refineries, and chemical processing facilities. By offering high-speed signal processing for 24 VDC inputs, the ADV151-E63 allows the control system to respond to field changes in real-time, effectively minimizing process fluctuations and preventing costly unscheduled downtime through precise sequence-of-events monitoring.

Suffix Breakdown

The model suffix for the ADV151-E63 defines its specific wiring interface and functional characteristics:

• ADV151: Identifies the base hardware as a 32-Channel Digital Input Module.

• -E (Standard Type): Indicates that the module is designed for standard 24 VDC voltage/contact inputs, providing universal compatibility with most industrial discrete sensors.

• 6 (With MIL Connector): Specifies the physical connection type. The "6" denotes a dual MIL (Military Standard) connector interface, allowing for high-density wiring and rapid connection to terminal boards via specialized cables.

• 3 (With Signal Cable Interface): Indicates a specialized interface configuration designed for seamless integration with Yokogawa's signal conditioning boards or specific terminal blocks, ensuring signal integrity across long distances.

Technical Specifications

Technical FAQs

Q1: What is the main benefit of the -E63 dual MIL connector interface?

A1: The dual MIL connector allows for extremely fast "plug-and-play" installation. It reduces the risk of wiring errors associated with individual screw terminals and enables a higher density of I/O in a smaller cabinet footprint compared to pressure clamp versions.

Q2: Does the ADV151-E63 support dual-redundant operation?

A2: Yes. The module can be configured in a redundant pair within the Field Control Station (FCS). If the active module detects an internal fault, control bumplessly transfers to the standby module to maintain process visibility.

Q3: Can this module be used with proximity switches?

A3: Yes, it is compatible with 2-wire proximity switches provided their leakage current and "ON" voltage drop are within the module’s threshold limits (typically 24 VDC logic).

Engineering & Installation Guide

• Connector Integrity: When installing MIL connectors, ensure the locking levers are fully clicked into place. Loose connections on high-density modules like the ADV151-E63 can lead to intermittent "chattering" signals in the DCS, which may trigger false alarms.

• Cable Management: Use Yokogawa-certified KS1 or similar cables for the -E63 interface. Ensure the cables are routed away from high-voltage AC lines (480 VAC or higher) to prevent electromagnetic interference from inducing false "High" states on the 24 VDC digital inputs.

• Grounding Protocol: The module provides 500 VAC isolation, but for optimal performance, the signal common for the 24 VDC field power supply must be properly referenced to the system ground at a single point to avoid floating voltage issues.

Engineering Advantages

The ADV151-E63 stands out for its high-density architecture, allowing 32 channels to be managed within a single 45 mm wide slot. Its hardware is hardened against the thermal stresses common in industrial control rooms, maintaining a 60 deg C rating without derating. Furthermore, the module supports "Online Module Replacement," allowing technicians to swap modules under power without disrupting the ESB bus or other I/O modules in the same node, which is a critical requirement for 24/7 continuous process industries.
