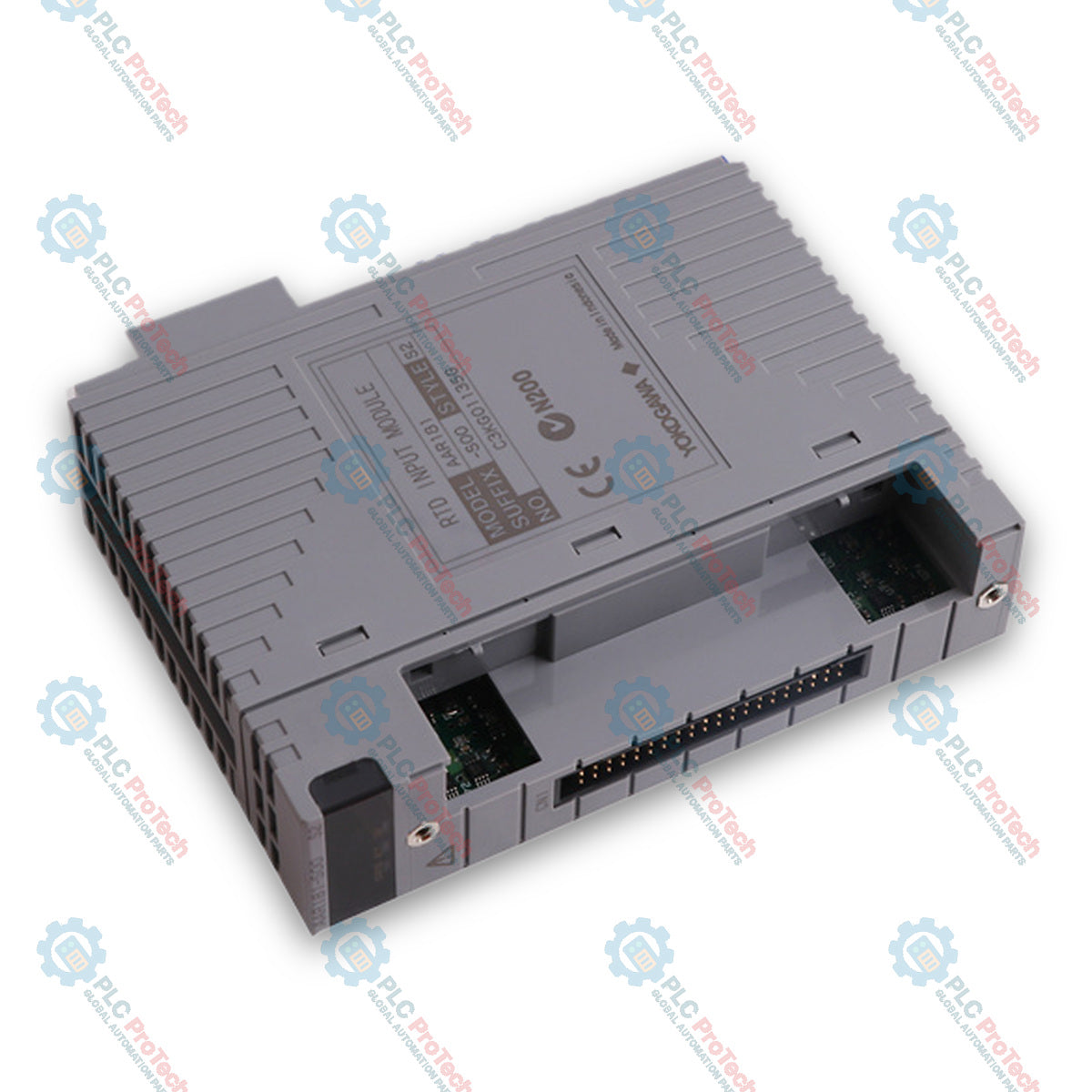

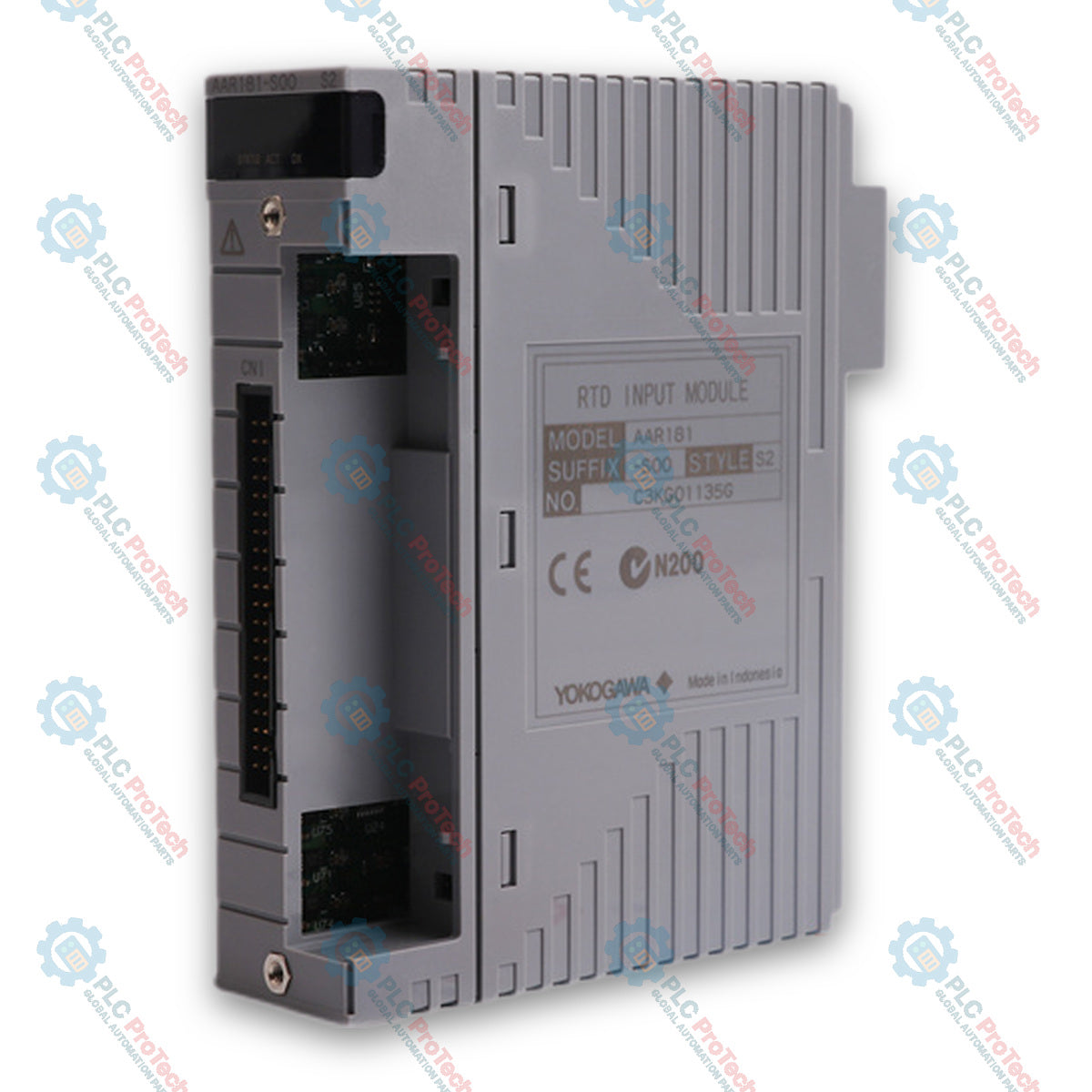

The Yokogawa AAR181-S50 is an isolated RTD Input Module designed for converting resistance temperature detector field signals into internal system data for Field Control Stations (FCS). Operating within the CENTUM VP architecture and FIO system, this RTD Input Module provides 12 isolated channels supporting 3-wire Pt100 and JPt100 sensors. It interfaces with ESB, Optical ESB, and ER bus node units to deliver temperature measurements directly to the system's control blocks.
| Model | Suffix Codes | Description |
|---|---|---|
| AAR181 | RTD Input Module (12-channel, Isolated) | |
| -S | Standard type | |
| 5 | With no explosion protection | |
| 0 | Basic type |
| Parameter | Specification |
|---|---|
| Model | AAR181-S50 |
| Number of Input Channels | 12, isolated |
| Input Signal | RTD: JIS C1604:1997, IEC751:1995 Pt100 (3-wire type), JPt100 |
| Allowable Input Voltage | +5 V |
| Accuracy | RTD: ±120 mΩ |
| Allowable Wiring Resistance | 40 Ω or less (per wire) |
| Measurement Current | 1 mA |
| Temperature Drift | ±120 mΩ/10 degC (RTD input) |
| Maximum Current Consumption | 450 mA (5 V DC) |
| Dimensions | 32.8 mm x 130 mm x 107.5 mm |
