Emerson

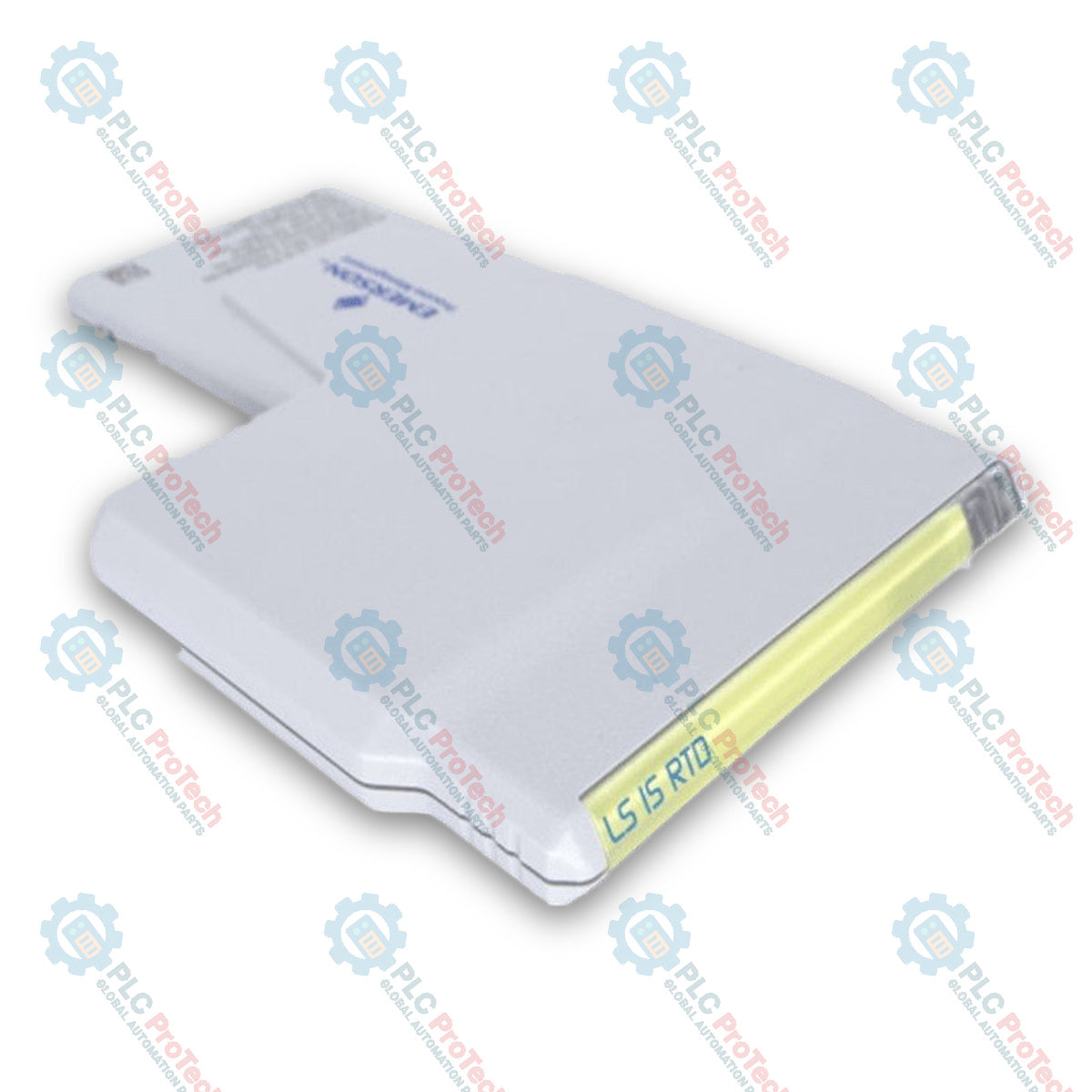

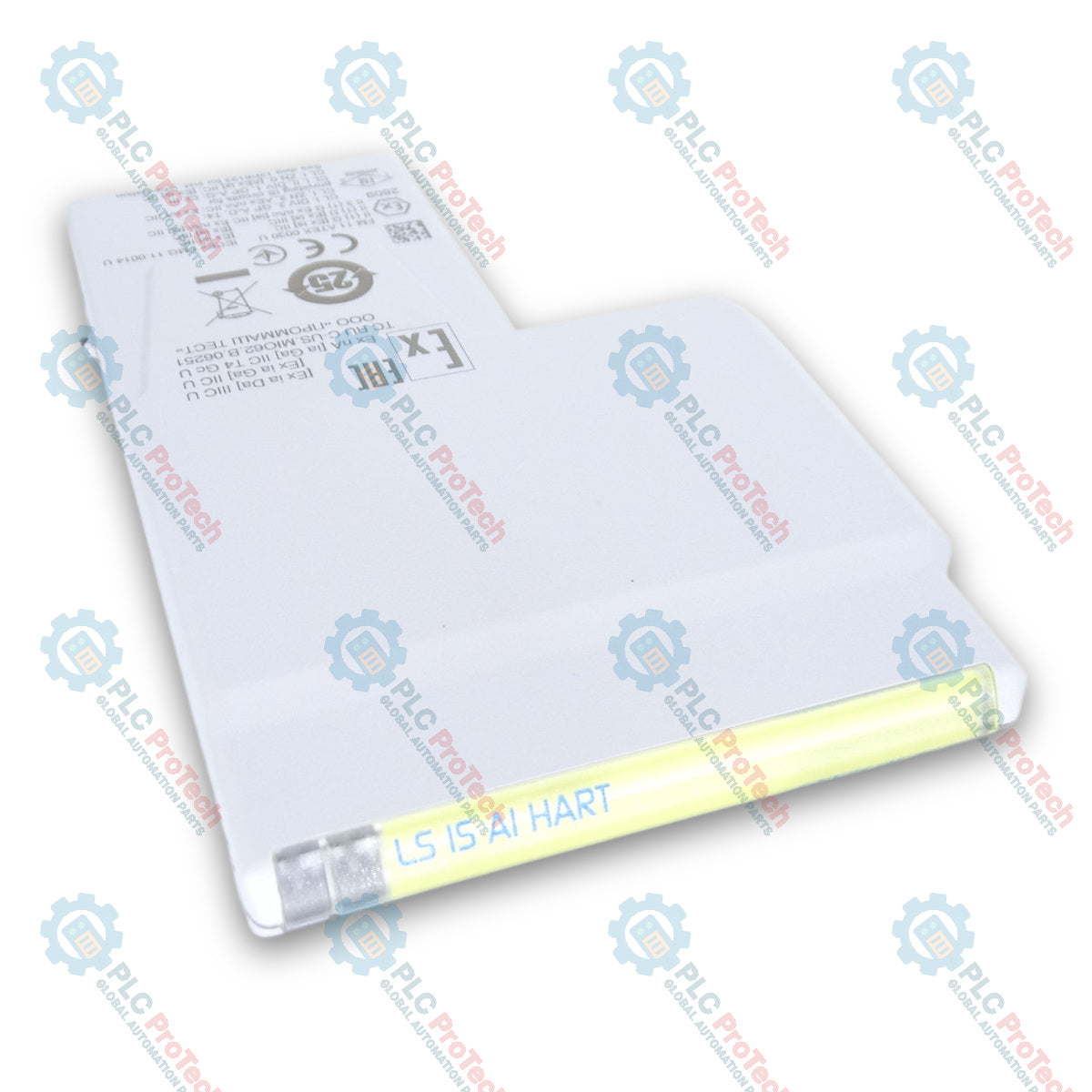

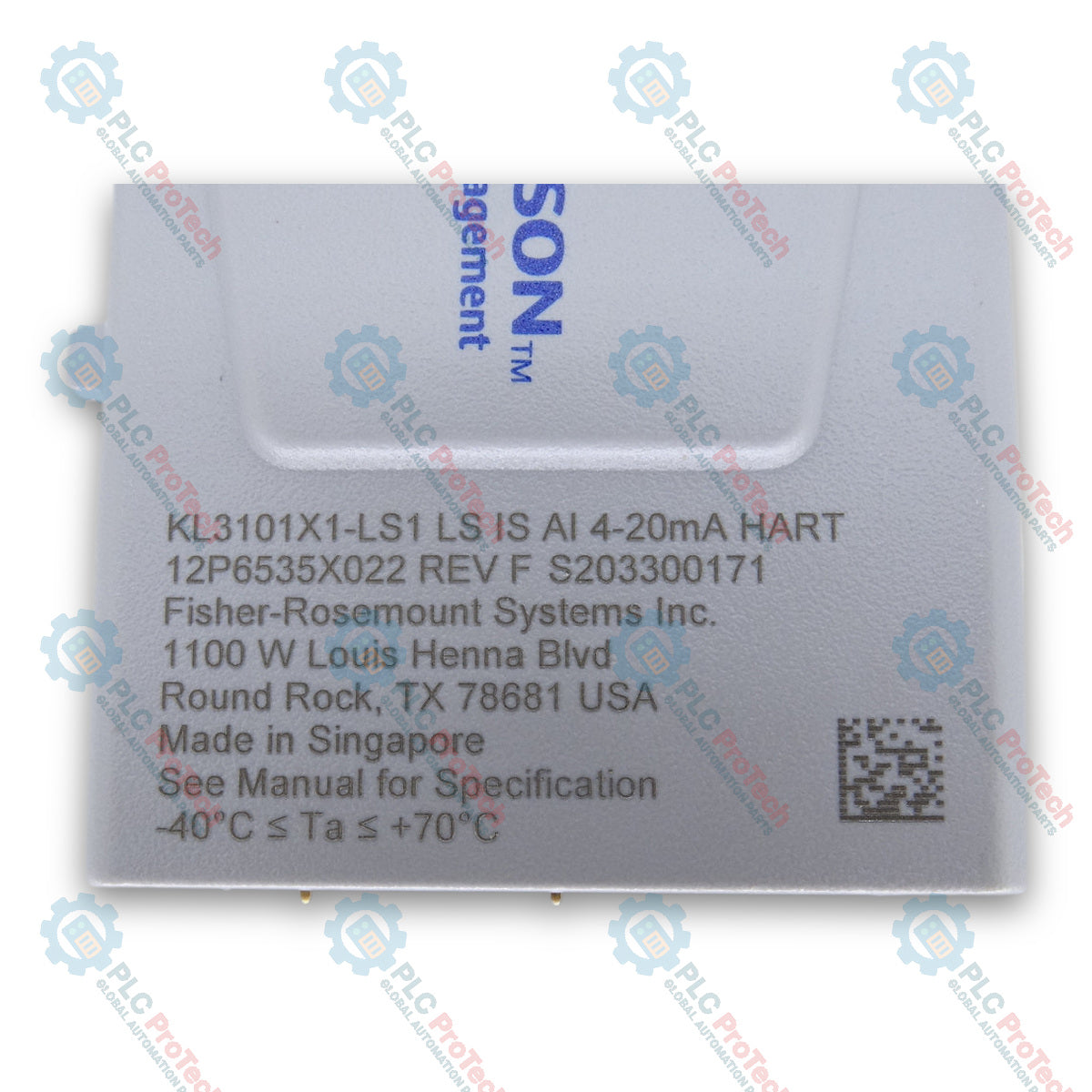

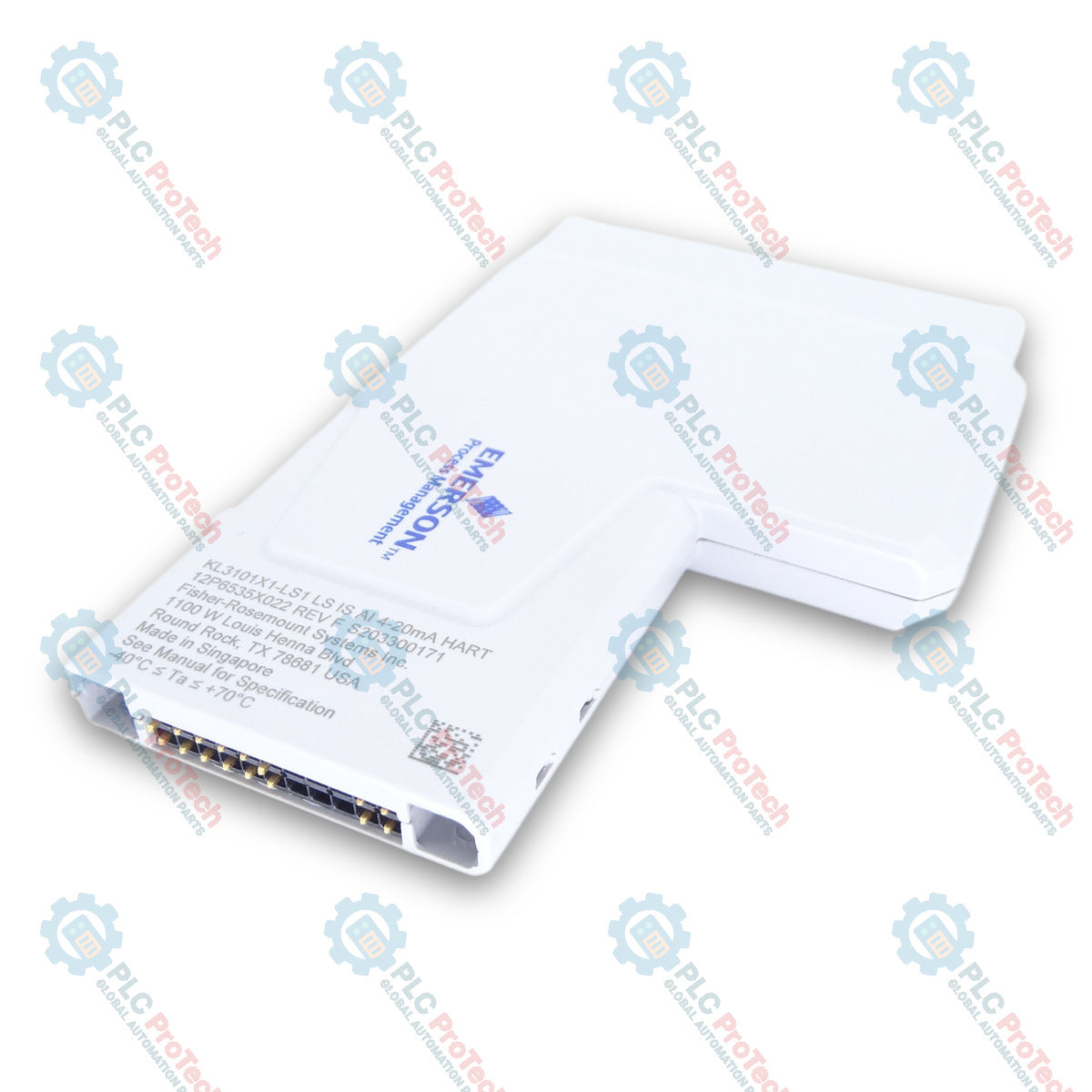

Emerson KL3101X1-LS1 DeltaV LS I.S. AI 4-20 mA HART CHARM

SKU KL3101X1-LS1

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Emerson
Product No.: KL3101X1-LS1
Origin United States
Product Type: Analog Input Modules
Payment: T/T, Western Union
Weight: 0.1 kg
Dimensions: 22 mm x 110 mm x 75 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The Emerson KL3101X1-LS1 is an intrinsically safe analog input CHARM designed for interface applications requiring 4-20 mA HART signals in hazardous areas. Operated over a CHARM Bus architecture, the KL3101X1-LS1 processes field sensor signals and transfers process variable data to the DeltaV system infrastructure.

Features

Provides intrinsically safe interface capabilities for 4-20 mA HART analog inputs
Operates directly on the CHARM Bus interface
Features standard A1 terminal block key position assignment
Maintenance-free design requiring no field calibration

Applications

Hazardous area analog sensor process control
4-20 mA loop integration for industrial automation
DeltaV I.S. CHARMs field subsystem installations

Technical Specifications

Parameter	Specification
CHARM Bus Power Rating	+6.3 VDC at 0 A
Field Circuit Power Rating	+24 VDC at 60 mA
Operating Temperature	-40 degC to +70 degC
Shock	10g 1/2 Sinewave for 11msec
Vibration	1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Relative Humidity	5 to 95% Non-Condensing
Airborne Contaminants	ISA-S71.04-1985 Airborne Contaminants Class G3
Terminal Block Key Position	A1

Installation Guidelines

Ensure system power is de-energized before removing or inserting the unit.
Align the module with terminal block key position A1 prior to mounting.
Refer to document 12P6523 for ATEX/IECEx hazardous area installation procedures.
Follow DeltaV IS-CHARMS control drawings 12P6122 and 12P6123 for wiring and intrinsic safety boundaries.
Maintain proper airborne contaminant protections in accordance with ISA-S71.04-1985 Class G3 standards.

Compliance and Certifications

ATEX: II 3(1) G Ex ec [ia Ga] IIC Gc, II 3G (1D) Ex ec [ia IIIC Da] IIC Gc (FM11ATEX 0030U)
IECEx: IECEx FMG 11.0014U
UKEX: FM21UKEX0156U
cFMus: CL I, DIV 2, GP A-D; Associated CL I, II, III, DIV 1, GP A-G; CL I, ZN 2 AEx ec [ia Ga] IIC Gc; CL I, ZN 2 AEx ec [ia IIIC Da] IIC Gc (FM20US0096U; FM20CA0044U)
CE
UKCA

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Can the module be replaced while system power is energized?

The module cannot be removed or inserted with system power energized.

What is the required terminal block key position for installation?

The module requires terminal block key position A1 for proper mechanical keying.

What power rating is supplied to the field circuit?

The field circuit provides a power rating of +24 VDC at 60 mA.
