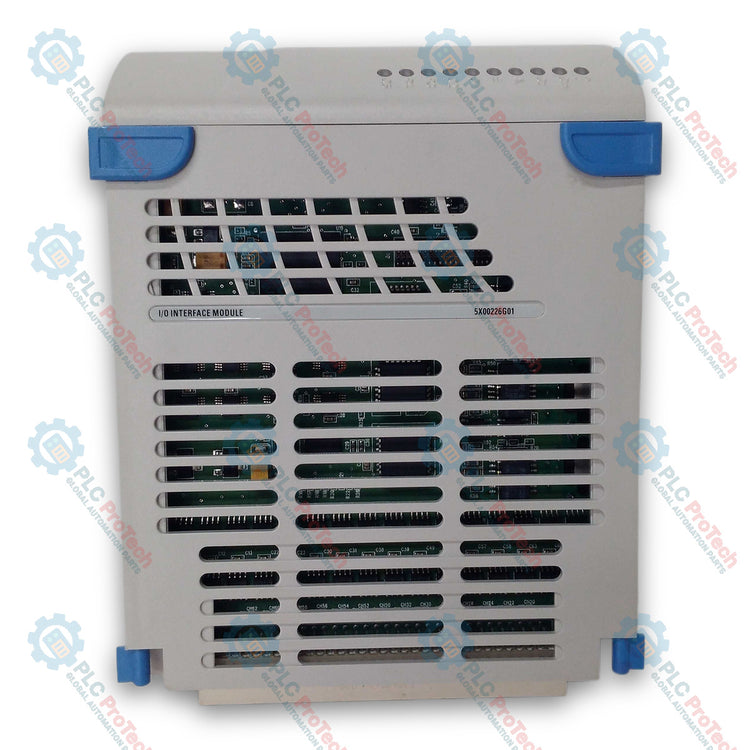

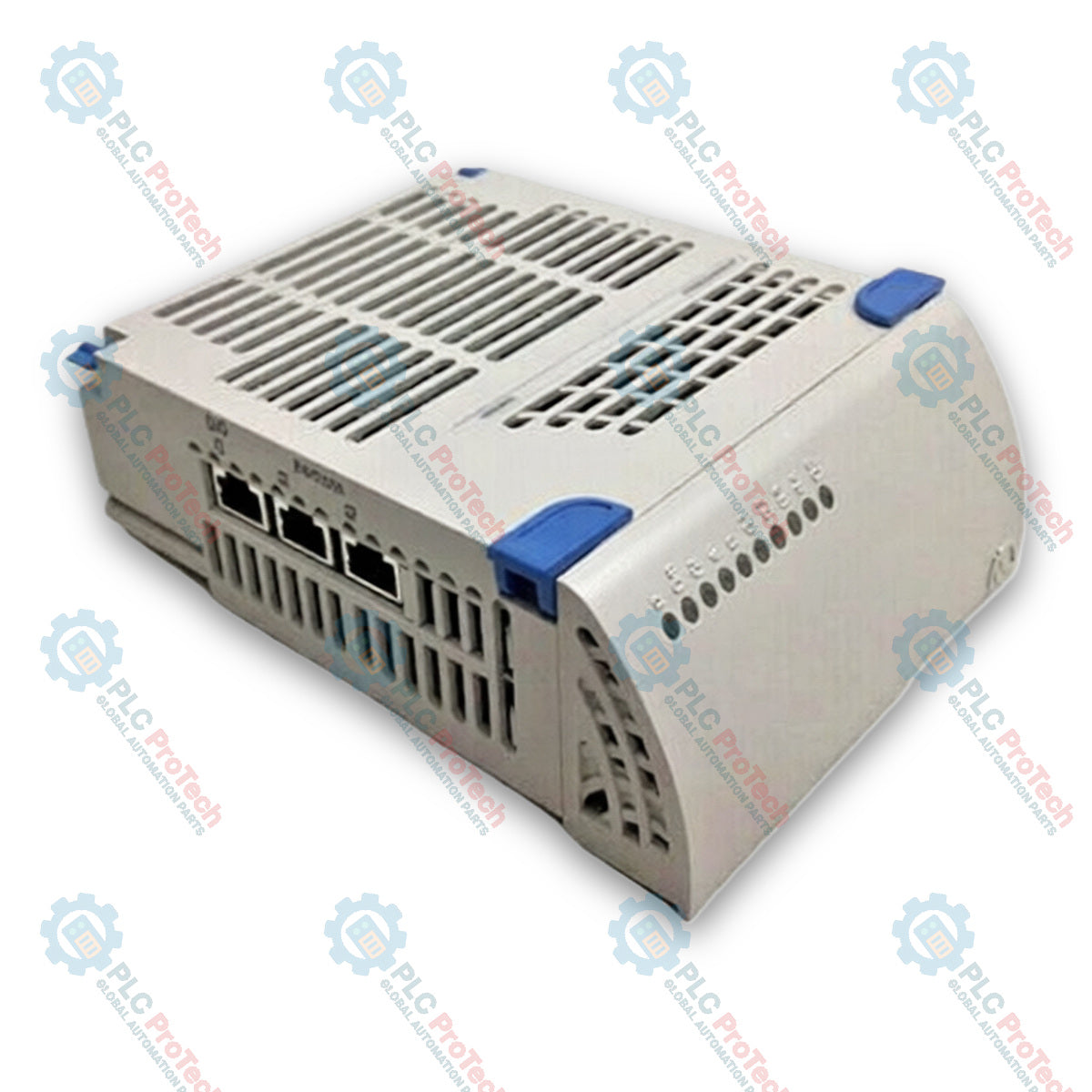

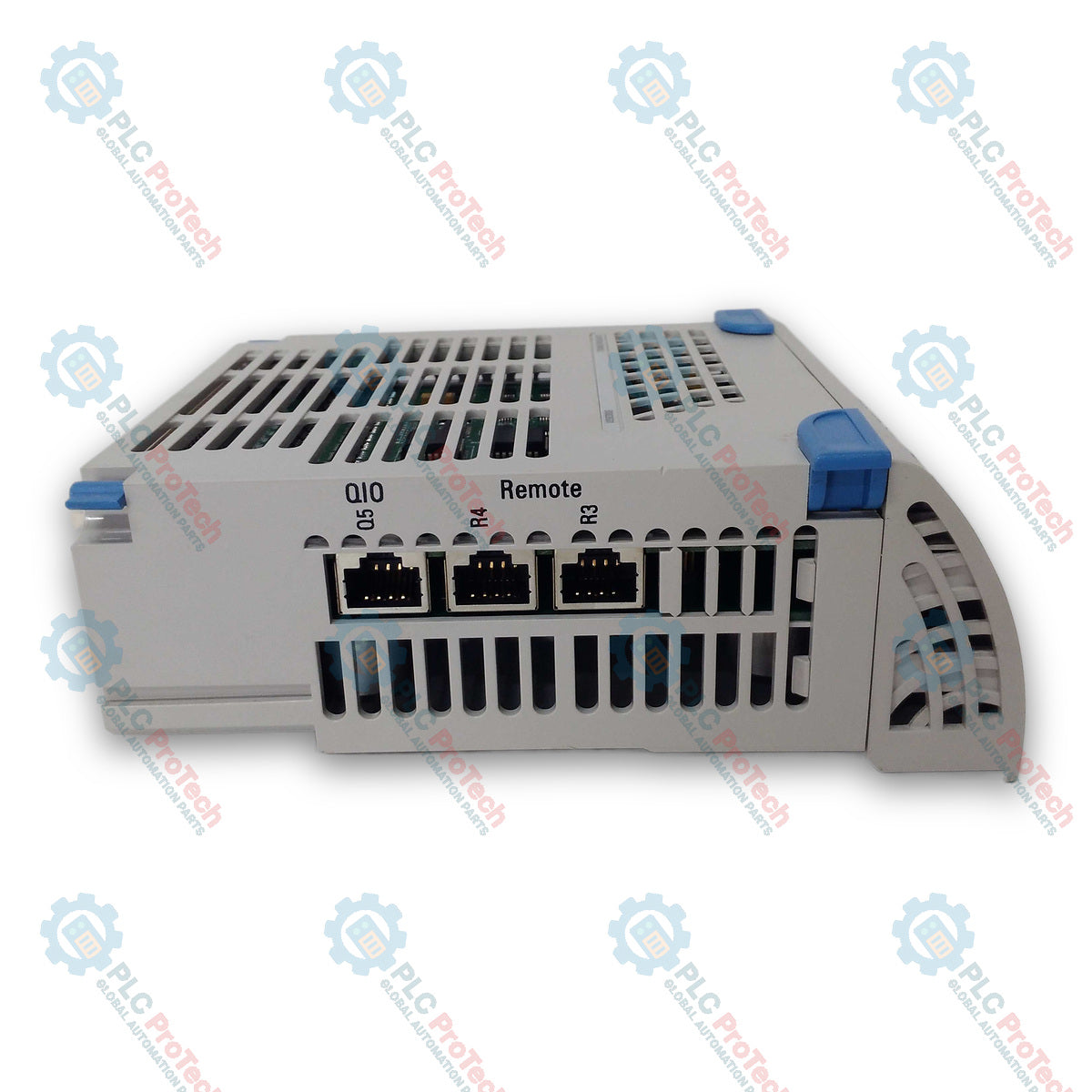

Emerson Ovation 5X00226G01 OCR400 I/O Interface Module

SKU 5X00226G01

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Emerson
Product No.: 5X00226G01
Origin United States
Product Type: I/O Interface Modules
Payment: T/T, Western Union
Weight: 0.45 kg
Dimensions: 12.7 x 16.5 x 27.9
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The Emerson 5X00226G01 OCR400 is an I/O interface module designed for industrial process control and field device communication within the Ovation control system. It incorporates an I/O Slave Controller (IOSC) FPGA micro-architecture to process high-speed deterministic communications over the proprietary Ovation I/O bus backplane. The module interfaces directly with the OCR400 Controller via dedicated I/O interface ports and Media Attachment Units (MAU), enabling real-time signal processing across distributed local and remote I/O branches. Built with integrated galvanic isolation and onboard diagnostic LED indicators, the 5X00226G01 ensures reliable data exchange and fault detection in power generation and water treatment applications.

Features

Hot-swappable modular design allowing removal and installation under live power
Onboard Electronic ID (EID) storing style, group, serial number, and revision data
Integrated diagnostic LEDs indicating Power OK, Communications OK, External Error, and Internal Fault
Galvanic isolation between internal logic circuitry and field interface buses
Hardware watchdog timer to execute automatic reset upon communication timeout

Applications

Power generation plant control systems
Water and wastewater treatment automation
Remote I/O node integration via fiber-optic MAU links
Industrial process control and data acquisition systems

Technical Specifications

Parameter	Specification
Manufacturer	Emerson
Model	5X00226G01
System Architecture	Ovation Control System / OCR400 Controller
Operating Temperature	0 degC to 60 degC
Storage Temperature	-40 degC to 85 degC
Operating Humidity	0% to 95% (non-condensing); 90% (CE Mark)
Max Wet Bulb Temperature	35 degC
Operating Bus	Ovation I/O Bus

Installation Guidelines

Mount the module into a compatible Ovation base unit attached to standard DIN rails inside the control cabinet.
Maintain physical separation between high-voltage power lines and low-voltage I/O communication wiring to minimize electrical noise.
Utilize twisted-pair shielded cables for field signal wiring and land shields at designated base unit grounding points.
Ensure proper cabinet ventilation and cooling clearance to keep operating temperatures within 0 degC to 60 degC.

Compliance and Certifications

CE Mark Certified Systems
KC Compliance

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

How does the module signal internal logic failures to the control system?

The module lights a red Internal Fault LED on the front faceplate and updates word 13 of the configuration and status register for DPU diagnostics.

Can the module be replaced without powering down the cabinet branch?

The module features hot-swappable hardware architecture allowing safe removal and installation into the base unit while backplane power remains applied.

What happens if backplane communications timeout during system operation?

An onboard watchdog timer triggers, turning off the Communications OK LED and illuminating the red Internal Fault LED to indicate loss of communication.
