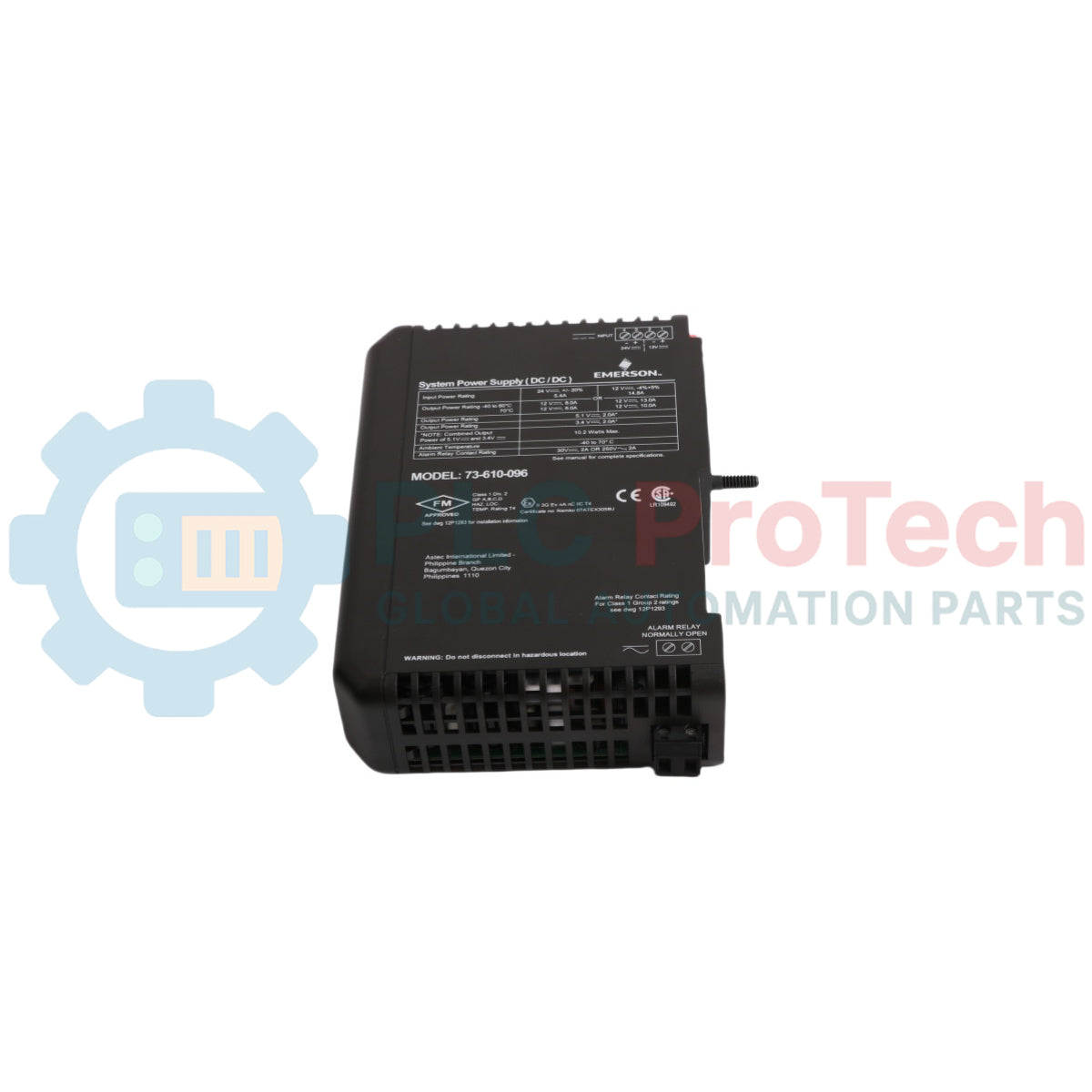

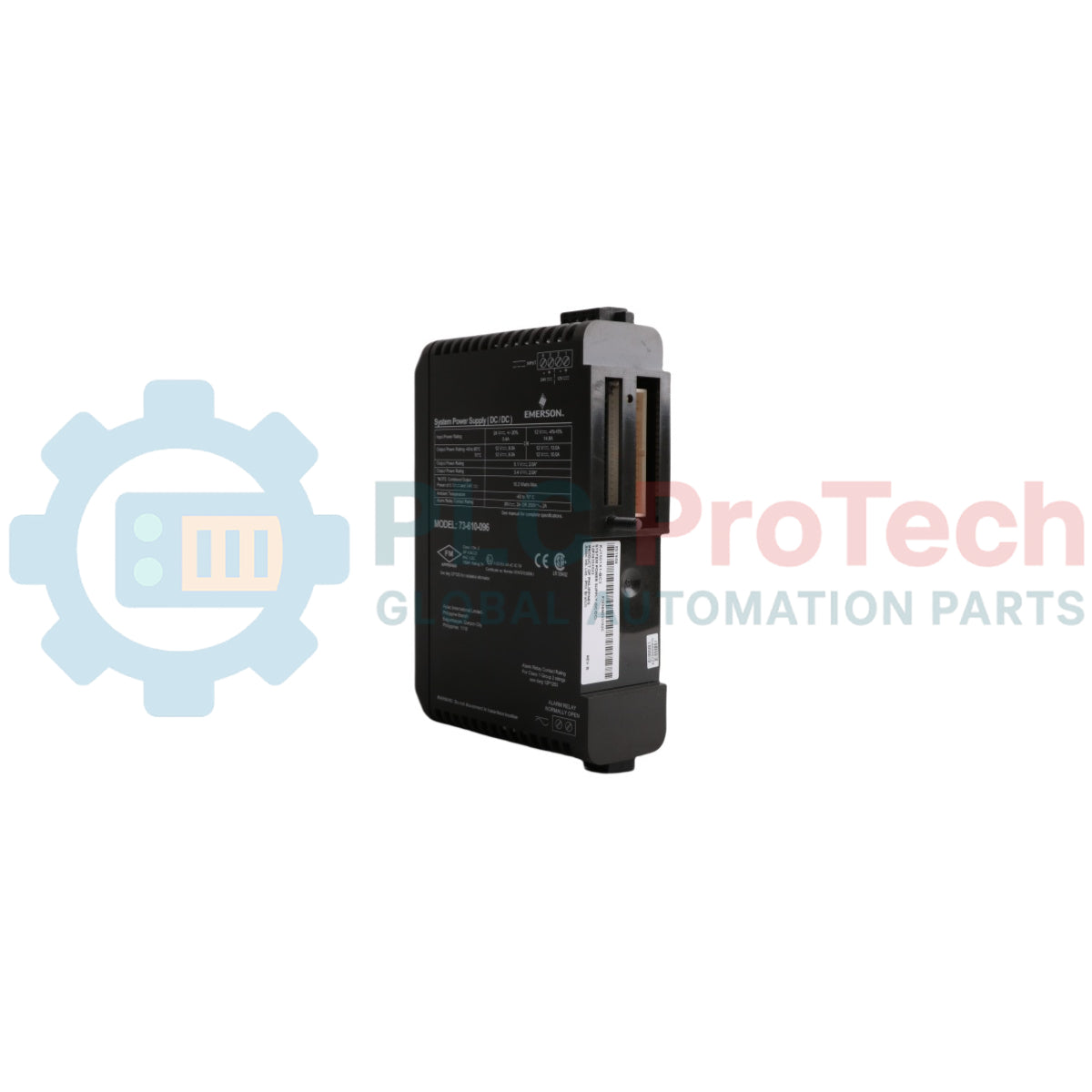

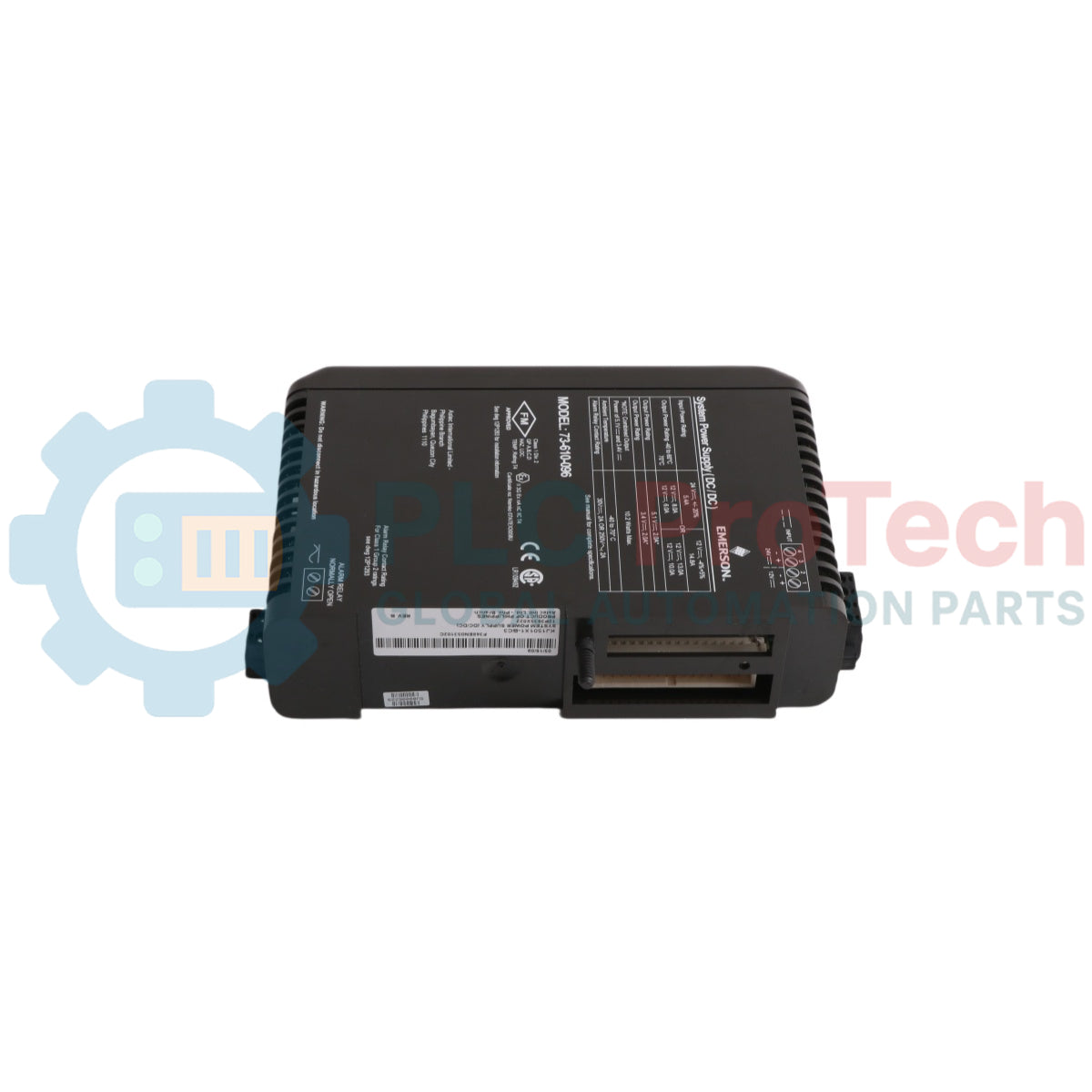

Emerson VE5009 KJ1501X1-BC3 12P3935X022 Enhanced System Power Supply

SKU KJ1501X1-BC3

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Emerson
Product No.: KJ1501X1-BC3
Origin United States
Product Type: Dual DC Power Supplies
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.72 kg
Dimensions: 140 mm x 45 mm x 128 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The Emerson VE5009 is a modular, plug-and-play system power supply engineered to provide stable, reliable power to DeltaV controllers and I/O interfaces. As an integral component of the DeltaV M-series infrastructure, this 24/12-VDC Enhanced System Power Supply supports dual input voltage configurations, efficiently accommodating both 12 VDC and 24 VDC plant bulk power. When operating on 24 VDC bulk power, the VE5009 delivers up to 8 Amps of current directly down the LocalBus to the I/O subsystem, eliminating the need for standalone 24-to-12 VDC intermediate bulk power converters. The device features flexible load-sharing capabilities to facilitate system scaling and power redundancy, comprehensive under/over-voltage fault detection to safeguard downstream logic electronics, and absolute isolation between system power and field circuits.

Features

Plug-and-play modular design allows seamless insertion into any horizontal 2-wide or vertical 4-wide power/controller carrier slot.
Utilizes internal power buses within the carrier system, eliminating the requirement for external interconnecting cables between the power supply, controller, and I/O interface carriers.
Dual input capability supports flexible integration into existing 12 VDC or 24 VDC power systems.
Supports load-sharing architectures to economically implement 1-to-N or 1-to-1 system power redundancy.
Integrated fault detection monitors voltage limits to ensure automatic cold restart capabilities for the controller following bulk power anomalies.
Dedicated front panel LED indicators provide real-time diagnostic visibility for normal DC operation and error status.
Built-in 2-wire normally open relay alarm contact changes state immediately upon internal output drift or bulk supply input collapse.
Restricts system and field power routing to independent isolated paths when sourced from a common 24 VDC system.
Quick-mount bulk power input connector simplifies routing and allows efficient module replacement compared to conventional fixed terminal blocks.

Applications

Distributed Control Systems (DCS) system logic and interface power management
Critical process control loop automation and redundant carrier power networks
Heavy industrial process plants requiring hazardous location certified power modules

Ordering Information

Description	Model Number	Part Number / Assembly Number
24/12-VDC Enhanced System Power Supply	VE5009	KJ1501X1-BC3 (Assembly: 12P3935X022)

Technical Specifications

Parameter	Specification
Manufacturer	Emerson Process Management
Manufacturing Brand	Astec Intl. Ltd. - Phil. Branch
Input Voltage (12 VDC Mode)	12 VDC (-4% to +5%) at 14.8 A
Input Voltage (24 VDC Mode)	24 VDC +/- 20% at 6.1 A (or 5.4 A)
Inrush Current (12 VDC)	12 A peak maximum for 5 ms over 12 VDC input range (excluding 12 VDC output)
Inrush Current (24 VDC)	20 A peak maximum for 5 ms over 24 VDC input range (including 12 VDC output)
Output Ratings (-40 to 60 degC)	+12 VDC at 13.0 A (12 VDC Input) +12 VDC at 8.0 A (24 VDC Input) +5.1 VDC at 2.0 A (also listed as +5 VDC) +3.4 VDC at 2.0 A (also listed as +3.3 VDC)
Combined System Logic Output Power	10.2 Watts Maximum total from combined +5.1 VDC and +3.4 VDC outputs
Output Ratings (60 to 70 degC)	+12 VDC at 10.0 A (12 VDC Input) +12 VDC at 6.0 A (24 VDC Input) +5.1 VDC at 2.0 A +3.4 VDC at 2.0 A
Input Protection	Internally fused, non-replaceable
Overvoltage Protection	Output protected at 110% to 120%
Hold-up Time	Output remains within 5% of nominal at full load and minimum input voltage for 5 ms (excluding 12 VDC current with 12 VDC input)
Operating Temperature Range	-40 to 60 degC (-40 to 140°F) without de-rating 60 to 70 degC (140 to 158°F) with de-rating
Storage Temperature Range	-40 to 70 degC (-40 to 158°F)
Relative Humidity	5 to 95%, non-condensing
Airborne Contaminants	ISA-S71.04-1985 airborne contaminants class G3
Shock Resistance	10 g 1/2-sine wave for 11 ms
Vibration Tolerance	1 mm peak-to-peak from 5 Hz to 16 Hz, 0.5 g from 16 Hz to 150 Hz (or 1 mm peak-to-peak from 2 to 13.2 Hz, 0.7 g from 13.2 to 150 Hz)
Status LED Indication	Green: DC Power (Input applied, internal fuse/diode intact) Red: Error (+5.1 VDC and +3.4 VDC outputs are out of tolerance)

Connections/Interfaces

Terminal Pin / Connector	Function
Input Pin 1 & 2	12 VDC Primary Bulk Input (+ / -)
Input Pin 3 & 4	24 VDC Primary Bulk Input (+ / -)
Alarm Relay Contact	2-wire normally open dry contact relay; closes when internal system logic rails (3.4 VDC and 5.1 VDC) are within 4% of nominal. Rating: 30V VDC at 2.0 A or 250 VAC at 2.0 A.

Installation Guidelines

Carrier Attachment: The module must only be mounted onto a pre-installed, T-type DIN rail-supported DeltaV Power/Controller carrier (including 2-wide horizontal, 4-wide vertical, or Vertical Plus variants).
Power Constraints (Live-Work): This unit cannot be removed or inserted while the system power is energized. Ensure the bulk source is fully isolated before handling.
12 VDC Passthrough Conditions: The external voltage source feeding this module in 12 VDC passthrough mode must not generate or contain a potential exceeding 12.6 VDC in normal operation and must supply no more than 16 A maximum.
Ventilation and De-rating: Ensure clear spacing around the carrier array to allow unhindered air convection, especially when operating ambient boundaries approach the 60 to 70 degC de-rating window.
Hazardous Area Wiring: Refer to official instruction documents 12P2046 (Zone 2) or 12P1293 (Class 1 Division 2) for boundary containment requirements and grounding guidelines.

Compliance and Certifications

FM Approved: Class 1 Division 2, Groups A, B, C, D; Hazardous Locations; Temperature Rating T4
ATEX Certified: II 3G Ex nA nC IIC Gc; Certificate No: Nemko 07ATEX3058U
CSA Certified: LR109492
CE Approved

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the maximum output power provided by the device for its core system logic outputs?

The combined output power from the +5.1 VDC and +3.4 VDC internal logic lines is rated at a maximum of 10.2 Watts.

Can the power supply be hot-swapped while the carrier is energized?

No, this unit cannot under any circumstances be removed or inserted while the system power is energized.

Under what condition does the internal alarm relay close?

The 2-wire normally open alarm relay contact closes when the internal 3.3 VDC and 5 VDC system logic outputs are operating within 4% of their nominal voltage values.

What are the strict limitations for the input voltage source during 12 VDC passthrough operation?

During 12 VDC passthrough mode, the source must not generate a potential exceeding 12.6 VDC and must supply a maximum of no more than 16 A.
