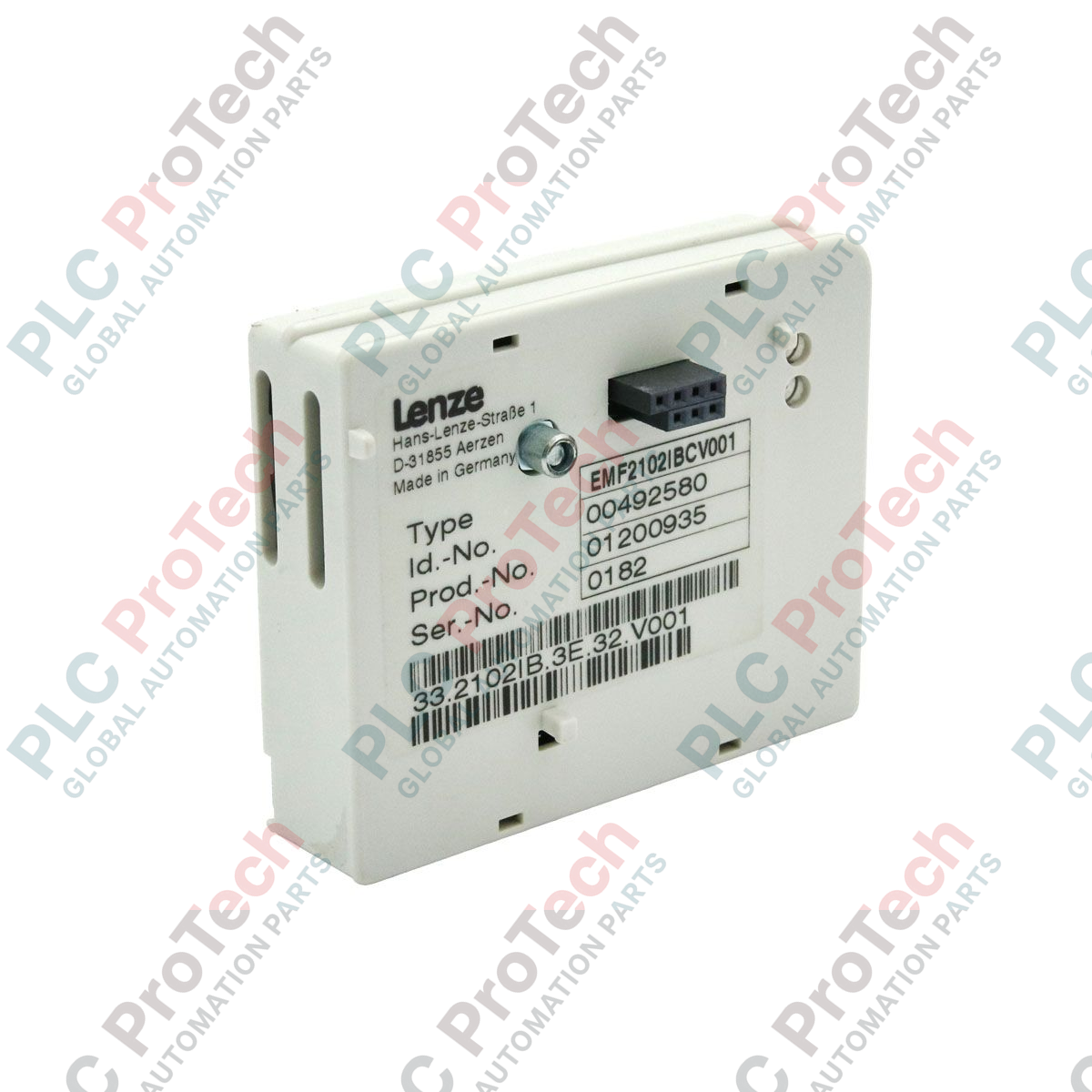

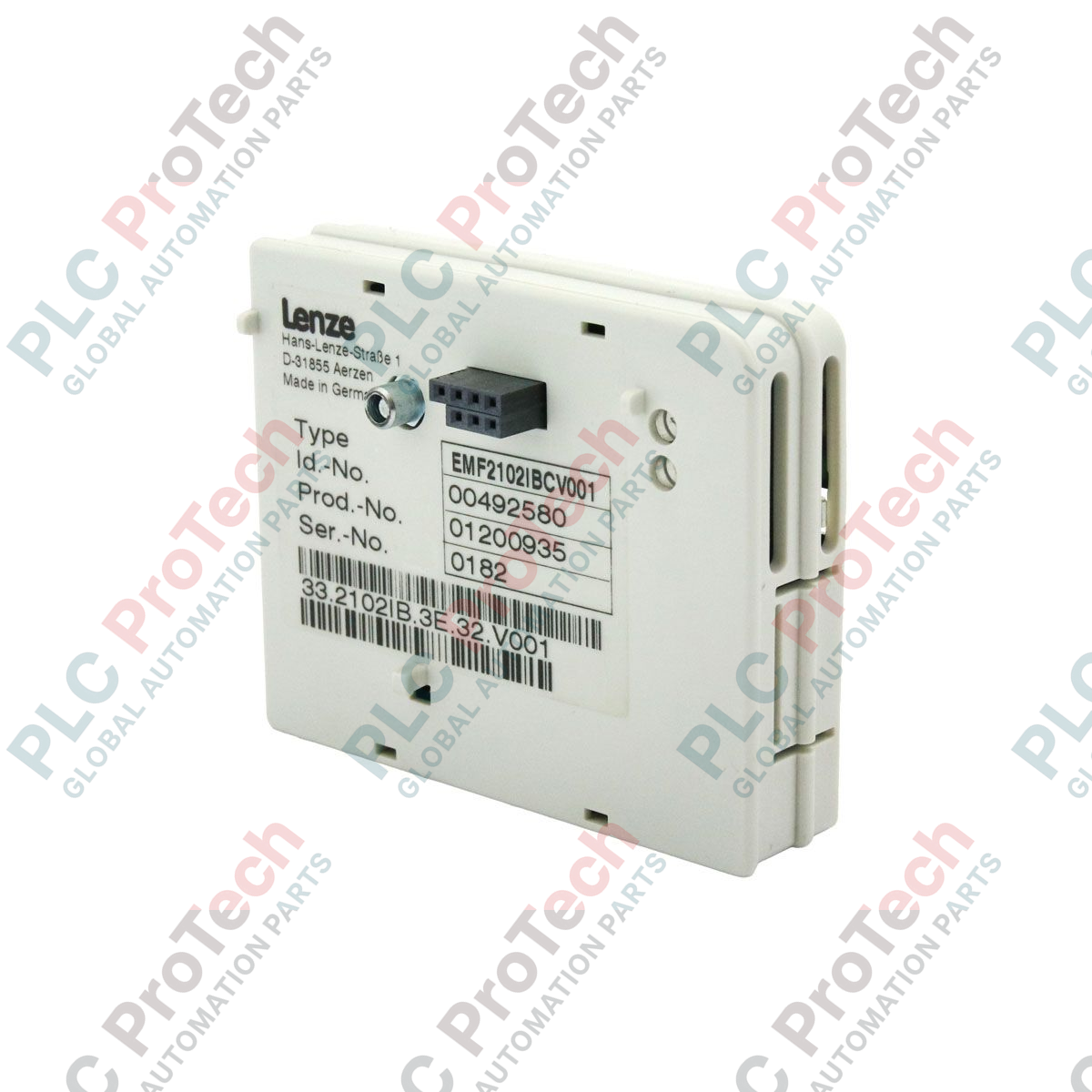

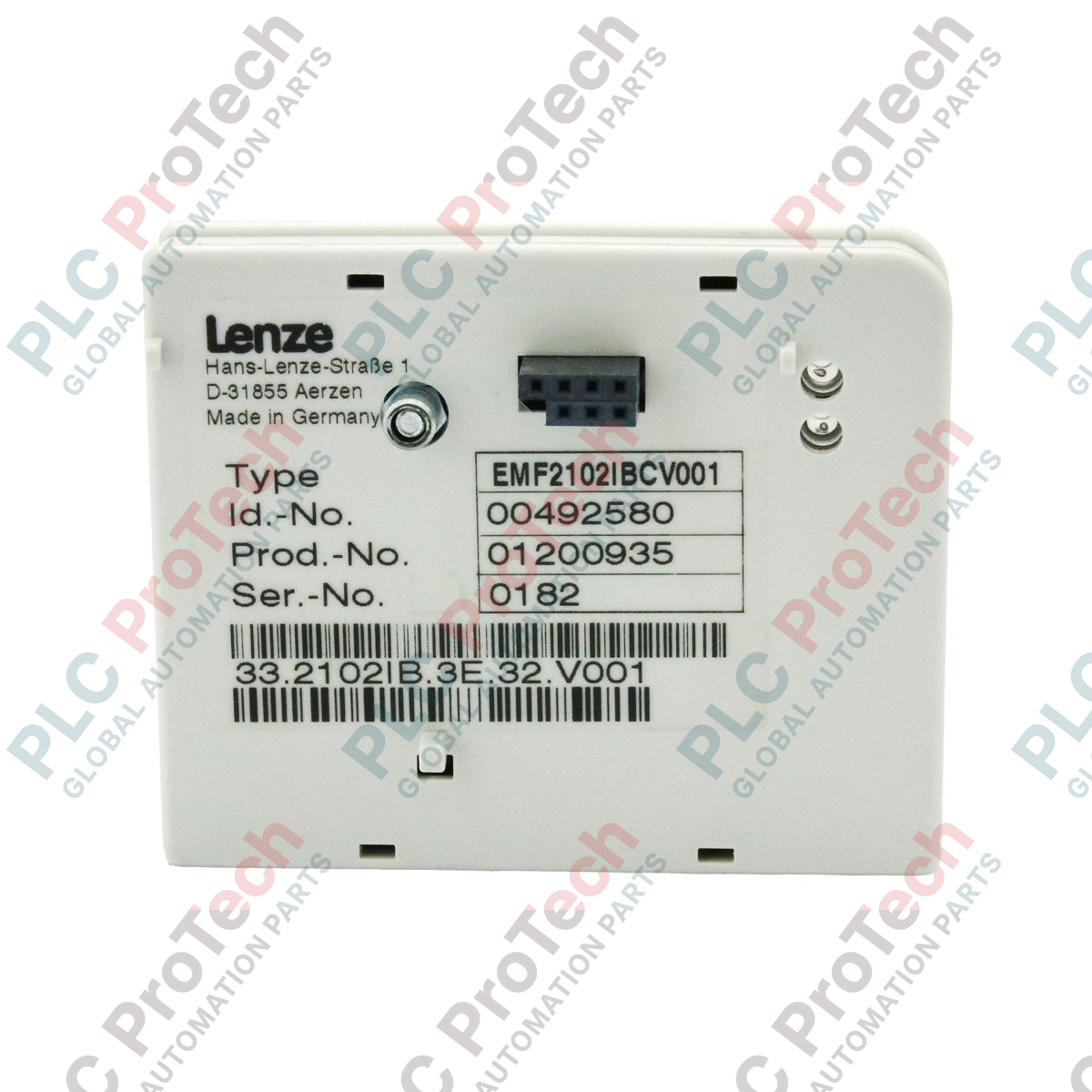

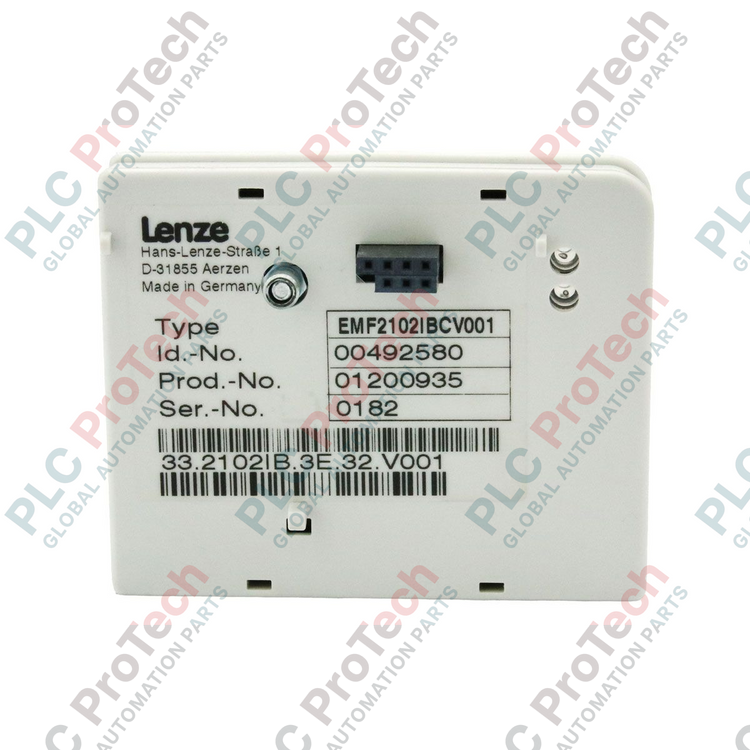

The EMF2102IBCV001 (2102IBCV001) is a specialized communication interface module designed for the Lenze 8200-series frequency inverters. Functioning as a LECOM A/B adapter, this accessory enables the drive to communicate over RS232 or RS485 serial interfaces, allowing for centralized control, parameterization, and real-time monitoring via a PLC or PC-based system. It is an essential component for industrial automation environments that require remote access to motor data or coordinated multi-drive operation. Despite its "Phase-Out" status, the EMF2102IBCV001 remains a mechanical necessity for maintaining legacy systems, providing the critical data link required for "L-force Engineer" software integration and ensuring that older 8200-series installations remain visible and controllable within modern digital architectures.

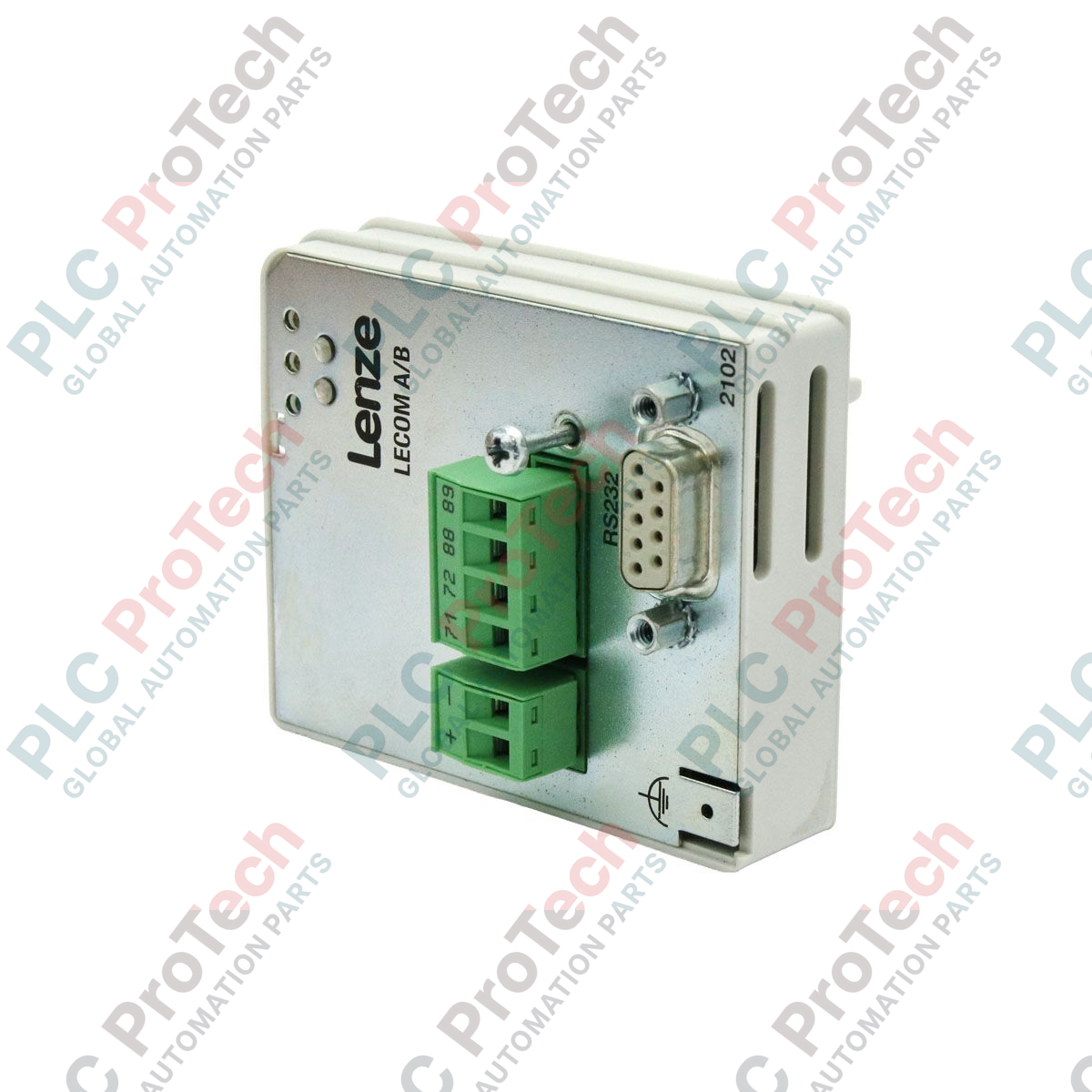

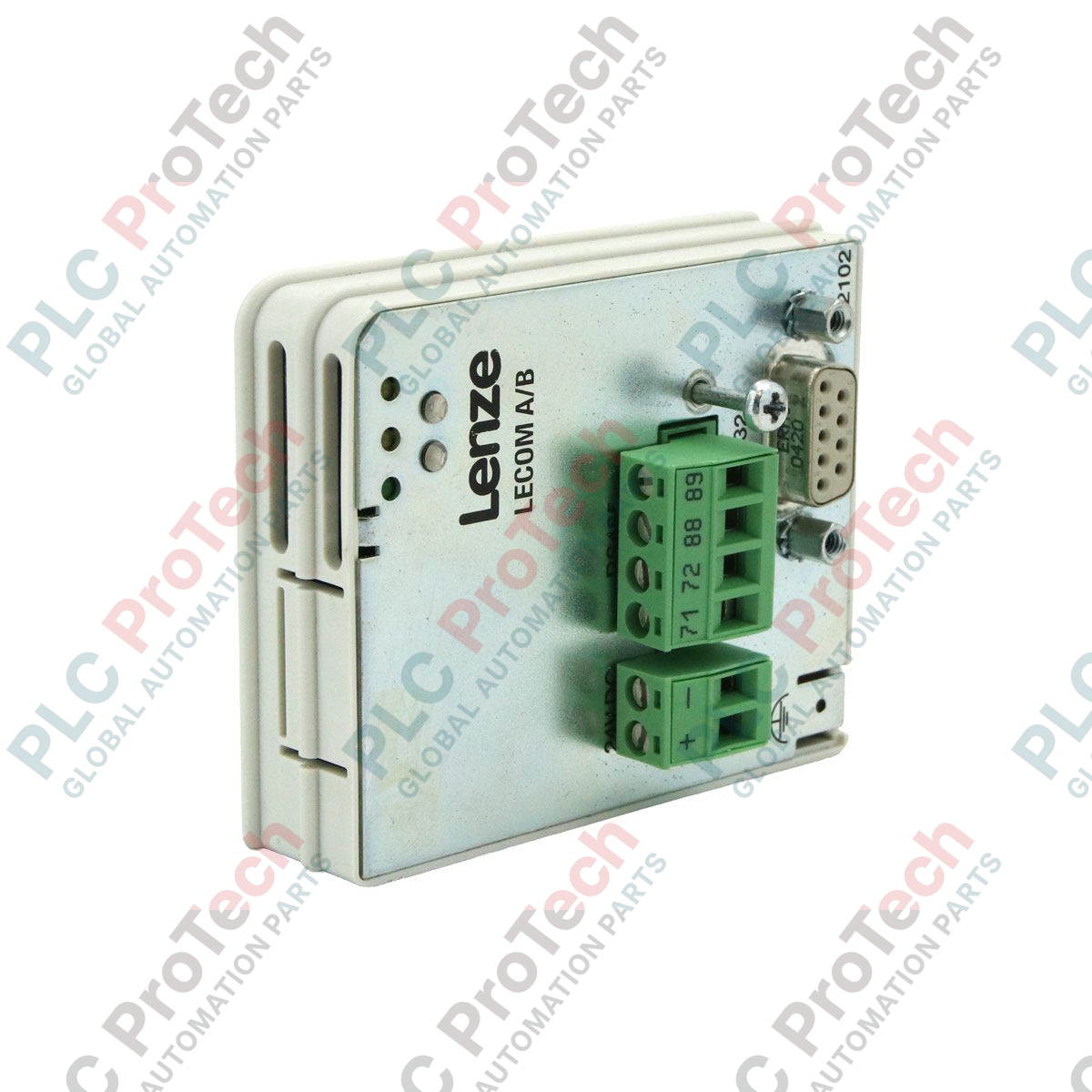

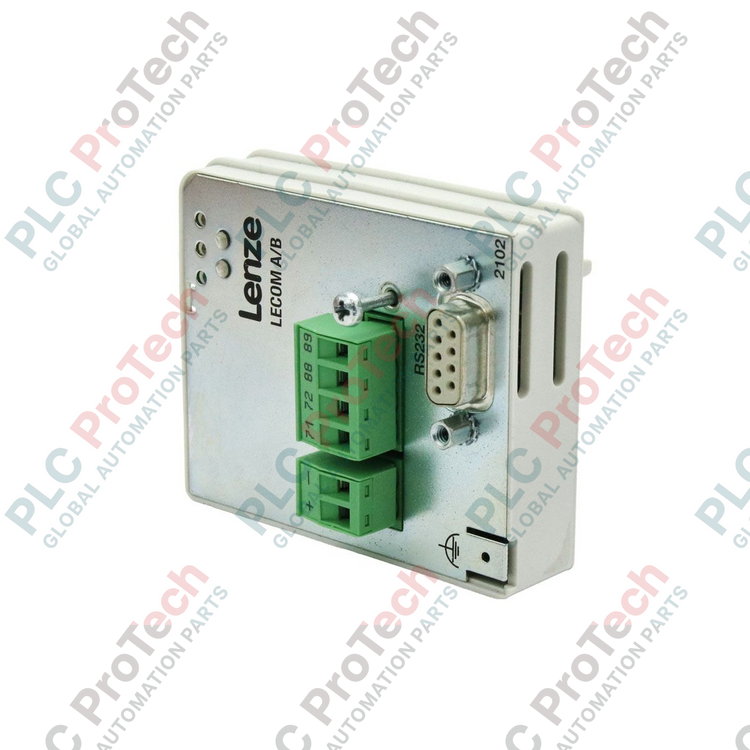

The EMF2102IBCV001 is engineered as a plug-in module that mounts directly onto the front-facing communication slot of the 8200-series vector inverter. It provides a dual-standard serial interface, supporting both point-to-point RS232 connections and multi-drop RS485 networking. The hardware is optimized for high-speed data transmission and features galvanic isolation to protect the inverter's internal electronics from ground loops or voltage surges on the communication line. Weighing only 0.09 kg and measuring 15.20 x 18.80 x 5.50 cm, the module integrates seamlessly without expanding the footprint of the drive. The LECOM (Lenze Communication) protocol ensures that all drive registers are accessible, facilitating comprehensive diagnostic data flow and remote resetting of fault codes.
| Feature | Specification Details |
| Model | EMF2102IBCV001 |
| Brand | Lenze |
| Series | 8200-series |
| Interface Type | LECOM A/B (RS232 / RS485) |
| Connection | D-Sub or Terminal (Model dependent) |
| Weight | 0.09 kg |
| Dimensions | 15.20 x 18.80 x 5.50 cm |
| Status | Phase-Out / Legacy Support |
| Origin | Germany |
| Commodity Code | 85044095 |
| ECCN | N (Non-restricted) |
How do I switch between RS232 and RS485 modes on the EMF2102IBCV001?
The selection is typically handled via internal DIP switches or by utilizing specific pin assignments on the interface connector. RS232 is recommended for local PC configuration (up to 15 meters), while RS485 should be used for networking multiple drives over longer distances (up to 1200 meters).
Is this module compatible with the 8200 motec decentralized drives?
The EMF2102IBCV001 is primarily designed for the cabinet-mounted 8200 vector series. For the 8200 motec (decentralized) series, you must verify the physical connector compatibility, as motec units often utilize different mechanical interface housings.
What software is required to communicate with the drive through this module?
You can use the "Lenze Global Drive Control (GDC)" or "L-force Engineer" software. These tools allow you to upload, download, and archive parameter sets, as well as monitor live oscilloscope data from the motor's operation.
Network Termination and RS485 Biasing:
When using the EMF2102IBCV001 in an RS485 multi-drop network, ensure that the last module in the chain has a 120-ohm termination resistor installed. Failure to terminate the line correctly will result in signal reflections, leading to "CE0" (Communication Error) faults and intermittent data corruption, especially at higher baud rates.
Cabling and Interference Protection:
Communication cables should be high-quality, twisted-pair shielded types. Route these cables at least 20 cm away from motor power leads and 400V mains lines. If cross-overs are necessary, they should occur at a 90-degree angle. The shield of the communication cable must be grounded at the entry point of the control cabinet to effectively divert high-frequency noise generated by the inverter's power stage.
Hot-Plugging Restrictions:
Do not insert or remove the EMF2102IBCV001 while the frequency inverter is powered. The communication pins are sensitive to transient spikes during engagement. Powering down the inverter ensures that the internal ASIC (Application-Specific Integrated Circuit) on the module is not subjected to voltage latch-up, which could permanently disable the RS232/485 transceiver.
Global Express Shipping
Returns & Warranty
Manufacturer: Lenze
Product No.: EMF2102IBCV001
Country of origin:Germany
Barcode: 85044095
Payment: T/T, Western Union
Weight: 90g
Dimensions: 15,20cm x 18,80cm x 5,50cm
Shipping port: Xiamen
Warranty: 12 months
