Product Overview

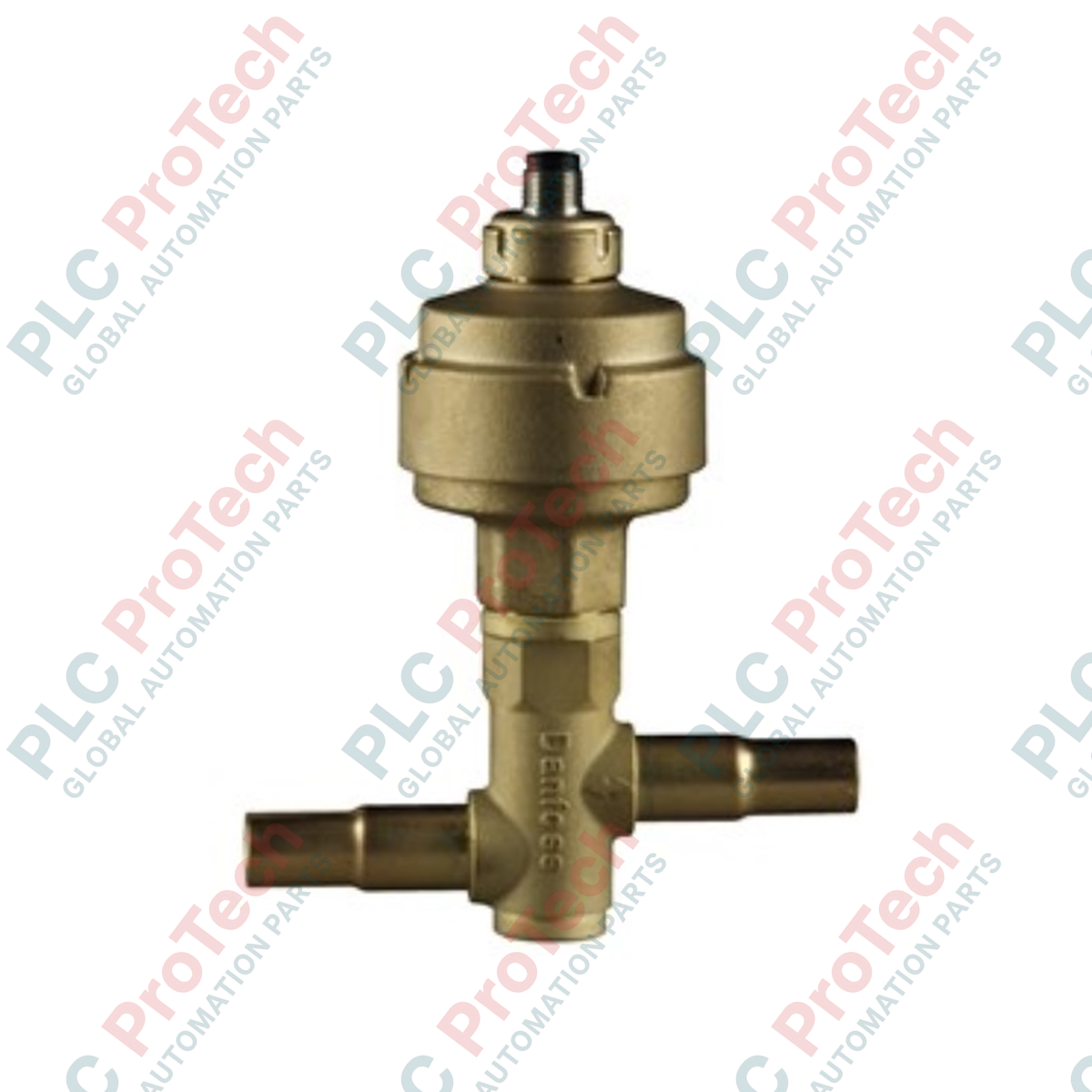

The 034G4211 (034G4211) is a high-precision Danfoss ETS 12.5 series electronically operated expansion valve, engineered for precise liquid injection in air conditioning and refrigeration systems. In critical infrastructure such as data center cooling units, commercial heat pumps, and industrial chillers, this valve plays a pivotal role in maintaining optimal superheat levels. By utilizing a sophisticated stepper motor drive, the ETS 12.5 ensures rapid response to load changes, which significantly improves system Energy Efficiency Ratio (EER) and protects the compressor from liquid slugging. Its balanced orifice design provides bi-flow capability, making it a versatile solution for high-demand thermal management loops.

Technical Configuration

The hardware architecture of the 034G4211 is built for high-performance fluid control and long-term environmental durability.

• Flow Dynamics: As a straightway valve, it features a balanced cage and linear slide design, ensuring precise flow modulation across a wide range of evaporation temperatures.

• Mechanical Interface: Equipped with 22.00 mm Copper Solder ODF inlet and outlet connections, allowing for high-integrity brazed joints in high-pressure refrigerant circuits.

• Electrical Interface: Features a 4-pin M12 male connector, supporting standardized industry cabling for stepper motor control signals.

• Environmental Protection: The valve assembly is rated at IP67, ensuring complete protection against dust ingress and the effects of temporary immersion in water, which is critical for equipment exposed to heavy condensation or wash-down procedures.

Technical Specifications

Technical FAQs

Can the 034G4211 valve be installed in any orientation?

For optimal performance and to prevent debris accumulation in the motor housing, it is recommended to install the valve with the actuator pointing upwards (within 90 degrees of vertical). However, the straightway design does allow for flexible positioning in compact piping layouts.

What type of controller is required to drive the ETS 12.5?

The 034G4211 requires a bipolar stepper motor controller. The controller must be configured to match the specific phase current and step rate specifications of the ETS series to ensure smooth and accurate valve positioning.

Does this valve require an external solenoid valve for shut-off?

The ETS series provides a tight shut-off function; however, in systems where safety requirements are stringent or where long-term power outages are expected, a separate solenoid valve in the liquid line is often recommended for additional security.

Engineering & Installation Guide

• Brazing Protocol: During installation, it is mandatory to wrap the valve body in a wet cloth or use a heat-sink paste. The internal components are precision-machined, and excessive heat (exceeding 120 Celsius) during the soldering of the 22.00 mm copper connections can damage the internal slide mechanism or the motor gaskets.

• Moisture Prevention: Before commissioning, ensure the system is evacuated to a high vacuum to remove all moisture. Moisture in the refrigerant can freeze within the small clearances of the expansion valve, leading to erratic control or mechanical seizure of the stepper motor.

• Cable Protection: When connecting the 4-pin M12 plug, ensure the cable has a "drip loop" to prevent condensation from running down the wire and into the connector. Even with an IP67 rating, long-term exposure to standing water on electrical interfaces should be avoided for maximum longevity.
