Overview

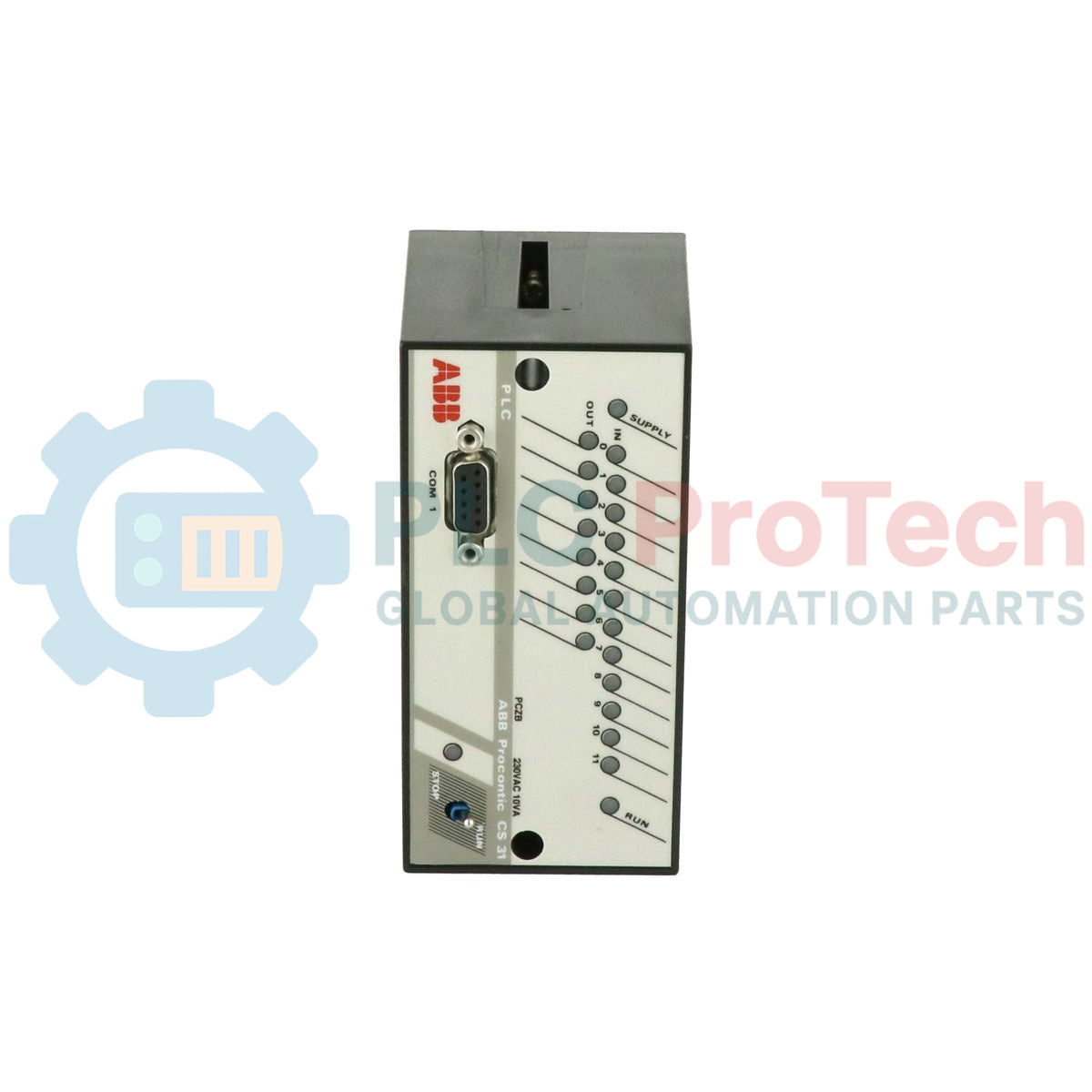

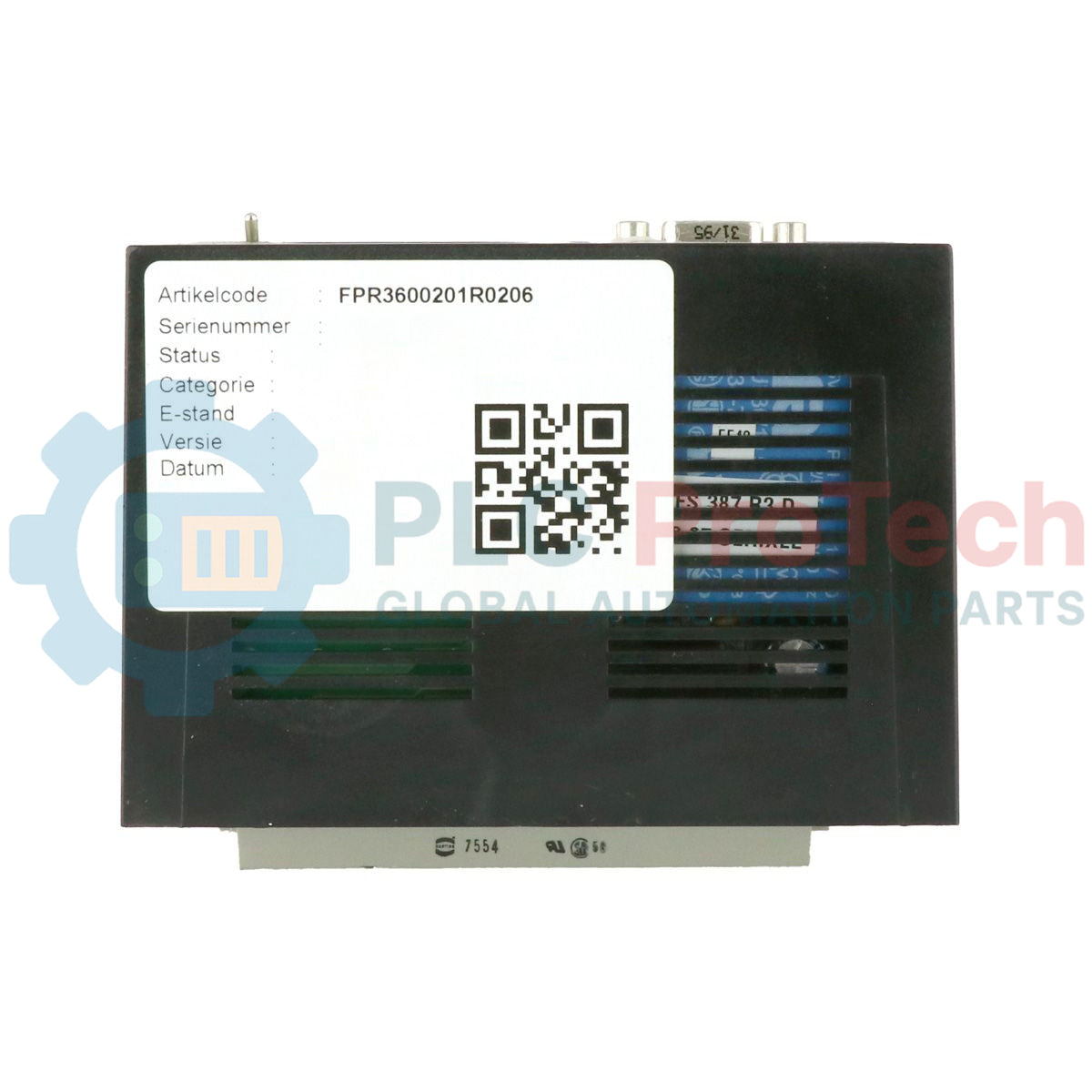

The FPR3600201R0206 (PCZB Module) is a specialized 230 VAC power supply and interface module within the ABB Procontic CS31 automation family. This robust component is engineered to bridge the gap between legacy Multibus keyboard interfaces and modern control architectures, specifically supporting the Bailey IIMKM02A Multibus Keyboard Module requirements. Designed for high-reliability industrial environments, the PCZB module ensures stable power delivery and seamless data translation for operator interface stations. Its compact footprint and dedicated 230 VAC input make it an essential replacement part for maintaining legacy Procontic CS31 systems in power plants, chemical processing facilities, and large-scale manufacturing sites where continuous uptime of the human-machine interface (HMI) is critical.

Technical Configuration

The FPR3600201R0206 is built to handle the rigorous demands of industrial power distribution and interface logic:

• Integrated Power Conversion: Converts standard 230 VAC utility power into the regulated DC voltages required for Multibus internal logic and peripheral keyboard hardware.

• Multibus Compatibility: Specifically mapped to function with the Bailey IIMKM02A protocol, ensuring that keystroke data and LED feedback signals are synchronized with the primary controller.

• System Integration: Part of the Procontic CS31 fieldbus range, designed to provide decentralized control capabilities and robust noise immunity in electrically "noisy" factory environments.

• Compact Form Factor: The modular 3-inch depth allows for high-density installation within standard control cabinets, optimizing panel space.

Technical Specifications

Technical FAQs

Is this module a direct drop-in replacement for the Bailey IIMKM02A power section?

Yes, the PCZB module is specifically designed to support the Bailey IIMKM02A Multibus Keyboard interface requirements within the ABB Procontic ecosystem, ensuring electrical and logical compatibility.

What should I verify before applying 230 VAC power to this unit?

Ensure that the input frequency matches your local grid (50/60 Hz) and that the grounding terminal is securely bonded to the cabinet's common ground bus to prevent signal interference on the Multibus data lines.

Does this module require a separate mounting base?

This module typically mounts within a standard Procontic rack or on a dedicated sub-chassis. Verify your current cabinet configuration to ensure the 3x3 inch footprint matches your existing mounting points.

Engineering & Installation Guide

Power Sequencing and Safety

When installing the FPR3600201R0206, always utilize a dedicated fast-acting fuse or circuit breaker on the 230 VAC line. Because this module powers keyboard interfaces, a sudden power surge can lead to "ghost" keystrokes or communication lockups on the Multibus. Ensure that the AC supply is stabilized and free from significant industrial switching noise.

Thermal Management

While the PCZB module is highly efficient, it relies on passive convection for cooling. Maintain at least 25 mm (1 inch) of free space above and below the unit. Excessive heat buildup in the enclosure can shorten the life of the internal electrolytic capacitors, leading to voltage ripple that may disrupt sensitive keyboard data.

Keyboard Interface Maintenance

When connecting the Bailey IIMKM02A to this module, inspect the Multibus ribbon cables for signs of brittleness or oxidation. Given the legacy nature of these components, poor physical connections are the most common cause of "Module Not Found" errors in the CS31 diagnostic logs.
