Description

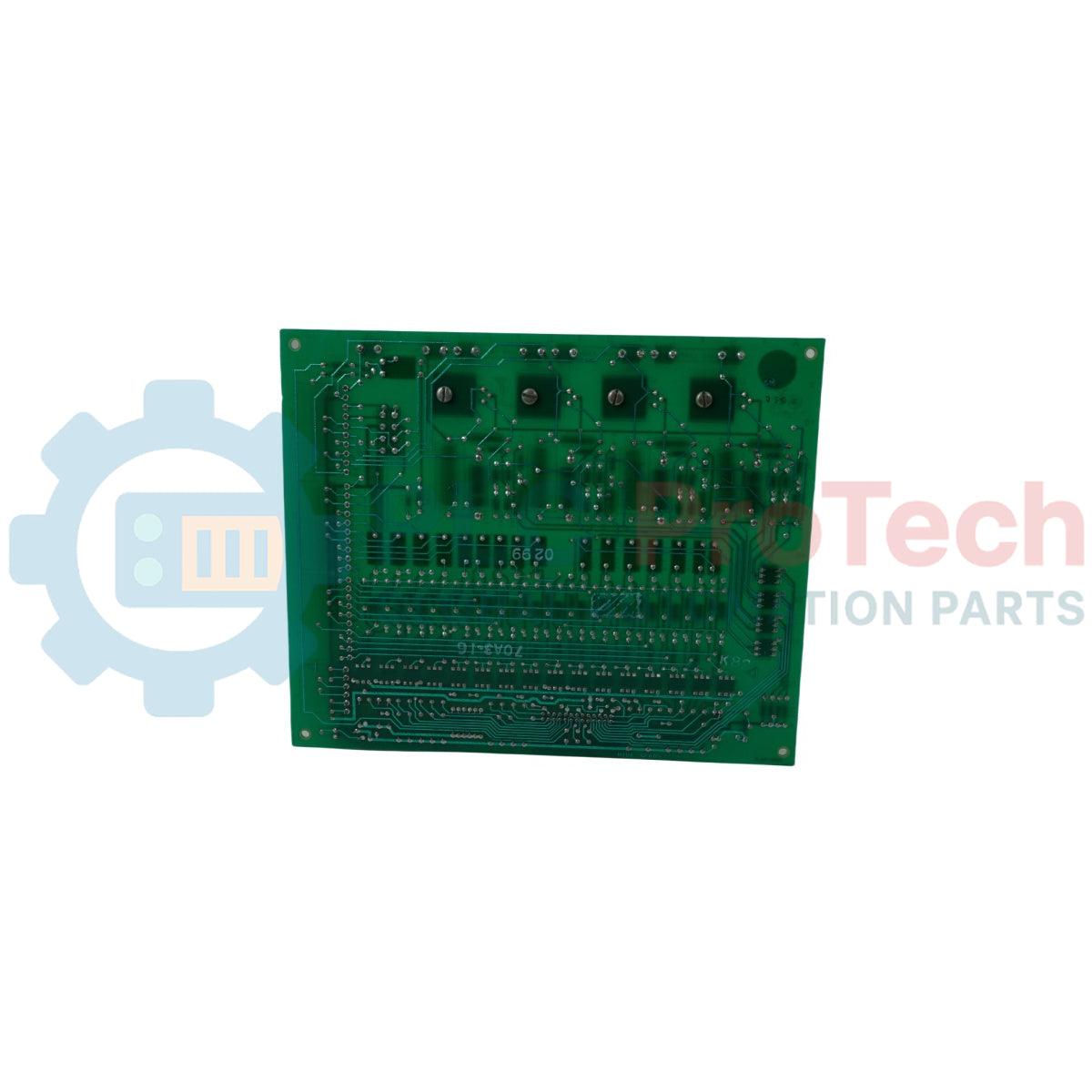

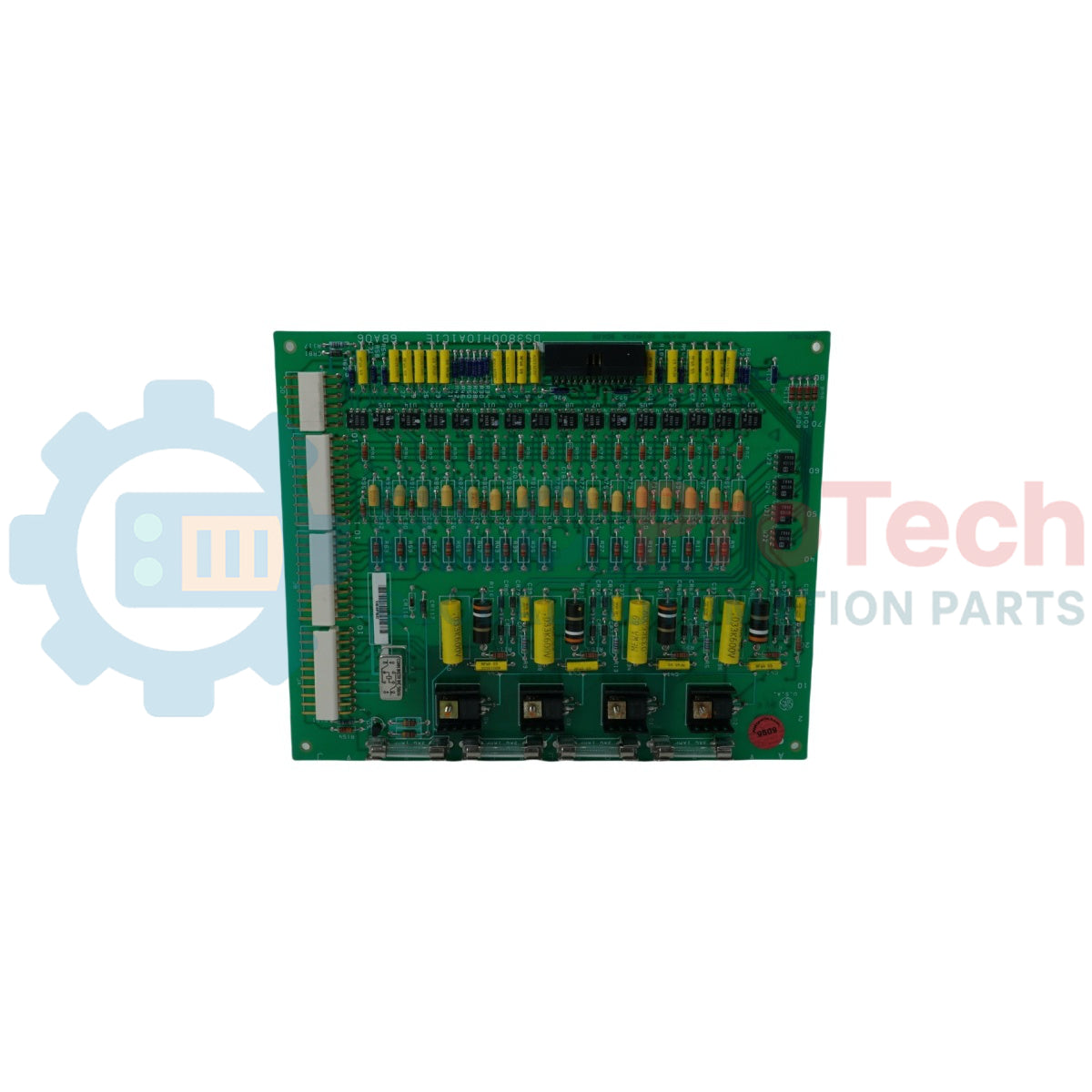

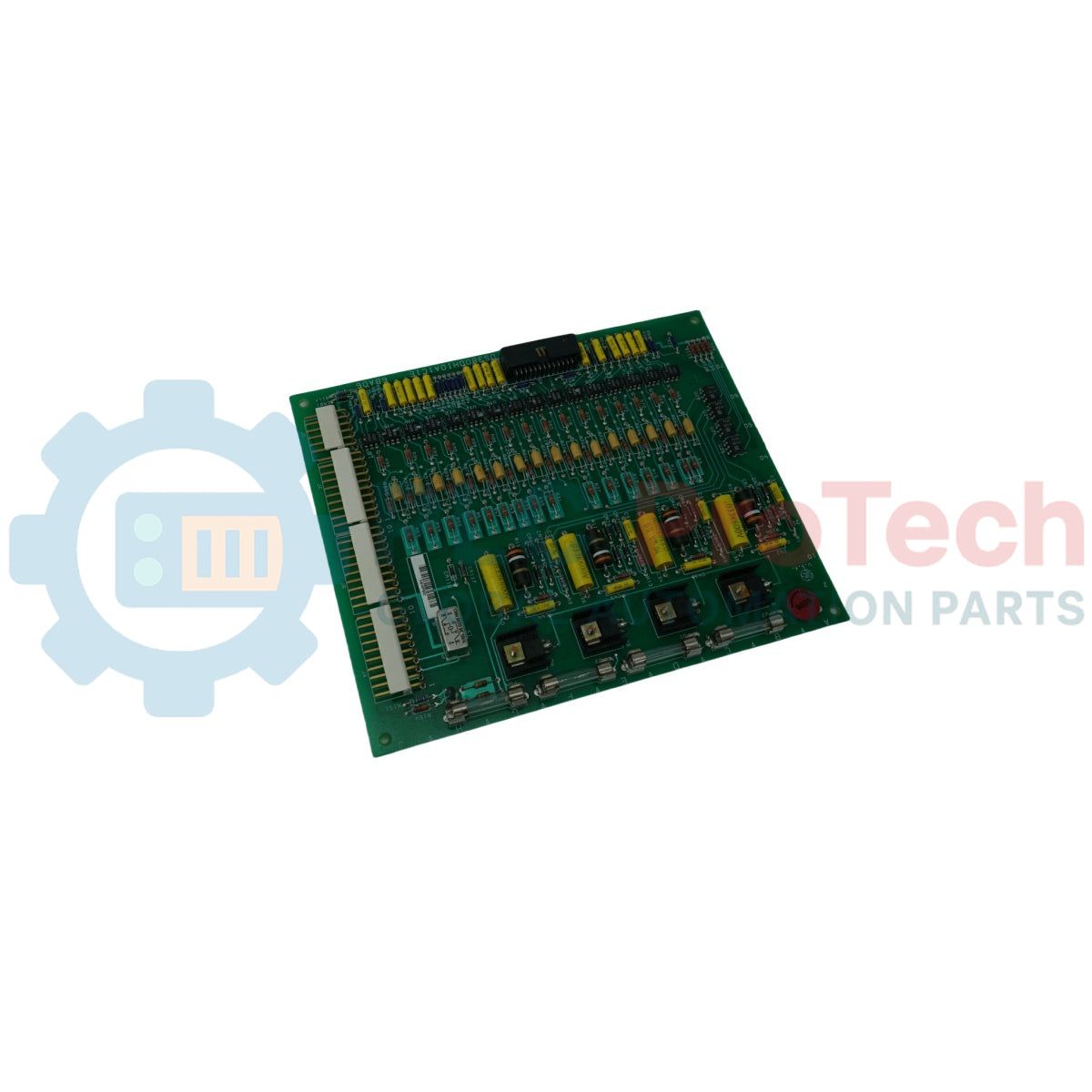

The DS3800HIOA1C1E serves as a hardware interface card engineered for the Mark IV Speedtronic turbine control platform. This input isolator board provides galvanic signal separation and transient mitigation loops to isolate external field instrumentation inputs from the central microprocessing core logic.

The architectural configuration of the DS3800HIOA1C1E utilizes a localized microprocessor matched with multiple erasable programmable read-only memory (EPROM) modules to govern discrete data conversion and tracking. To ensure overcurrent protection across critical pathways, the board incorporates inline protection fuses designed to isolate power loops in the event of systemic electrical surges. Analog signal health and loop verification can be mapped directly via an array of surface-mounted test points, allowing specialized testing of independent circuit logic when the assembly is extracted from the drive chassis. A single 34-pin connector positioned at the card border acts as the primary data trunk, interfacing field loops with the legacy Speedtronic network architecture without a VME faceplate assembly.

Features

• Galvanic Signal Isolation: Safeguards core microprocessor logic channels by establishing dedicated electrical isolation parameters for field sensor inputs.
• Onboard Microprocessor Control: Features a localized processing core driven by changeable EPROM memory modules to direct signal conversion logic.
• Sacrificial Fuse Protection: Built with replaceable physical circuit fuses to automatically open paths and prevent downstream thermal or electrical overload events.
• Direct Pin Header Interconnect: Equipped with a single 34-pin high-density ribbon connector accessible at the card edge for straightforward panel linking.

Applications

• Speedtronic Signal Line Isolation: Conditions and isolates critical parameter loops coming from industrial gas or steam turbine generator structures.
• Field Instrument Conditioning: Normalizes sensor signals where voltage differentials between field elements and backplane logic require decoupling.
• Legacy Power Generation Automation: Deployed in Group 1 Mark IV panels to maintain uninterrupted logic execution during sudden grid instabilities.

Technical Specifications

Connections/Interfaces

Installation Guidelines

• Complete Panel Isolation: Power down, lock out, and verify the total absence of voltage from the drive panel rack prior to undertaking any assembly manipulation.
• Electrostatic Control Protocol: Maintenance personnel must wear a properly connected ESD anti-static wrist strap throughout board handling to protect the sensitive onboard microprocessor and EPROM arrays.
• Static Protective Work Matting: Testing or repair operations must only be performed when the card is placed on a certified static dissipative mat or a flattened antistatic shielding bag.
• Direct Panel Mounting: Mount the unit firmly inside the drive using screws threaded through the four factory-drilled, insulated corner mounting holes, ensuring proper alignment without bending the substrate.
