Product Overview

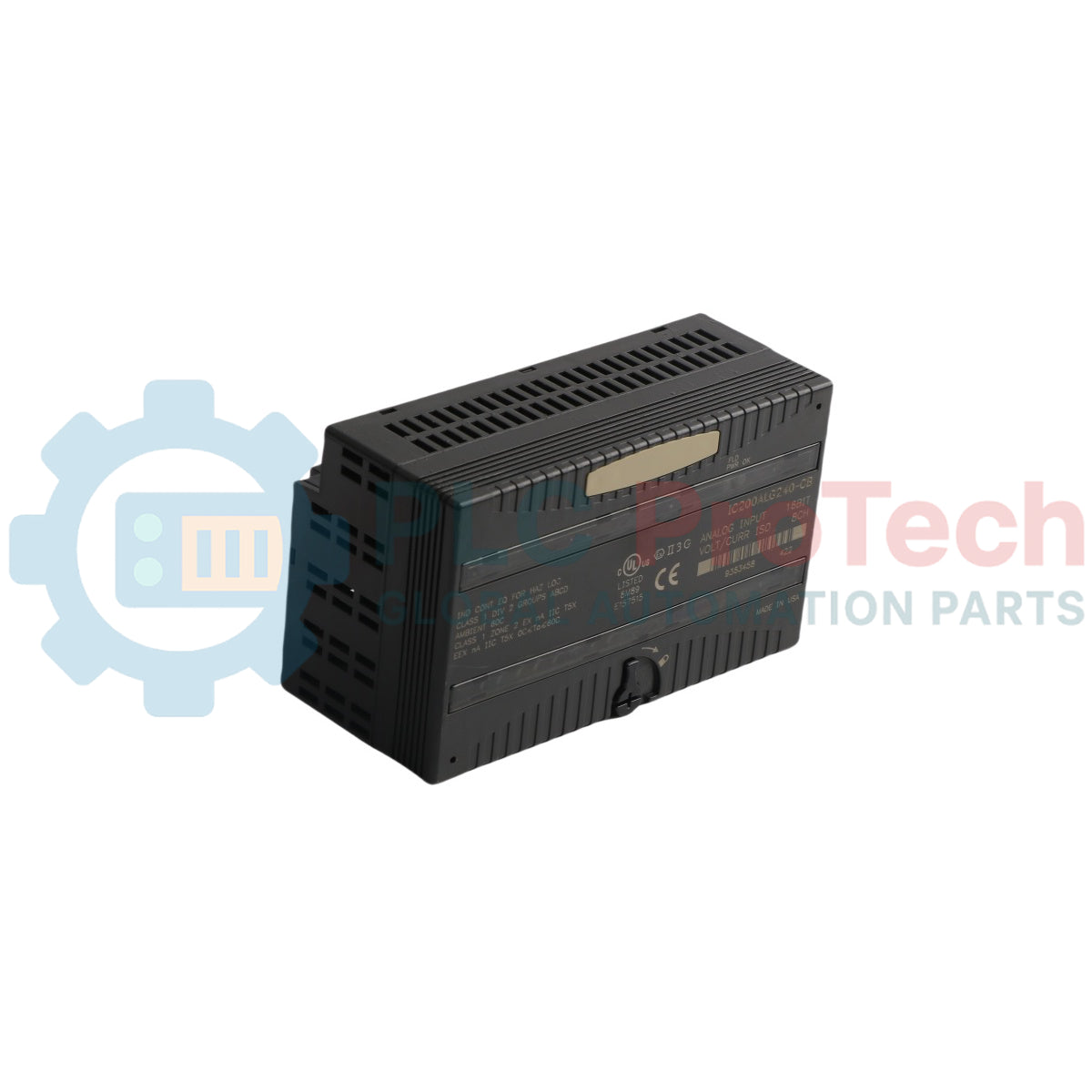

The IC200ALG240 (IC200-ALG-240) is a high-performance 8-channel analog input module designed for the GE VersaMax I/O family. This module is engineered to interface with voltage-based field devices, providing a unipolar input range of 0 to +10 VDC. It is an essential component for capturing data from various sensors, such as pressure transducers, flow meters, and level sensors that output standard voltage signals. With its 12-bit resolution, the IC200ALG240 offers the precision required for general-purpose industrial monitoring and control. Its modular, compact design facilitates decentralized I/O architectures, allowing for efficient data acquisition in applications ranging from building automation to factory floor machinery control.

Technical Configuration

The IC200ALG240 features eight single-ended input channels that share a common return. The module utilizes a 12-bit Analog-to-Digital Converter (ADC), which translates the 0-10 VDC signal into 4,000 digital counts (0.0025 V per bit). As part of the VersaMax ecosystem, the module snaps onto a terminal base (sold separately), supporting "Permanent Wiring" and hot-swappable maintenance. The module includes active diagnostics to monitor the health of the internal circuitry and the presence of the required 24 VDC user power. Front-panel LEDs provide "OK" and "User Power" status for immediate visual confirmation of module health.

Technical Specifications

Technical FAQs

Does this module require external power for the input channels?Yes. The IC200ALG240 requires an external 24 VDC power supply (User Power) to operate the analog-to-digital conversion circuitry. If this power is absent, the module will report a "User Power Lost" fault and all input data will go to zero.

Can I connect current-based sensors (4-20 mA) to this module?The IC200ALG240 is natively a voltage-input module. To read 4-20 mA signals, you would typically use an external 250-Ohm precision resistor across the input terminals to convert the current to a 1-5 VDC signal, or ideally, utilize the dedicated current input module, IC200ALG262.

What is the update rate for the 8 channels?The module is highly efficient, updating all eight channels in approximately 2 ms. This makes it suitable for processes requiring relatively fast feedback loops, such as certain hydraulic pressure or valve position monitoring tasks.

Engineering & Installation Guide

• Grounding and Common Return: Since the 8 channels share a common return, ensure that all field sensors are compatible with a common-ground architecture. If your sensors require galvanic isolation between channels to prevent ground loops, you must use signal isolators or an isolated analog input module.

• Shielding for Voltage Signals: Voltage signals are susceptible to electromagnetic interference (EMI). Always use high-quality shielded twisted-pair cabling. Connect the shield to the terminal base ground point and leave it floating at the sensor end to avoid creating ground loops.

• Terminal Base Keying: When installing the module, ensure the terminal base is correctly keyed for the "Analog Input" position. This mechanical safety feature prevents the accidental insertion of a different module type, protecting the internal electronics of the IC200ALG240 from incorrect voltage levels.
