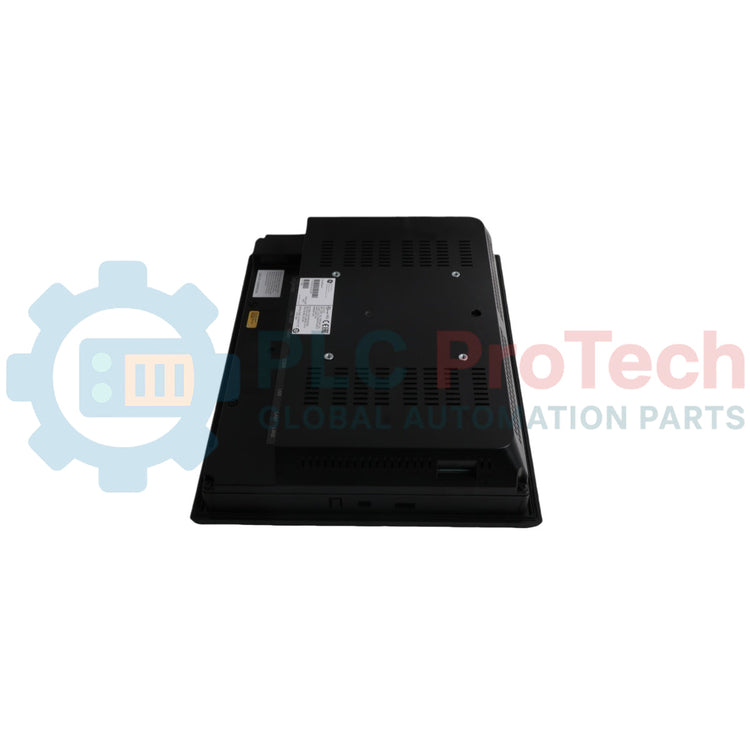

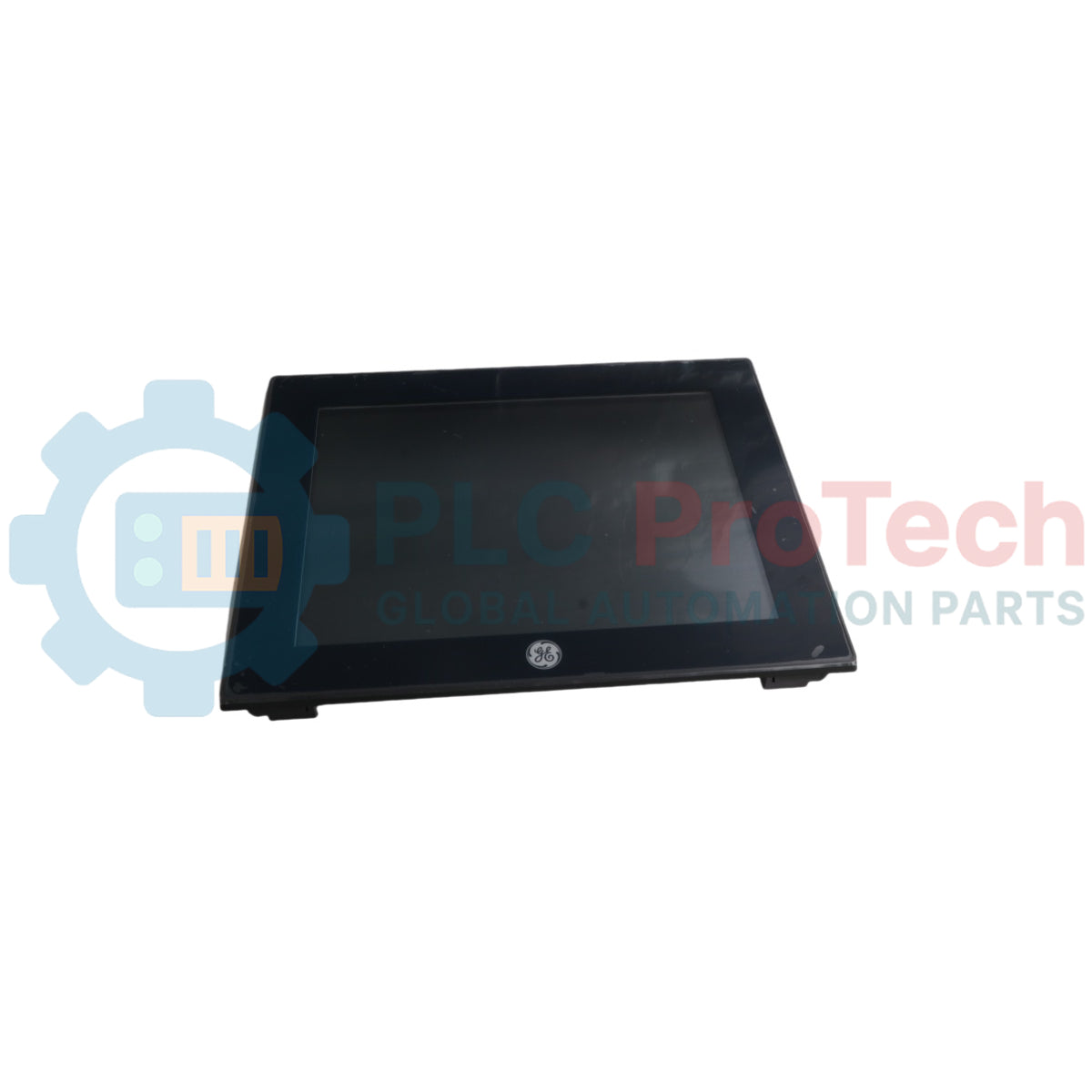

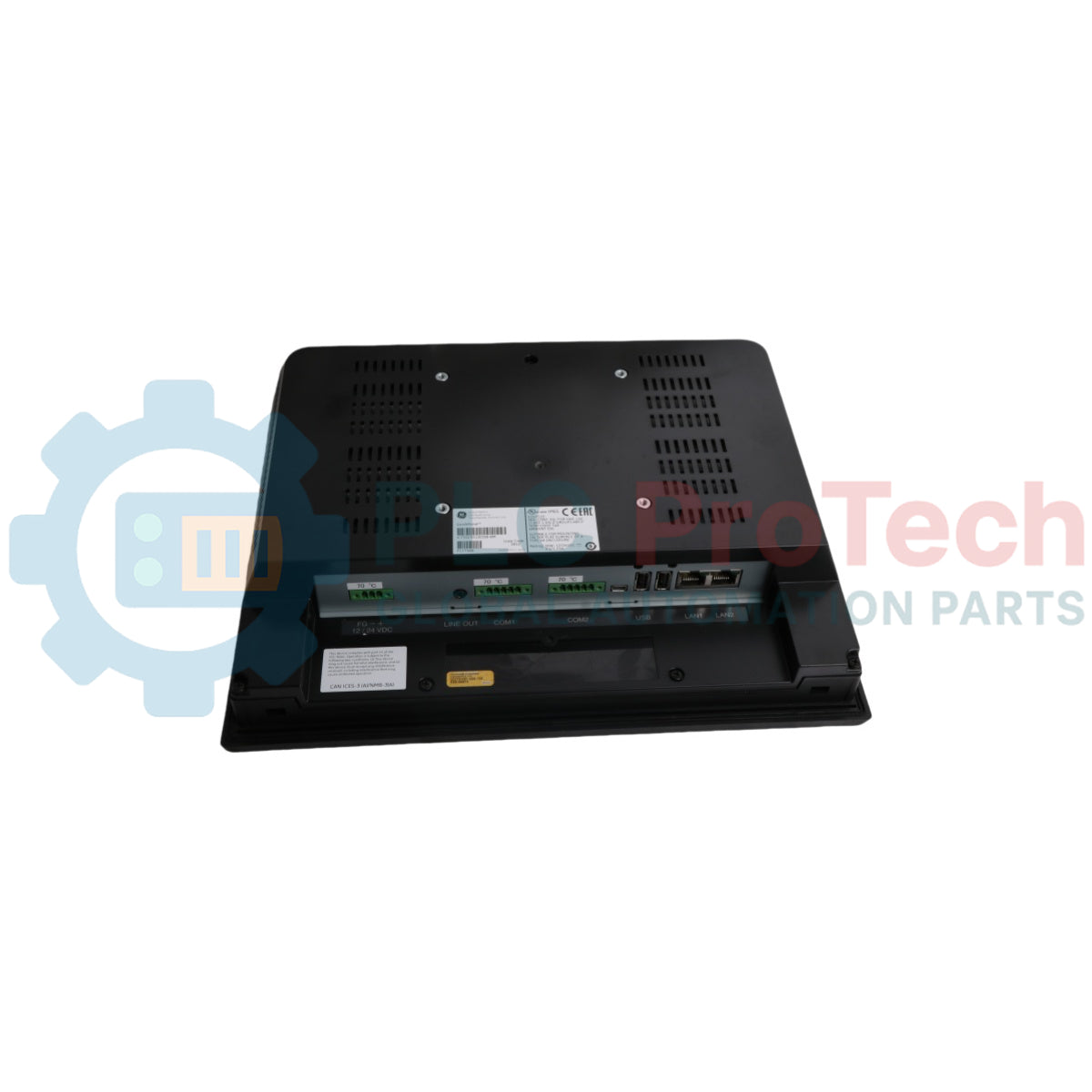

The IC755CSS12CDB (IC755-CSS-12-CDB) is an advanced 12.1-inch QuickPanel+ Operator Interface engineered by GE Industrial Solutions (now Emerson). As a cornerstone of the "All-in-One" automation philosophy, this unit integrates high-resolution visualization, internal logic control, and data historian capabilities into a single hardware platform. Powered by a high-speed 1 GHz Freescale microprocessor and running on Windows Embedded Compact 7, the IC755CSS12CDB is designed for data-intensive applications in pharmaceutical manufacturing, automotive assembly, and complex infrastructure projects. Its capacitive multi-touch screen provides a modern, smartphone-like user experience, allowing operators to pinch-to-zoom and swipe through detailed process schematics with zero latency.
The QuickPanel+ architecture represents a significant leap over legacy HMIs by functioning as both a visualization terminal and a soft-PLC. It supports the Proficy View and Control runtime, enabling it to execute logic while simultaneously managing high-speed communications via dual-independent Ethernet ports. The "CDB" version features a sleek, bezel-less design with a projected capacitive (P-Cap) touchscreen, offering superior clarity and scratch resistance compared to traditional resistive screens. With 1 GB of DDR3 RAM and 512 MB of NAND Flash, this unit is built to handle complex high-definition graphics and extensive local data logging without performance degradation.
| Attribute | Specification |
| Model | IC755CSS12CDB |
| Brand | GE (Emerson) |
| Series | QuickPanel+ (High Performance) |
| Display Size | 12.1-inch (Diagonal) |
| Display Type | WXGA TFT LCD (16.7M colors) |
| Resolution | 1280 x 800 Pixels |
| Touchscreen | Projected Capacitive (Multi-Touch) |
| Processor | 1.0 GHz Freescale i.MX535 |
| Memory | 1 GB DDR3 RAM / 512 MB NAND Flash |
| Operating System | Windows Embedded Compact 7 |
| Communication | 2 x Ethernet, 1 x RS-232, 1 x RS-485, 2 x USB |
| Input Voltage | 24 VDC (Nominal) |
| Protection | IP66 / NEMA 4X (Front Panel) |
Does the IC755CSS12CDB support remote monitoring?
Yes. Through the built-in web server and VNC capabilities of the QuickPanel+ series, authorized users can remotely view and interact with the HMI screens via a standard web browser or mobile app, facilitating rapid off-site troubleshooting.
What is the advantage of the dual Ethernet ports on this model?
The dual ports allow for network segmentation. For example, one port can be dedicated to the high-speed I/O and PLC machine network, while the second port handles plant-wide ERP/MES data uplink, ensuring that office-level traffic does not interfere with critical machine control.
Can I use this HMI in a washdown environment?
The front panel is rated IP66 and NEMA 4X, making it resistant to high-pressure water jets and corrosion. This makes it suitable for food and beverage or chemical applications where frequent cleaning with detergents is required.
P-Cap Touchscreen Sensitivity: The projected capacitive screen on the IC755CSS12CDB is highly sensitive. If operators are required to wear thick industrial gloves, ensure they are "capacitive-compatible." You may need to adjust the touch sensitivity settings in the Windows Control Panel to ensure reliable operation in specific glove-wearing environments.
Storage and Memory Management: While the 512 MB of internal Flash is robust, frequent high-speed data logging should be directed to an SD card or a remote SQL database via the Ethernet port. This prevents premature wear on the internal NAND Flash cells and ensures system stability over long-term operation.
Firmware Synchronization: When deploying this HMI with GE RX3i or VersaMax controllers, always verify that the Proficy Machine Edition version used for the HMI matches the firmware requirements of the PLC. Incompatible driver versions can lead to "Tag Communication Errors" during high-speed data exchange.
Global Express Shipping
Returns & Warranty
Manufacturer: General Electric
Product No.: IC755CSS12CDB
Country of origin:United States
Product Type: QuickPanel
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 360g
Dimensions: 8.2cm x 12.2cm x 6cm
Shipping port: Xiamen
Warranty: 12 months
