Description

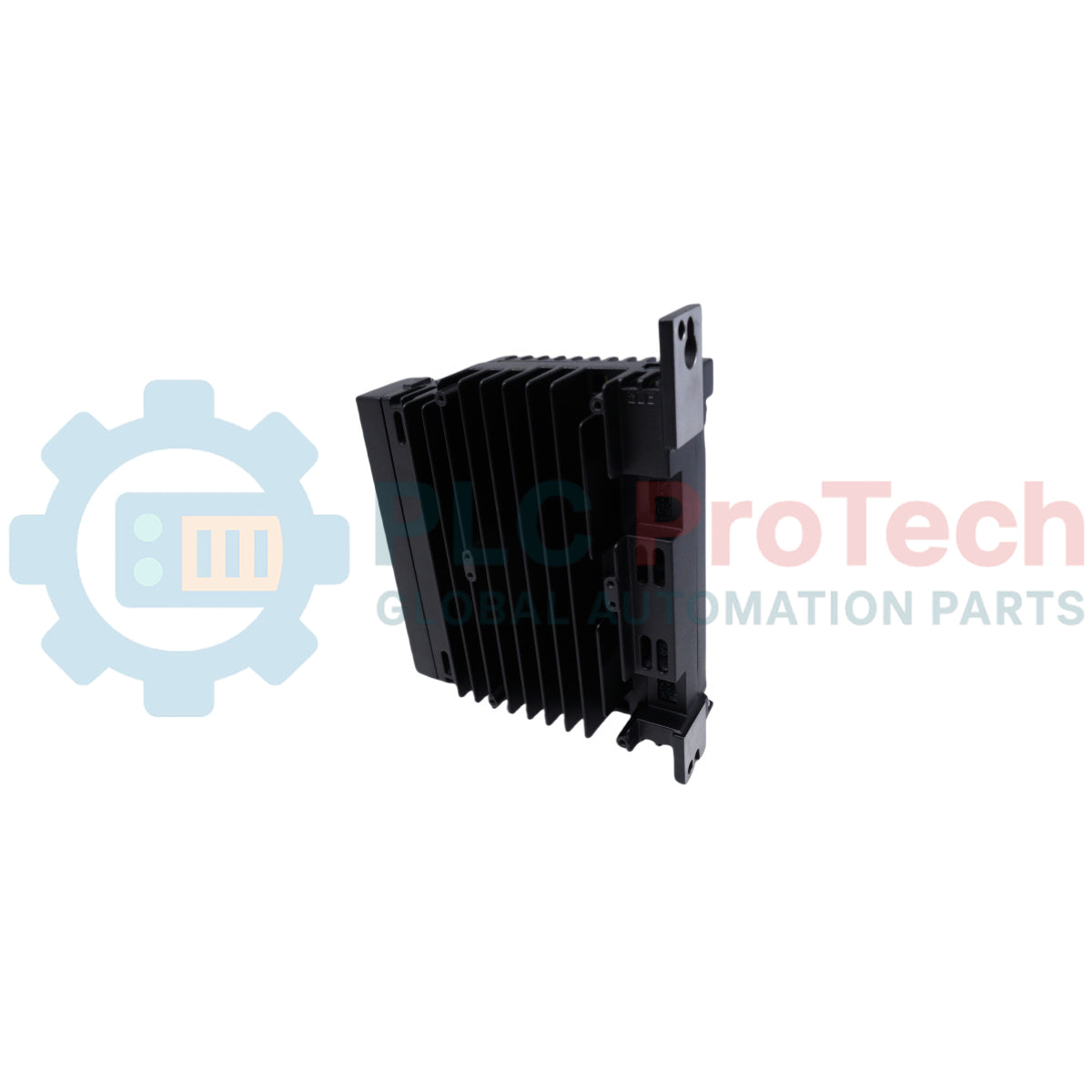

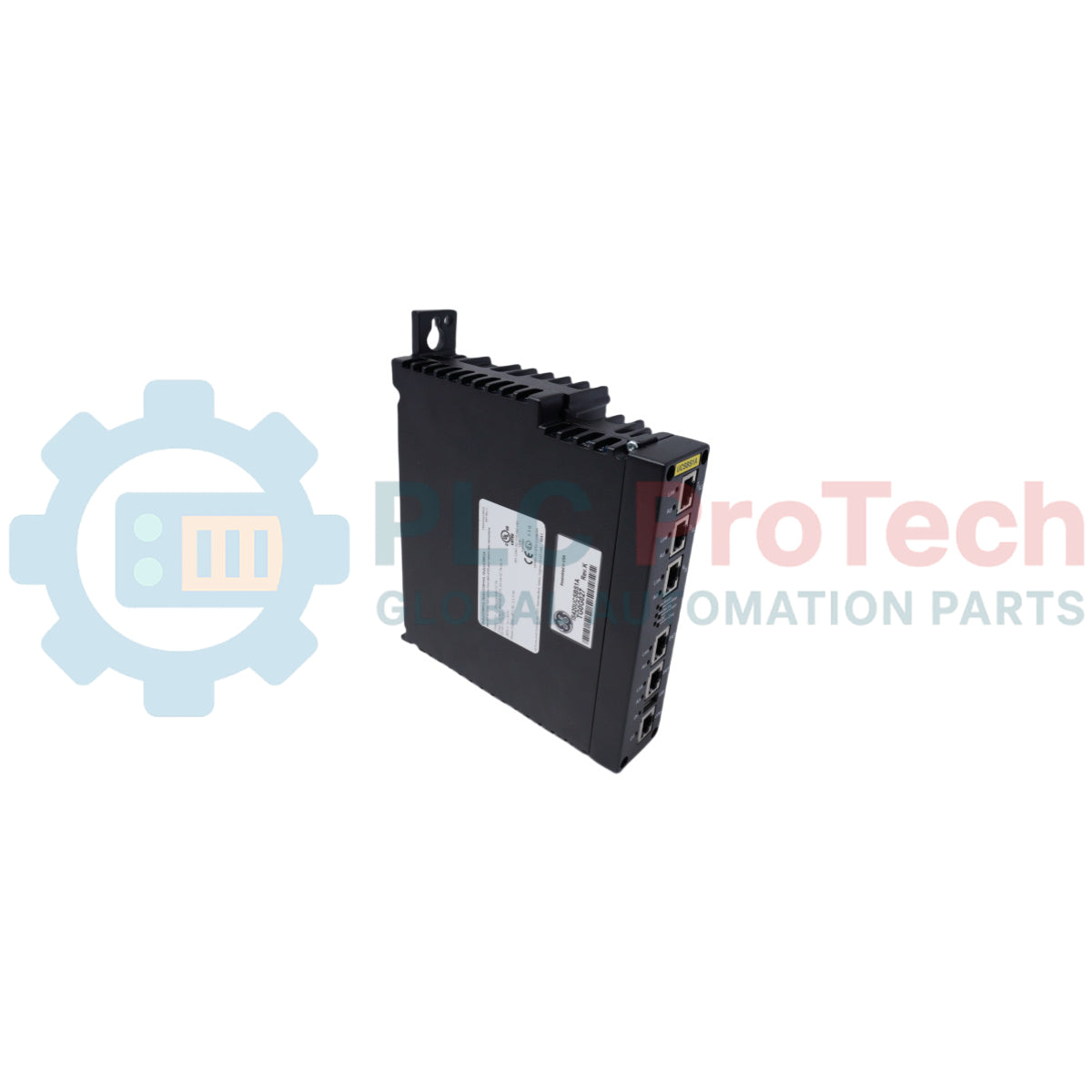

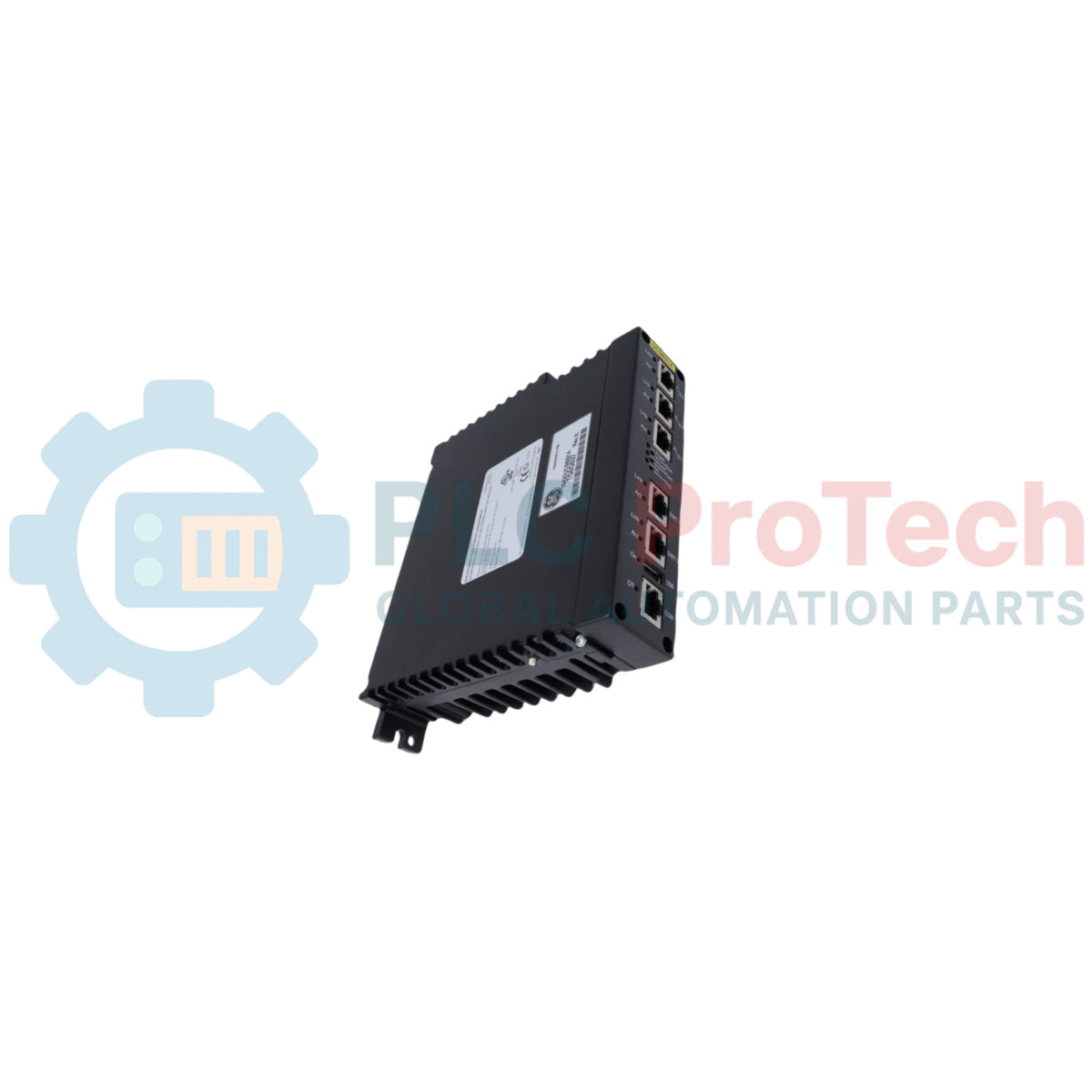

The IS420UCSBS1A is a microprocessor-based safety controller designed by Nexus Controls (a GE Vernova company) for the Mark VIeS Safety Control System. This module operates as an open-type programmable processing unit dedicated to complete integrated control, functional protection, and safety-critical monitoring of generator and mechanical drive applications, notably for gas and steam turbines. It establishes a logic execution platform that processes data synchronized via industrial IONet switches and interfaces with localized safety I/O networks. Engineered to comply with Safety Integrity Level (SIL) standards, the IS420UCSBS1A executes deterministic application safety loops to mitigate operational hazards in turbine baseload and industrial control processes. The controller is designed for field mounting within a certified protective electrical enclosure, ensuring dependable computing architecture for hazardous industrial environments.

Features

• Serves as a standalone, open-type microprocessor safety controller within the Mark VIeS Safety Control System.
• Executes safety-critical control loops, diagnostics, and interlocking turbine protection logic.
• Synchronizes continuous field data processing through dedicated industrial network interfaces.
• Rated for Zone 2 hazardous areas and explosive atmospheres under specific system installation conditions.
• Designed for field integration within suitable protective industrial enclosures.

Applications

• Complete safety-critical protection and integrated control for steam and gas turbine systems.
• Emergency turbine trip logging and high-reliability functional safety deployment.
• Industrial generator control and critical mechanical drive process monitoring.

Technical Specifications

Installation Guidelines

• Enclosure Requirements: This equipment must be mounted inside an ATEX Zone 2 certified enclosure providing a minimum ingress protection rating of at least IP54 (in accordance with EN 60529).
• Environmental Context: Ensure the operating environment does not exceed a classification of Pollution Degree 2 (per EN 60664-1).
• Power Supply Constraints: The controller must be powered via a switched-mode power supply (SMPS) certified for the specific location, with its output current limited to a maximum of 20 A. The power supply must comply with the specifications outlined for Vendor Manufactured Control Power supplies in the GEH-6721 System Hardware Guide.
• Power Distribution: The module must receive its input power through an approved power distribution board certified for the applicable classified location.
• Transient Voltage Protection: Provision must be implemented during installation to prevent the rated voltage from being exceeded by transient disturbances of more than 140% of the nominal rated voltage.

Compliance and Certifications

• ATEX Directive 2014/34/EU: Type Examination Certificate DEMKO 12 ATEX 1114875X Rev. 18.
• ATEX Marking Codes: * II 3 G Ex nA IIC T4 Gc
  • II 3 G Ex ec IIC T4 Gc
• Applied Harmonized Standards: EN IEC 60079-0:2018, EN IEC 60079-7:2015/A1:2018, EN 60079-15:2010, EN 60079-7:2015, EN 60079-11:2012.
