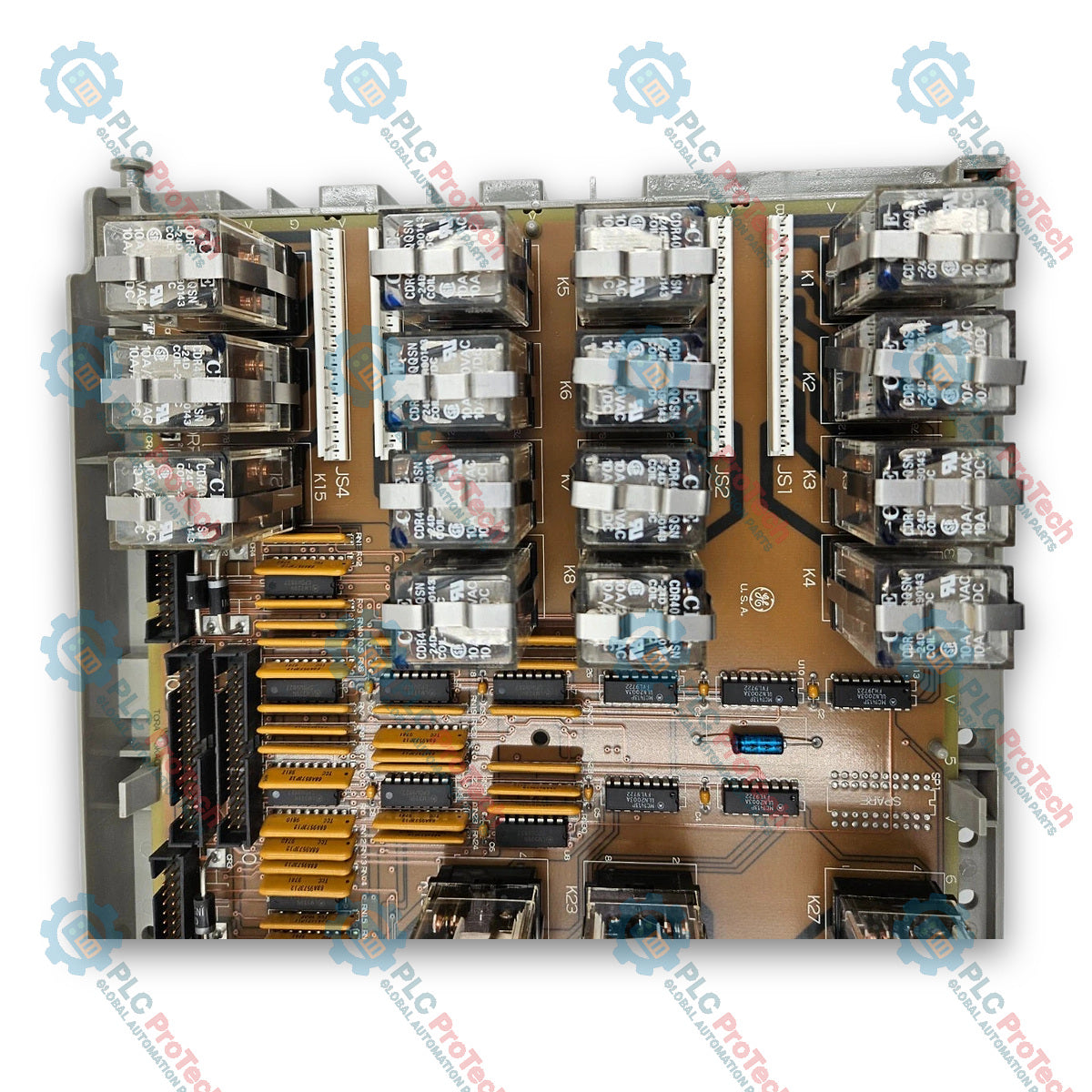

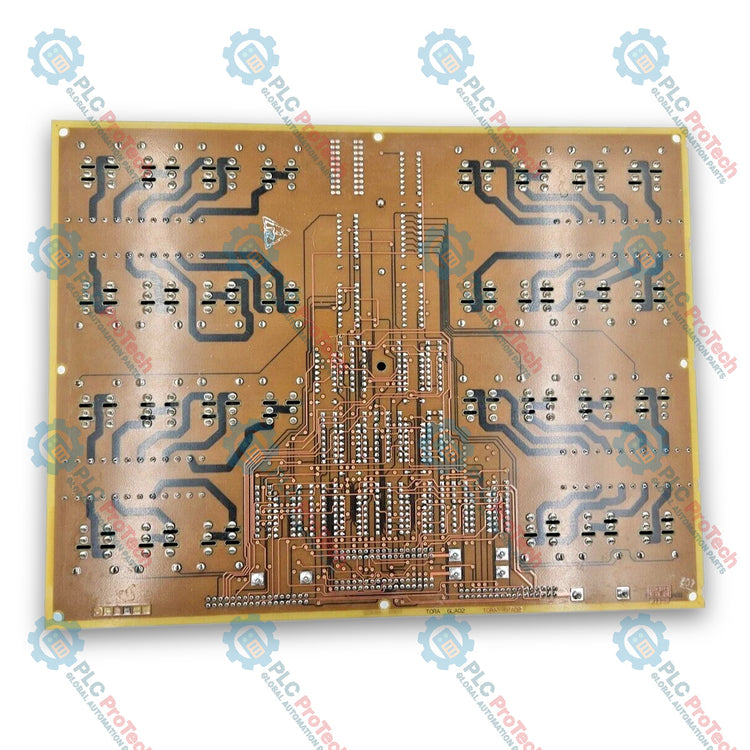

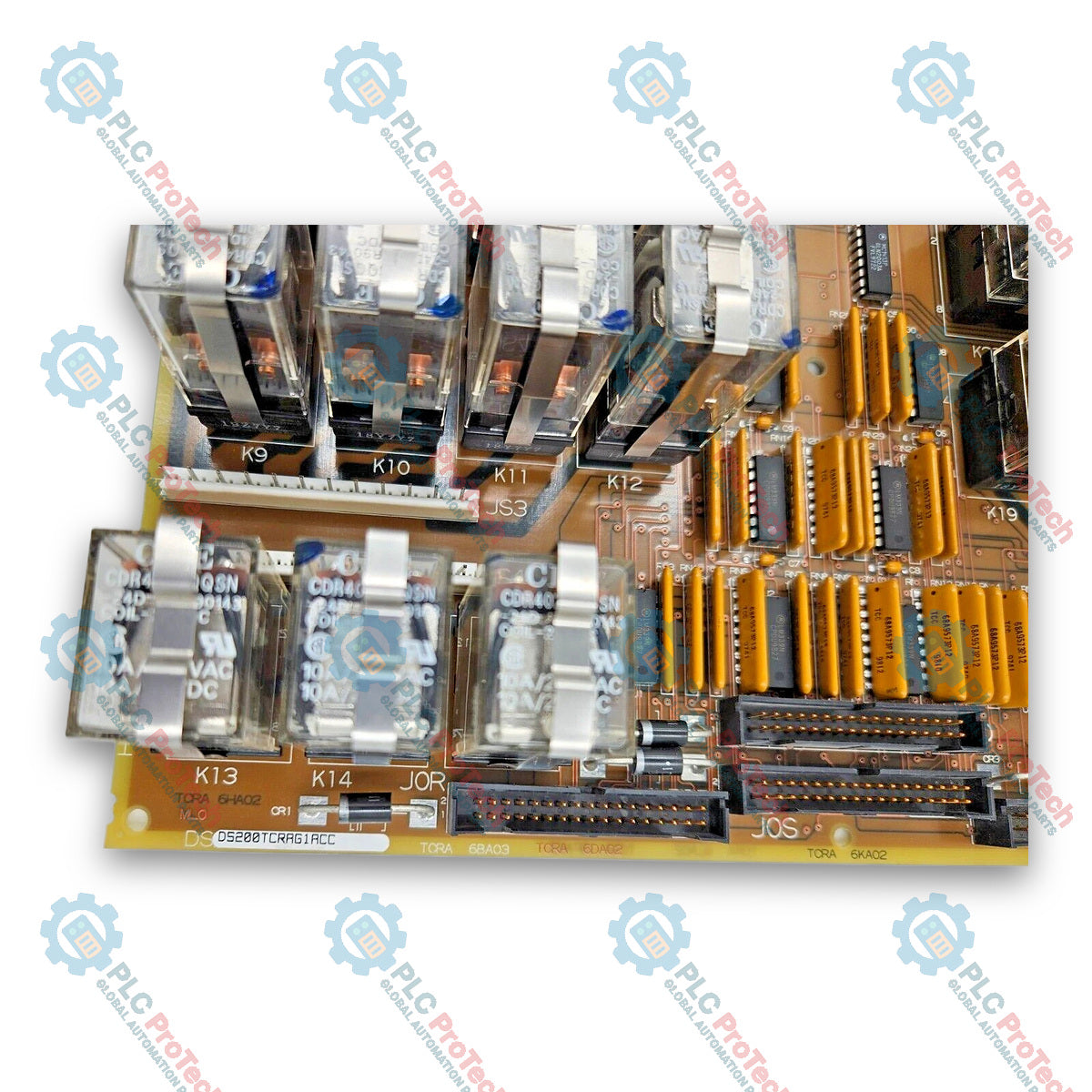

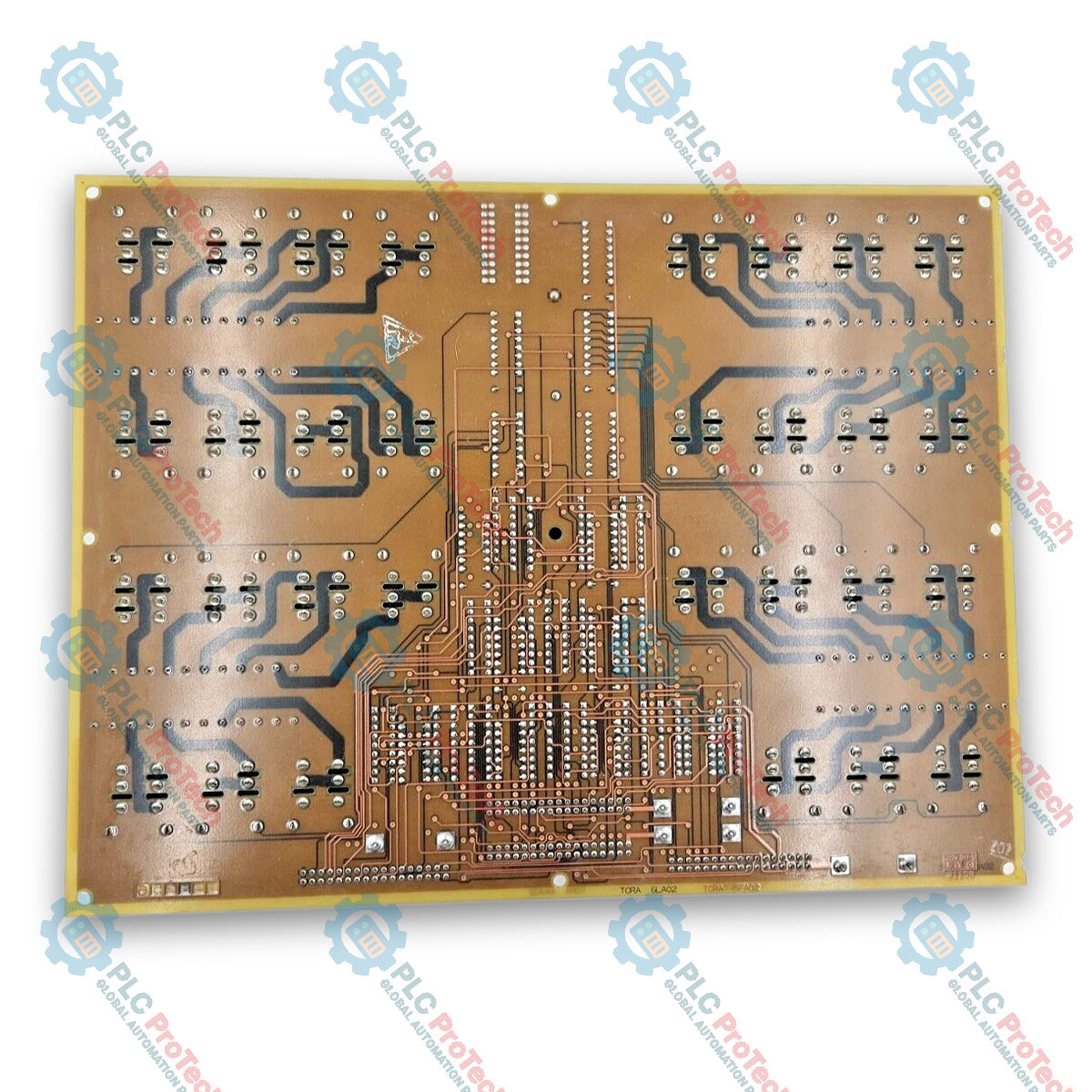

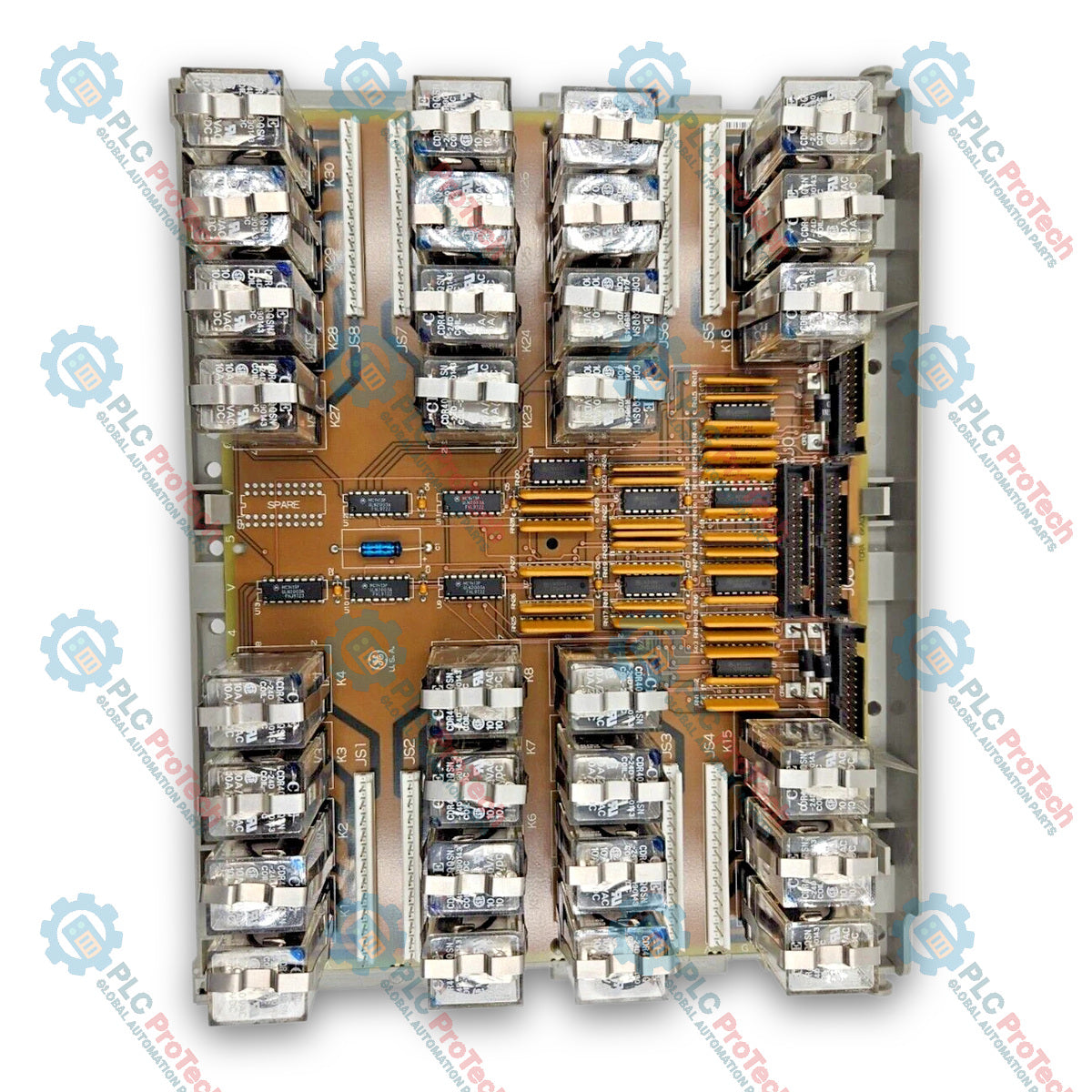

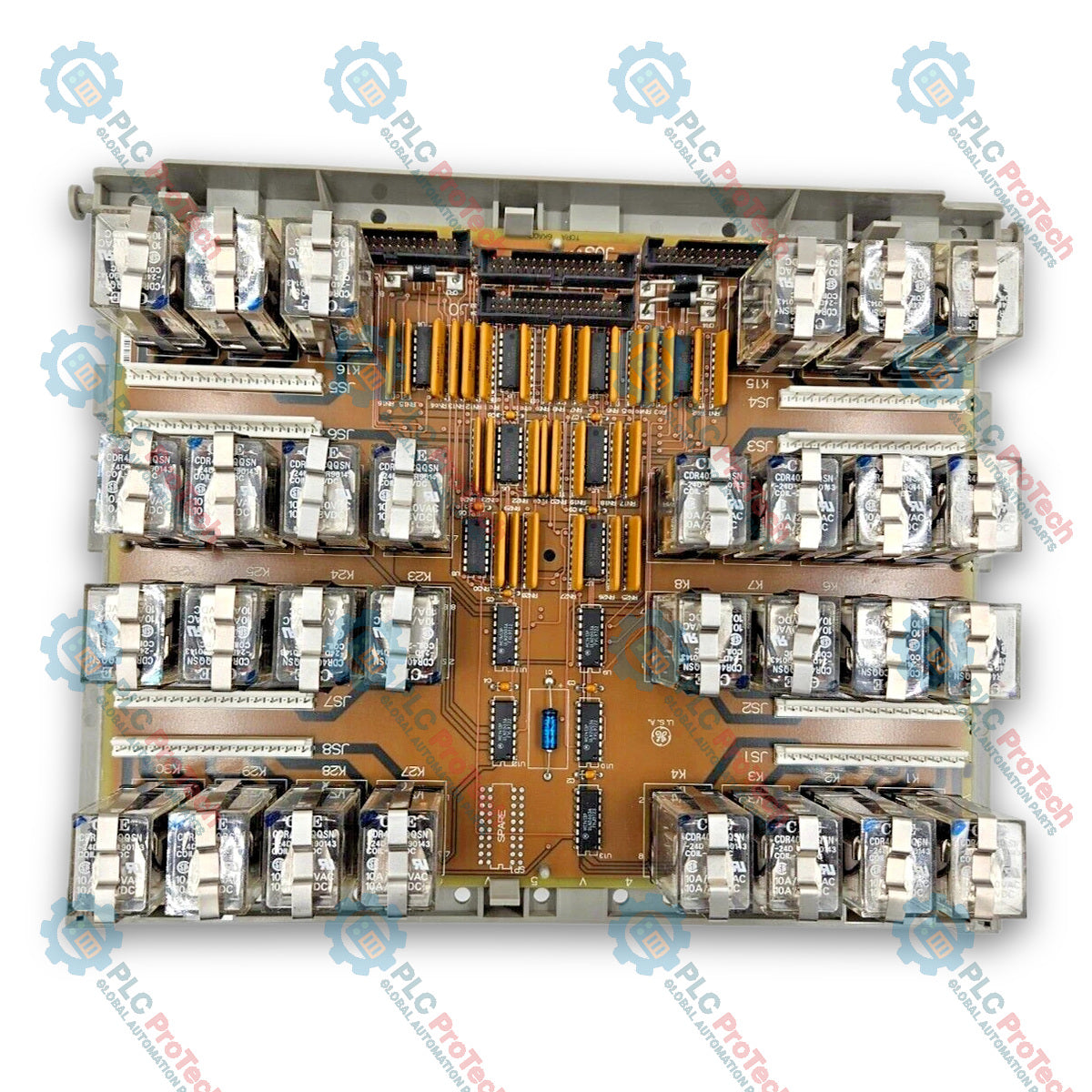

General Electric DS200TCRAG1ACC Mark V TC2000 Analog Board

SKU DS200TCRAG1ACC

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: General Electric
Product No.: DS200TCRAG1ACC
Origin United States
Product Type: Control Boards
Payment: T/T, Western Union
Weight: 0.6 kg
Dimensions: 280 mm x 210 mm x 50 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

The GE DS200TCRAG1ACC is a TC2000 Analog Board designed for placement in the General Electric Mark V Turbine Control System Series. Used within management and control systems for wind, gas, and steam turbine automated drive assemblies, the DS200TCRAG1ACC operates as an analog I/O board interface to the Common Data Processor, enabling communication across system controllers. This module contains an 80196 microprocessor, programmable read-only memory (PROM) modules, one diagnostic LED visible from the side view, and 50-pin interface connectors (including JCC and JDD). It features conformal coating to protect printed circuit board components in industrial turbine environments.

Features

Microprocessor Architecture: Equipped with an 80196 microprocessor for processing instructions and managing board operations.
Onboard Programmable Memory: Incorporates socketed, removable Programmable Read-Only Memory (PROM) modules containing embedded firmware and operating code.
Visual Diagnostics: Features a side-visible diagnostic LED to monitor board status.
Interface Connections: Integrates dual 50-pin connectors (JCC and JDD) alongside board-level signal and power distribution connectors.
Conformal Coating: Formulated with protective PCB coating to withstand harsh industrial operating conditions.

Applications

General Electric Mark V Turbine Control Systems
Gas turbine control and automated drive assemblies
Steam turbine management systems
Wind turbine control architectures

Technical Specifications

Parameter	Specification
Manufacturer	GE General Electric
Series	Mark V
Part Number	DS200TCRAG1ACC
Functional Description	TC2000 Analog Board
Functional Acronym	TCRA
Microprocessor	80196
PCB Coating	Conformal Coated
1st Functional Revision	A
2nd Functional Revision	C
Artwork Revision	C

Connections/Interfaces

Connector Pin	Function
2PL	TCPS Board Power Distribution Connector
3PL	STCA, TCCA, and TCCB Boards Data Bus Conditioned Signals Connector
JAA	CTBA Terminal Board 4-20 mA Output Signals Connector
JBB	CTBA Terminal Board 4-20 mA Input Signals Connector
JCC	TBCA Terminal Board RTD Input Signals Connector (50-pin)
JDD	TBCA Terminal Board RTD Input Signals Connector (50-pin)
JAR/S/T	TBQA Terminal Board Input Signals Connector
JC	TCPS Board Power Supply Diagnostic Signals Connector
JEE	Vestigial Connector

Installation Guidelines

ESD Protection: Always wear an ESD protective device, such as a grounded wrist strap, when handling the board or memory components to prevent static damage.
PROM Module Replacement: Use a flat-bladed screwdriver to gently lift each end of socketed PROM modules when replacing or transferring firmware from an existing board. Immediately store removed modules in static protective bags.
Connector Alignment: Ensure proper pin alignment for all multi-pin harness connectors, including the 50-pin JCC and JDD connectors, before fully seating them.
Handling Precautions: Avoid touching conductive pins or board traces during installation and maintenance.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the GE DS200TCRAG1ACC used for?

The GE DS200TCRAG1ACC is a TC2000 Analog Board used in GE Mark V Turbine Control Systems to process analog signals and interface with the Common Data Processor.

Which system does the DS200TCRAG1ACC board belong to?

The DS200TCRAG1ACC belongs to the General Electric Speedtronic Mark V Turbine Control System series.

What microprocessor is used on the DS200TCRAG1ACC board?

The DS200TCRAG1ACC board is equipped with an 80196 microprocessor.

How are firmware updates managed on the board?

Firmware and instructions are stored on removable PROM modules socketed onto the board, which can be transferred or updated using proper ESD precautions.
