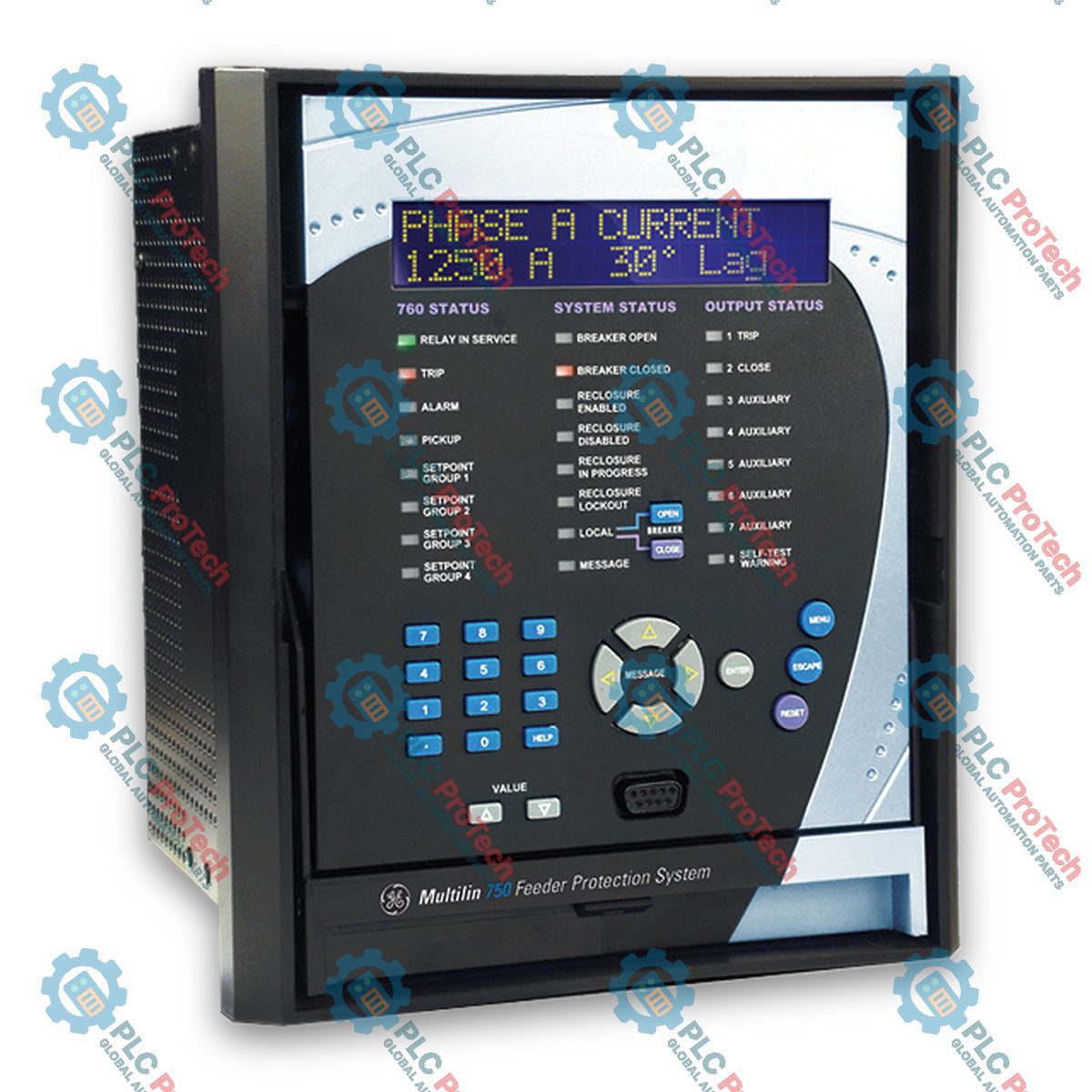

The GE Multilin 750-P5-G5-S5-HI-A20-G-E Feeder Management Relay is a digital relay intended for the management and primary protection and control of distribution feeders. The 750-P5-G5-S5-HI-A20-G-E provides comprehensive protection functions for feeders and backup protection for bus, transformers, and transmission lines in a draw-out construction. Equipment capabilities include phase, neutral, ground, and sensitive ground overcurrent protection, voltage and frequency monitoring, along with directional overcurrent control elements. The unit features 5 A phase current inputs, 5 A ground current inputs, a 5 A sensitive ground current input, high-range control power, eight 4–20 mA analog outputs, a green breaker closed LED, and an enhanced display with a 10BaseT Ethernet option. Integrated networking interfaces support ModBus RTU, DNP 3.0 Level 2, and ModBus RTU over TCP/IP protocols to interface with SCADA, DCS, or PLC systems.
| Ordering Code | Description |
|---|---|
| 750 | Feeder Protection System Base Unit |
| P5 | 5 A phase current inputs |
| G5 | 5 A zero sequence ground current inputs |
| S5 | 5 A sensitive ground current input |
| HI | High-Range Power Supply: 88–300 VDC, 70–265 VAC @ 48–62 Hz |
| A20 | Eight 4–20 mA analog outputs |
| G | Green breaker closed LED |
| E | Enhanced display with Ethernet 10BaseT option |
| Parameter | Specification |
|---|---|
| Manufacturer | GE Multilin / GE Grid Solutions |
| Phase / Ground / Sensitive CT Inputs | 5 A secondary |
| Phase / Ground CT Conversion Range | 0.01 to 20 x CT |
| Sensitive Ground CT Conversion Range | 0.005 to 1.000 x CT |
| Current Input Burden | Less than 0.2 VA at 5 A |
| Bus / Line Voltage Inputs | 50 V to 240 V phase-neutral |
| Control Power Input Range (HI) | 88–300 VDC; 70–265 VAC @ 48–62 Hz |
| Power Consumption | 25 VA nominal, 35 VA maximum |
| Voltage Loss Hold-Up Time | 30 ms |
| Logic Inputs | 14 contact and/or virtual, 6 virtual only |
| Analog Input | 0–1 mA, 0–5 mA, 0–10 mA, 0–20 mA, or 4–20 mA (375 ohm impedance) |
| Analog Outputs | 8 channels active, 4–20 mA (600 ohm max load), fully isolated |
| Output Relays | 1 TRIP (Form A), 1 CLOSE (Form A), 5 AUXILIARY (Form C), 1 SELF-TEST WARNING (Form C) |
| Solid State Trip Output | Make and carry 15 A @ 250 VDC for 500 ms |
| Serial Communications | RS232 (front panel), RS485 / RS422 (rear panel), 300–19,200 baud |
| Ethernet Communication | 10BaseT, RJ45 Connector, ModBus RTU over TCP/IP |
| Supported Protocols | ModBus RTU, DNP 3.0 Level 2, ModBus RTU TCP/IP |
| Operating Temperature Range | -40 degC to +60 degC |
| Ambient Storage Temperature | -40 degC to +85 degC |
| Humidity Rating | Operating up to 95% (non-condensing) @ 55 degC |
| Ingress Protection Rating | IP40 (front), IP20 (back) |
| Pollution Degree | 2 |
Global Express Shipping
Returns & Warranty
Manufacturer: General Electric
Product No.: 750-P5-G5-S5-HI-A20-G-E
Country of origin:United States
Product Type: Feeder Management Relay
Payment: T/T, Western Union
Weight: 8500g
Dimensions: 222 mm x 216 mm x 272 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months
