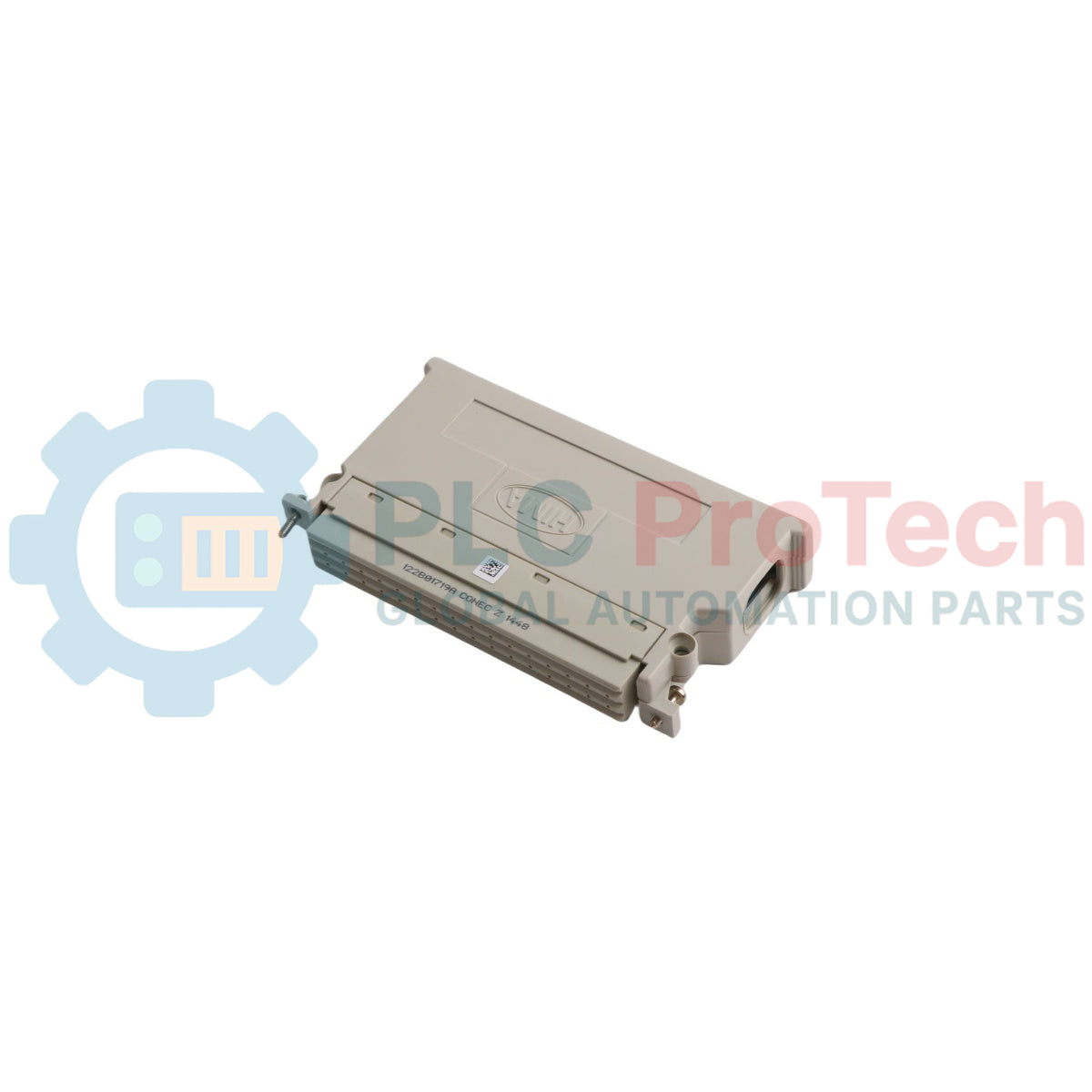

Z 7136 / 3322 (Z7136/3322) is a HIQuad X system LED cable plug designed for interfacing HIMA F 3322 I/O modules with marshalling cabinets and field accessory systems. It provides structured wiring between distributed field signals and safety PLC input and output architectures in process automation environments.
This system cable is widely applied in offshore platforms, power generation units, and process industries where deterministic signal routing is required. It supports stable signal transmission between control cabinets and field instrumentation under safety related conditions. The design focuses on reducing wiring errors and improving maintenance efficiency during commissioning and shutdown cycles.
Engineers use this cable assembly to improve system integrity in safety instrumented systems. It helps reduce downtime by simplifying diagnostics and ensuring consistent channel identification across cabinet interfaces. The solution integrates into HIQuad X architectures without requiring protocol conversion.
Z 7136 / 3322: System cable identifier for HIMA HIQuad X I/O connection wiring
F 3322: Target I/O module type for 16 channel digital output interface

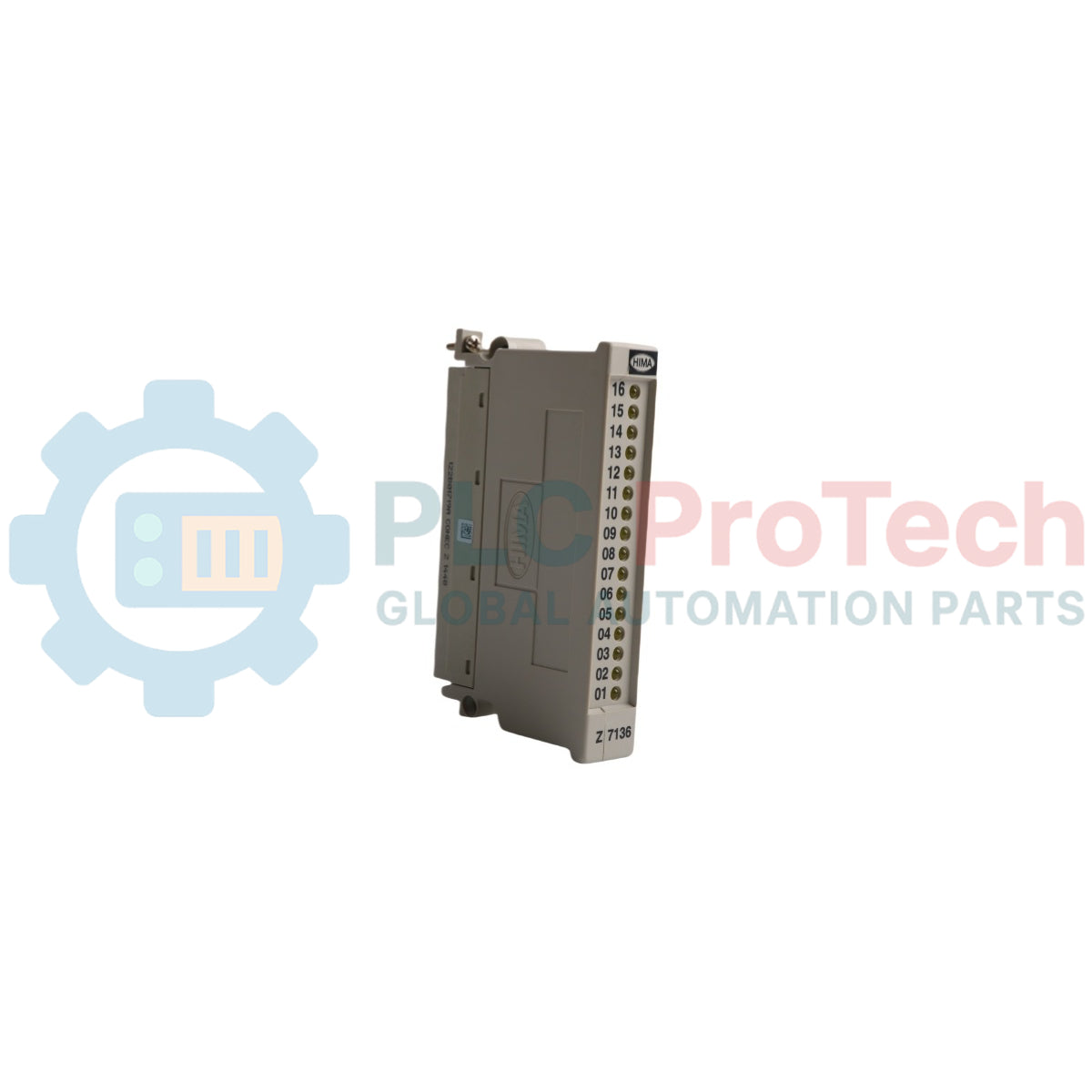

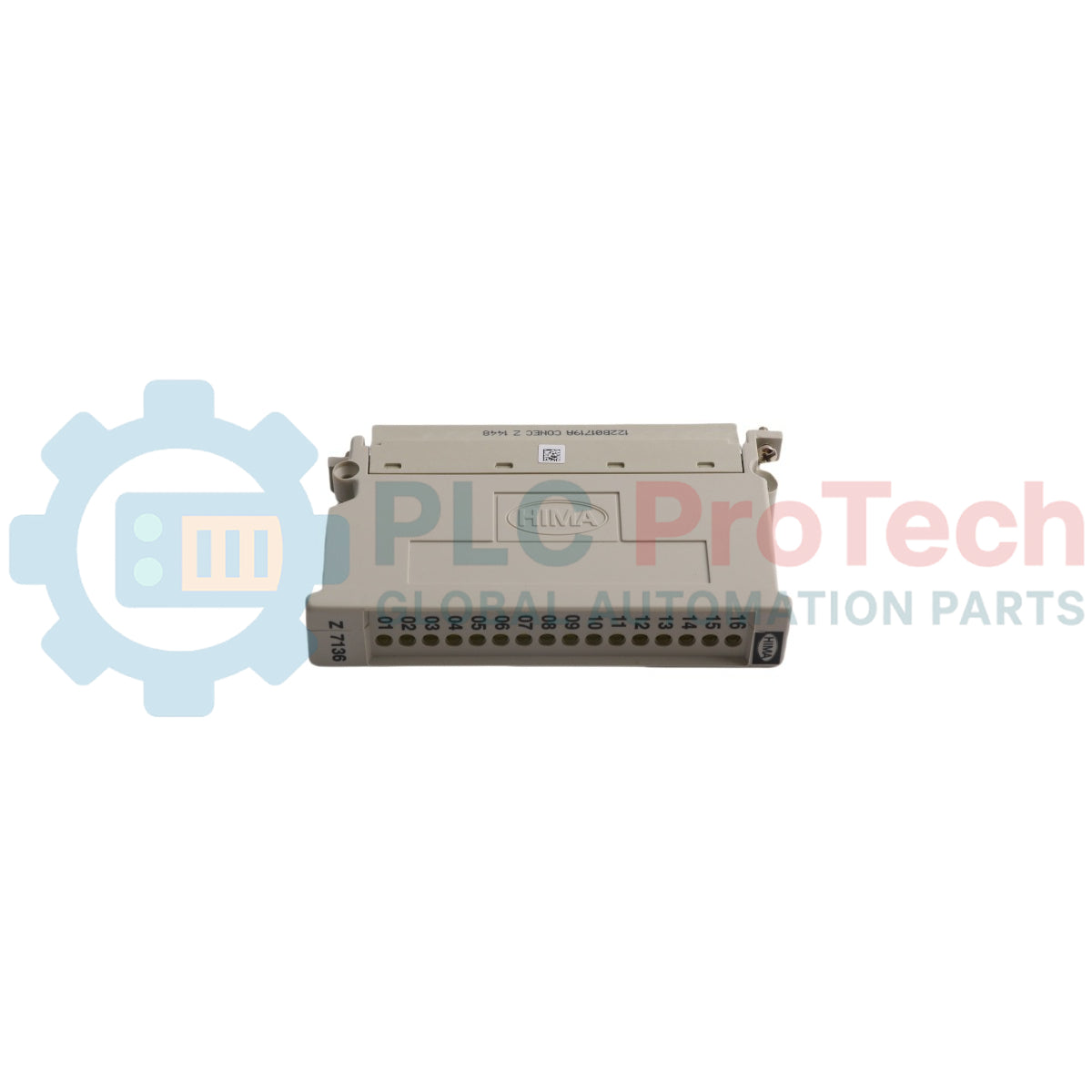

LED Cable Plug: Integrated visual status indication for channel monitoring
HI 803 181 E: Technical data sheet reference for system configuration and compliance
| Parameter | Value |
|---|---|
| Model | Z 7136 / 3322 |
| Brand | HIMA |
| Origin | Germany |
| Weight | Not specified |
| Dimensions | Cable assembly dependent |
| Operating Temp | 0 to 60 deg C |
| Power Consumption | Passive component, no power consumption |
What is the function of Z 7136 / 3322 cable plug?
It connects F 3322 I/O modules to marshalling cabinets in HIQuad X systems.
Does the cable support signal processing?
No, it only provides physical wiring without protocol conversion.
Can it be used outside control cabinets?
No, it is designed only for internal switchgear installation.
Does it include diagnostic capability?
It provides LED indication support depending on module configuration.
Install the system cable inside certified control cabinets only. Maintain correct grounding of cabinet frames to ensure signal stability in safety systems.
Route cables separately from high voltage conductors to reduce electromagnetic interference. Keep minimum bending radius according to HIMA cabinet wiring standards.
Ensure proper airflow in marshalling cabinets to avoid heat accumulation near dense wiring areas. Maintain clear labeling of each channel connection to simplify maintenance and troubleshooting.
Avoid exposure to moisture or corrosive environments unless installed inside protected enclosures. For marine applications, ensure compliance with DNV installation requirements and approved documentation set.
Global Express Shipping
Returns & Warranty
Manufacturer: HIMA
Product No.: Z7136/3322
Country of origin:Germany
Product Type: LED Cable Plug
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 80g
Dimensions: 2cm x 6cm x 10.4cm
Shipping port: Xiamen
Warranty: 12 months
