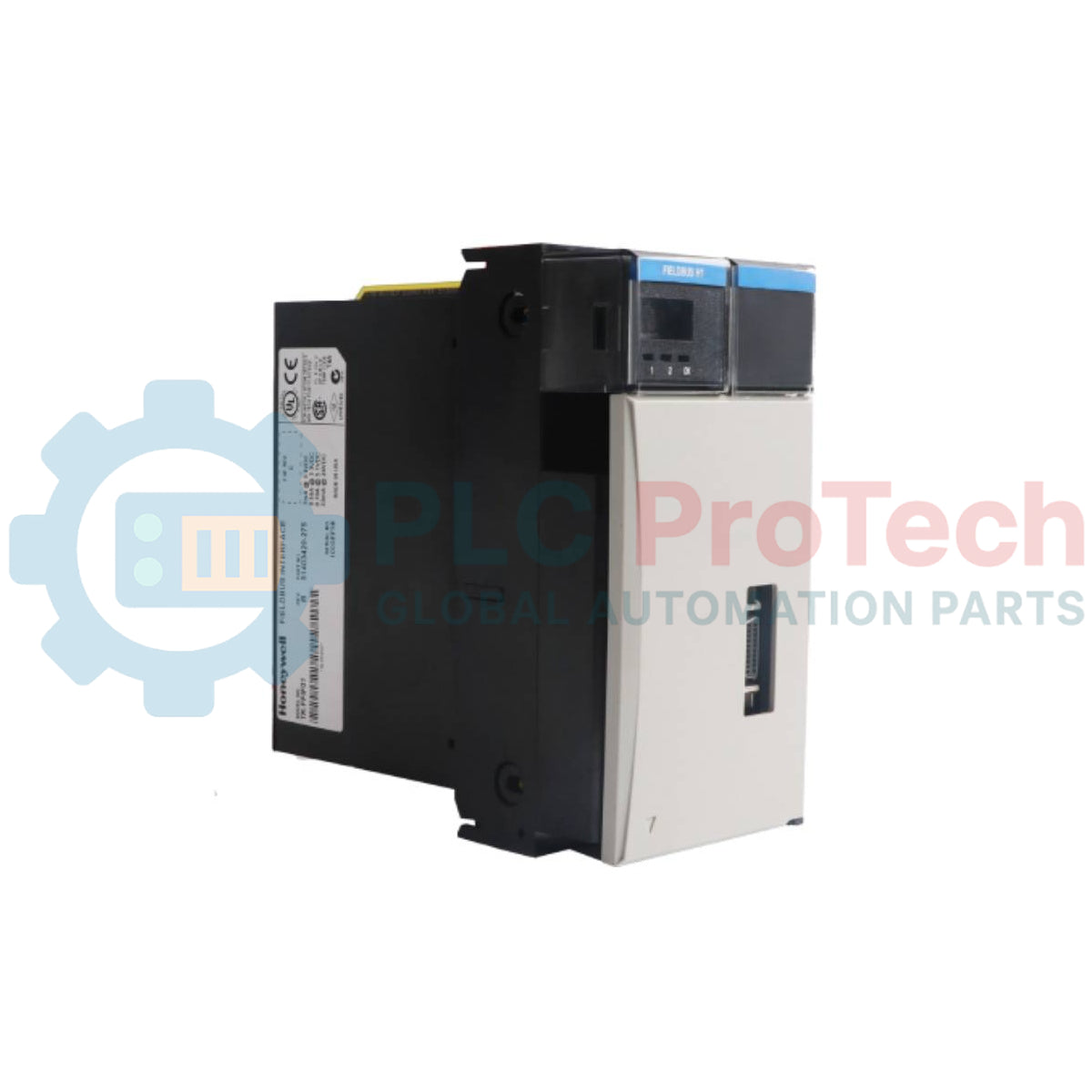

The TK-FFIF01 is a chassis-mounted communication interface component operating as a Fieldbus Interface Module (FIM2) within the Honeywell C200 and Experion distributed control system (DCS) architectures. This device establishes deterministic data highways between the host controller backplane and field-level instruments executing decentralized control strategies. Equipped with two independent, digital communication links, it handles token passing, schedule execution, and diagnostic frame transmission across standard industrial networks. The module is built with conformally coated electronic assemblies to resist atmospheric contamination and humidity, ensuring reliable digital network integration and continuous parameter exchange for intelligent field instrumentation in processing environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Honeywell |
| Model | TK-FFIF01 (Product text reference: TK-FFIFF01) |
| Product Type | Fieldbus Interface Module (FIM2) |
| Product Series | C200 Chassis I/O (CIOM-A) |
| Number of Links | 2 Links |
| Physical Protection | Coated (Conformal Coating) |
| Weight | 0.42 Kg |
| Shipping Weight | 1.5 Kg |
| Country of Origin | United States / Global Operations |
Ensure the host C200 chassis is bonded directly to the primary industrial instrumentation grounding bus using a low-impedance copper conductor. Field network cable shields must follow strict segment termination protocols, grounding at designated external terminal blocks to suppress cross-talk and high-frequency noise.
The internal communication circuitry is susceptible to electrostatic discharge. Field technicians must utilize an approved, bonded static-dissipative wrist strap during unboxing, address selection, or final installation into the controller chassis slot.
Align the circuit card edges with the molded plastic chassis tracks. Slide the module completely into the assigned backplane connector slot until the latching mechanism is fully engaged, and secure the mechanical fasteners to maintain proper contact pressure under continuous operational vibration.
The module features a conformal coating layer for improved defense against corrosive atmospheres. Ensure ventilation spaces inside the enclosure remain clean and unblocked to prevent regional temperature spikes from exceeding standard system operating parameters.
What is the core purpose of this interface module?
It functions as a communication gateway bridging the central controller backplane with field-level digital instruments.
How many network lines can a single hardware assembly manage?
The module is designed with two distinct links to coordinate digital device loops independently.
What does the term coated mean in the technical details?
It indicates the internal printed circuit boards feature a conformal coating layer to shield components against humidity and airborne contaminants.
Is this device compatible with standard C200 chassis hardware?
Yes, it is designed with the standard CIOM-A form factor for seamless slot insertion into compatible racks.
What is the net physical weight of this standalone unit?
The individual unboxed module has a net physical weight of exactly 0.42 Kg.
Does this component operate as a standalone process loop controller?
No, it is a dedicated communication interface module that routes digital field parameters back to a master controller.
What precautions are necessary regarding static electricity when handling this unit?
Technicians must follow proper ESD control protocols, including using grounded wrist straps, before executing maintenance.
Does this hardware package include external terminal blocks?
The base module fits into standard rack backplanes; external wiring connectors must be sourced separately based on physical architecture layouts.
How is the hardware protected against physical movement within the rack?
It uses standard mechanical retention locks that clamp directly onto the chassis faceplate assembly.
What is the total mass of the module inside its standard transport packaging?
The complete shipping weight including the protective outer carton is specified at 1.5 Kg.
