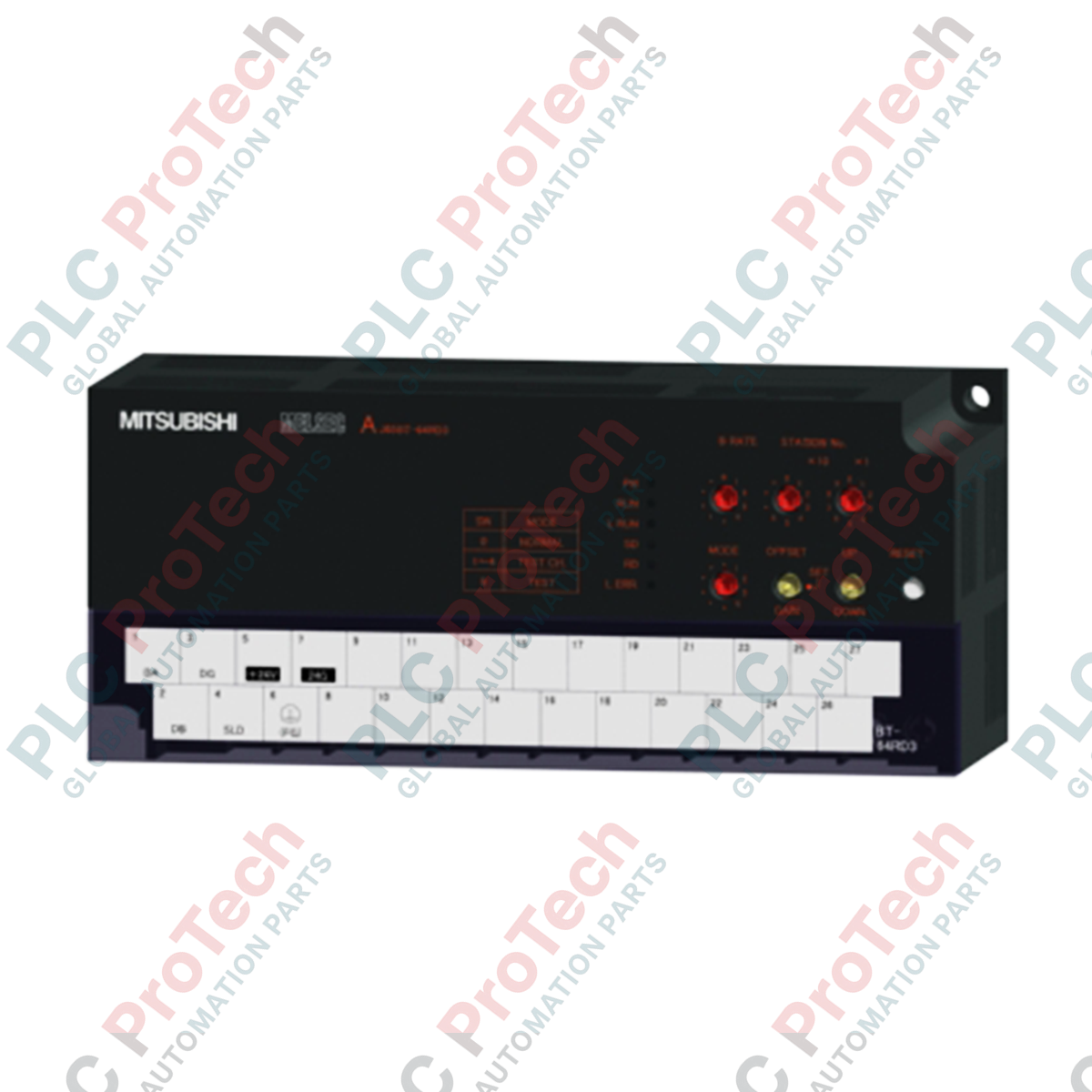

For highly precise thermal monitoring within automated industrial environments, the AJ65BT-64RD3 serves as an industrial-grade platinum resistance temperature detector (RTD) input module. This remote device station interfaces directly with CC-Link networks, allowing seamless integration of temperature sensor telemetry into central PLC and DCS systems.
The module supports four independent 3-wire RTD input channels compatible with standard Pt100 and JPt100 sensors. It translates raw analog sensor signals into either 16-bit or high-resolution 32-bit signed binary values, ensuring precise digital conversion. Electrical isolation via internal photocouplers isolates the sensor input circuitry from the CC-Link communication line, safeguarding the network from common-mode voltage spikes and electromagnetic noise.
| Manufacturer | Mitsubishi Electric |
| Part Number / Model | AJ65BT-64RD3 |
| Module Type | CC-Link RTD Temperature Input Unit |
| Number of Channels | 4 |
| Compatible Sensors | Pt100, JPt100 (3-wire type) |
| Measurement Range | -180 to 600 degC (both Pt100 and JPt100) |
| Resolution | 0.025 degC |
| Sensor Output Current | 1 mA |
| Accuracy (25 degC +/- 5 degC) | +/- 0.1% of full scale |
| Accuracy (0 to 55 degC) | +/- 0.25% of full scale |
| Conversion Speed | 40 ms / channel |
| CC-Link Station Type | Remote Device Station (Ver.1, occupies 4 stations) |
| Isolation Method | Photocoupler isolation (between inputs and CC-Link line; non-isolated between channels) |
| Withstand Voltage | 500 VAC for 1 minute (between power, communication, input, and ground terminals) |
| Insulation Resistance | 10 MOhm or more (at 500 VDC) |
| Power Requirements | 24 VDC (18 to 30 VDC allowable), 0.17 A |
| Terminal Connection Type | 7-point terminal block (M3.5 screws) for power and CC-Link; 27-point terminal block (M3.5 screws) for sensor I/O |
| Operating Temperature | 0 to 55 degC |
| Storage Temperature | -20 to 75 degC |
| Ambient Humidity | 10 to 90% RH (non-condensing) |
| Dimensions (H x W x D) | 65 mm x 151.9 mm x 63 mm |
| Weight | 0.38 kg (Shipping Weight: 1.4 kg) |
Global Express Shipping
Returns & Warranty
Manufacturer: Mitsubishi Electric
Product No.: AJ65BT-64RD3
Country of origin:United States
Product Type: RTD Input Modules
Payment: T/T, Western Union
Weight: 1400g
Dimensions: 65 mm x 151.9 mm x 63 mm
Shipping port: Xiamen
Warranty: 12 months
