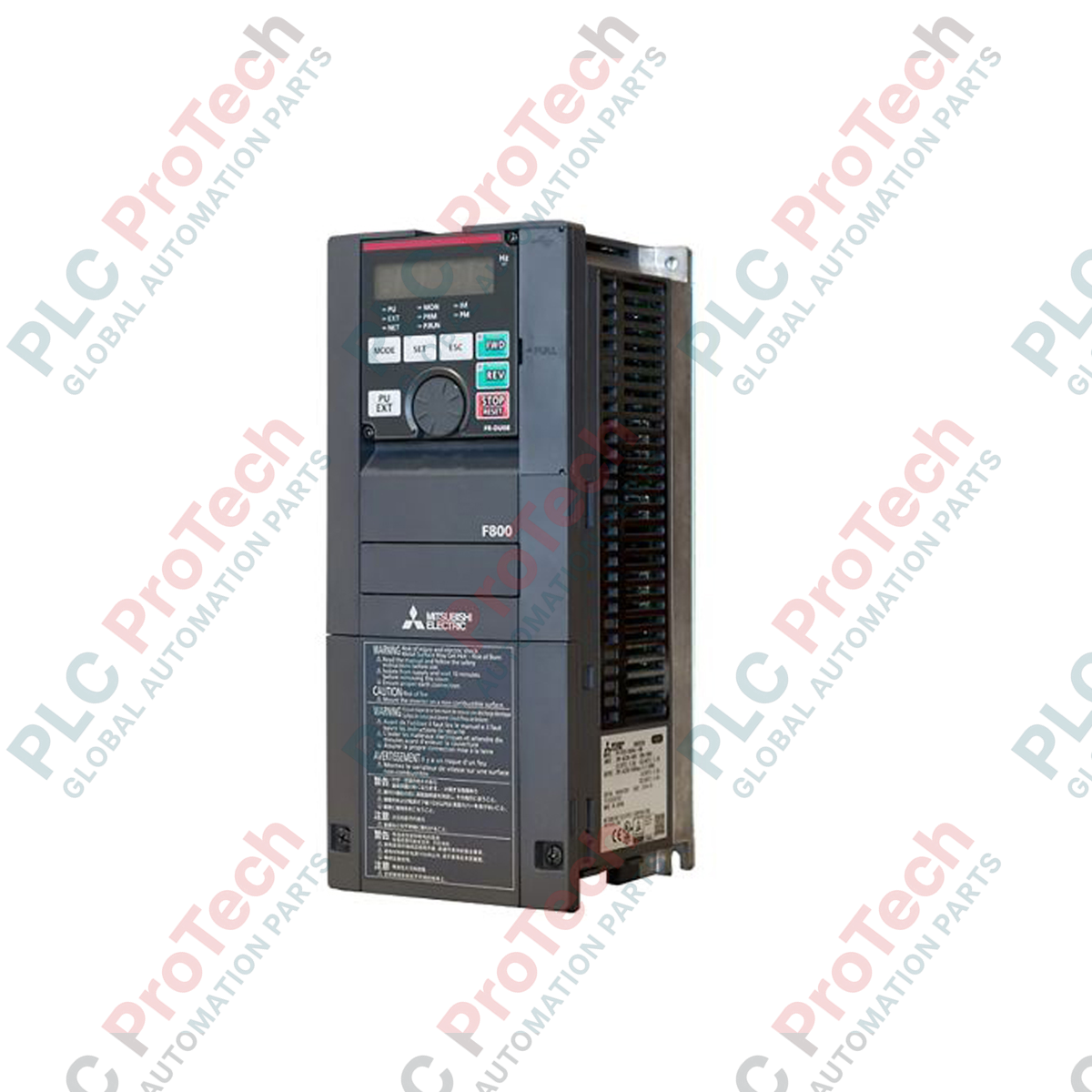

Mitsubishi Electric FR-F840-03610-2-60 FR-F800 Series Inverter

SKU FR-F840-03610-2-60

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Mitsubishi Electric
Product No.: FR-F840-03610-2-60
Origin United States
Product Type: Variable Frequency Drives
Payment: T/T, Western Union
Weight: 80.0 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Engineered for high-capacity industrial pump, fan, and HVAC applications, the FR-F840-03610-2-60 is a high-efficiency variable frequency drive (VFD) from the Mitsubishi Electric FR-F800 series. This three-phase inverter optimizes energy consumption through advanced motor excitation algorithms and sophisticated PID control functions. Designed to drive induction and permanent magnet motors, it provides precise speed control and torque management under varied load profiles.

The unit features integrated safety and network integration mechanisms, facilitating seamless deployment into decentralized DCS or PLC architectures. With its built-in EMC filter and robust electrical protections, it handles demanding heavy industrial environments while minimizing electromagnetic interference on adjacent control wiring.

Features

Advanced Optimum Excitation Control constantly adjusts excitation current to achieve maximum motor efficiency under changing load conditions.
Dual rating specification (Super Light Duty and Light Duty) allows optimal sizing based on system application demands.
Integrated PID controller supports multi-pump control, sleep mode, and water hammer prevention functions.
Built-in Safety Torque Off (STO) function compliant with international safety standards for secure emergency stops.
Built-in EMC filter limits electromagnetic noise emissions to maintain control signal integrity.
Support for multiple industrial communication protocols via optional option cards, including CC-Link, Profibus-DP, and EtherCAT.

Applications

Municipal water supply and wastewater treatment pumping stations.
Large-scale industrial ventilation fans and air handling units (AHUs).
Cooling towers and secondary cooling water circulation loops.
Boiler feed pumps and exhaust gas extraction systems.
Chiller control and commercial building automation systems.

Technical Specifications

Manufacturer	Mitsubishi Electric
Model Number	FR-F840-03610-2-60
Series	FR-F800
Input Voltage Class	400V Class (Three-Phase 380 to 500 V AC)
Input Frequency Range	50 / 60 Hz (plus/minus 5%)
Rated Current (SLD - Super Light Duty)	361 A
Rated Current (LD - Light Duty)	310 A
Applicable Motor Capacity (SLD)	185 kW
Applicable Motor Capacity (LD)	160 kW
Control Method	V/F Control, Advanced Magnetic Flux Vector Control, Real Sensorless Vector Control, Optimum Excitation Control
Enclosure Protection Rating	IP00 (Open Type)
Cooling Method	Forced Air Cooling
Operating Temperature	-10 to 50 degC (non-freezing)
Approximate Weight	80 kg

Connections and Interfaces

Terminal Group	Function Description
R/L1, S/L2, T/L3	Three-phase AC power input connections
U, V, W	Three-phase AC output connections to motor
P/+, N/-	DC bus link terminals for regenerative brake options or shared DC bus configurations
Control Terminals	Multi-function digital inputs, analog current/voltage inputs, open-collector and relay output terminals
Ethernet/PU Port	RJ-45 connector for parameter unit connection and Modbus RTU communication

Installation Guidelines

Mounting Position: Install the inverter vertically on a flat, non-combustible surface. Maintain minimum clearances above, below, and to the sides of the chassis to ensure unobstructed airflow from the cooling fans.
Thermal Management: In enclosed control cabinets, ensure the heat dissipation capacity is sufficient to handle the thermal load of an 80 kg drive operating at full load. Use auxiliary extraction fans if cabinet ambient exceeds 40 degC.
Shielding and Grounding: Always ground the inverter protective earth (PE) terminal. Use shielded motor cables with proper 360-degree EMC clamp connections to minimize high-frequency noise leakage.
Main Circuit Wiring: Select wire gauges capable of carrying the full rated input/output currents of 361A/310A. Ensure high-torque termination on main power lugs to prevent hot spots.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the difference between the SLD and LD ratings on the FR-F840-03610-2-60?

The SLD (Super Light Duty) rating supports up to 361A of current for loads with minimal overload requirements such as centrifugal fans and pumps. The LD (Light Duty) rating supports 310A for applications requiring slightly higher short-term overload torque.

Can this drive control permanent magnet (PM) motors?

Yes, the FR-F800 series features advanced motor control algorithms capable of driving both standard induction motors and high-efficiency permanent magnet motors.

Does the FR-F840-03610-2-60 include an integrated EMC filter?

Yes, this -2-60 version includes a built-in EMC filter to suppress electrical noise and comply with relevant electromagnetic compatibility standards.

What is the physical size and weight of this inverter module?

This module weighs approximately 80 kg. Due to its size and weight, it features an IP00 protection rating and is designed for cabinet installation with appropriate mechanical lifting supports.
