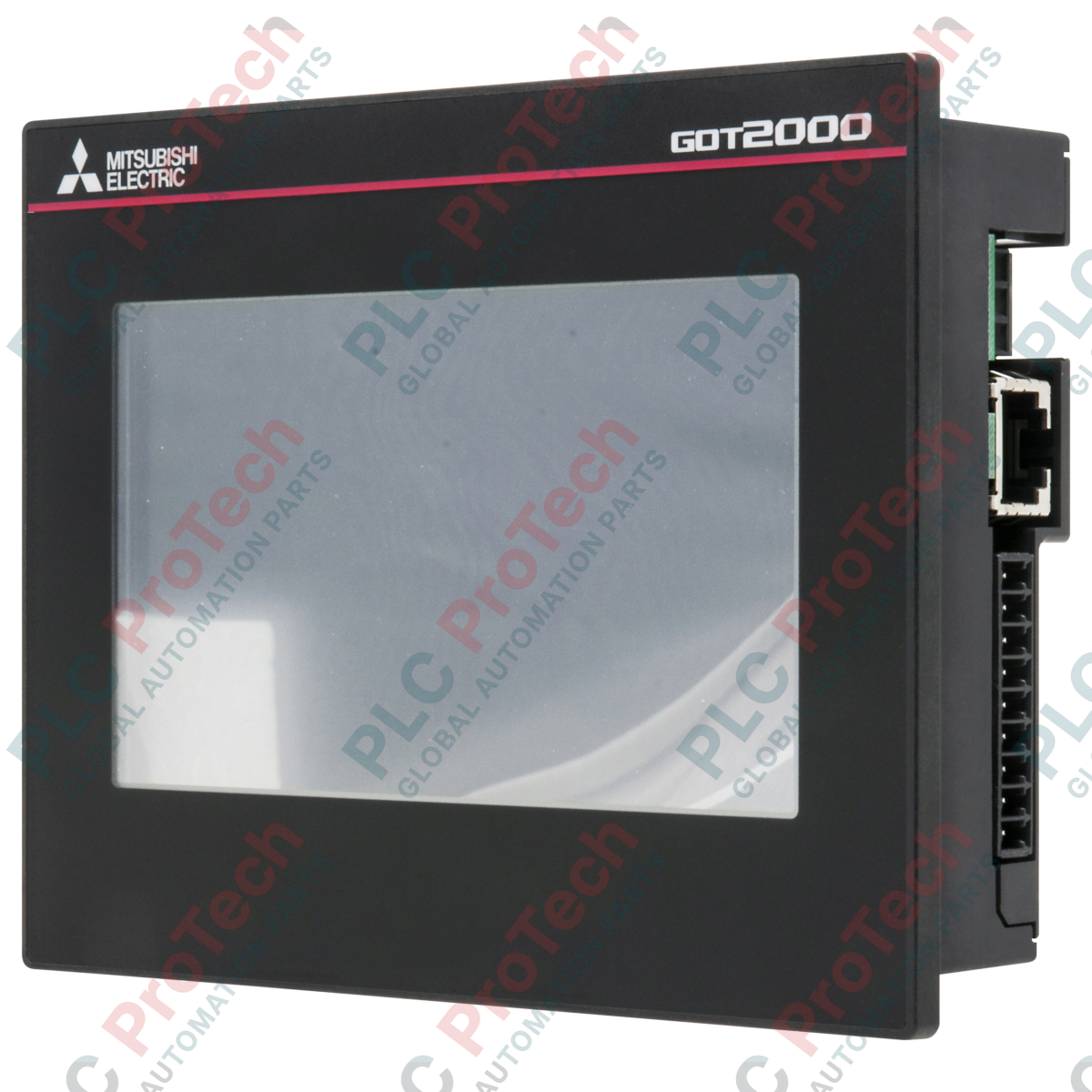

Mitsubishi Electric GT2104-PMBD GOT2000 HMI Operator Panel

SKU GT2104-PMBD

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Mitsubishi Electric
Product No.: GT2104-PMBD
Origin United States
Product Type: HMI Operator Panels
Payment: T/T, Western Union
Weight: 0.3 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Engineered for high-efficiency monitoring in space-restricted control panels, the GT2104-PMBD represents a highly compact 4.5-inch graphical interface within the GOT2000 Series. This monochrome TFT panel provides sharp visual clarity with a 384 x 128 pixel resolution and a 32-level grayscale screen, enabling detailed visualization of machine metrics, alarm notifications, and control sequences. Designed to function as a core interface for machine-level automation, the unit is equipped with diverse communication interfaces, including an onboard Ethernet port, a high-speed RS-422/485 serial interface, and a USB Mini-B port for project programming and maintenance.

The rugged design features a front-panel IP67F ingress rating, making it highly resilient against dust, oil, and moisture common in heavy-duty manufacturing environments. A built-in SD card slot facilitates straightforward data logging, firmware updates, and rapid project restoration, while the 6 MB internal flash memory provides ample space for screen designs and diagnostic screens.

Features

High-contrast 4.5-inch monochrome TFT display with 32 grayscale levels.
Built-in 10BASE-T/100BASE-TX Ethernet interface for network integration and PLC coupling.
Integrated RS-422/485 serial port for legacy and point-to-point controller connections.
Dedicated SD memory card slot for local data storage, recipes, and diagnostic logging.
IP67F-rated front housing ensures reliable operation in demanding industrial setups.
Compact footprint requiring minimal panel depth.
Supports multiple industrial protocols including MODBUS/TCP and MELSEC connection formats.

Applications

Packaging machinery and assembly lines.
Pumping systems and water treatment control panels.
HVAC control systems and air handling units.
Marine auxiliary monitoring and vessel instrumentation.
Conveyor systems and material handling integration.

Technical Specifications

Manufacturer	Mitsubishi Electric
Model / Part Number	GT2104-PMBD
Series	GOT2000 (GT21 Model)
Display Type	TFT Monochrome LCD (32 Greyscales)
Screen Size	4.5 inches
Resolution	384 x 128 Pixels
Backlight Type	LED (5-color backlight change function available)
Power Supply	24 V DC
Internal Memory Capacity	6 MB (Flash Memory)
SD Memory Card Slot	1x SDHC/SD compliant slot
Ethernet Interface	1x RJ45 (10BASE-T/100BASE-TX)
Serial Interface	1x RS-422/485 (Terminal block type)
USB Interface	1x USB Mini-B (Device)
Protection Rating	IP67F (Front panel when mounted)
Width	145 mm
Height	76 mm
Depth	32.5 mm
Weight	0.3 kg

Connections and Interfaces

Interface Type	Function Description
Ethernet Port (RJ45)	Connection to host PLC, industrial networks, and remote diagnostic systems.
RS-422/485	Direct serial coupling to programmable controllers and industrial drivers.
USB Mini-B	High-speed PC connection for project uploads, downloads, and system configuration.
SD Card Slot	Data logging storage, alarm histories, and screen program backups.
Power Input	2-pin terminal connection for stable 24 V DC supply.

Installation Guidelines

Prepare the panel cutout strictly to the specified standard dimensions to ensure an airtight seal.
Ensure the protective rubber gasket is completely flat and clean before mounting the terminal to preserve the IP67F environmental protection rating.
Incorporate a minimum clearance space of 10 cm around the rear of the device to facilitate natural heat dissipation.
Use shielded, twisted-pair cabling for all RS-422/485 serial communication runs to limit electromagnetic interference (EMI).
Ensure the unit is correctly connected to a dedicated functional ground terminal before applying 24 V DC system power.

Compliance and Certifications

CE Compliant
UL / cUL Listed
EAC Certification
UKCA Compliant
Marine Type Approvals: ABS, BV, DNV, LR, NK, RINA

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What are the primary communications ports on the GT2104-PMBD?

The GT2104-PMBD features one 10BASE-T/100BASE-TX Ethernet port, one RS-422/485 serial port, and one USB Mini-B connection for software programming.

What size and display options does this GOT2000 HMI provide?

It is equipped with a 4.5-inch monochrome TFT display with a resolution of 384 x 128 pixels, offering 32 grayscale levels and multi-color LED backlighting.

Can I use an SD card with the GT2104-PMBD?

Yes. The HMI features an integrated SD/SDHC card slot designed for data logging, screen data backup, and firmware updates.

What is the environmental rating of the front bezel?

The front panel of the GT2104-PMBD has an IP67F rating, indicating high protection against dust ingress and water exposure when properly panel-mounted.

What voltage supply does the unit require?

The GT2104-PMBD operates on a standard 24 V DC power supply.
