Description

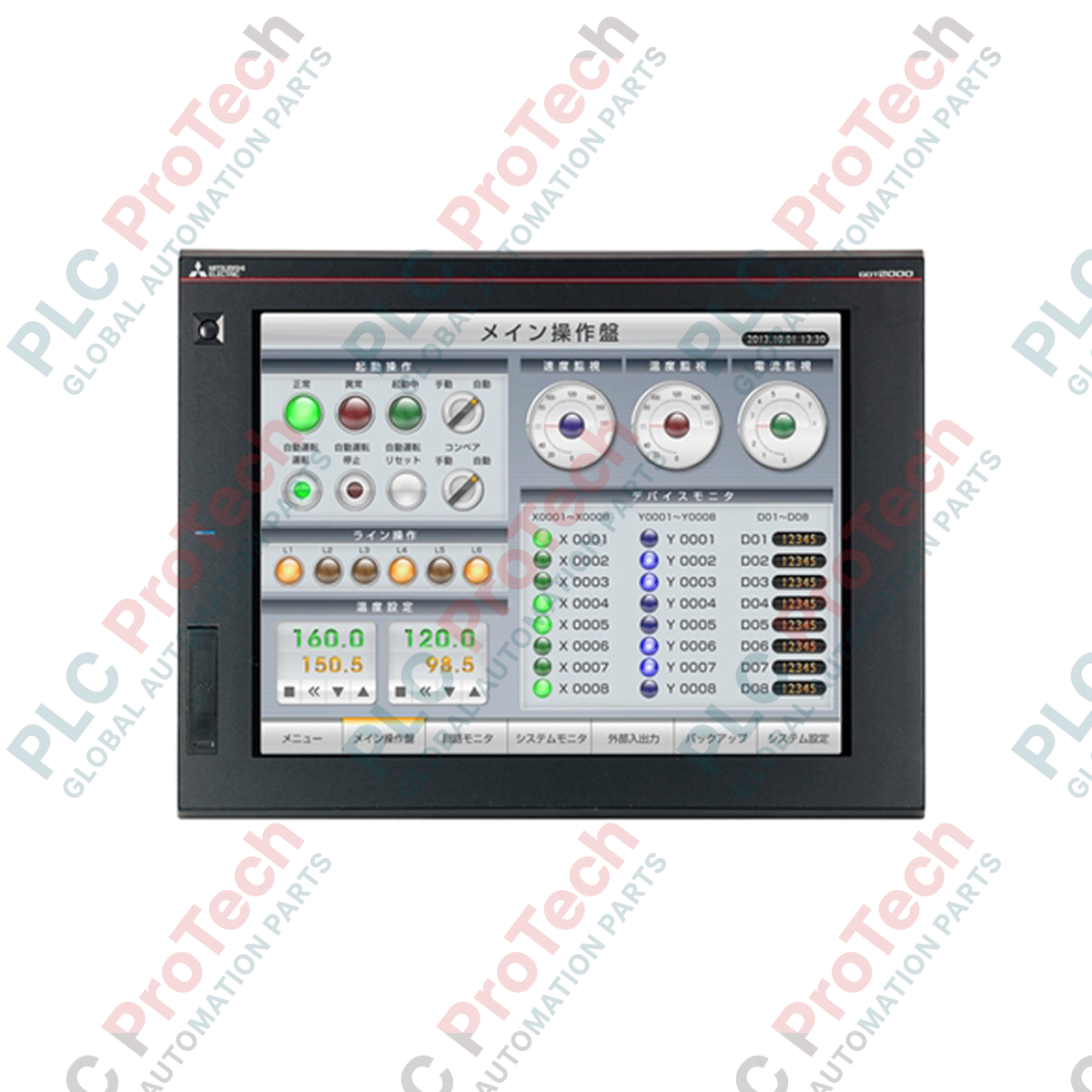

Engineered for high-performance industrial visualization, the GT2715-XTBD serves as a rugged human-machine interface (HMI) within the Mitsubishi Electric GOT2000 Series. Featuring a 15-inch TFT color LCD screen with XGA resolution, this display module provides crisp visual status monitoring and operator interaction for complex factory automation systems.

The unit relies on an analog resistive film touch panel for accurate input coordination and includes a built-in human sensor with a 1-meter detection range to manage display backlight power efficiency. With a dedicated 57 MB ROM storage memory and 128 MB RAM for operation processing, the GT2715-XTBD processes graphic-intensive screens and trend data without performance bottlenecks. Designed to withstand demanding industrial environments, its front panel carries an IP67F rating, preventing ingress of dust and water when properly panel-mounted.

Features

• High-definition 15" TFT color LCD display providing detailed 1024 x 768 dot resolution.
• Analog resistive touch panel for flexible, wear-resistant operator interface control.
• Integrated human proximity sensor with a 1-meter detection range for automatic screen wake/sleep cycles.
• Substantial memory architecture featuring 57 MB project storage memory and 128 MB operational RAM.
• Dual-color LED (blue and orange) for real-time visual system state indication.
• Robust front panel protective rating of IP67F for resistance to liquid spray and airborne contaminants.
• Long-life GT11-50BAT lithium backup battery providing approximately 5 years of retention at room temperature.

Applications

• Automotive assembly line monitoring and control coordination.
• Oil and gas refinery process visualization terminals.
• Water treatment facilities and municipal pumping stations.
• High-speed packaging machinery and sorting line interfaces.

Technical Specifications

Installation Guidelines

• Mounting: Install the device into a clean panel cut-out matching the physical template. Ensure the front gasket is properly seated to maintain the IP67F ingress protection level.
• Wiring: Connect a 24 V DC power source within the +25% / -20% tolerance range. Ensure correct polarity to avoid damaging internal protection circuitry.
• Grounding: Connect the dedicated terminal ground to a solid functional earth system to minimize high-frequency electromagnetic interference.
• Thermal Considerations: Allow adequate ventilation clearance around the rear housing of the GOT terminal within the control enclosure to prevent heat buildup.
