Description

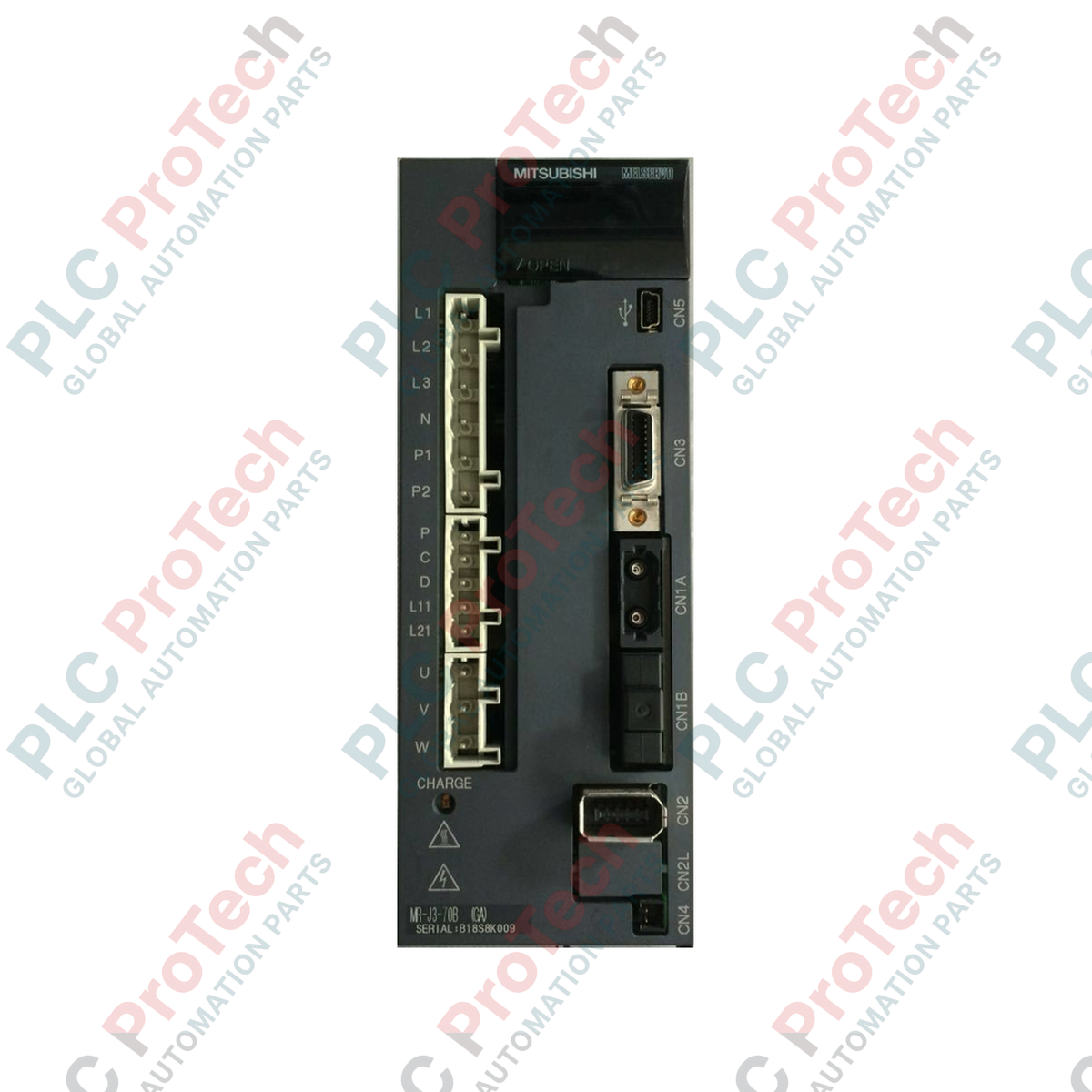

The Mitsubishi Electric MR-J3-70B is a high-performance, digital servo amplifier belonging to the MELSERVO-J3 series. Engineered for precision motion control, this drive utilizes the advanced SSCNET III (Servo System Controller Network) high-speed synchronous fiber-optic network interface. This interface enables high-speed, noise-immune, bidirectional communication between the motion controller and the amplifier, making it highly effective for complex, multi-axis system synchronization.

Operating with a rated output capacity of 0.75 kW, the MR-J3-70B is designed to drive compatible MELSERVO AC servo motors equipped with high-resolution absolute encoders. The integration of sinusoidal PWM control and advanced current control systems ensures smooth torque delivery, minimal torque ripple, and exceptional positioning accuracy. Built-in functions, such as real-time auto-tuning and adaptive vibration suppression, dynamically adapt to changing mechanical loads to prevent resonance and stabilize performance.

This servo drive integrates seamlessly with Mitsubishi Q-Series and FX-Series motion controllers. Its robust design is optimal for high-demand industrial systems requiring minimal wiring footprint, diagnostic feedback, and high immunity to electromagnetic interference (EMI) via fiber-optic cabling.

Features

• SSCNET III Fiber-Optic Interface: High-speed serial communication loop providing 50 Mbps transmission rates, synchronous control, and complete immunity to electrical noise.
• High-Resolution Feedback compatibility: Supports 18-bit absolute/incremental encoders (262,144 pulses/revolution) for superior positioning precision.
• Advanced Vibration Suppression: Dual-frequency machine resonance suppression filter prevents mechanical vibration during high-speed acceleration/deceleration cycles.
• Real-Time Adaptive Tuning: Continuous automatically calculated inertia ratio adjustment ensures optimal gain settings without manual calibration.
• Sinusoidal PWM Control: Optimizes current supply to the motor windings, minimizing thermal losses and motor noise.

Applications

• Packaging machinery and sealing equipment
• Semiconductor fabrication and assembly lines
• Multi-axis CNC machine tools and precision gantries
• Automated material handling and pick-and-place robotics

Technical Specifications

Installation Guidelines

• Orientation: Mount the servo amplifier vertically on a flat, rigid metal surface to ensure correct heat dissipation.
• Clearance: Maintain at least 10 mm clearance on the left and right sides, and 40 mm clearance above and below the amplifier for proper airflow.
• Fiber-Optic Handling: Avoid bending the SSCNET III optical cables (SSCNET III cable minimum bend radius must be respected to prevent signal attenuation). Do not touch the fiber ends.
• Grounding: Ensure the protective earth (PE) terminal is securely connected to the main control panel ground bus to minimize electromagnetic interference.
