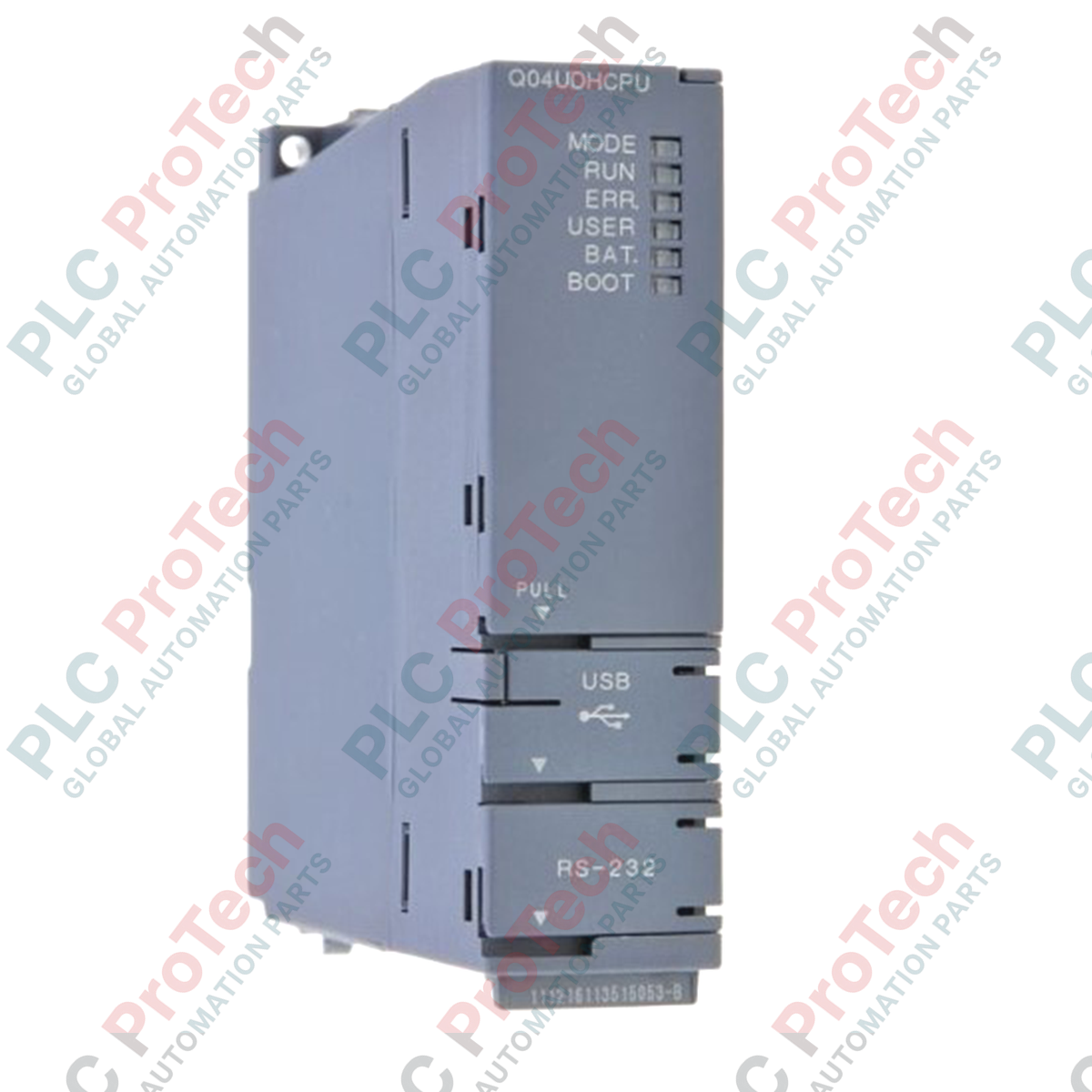

Mitsubishi Electric Q04UDHCPU MELSEC Q Series Universal PLC CPU Module

SKU Q04UDHCPU

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Mitsubishi Electric
Product No.: Q04UDHCPU
Origin United States
Product Type: PLC CPU Modules
Payment: T/T, Western Union
Weight: 1.5 kg
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Designed for high-speed, high-accuracy automation environments, the Mitsubishi Electric Q04UDHCPU functions as a highly capable processing core within the MELSEC Q series PLC platform. This Universal model CPU module delivers rapid sequence execution and ample program memory, making it suitable for multi-axis motion control, complex assembly systems, and demanding industrial processing applications.

The unit features an integrated program capacity of 40K steps (160K bytes) and processes basic instructions in as little as 9.5 nanoseconds. For communication and programming, the module is equipped with dedicated onboard USB and RS-232 serial interfaces, alongside a standard slot for memory expansion cards (SRAM, Flash, or ATA). This configuration ensures seamless integration with HMIs, external networks, and engineering software packages like GX Works2 or GX Works3.

Features

Highly rapid processing times with sequence instruction execution down to 9.5ns.
Generous program storage capacity of 40K steps to handle complex control logic.
Support for versatile programming approaches, including Ladder, Structured Text (ST), Function Block (FB), and Sequential Function Chart (SFC).
Built-in dual peripheral connection ports utilizing USB and RS-232 interfaces.
Onboard expansion slot accepting SRAM, Flash, and ATA memory cards.
Large capacity configuration with up to 8192 total direct/refresh I/O points.

Applications

Automotive assembly lines and robotic work cell coordination.
High-speed packaging, labeling, and sorting machinery.
Water and wastewater treatment processing installations.
Semi-conductor manufacturing and chemical batch processing plants.

Technical Specifications

Manufacturer	Mitsubishi Electric
Model / Article Number	Q04UDHCPU
Series	MELSEC Q Series
Control Method	Stored program repeat operation
I/O Control System	Refresh method (direct access possible via DX/DY instruction parameters)
Programming Languages	Relay symbol language, logic symbolic language, MELSAP3 (SFC), MELSAP-L, Function Block (FB), Structured Text (ST)
Basic Instruction Speed	9.5ns (LD instruction), 19ns (PC instruction)
Constant Scan Setting	0.5 to 2000ms (configurable in 0.5ms increments)
Program Capacity	40K steps (160K bytes)
Onboard Memory Capacity	160K bytes (Standard RAM)
Supported Memory Cards	SRAM (up to 8MB), Flash Card (up to 4MB), ATA Card (up to 32MB)
Maximum Direct I/O Points	8192 points (X/Y0 to 1FFF)
Internal Current Consumption	0.39 A at 5 VDC
Clock Accuracy	-2.96 to +3.74 s/d at 0 degC -3.18 to +3.74 s/d at 25 degC -13.20 to +2.12 s/d at 55 degC
Dimensions	98mm (H) x 27.4mm (W) x 89.3mm (D)
Shipping Weight	1.5 kg

Connections and Interfaces

Interface Type	Connector / Slot Specification	Primary Function
USB Port	Mini-B Connector	High-speed connection to engineering software (GX Works)
RS-232 Port	D-sub 9-pin (or equivalent terminal mapping)	Serial communications with HMIs, modems, or external controllers
Memory Card Slot	PC Card standard slot (Type I/II compatible)	Accepts SRAM, Flash, and ATA memory units for program/data storage

Installation Guidelines

Always mount the module securely onto a compatible MELSEC Q series base unit. Ensure the mounting locking mechanism is fully engaged before applying power.
Ensure all system power is switched off before installing, removing, or wiring any module in the rack assembly.
Ground the system via the Protective Earth (PE) and Functional Earth (FG) terminals on the main power supply module of the base rack using 2 mm square or thicker copper wire.
Maintain adequate clearance (minimum 30mm) around the top, bottom, and sides of the CPU assembly to allow optimal convection cooling and prevent thermal derating.

Compliance and Certifications

CE Directive Compliance
UL Listed (Class I, Division 2, Groups A, B, C, D Hazardous Locations)
cUL Listed
KC (Korean Certification for electromagnetic compatibility)

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the processing speed of the Mitsubishi Electric Q04UDHCPU?

The Q04UDHCPU processes basic sequence instructions (such as LD) in 9.5 nanoseconds and PC instructions in 19 nanoseconds.

Which memory card options are compatible with this CPU module?

This module is compatible with SRAM cards up to 8MB, Flash cards up to 4MB, and ATA memory cards up to 32MB.

How many direct I/O points can the Q04UDHCPU control?

The Q04UDHCPU supports a maximum of 8192 direct device points (X/Y0 to 1FFF) for broad input and output system configurations.

What communications ports are built directly into this module?

The module features built-in USB and RS-232 peripheral connection ports for programming, monitoring, and communication.
