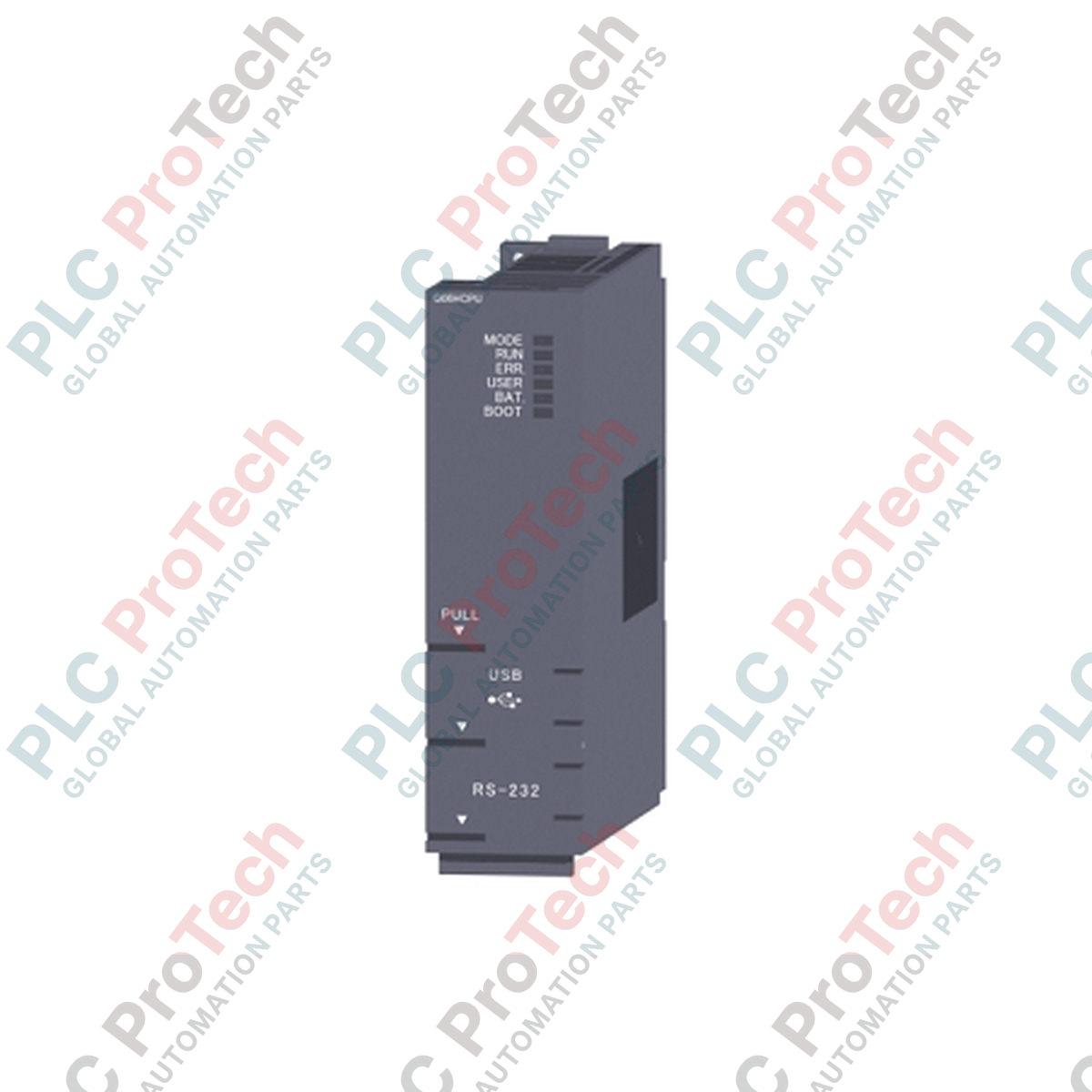

Mitsubishi Electric Q06HCPU MELSEC-Q Series CPU Module

SKU Q06HCPU

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Mitsubishi Electric
Product No.: Q06HCPU
Origin United States
Product Type: PLC CPU Modules
Payment: T/T, Western Union
Weight: 0.5 kg
Dimensions: 98 mm x 27.4 mm x 89.3 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Designed for complex control tasks requiring high-speed processing, the Q06HCPU represents the high-performance tier of the Mitsubishi Electric MELSEC-Q Series programmable logic controller (PLC) lineup. This central processing unit module delivers high computational efficiency and memory capacity to manage medium-to-large-scale industrial automation architectures. Featuring high-speed instruction execution, it minimizes machine cycle times and optimizes overall system responsiveness.

The module is equipped with a generous 60k steps program capacity (240 KB program memory) and supports up to 4096 local and network digital I/O points, alongside 8192 I/O device points. Integration into multi-CPU configurations is natively supported, enabling direct backplane communication with specialized motion, process, or PC CPUs to distribute complex automation tasks. Program upload, download, and diagnostics are handled via dedicated onboard interfaces including USB and RS-232 connections.

Features

High-speed sequence execution with an LD instruction processing speed of 34 nanoseconds (0.034 microseconds).
Substantial memory reserve featuring 60k steps of program capacity and 240 KB of integrated program memory.
Expanded device mapping supporting up to 4096 direct I/O points and 8192 total system device points.
Multi-CPU system architecture support for up to four processing units on a single Q-series backplane.
Dual onboard programming ports utilizing USB Type-B and RS-232 (D-sub 9-pin) interfaces.
Compatible with a wide array of MELSEC-Q Series digital, analog, communication, and positioning modules.

Applications

Automotive assembly lines and robotic cell synchronization.
Water and wastewater treatment processing facilities.
High-speed packaging, sorting, and material handling systems.
Semiconductor fabrication tool monitoring and execution.
HVAC and building environmental automation networks.

Technical Specifications

ManufacturerPart Number / ModelSeriesModule TypeProgram CapacityLD Instruction Processing SpeedI/O Points (Direct)I/O Device Points (Total)Internal Current Consumption (5V DC)Programming InterfacesMemory Card SlotsOperating Temperature RangeStorage Temperature RangeRelative HumidityDimensions (H x W x D)

Mitsubishi Electric

Q06HCPU

MELSEC-Q Series

High-Performance PLC CPU Module

60k steps (240 KB)

34 ns (0.034 microseconds)

4096 points

8192 points

0.64 A

USB (Mini-B), RS-232 (D-Sub 9-pin)

1x slot for SRAM, Flash ROM, or ATA cards

0 to 55 degC

-25 to 75 degC

5 to 95% RH (non-condensing)

98 mm x 27.4 mm x 89.3 mm

Connections and Interfaces

Interface Type	Connector / Port Type	Primary Function
RS-232 Port	9-pin D-sub (female)	Connection to HMI, PC programming software, or serial peripheral devices
USB Port	Mini-B USB connector	High-speed programming, system configuration, and monitoring via GX Works2 / GX Developer
Memory Card Slot	PCMCIA standard slot	External memory expansion for program files, logging, or parameter storage

Installation Guidelines

Mounting: Ensure the system power supply is completely switched off before mounting or removing the CPU from the main base unit (Q33B, Q35B, Q38B, or Q312B).
Backplane Location: The CPU module must be installed in the dedicated CPU slot (always the slot immediately to the right of the power supply module).
Grounding: Connect the functional ground terminal on the power supply module to a dedicated Class D ground (grounding resistance of 100 ohms or less) using a minimum wire size of 2 mm squared.
Ventilation: Maintain a minimum clearance of 30 mm above and below the CPU and base unit assemblies to allow natural convection cooling.

Compliance and Certifications

CE (EMC Directive)
UL / cUL Listed
KC (Korean Certification for Electromagnetic Compatibility)

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the program capacity of the Q06HCPU module?

The Q06HCPU has a program capacity of 60k steps, which corresponds to 240 KB of internal program memory.

Which programming software is compatible with this processor?

The CPU is fully supported by Mitsubishi Electric's standard programming software suites, including GX Developer and GX Works2.

Does the Q06HCPU support communication with other CPUs on the same rack?

Yes, it supports multi-CPU configurations. You can install up to four CPU modules (including PLC, motion, process, or PC CPUs) on a single Q Series base unit.

What is the maximum I/O capacity of this CPU module?

The Q06HCPU directly controls up to 4096 physical digital I/O points, and can address up to 8192 total I/O device points across local and network racks.
