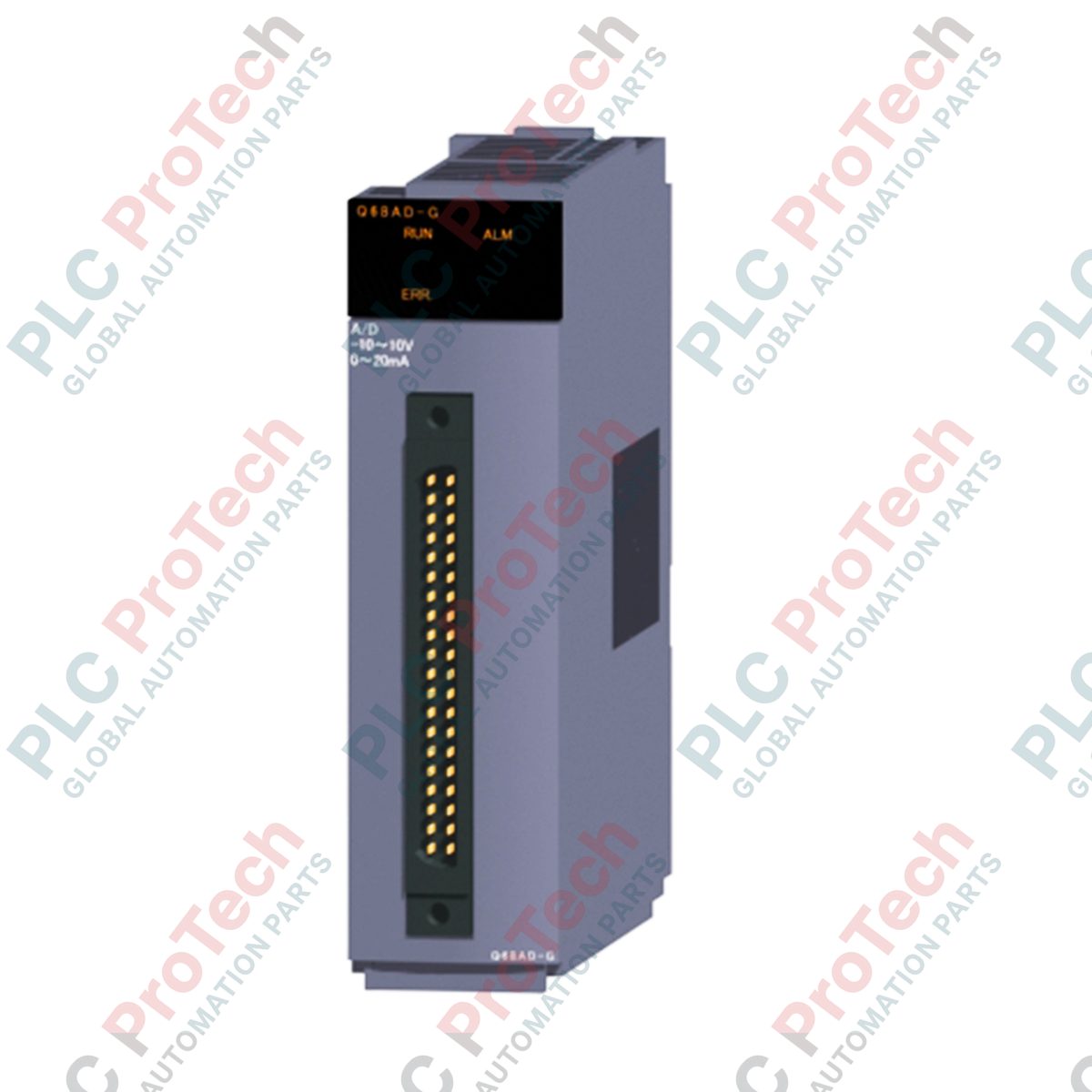

Engineered for precise industrial process automation, the Q68AD-G functions as a channel-to-channel isolated analog-to-digital conversion module designed for the Mitsubishi MELSEC-Q Series PLC platform. This module features eight independent channels, providing robust electrical separation between inputs to eliminate ground loops and minimize signal interference in complex electrical environments.
Each channel can be independently configured to accept either voltage or current signals, accommodating standard industrial sensors and transmitters. The integration of high-resolution digital conversion options and dedicated scaling functions allows for precise data acquisition, delivering reliable metrics directly to the master controller backplane. External connections are consolidated through a high-density 40-pin interface, ensuring secure and compact field wiring.
| Manufacturer | Mitsubishi Electric |
| Part Number / Model | Q68AD-G |
| Module Type | Channel-to-Channel Isolated Analog-to-Digital Conversion Unit |
| Analog Inputs | 8 points (8 channels) |
| Voltage Input Range | DC -10 to +10 V (Input resistance: 1 MOhm or more) |
| Current Input Range | DC 0 to 20 mA (Input resistance: 250 Ohm) |
| Sampling Cycle | 10 ms / channel |
| Response Time | 20 ms |
| Absolute Maximum Input | Voltage: ±15 V, Current: ±30 mA |
| Isolation Method | Transformer isolation between input terminals and PLC power supply, and between individual analog input channels |
| Withstand Voltage (Input to Backplane) | 500 V AC rms for 1 minute |
| Withstand Voltage (Channel to Channel) | 1000 V AC rms for 1 minute |
| Insulation Resistance | 10 MOhm or more at 500 V DC |
| Temperature Coefficient | ±71.4 ppm / degC (0.00714% / degC) |
| Occupied I/O Points | 16 points (I/O assignment: 16 points intelligent function module) |
| Internal Current Consumption (5 V DC) | 0.46 A |
| External Dimensions (H x W x D) | 102 mm x 27.4 mm x 90 mm |
| Weight | 0.16 kg |
| Interface Element | Specification / Compatibility |
|---|---|
| External Wiring Interface | 40-pin connector |
| Compatible Connectors | A6CON1, A6CON2, A6CON4 (sold separately) |
Global Express Shipping
Returns & Warranty
Manufacturer: Mitsubishi Electric
Product No.: Q68AD-G
Country of origin:United States
Product Type: Analog Input Modules
Payment: T/T, Western Union
Weight: 160g
Dimensions: 102 mm x 27.4 mm x 90 mm
Shipping port: Xiamen
Warranty: 12 months
