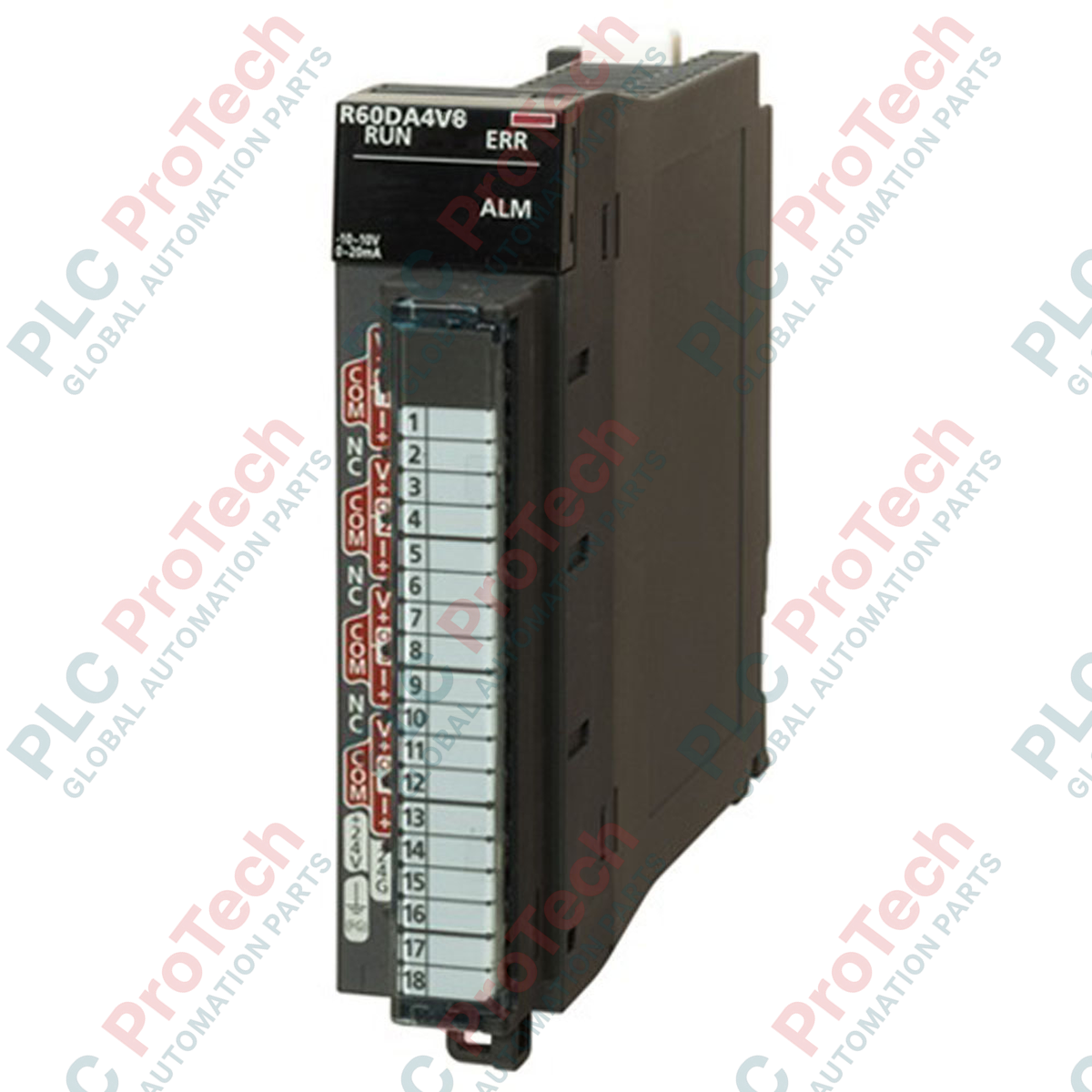

Mitsubishi Electric R60DAV8 MELSEC iQ-R Series D/A Converter Module

SKU R60DAV8

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Mitsubishi Electric
Product No.: R60DAV8
Origin United States
Product Type: Analog Output Modules
Payment: T/T, Western Union
Weight: 0.14 kg
Dimensions: 27.8 mm x 106 mm x 131 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Designed for the MELSEC iQ-R Series PLC platform, the R60DAV8 high-density analog output module provides precise digital-to-analog conversion. This high-performance module features eight isolated channels dedicated to voltage output, enabling accurate control of field devices within industrial automation architectures. Occupying 16 I/O points on the PLC backplane, it integrates with the CPU rack to provide fast response times and stable signal output, making it suitable for process control and motion orchestration tasks requiring robust voltage signaling.

Features

Eight independent analog voltage output channels for dense system configuration.
Supports multiple selectable voltage ranges: -10V to 10V, 0V to 5V, and 1V to 5V.
Integrated screw terminal block ensures secure and reliable physical wiring connections.
Low internal current consumption of 0.16 A for efficient power distribution.
Compact 27.8 mm module width optimizes physical footprint on the PLC chassis.

Applications

Proportional valve and damper actuator positioning in process systems.
Speed reference control for variable speed drives (VSD) and inverters.
Automated manufacturing control systems requiring multi-channel voltage reference.
Testing equipment, process instrumentation, and simulation racks.

Technical Specifications

Manufacturer	Mitsubishi Electric
Part Number / Model	R60DAV8
Series	MELSEC iQ-R Series
Module Type	Analog Output (D/A Converter) Module
Number of Channels	8 points (8 channels)
Output Type	Voltage
Output Voltage Range	-10 to 10 V, 0 to 5 V, 1 to 5 V
Power Supply	24 V DC
Internal Current Consumption	0.16 A
Occupied I/O Points	16 points
Wiring Interface	Screw Terminal
Dimensions (W x H x D)	27.8 mm x 106 mm x 131 mm
Weight	0.14 kg

Installation Guidelines

Always shut down the main PLC system power before mounting or removing the module from the base unit.
Align the module guide lugs with the corresponding holes on the main or extension base unit, then push firmly until it clicks into place.
Ensure screw terminals are torqued correctly to maintain reliable long-term electrical connections in environments with vibration.
Route analog signal wires away from high-voltage AC cables and other source of electromagnetic interference to prevent signal degradation.

Compliance and Certifications

CE Compliant
UL/cUL Listed
EAC Mark
Marine Shipping Approvals: ABS, BV, DNV GL, LR, NK, RINA
RoHS Compliant

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the Mitsubishi R60DAV8 module?

The R60DAV8 is an 8-channel analog voltage output (digital-to-analog converter) module designed to convert PLC digital data into analog voltage signals for driving field devices.

Which voltage output ranges are supported by the R60DAV8?

It supports selectable voltage output ranges of -10V to 10V, 0V to 5V, and 1V to 5V.

What terminal wiring style does this module use?

The module uses an integrated screw terminal block for secure control and field-side wiring.

How many I/O points does the R60DAV8 occupy on the PLC rack?

The R60DAV8 occupies 16 I/O points on the MELSEC iQ-R series backplane.
