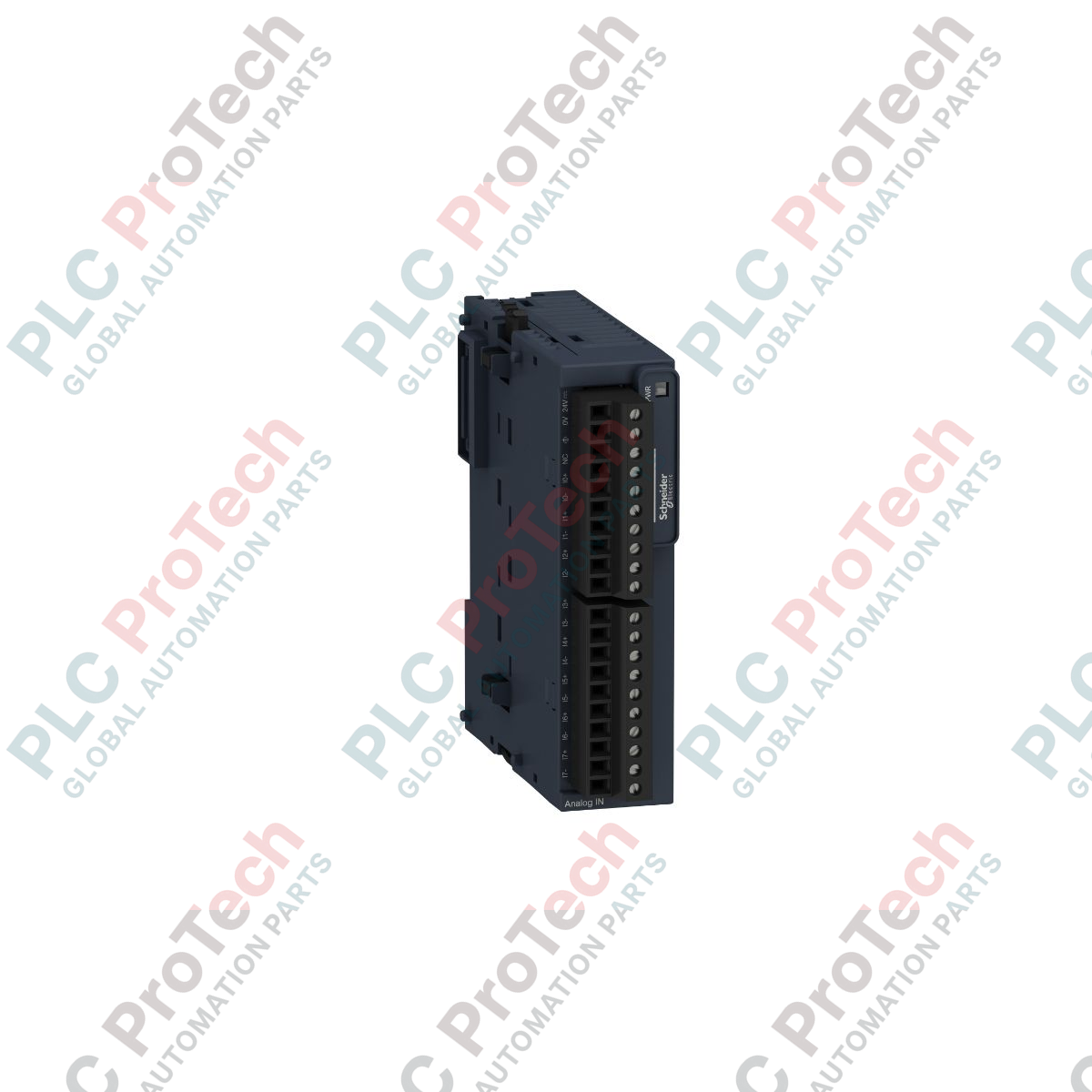

Schneider Electric TM3AI8 Modicon TM3 Analog Input Module

SKU TM3AI8

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: Schneider Electric
  • Product No.: TM3AI8
  • Origin France
  • Product Type: Analog Input Modules
  • Payment: T/T, Western Union
  • Weight: 0.22 kg
  • Dimensions: 12,6cm x 10,51cm x 7,37cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Analog Input Modules Modicon TM3
Quantità
Call sales Contact

Product Description

Description

Designed for seamless integration with Modicon M221, M241, and M251 logic controllers, the TM3AI8 expansion module expands system capabilities by providing high-density analog data acquisition. This analog input module features eight high-resolution input channels, enabling precise monitoring of industrial variables such as temperature, pressure, and flow. By facilitating reliable signal conversion and real-time data transmission to the host PLC, it ensures optimal process control across diverse automation architectures.

The compact design of the Modicon TM3 system allows for efficient use of cabinet space. It mounts directly onto a standard DIN rail and connects to adjacent modules via an integrated bus expansion connector, minimizing wiring complexity and installation time.

Features

  • Eight high-density analog input channels supporting multiple signal ranges.
  • Compatible with Modicon M221, M241, and M251 controller ranges.
  • High-resolution analog-to-digital conversion for precise process measurement.
  • Compact form factor designed to optimize control cabinet space.
  • Simple interlocking assembly with integrated bus connector for rapid system expansion.

Applications

  • Water and wastewater treatment facilities.
  • Packaging, material handling, and assembly machinery.
  • HVAC and environmental control systems.
  • Food and beverage processing lines.
  • General factory automation and machine control.

Technical Specifications

Manufacturer Schneider Electric
Part Number/Model TM3AI8
Series Modicon TM3
Module Type Analog Input Module
Number of Inputs 8
Input Types 0...10 V, -10...10 V, 0...20 mA, 4...20 mA
Analogue-to-Digital Conversion 11 bits + sign or 12 bits
LSB Value 2.44 mV (0...10 V), 4.88 mV (-10...10 V), 4.88 microA (0...20 mA), 3.91 microA (4...20 mA)
Permissible Continuous Overload 13 V (voltage), 40 mA (current)
Input Impedance >= 1 MOhm (voltage), <= 250 Ohm (current)
Isolation Between input and internal logic: 1500 V AC
Between inputs: Non-isolated
Current Consumption 30 mA at 5 V DC (via bus)
40 mA at 24 V DC (via bus)

Connections and Interfaces

Terminal Connection Function
I0+ to I7+ Positive analog input channels 0 to 7
I0- to I7- Negative analog input channels 0 to 7
Shield / Functional Ground Shield connection point for signal noise reduction

Installation Guidelines

  • Mounting: Mount the module horizontally or vertically on a 35 mm DIN rail (AM1 DE200 or equivalent).
  • Shielding: Use shielded twisted-pair cables for all analog input connections to minimize electromagnetic interference. Ground the shield at a single point, preferably on the controller side.
  • Wiring: Keep analog signal wiring physically separated from high-voltage power lines and motor drive cables.
  • Thermal Management: Ensure adequate ventilation clearance around the module as specified in the Modicon TM3 hardware guide, maintaining operating temperatures within rated limits.

Compliance and Certifications

  • CE
  • cULus Listed
  • UKCA
  • RCM
Shipping &amp; Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Which PLCs are compatible with the TM3AI8 analog module?
The TM3AI8 is designed for use with Schneider Electric Modicon M221, M241, and M251 logic controllers.
What analog input signal types does the TM3AI8 support?
The module supports 0 to 10 V, -10 to +10 V, 0 to 20 mA, and 4 to 20 mA input signals.
Are the input channels on the TM3AI8 isolated from each other?
No, the input channels are non-isolated from each other, but they feature 1500 V AC isolation between the inputs and the internal logic circuitry.
Reviews

More from this brand

Schneider 170XTS00200 Modicon Momentum/Quantum Spring Terminal Block
170XTS00200Schneider 170XTS00200 Modicon Momentum/Quantum Spring Terminal Block
Schneider TSXP57303AMC Modicon Premium Double-Format PL7 Processor
TSXP57303AMCSchneider TSXP57303AMC Modicon Premium Double-Format PL7 Processor
Schneider 170ADM69051 Modicon Momentum Discrete I/O Base (10I/8O)
170ADM69051Schneider 170ADM69051 Modicon Momentum Discrete I/O Base (10I/8O)
Schneider Electric ATV212WU22N4C Altivar 212 Variable Frequency Drive
ATV212WU22N4CSchneider Electric ATV212WU22N4C Altivar 212 Variable Frequency Drive

TM3AI8

Stock &amp; lead time on request

Call
  • TM3AI8
1 1

Schneider Electric TM3AI8 Modicon TM3 Analog Input Module

Only 5 item(s) left in stock

  • Manufacturer: Schneider Electric

  • Product No.: TM3AI8

  • Country of origin:France

  • Product Type: Analog Input Modules

  • Payment: T/T, Western Union

  • Weight: 220g

  • Dimensions: 12,6cm x 10,51cm x 7,37cm

  • Shipping port: Xiamen

  • Warranty: 12 months

Visualizza dettagli completi
Product Description
FAQ
Shipping Returns
Additional details
Reviews

Description

Designed for seamless integration with Modicon M221, M241, and M251 logic controllers, the TM3AI8 expansion module expands system capabilities by providing high-density analog data acquisition. This analog input module features eight high-resolution input channels, enabling precise monitoring of industrial variables such as temperature, pressure, and flow. By facilitating reliable signal conversion and real-time data transmission to the host PLC, it ensures optimal process control across diverse automation architectures.

The compact design of the Modicon TM3 system allows for efficient use of cabinet space. It mounts directly onto a standard DIN rail and connects to adjacent modules via an integrated bus expansion connector, minimizing wiring complexity and installation time.

Features

  • Eight high-density analog input channels supporting multiple signal ranges.
  • Compatible with Modicon M221, M241, and M251 controller ranges.
  • High-resolution analog-to-digital conversion for precise process measurement.
  • Compact form factor designed to optimize control cabinet space.
  • Simple interlocking assembly with integrated bus connector for rapid system expansion.

Applications

  • Water and wastewater treatment facilities.
  • Packaging, material handling, and assembly machinery.
  • HVAC and environmental control systems.
  • Food and beverage processing lines.
  • General factory automation and machine control.

Technical Specifications

Manufacturer Schneider Electric
Part Number/Model TM3AI8
Series Modicon TM3
Module Type Analog Input Module
Number of Inputs 8
Input Types 0...10 V, -10...10 V, 0...20 mA, 4...20 mA
Analogue-to-Digital Conversion 11 bits + sign or 12 bits
LSB Value 2.44 mV (0...10 V), 4.88 mV (-10...10 V), 4.88 microA (0...20 mA), 3.91 microA (4...20 mA)
Permissible Continuous Overload 13 V (voltage), 40 mA (current)
Input Impedance >= 1 MOhm (voltage), <= 250 Ohm (current)
Isolation Between input and internal logic: 1500 V AC
Between inputs: Non-isolated
Current Consumption 30 mA at 5 V DC (via bus)
40 mA at 24 V DC (via bus)

Connections and Interfaces

Terminal Connection Function
I0+ to I7+ Positive analog input channels 0 to 7
I0- to I7- Negative analog input channels 0 to 7
Shield / Functional Ground Shield connection point for signal noise reduction

Installation Guidelines

  • Mounting: Mount the module horizontally or vertically on a 35 mm DIN rail (AM1 DE200 or equivalent).
  • Shielding: Use shielded twisted-pair cables for all analog input connections to minimize electromagnetic interference. Ground the shield at a single point, preferably on the controller side.
  • Wiring: Keep analog signal wiring physically separated from high-voltage power lines and motor drive cables.
  • Thermal Management: Ensure adequate ventilation clearance around the module as specified in the Modicon TM3 hardware guide, maintaining operating temperatures within rated limits.

Compliance and Certifications

  • CE
  • cULus Listed
  • UKCA
  • RCM
Key Features:
#Analog Input Modules #Modicon TM3

Which PLCs are compatible with the TM3AI8 analog module?
The TM3AI8 is designed for use with Schneider Electric Modicon M221, M241, and M251 logic controllers.

What analog input signal types does the TM3AI8 support?
The module supports 0 to 10 V, -10 to +10 V, 0 to 20 mA, and 4 to 20 mA input signals.

Are the input channels on the TM3AI8 isolated from each other?
No, the input channels are non-isolated from each other, but they feature 1500 V AC isolation between the inputs and the internal logic circuitry.
