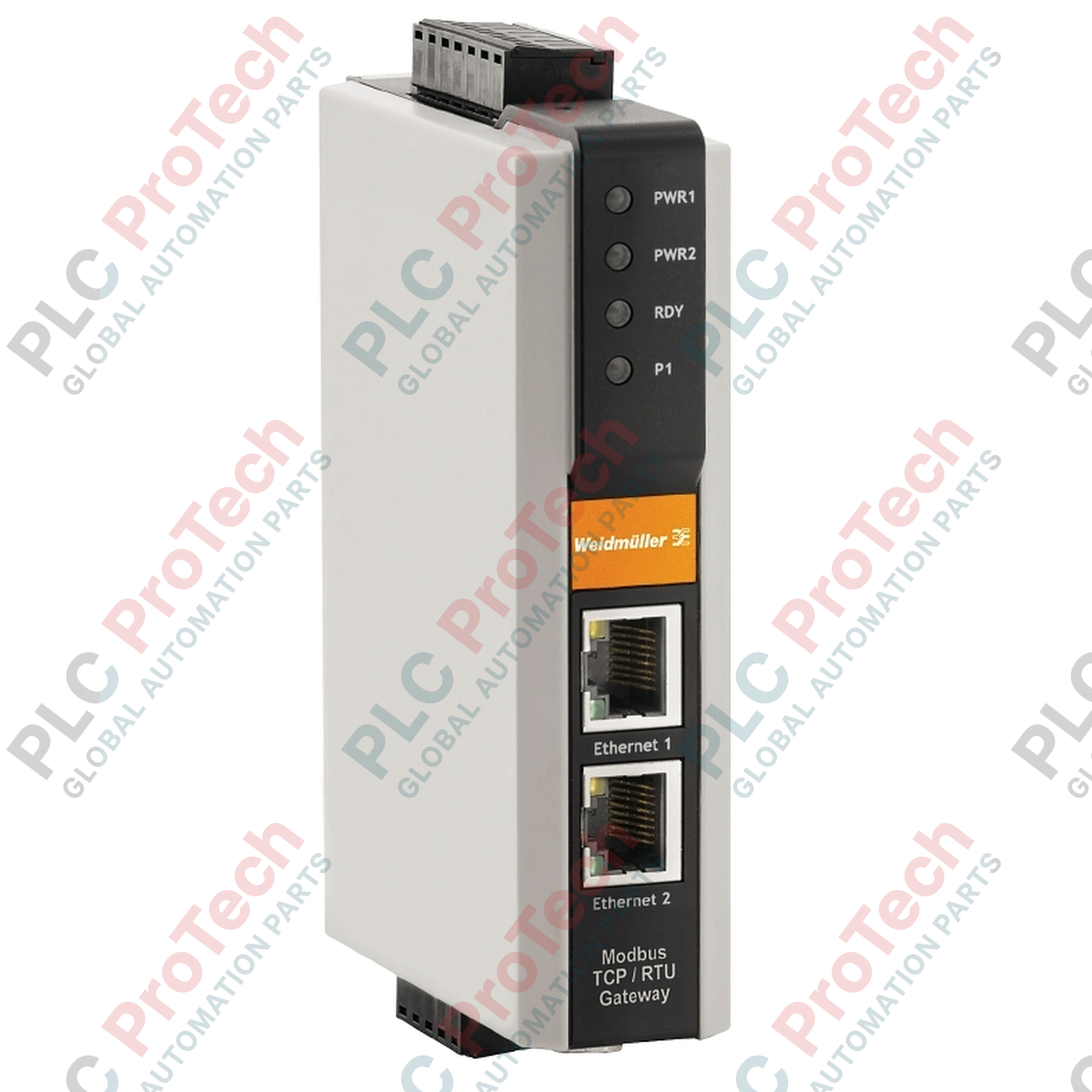

Bridging the gap between legacy serial infrastructure and modern industrial Ethernet networks is efficiently managed by the Weidmuller 1504460000 (Model IE-GW-MB-2TX-1RS232/485), a high-reliability Modbus TCP to RTU/ASCII gateway. This device enables seamless communication between Modbus TCP clients and up to 31 Modbus RTU/ASCII serial slave devices, ensuring high-speed data translation across diverse automation layers.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Weidmuller |
| Article Number (SKU) | 1504460000 |
| Model Designation | IE-GW-MB-2TX-1RS232/485 |
| Ethernet Ports | 2 x RJ45 (10/100BaseT(X)), Auto MDI/MDI-X |
| Serial Port | 1 x RS-232/422/485 (Software Selectable) |
| Supply Voltage | 24 V DC (Redundant inputs) |
| Connection Type | 1 x Removable 7-pole terminal block |
| Operating Temperature | 0 degC to 60 degC |
| Storage Temperature | -40 degC to 85 degC |
| Ambient Humidity | 5% to 95% (non-condensing) |
| Protection Class | IP30 |
| Mounting Type | DIN rail (TS 35) |
| Dimensions (W x H x D) | 29 mm x 124.5 mm x 89.2 mm |
| Net Weight | 190 g |
| Shipping Weight (Calculated) | 1.0 kg |
| Terminal / Pin | Function Assignment |
|---|---|
| Pin 1 | V1+ (Primary Power Input +) |
| Pin 2 | V1- (Primary Power Input -) |
| Pin 3 | Functional Earth / Ground |
| Pin 4 | V2+ (Redundant Power Input +) |
| Pin 5 | V2- (Redundant Power Input -) |
| Pin 6 | Relay Contact (Fault Output) |
| Pin 7 | Relay Contact (Fault Output) |
The IE-GW-MB-2TX-1RS232/485 serves as a direct upgrade path for older serial-to-Ethernet converters. It is fully compatible with standard Modbus TCP client drivers found in modern PLC platforms (such as Siemens S7, Rockwell ControlLogix, and Schneider Modicon) without requiring custom driver blocks.
When configuring RS-485 2-wire communication, ensure that the appropriate termination resistors (typically 120 ohms) are installed at both physical ends of the serial bus. Failure to terminate the line can result in signal reflection, leading to intermittent CRC errors and communication timeouts, especially at baud rates exceeding 19200 bps.
Initial setup is performed via the integrated web-based management interface. Ensure your commissioning PC is configured on the same subnet as the gateway's default factory IP address. Always ground the functional earth pin (Pin 3) to the central cabinet ground plane to safeguard the internal transceiver components against transient voltage spikes.
CRITICAL WARNING
Isolate all power sources before mounting, wiring, or servicing the gateway. Do not insert or remove the 7-pole terminal block while the circuits are energized to prevent electrical arcing and potential damage to the internal electronics.
Snap the gateway securely onto a standard TS 35 DIN rail, ensuring the metal grounding spring on the rear makes firm contact with the rail.
Connect the serial communication lines (RS-232 or RS-485) to the designated serial port interface using shielded cabling.
Wire the redundant 24 V DC power supplies to the 7-pole terminal block, ensuring correct polarity before plugging the connector into the unit.
Connect the RJ45 Ethernet cables to the 2TX ports to integrate the gateway into your local industrial Ethernet network.
Global Express Shipping
Returns & Warranty
Manufacturer: Weidmuller
Product No.: IE-GW-MB-2TX-1RS232/485
Country of origin:Germany
Product Type: Modbus Gateways
Payment: T/T, Western Union
Weight: 1000g
Dimensions: 29 mm x 124.5 mm x 89.2 mm
Shipping port: Xiamen
Warranty: 12 months
